IntriCon APT-D Manuel utilisateur

Doc 22556 Rev C ECO 58875 (10/28/19)

1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944

Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18

www.intricon.com

APT-D Fitting Recommendations

The fitting goal is to provide a comfortable and secure fit with a minimal amount of

occlusion, while providing a pleasing appearance.

The ideal device placement is to position the faceplate slightly past the tragus into the

canal. The body of the device should allow gaps between its shell and the canal wall. The

tip should ideally not come in contact with the canal wall. The faceplate should not be

visible from the front and may be slightly visible from the side (fig 1).

Figure 1

Selecting the appropriate D-Ring

Step 1: Check to be sure the ear canal is large enough to hold the body of the

APT-D (see Inserting APT-D into Ear below). If the canal is too small,

the APT-D is not an appropriate device for this client.

Step 2: Medium D-Ring - Attach the medium D-Ring to the APT-D body

(see Attaching D-Ring to APT-D Body below).

Step 3: Insert the APT-D into ear (see Inserting APT-D into Ear below). If the D-

Ring will not fit or is deformed when it is in the ear then go to step 7

Small D-Ring.

1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944

Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18

www.intricon.com

Step 4: If the D-Ring fits into ear, check to be sure it does not apply too much

pressure. If there is too much pressure, then go to step 7 Small D-Ring.

Step 5: Check to be sure the D-Ring is not too loose in the ear (small red D-Ring

in fig 2). If it is too loose then go to step 11 Large D-Ring.

Step 6: The APT-D with Medium D-Ring should be making contact with multiple

points in the concha walls and the top fold of the D-Ring should be

comfortably tucked into the top of the concha (see green D-Ring in fig 2).

The medium D-Ring is the proper choice. Continue with fitting.

Figure 2 (Green is correct size, Red is too large or too small)

Step 7: Small D-Ring - Remove medium D-Ring and attach the small D-Ring to

the APT-D Body (see Removing the APT-D D-Ring below).

Step 8: Insert the APT-D into ear (see Inserting APT-D into Ear below). If the D-

Ring will not fit or is deformed when it is in the ear then Stop –The APT-

D is not an appropriate device try an open fit BTE.

Step 9: If the APT-D with small D-Ring is too loose then try the medium D-Ring

again and make a determination if the small or medium D-Ring is best. A

loose fit is preferable to a tight fit.

Step 10: The APT-D with Small D-Ring should be making contact with multiple

points in the concha walls and the top fold of the D-Ring should be

comfortably tucked into the top of the concha (fig 2). The small D-Ring is

the proper choice. Continue with fitting.

1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944

Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18

www.intricon.com

Step 11: Large D-Ring - Remove medium D-Ring and attach the large D-Ring to

the APT-D Body (see Removing the APT-D D-Ring below).

Step 12: Insert the APT-D into ear (see Inserting APT-D into Ear below). If the D-

Ring will not fit, is deformed when it is in the ear, or causes pressure then

try the medium D-Ring again and make a determination if the large or

medium D-Ring is best. A loose fit is preferable to a tight fit.

Step 13 If the APT-D with large D-Ring is so loose that it could fall out then Stop

–The APT-D is not an appropriate device try an open fit BTE.

Step 14: The APT-D with Large D-Ring should be making contact with multiple

points in the concha walls and the top fold of the D-Ring should be

comfortably tucked into the top of the concha (fig 2). The large D-Ring is

the proper choice. Continue with fitting.

The user’s ability to insert the device may also factor into the D-Ring size selection. If

the user is having difficulty inserting the device, they may need to try the next size smaller.

Attaching the D-Ring to the APT-D Body

The APT-D body is designed to work for either the left or right ear. Attaching the D-

Ring to the body will make the APT-D into a left or right device.

Selecting the correct side D-Ring. A D-Ring with red dot(s) is for the right side and a D-

Ring with blue dot(s) is for the left side.

Size is indicated by a color dot scheme located on the bottom D-Ring clip: one Blue/Red

dot and a white dot indicate a large size D-Ring; two Blue/Red dots indicate a medium

size D-Ring, and one Blue/Red dot indicates a small size D-Ring. (See below for

examples):

Left D-Ring - With the correct size D-Ring, hold the body of the device in your left hand

and the D-Ring in your right hand. Check to be sure the battery door of the device swings

up and the blue color dot(s) on the D-Ring are facing you. First, attach the bottom of the

Left Small

Right Small

Left Medium

Right Medium

Left Large

Right Large

1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944

Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18

www.intricon.com

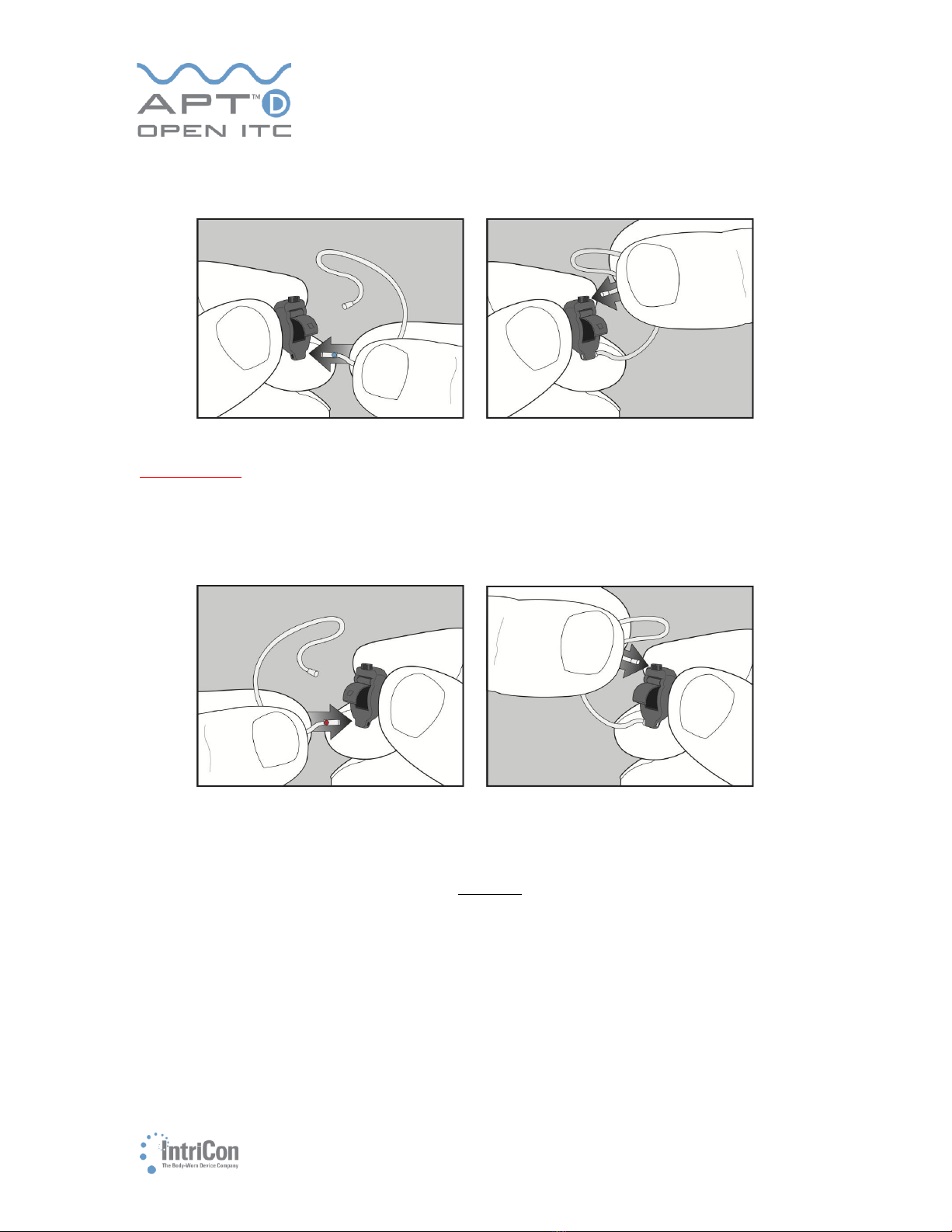

D-Ring by pushing it into the bottom clip holder on the device (fig 3). Now attach the top

of the D-Ring by pushing it into the top clip holder (fig 4).

Figure 3 Figure 4

Right D-Ring - With the correct size D-Ring, hold the body of the device in your right

hand and the D-Ring in your left hand. Check to be sure the battery door of the device

swings up and the red color dot(s) on the D-Ring are facing you. First, attach the bottom

of the D-Ring by pushing it into the bottom clip holder on the device (fig 5). Now attach

the top of the D-Ring by pushing it into the top clip holder (fig 6).

Figure 5 Figure 6

Removing the APT-D D-Ring

To remove the APT-D D-Ring, pull in the opposite direction in which it is shown to

attach them above. Hold the device in one hand. Then pull at the upper and lower clips

with the other hand until the D-Ring releases from the unit. It is very important that you

hold the D-Ring as close to the clip as possible to prevent any damage to the D-Ring.

1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944

Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18

www.intricon.com

Inserting APT-D into Ear

Left Ear –Hold the APT-D with your left thumb and index finger (see figure 7).

Figure 7

With the APT-D in your left hand, move the device up to your ear (fig 8). Begin inserting

the device by directing the nose of the device a short distance down the ear canal towards

the ear drum (fig 9). Gently push the D-Ring into the concha from the bottom (fig 10) and

the top (fig 11). Make sure that the top of the D-Ring is securely tucked into the top of

the concha area. Run your finger around the D-Ring to ensure that the D-Ring is not

slipping out of the concha.

Figure 8 Figure 9

1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944

Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18

www.intricon.com

Figure 10 Figure 11

Right Ear –Hold the APT-D with your right thumb and index finger (fig 12).

Figure 12

Repeat the instructions for the left ear with the device in your right hand. Figures 8 thru

11 apply, but the motions will take place on your right side.

The D-Ring should hold the APT-D body securely in place while also positioning it

correctly in the ear canal. Allow the D-Ring to hold the device in place instead of pushing

it too far down the canal. (A loose fit is preferable to a fit that causes pressure on the ear

or in the canal). When a user is first learning how to insert the APT-D into their ear, a

mirror or finding someone to assist is highly recommended.

Removing the APT-D from the Ear

1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944

Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18

www.intricon.com

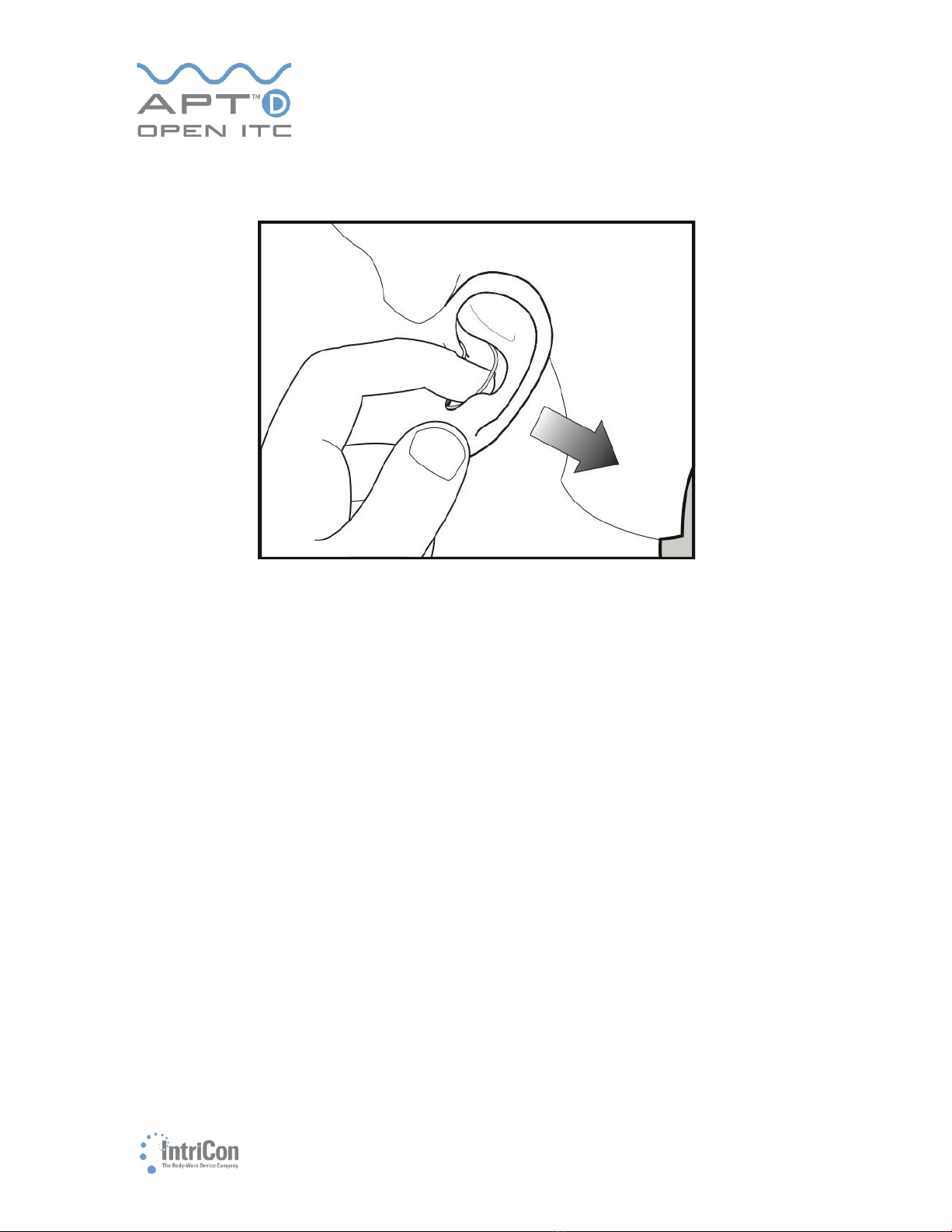

Run the index finger of the appropriate hand around the edge of the concha until the

finger is able to pull the D-Ring (fig 13). Then pull the D-Ring and device out of the ear.

Figure 13

APT-D Acoustic Push Button

The acoustic push button has four settings: Off, Single Tap, Double Tap and Hold &

Double Tap. For all types of switch functionality, the fingers should be held together and

the finger tips should lightly tap the outer part of the ear (fig 14). The tap should be a flat

pat on the ear that generates a “thud”like sound. It is the specific pressure wave

generated by this pat that actuates the switch. The pat should be soft and should never be

painful or severe enough to cause ringing in your ear.

1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944

Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18

www.intricon.com

Figure 14

Single Tap –Tap once to change the memory. This is the simplest to operate. This setting

may be falsely triggered by environmental noises such as a car door closing. If the user is

comfortable changing back to their preferred program if this occurs, this may be the

appropriate setting.

Double Tap –This requires two taps about ½ second apart to change memories. The

double tap switch option is less sensitive to false triggers than the single tap. This is the

recommended switch mode for new users.

Hold and Double Tap –This switch requires the fingers to be held over the canal opening

for about one second followed by two taps. This mode is the least prone to false triggers.

Notes regarding the different switching modes.

-A few minutes of practice is typically sufficient for the wearer to become

comfortable with the tap function.

-If the switch does not work, remove the hand and wait two seconds and try

again.

-Operating the tap switch does NOT require the device to be touched.

Inserting and Extracting the Wax Guard

1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944

Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18

www.intricon.com

The APT-D is designed for a shallow location in the ear canal, so wax is typically less of

an issue than with traditional ITEs. Still, a wax guard is used to insure against wax

damage to the receiver. A wax guard tool is used for the removal and insertion of the wax

guards. The threaded end of the tool is used for removing the used wax guard and the

opposite end is used for inserting a new wax guard (fig 15).

Figure 15

Using a Lapel Clip to Position the Programming Cable

A lapel clip can be used to support the programming cable during a fitting session. This

helps prevent the weight of the cable from pulling the device out of the patient’s ear (fig

16).

1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944

Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18

www.intricon.com

Figure 16
