Intratone Intracall 14-0144 Guide de démarrage rapide
V233 –5024 –AA Page 1 / 9
INSTALLING AND CONNECTING THE
INTRATONE INTRACALL INTERCOM
GENERAL POINTS
The INTRACALL (14-0144) audio intercom is ideal for professional and private use. It
connects to an Intratone Telecom module for optimised installation and management.
This guide describes the connection and set-up procedure for the INTRATONE
INTRACALLintercom.
The Intratone INTRACALL intercom
Operating warranty:
The intercom is guaranteed within a temperature range of -20°C to +70°C and a level of
relative humidity not exceeding 70%.
End-of-life recycling of the product:
The intercom and its accessories must not be disposed of with unsorted
municipal waste, but must follow the WEEE (Waste Electrical and Electronic
Equipment) collection and recycling channel).
V233 –5024 –AA Page 2 / 9
TABLE OF CONTENTS
GENERAL POINTS-----------------------------------------1
TABLE OF CONTENTS -----------------------------------2
DIMENSIONS-------------------------------------------------3
A) DIMENSIONS OF THE BUILT-IN WALL BOX AND SURFACE-MOUNTED BOX--------3
B) INTERCOM DIMENSIONS ---------------------------------------------------------------4
WIRING --------------------------------------------------------5
A) WIRING WITH A 3G UNIT AND A RELAY BOARD (12-0110)------------------------5
B) WIRING WITH A TWO-DOOR CENTRAL UNIT (03-0101)---------------------------- 6
EQUIPMENT CONFIGURATION------------------------7
A) EQUIPMENT PROGRAMMING ---------------------------------------------------------- 7
B) INTERCOM SETTINGS ------------------------------------------------------------------8
POST-INSTALLATION CHECK -------------------------8
TROUBLESHOOTING -------------------------------------8
CERTIFICATE OF CONFORMITY----------------------9
V233 –5024 –AA Page 3 / 9
DIMENSIONS
A) DIMENSIONS OF THE BUILT-IN WALL BOX AND SURFACE-MOUNTED BOX
Top
Botto
m
Surface-
mounted box
(optional)
Top
Botto
m
Built-in wall
box
(included)
V233 –5024 –AA Page 4 / 9
B) INTERCOM DIMENSIONS
V233 –5024 –AA Page 5 / 9
WIRING

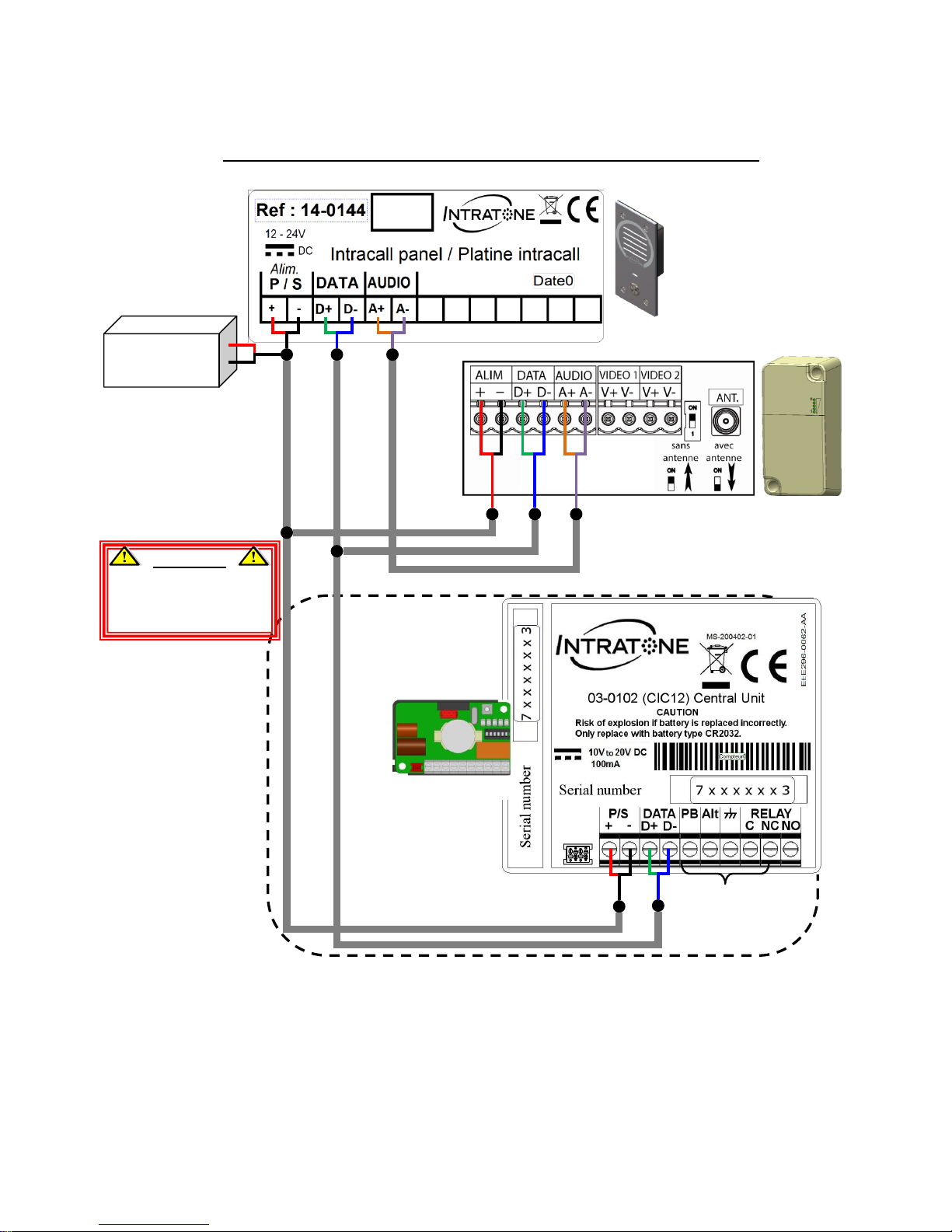

A) WIRING WITH A 3G UNIT AND A CIC12 CENTRAL UNIT (03-0102)
Up to three 12-0110 relay cards maximum can be added to this central unit to allow four
doors to be opened together or separately.
Power supply
12-24 DC 2A
3G
Module
Optional
assembly for
door opening
Exit push button and
door contact input
Wiring info:
-Twisted cable, 0.8 mm
diameter
-100 metres max.
between each system
component
03-0102 CIC12
V233 –5024 –AA Page 6 / 9
B) WIRING WITH A TWO-DOOR CENTRAL UNIT (03-0101)
Intercom wiring to connectors 3 and 4 is the same when an extension board is used
(12-0109).
Power supply
12-24 DC 2A
Module
3G
Pushbutton, mail
alert and door
contact input
03-0101
See central unit
guide
V231-5001
Wiring info:
-Twisted cable, 0.8mm diameter
-100 metres max. between each
system component
V233 –5024 –AA Page 7 / 9
Configurer
Configurer
EQUIPMENT CONFIGURATION
A) EQUIPMENT PROGRAMMING
The call number programming procedure for this intercom is configured online on
www.intratone.com
After logging into your account and creating your apartment building, just declare your
Intracall intercom using the “Create” button and follow the instructions on screen.
After naming it, and depending on your configuration, you will be asked for the serial
number of the central unit and the GSM unit contract reference.
CENTRAL UNIT: hardware match
To configure the call numbers, click on your access point to the apartment block and then
click on the “Configure” button.
Define caretaker call(s)
You can then define up to 8 different numbers for each 24-hour period using the time slots
configurable online.
Call programming example:
NB: For 3G audio subscriptions, the number of programmed numbers must not
exceed the number of records stated in your subscription.
Create
Create
V233 –5024 –AA Page 8 / 9
B) INTERCOM SETTINGS
Use the “Configure me” item in the “Central units” menu to adjust different settings. For
instance: volume, number of ring tones, etc.
POST-INSTALLATION CHECK
- Checking audio call quality during a call.
- Check that the resident is able to open the door by pressing the *key on the
telephone (default) while calling.
TROUBLESHOOTING
Failure
Reason
Resolution
Audio interference
Poor 3G unit reception
Move unit, install an antenna
Call button ineffective
No call number recorded
Check programming
No back-lighting on name
holders
Check power supply at
intercom terminals
Resident can hardly hear
visitors during calls
Microphone obstructed
Clean the microphone port
The intercom calls the
telephone correctly but no
sound or voice synthesis
heard
Incorrect wiring on the A+
and/or A- terminal blocks
Check audio bus wiring
Contact our technical services (+33 (0)2 51 65 51 84)
V233 –5024 –AA Page 9 / 9
CERTIFICATE OF CONFORMITY
