(333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 03/30/2022

IMPORTANT

SAFETY RULES

Read, understand, and follow all

instructions carefully before installing

and using this product. Keep for future

reference.

Ladder with

Removable Steps

Model: 42” (107 cm)

Don’t forget to try these other fine Intex products: Pools, Pool

Accessories, Inflatable Pools and In-Home Toys, Airbeds and

Boats available at fine retailers or visit our website.

Due to a policy of continuous product improvement, Intex reserves

the right to change specifications and appearance, which may

result in updates to the instruction manual, without notice.

333-*A*-R0-2304

OWNER’S MANUAL

For illustrative purposes only.

Gedruckt in China.

®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous

licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in

einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong &

Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans

l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,

Ettenseweg 46, 4706 PB Roosendaal – The Netherlands • Distributed in the UK by Unitex Service (UK) Limited,

21 Holborn Viaduct, London EC1A 2DY, UK.

www.intexcorp.com

(333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 03/30/2022

333

SAVE THESE INSTRUCTIONS

Page 2

TABLE OF CONTENTS

Warnings........................................................................................................... 3

Parts References.............................................................................................. 4

Setup Instructions...............................................

....................................

......... 5-9

Long Term Storage.......................................................................................... 9

General Aquatic Safety..........................................

....................................

...... 10

Limited Warranty.....................

.......................................

.................................. 11

(333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 03/30/2022

333

SAVE THESE INSTRUCTIONS

Page 3

IMPORTANT SAFETY RULES

Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.

WARNING

• Supervise children and those with disabilities at all times.

• Always assist children when they use the ladder to avoid falls

and/or serious injury.

• Never dive or jump from this ladder.

• Locate the ladder on a level, solid base.

• One person on this ladder at a time.

• Maximum load: 300 lbs (136 kg). Complies with EN16582

strength requirements.

• Face the ladder at all times for entry/exit of pool.

• Remove and secure ladder when pool is not occupied.

• Do not swim under, through or behind ladder.

• Check all nuts and bolts regularly to ensure ladder stays sturdy.

• If swimming at night use artificial lighting to illuminate all safety

signs, ladders, pool floor and walkways.

• Assembly and disassembly by adults only.

• This ladder is designed and manufactured for a specific pool wall

height and/or deck of the pool. Do not use with other pools.

• Failure to follow the maintenance instructions and warnings may

result in adverse health effects or injury, particularly to children.

• Only use this ladder for the purposes described in this manual.

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN

BROKEN BONES, ENTRAPMENT, PARALYSIS, DROWNING OR

OTHER SERIOUS INJURY.

These product warnings, instructions and safety rules provided with

the product represent some common risks of water recreation

devices and do not cover all instances of risk and danger. Please

use common sense and good judgment when enjoying any water

activity.

(333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 03/30/2022

333

SAVE THESE INSTRUCTIONS

Page 4

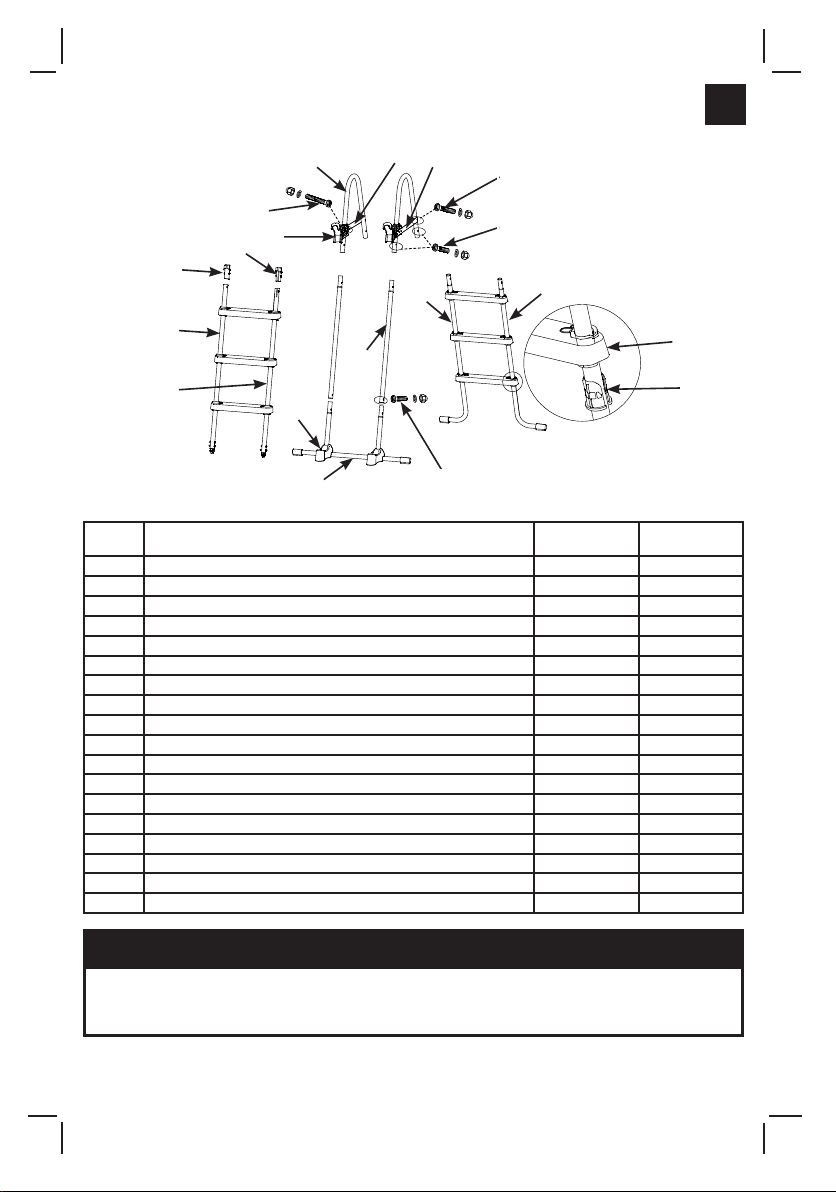

PARTS REFERENCE

Before assembling your product, please take a few minutes to check the contents

and become familiar with all the parts.

NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

5 (M6*45)

16 (M6*40)

17 (M6*35)

REF.

NO. DESCRIPTION QUANTITIES SPARE PART

NUMBER

U-SHAPED TOP RAIL 2 12637A

TOP BRACE (CLASP INCLUDED) 1 12524A

TOP BRACE WITH LOCKING SYSTEM (CLASP INCLUDED)

1 12525A

CLASP 2 12179

FASTENER (WITH 1 EXTRA) 3 12268

A SIDE (MARKED “A”) 1 12647AA

A SIDE (MARKED “B”) 1 12647AB

STEP 6 12629

STEP ANCHOR SLEEVE 12 12630

B SIDE PIPE END CAP (MARKED “A1”) 1 12558A

B SIDE PIPE END CAP (MARKED “B1”) 1 12558B

B SIDE (MARKED “A1”) 1 12648AA

B SIDE (MARKED “B1”) 1 12648AB

14 C SIDE - UPPER SIDE LEG (MARKED “C”) 2 12649A

15 C SIDE - LOWER U-SHAPED SIDE LEG (MARKED “C”) 1 12650A

FASTENER (WITH 1 EXTRA) 3 10227

FASTENER (WITH 1 EXTRA) 7 10810

SUPPORT BASE 2 11356

IMPORTANT

It is very important to lay out the parts correctly and identify which parts connect

together before starting the assembly. Although some parts look alike, they are

not always interchangeable. Refer to the parts list.

(333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 03/30/2022

333

SAVE THESE INSTRUCTIONS

Page 5

LADDER SETUP

TOOLS REQUIRED: One (1) Phillips screwdriver, one (1) small flat screwdriver

One (1) pair of pliers or a small adjustable wrench

Estimated assembly time 30-60 minutes. (Note the assembly time is only approximate

and individual assembly experience may vary.)

1. SIDE A LEGS ASSEMBLY (refer to figures 1.1 through 1.3):

WARNING

INCORRECTLY CONNECTED PARTS MAY RESULT IN AN UNSTABLE LADDER OR

LADDER FAILURE WHICH CAN CAUSE FALLING AND PERSONAL INJURY OR DEATH.

IMPORTANT: Ensure the J-shaped legs are pointing outwards before installing the steps.

1.1

1.2

1.3

(333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 03/30/2022

333

SAVE THESE INSTRUCTIONS

Page 6

LADDER SETUP (continued)

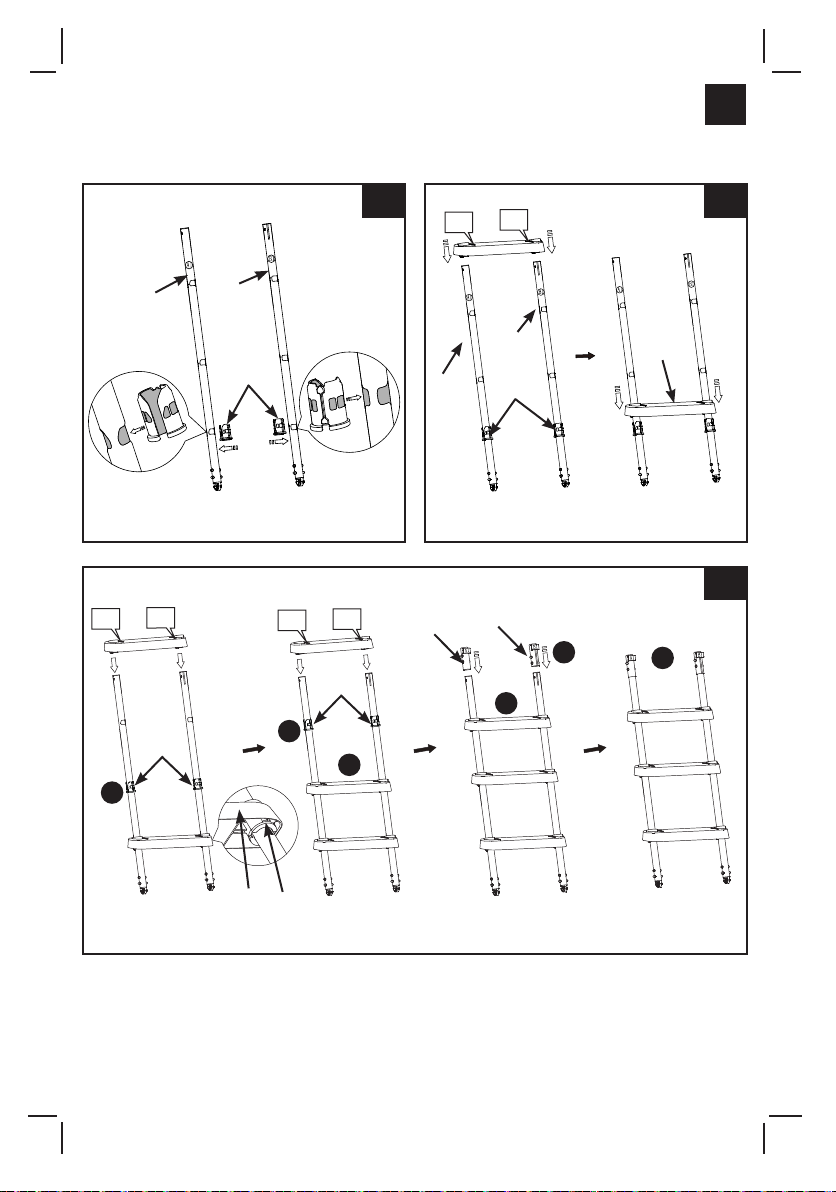

2. SIDE B LEGS ASSEMBLY (refer to figures 2.1 through 2.3):

A1 B1

2.1

2.2

A1 A1

B1 B1

A1 A1 A1

B1 B1 B1

10 11

2.3

AAA1 B1

(333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 03/30/2022

333

SAVE THESE INSTRUCTIONS

Page 7

LADDER SETUP (continued)

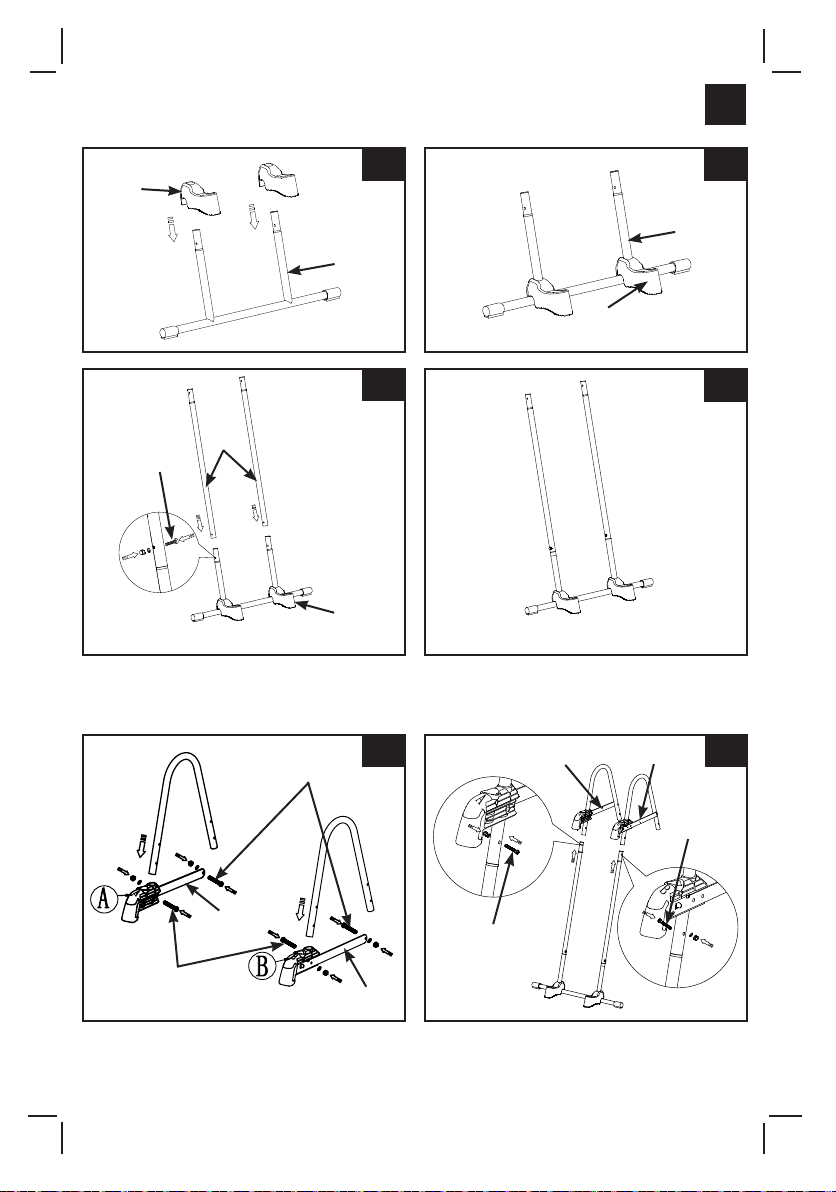

3. SIDE C LEGS ASSEMBLY (refer to figures 3.1 through 3.4):

4. U-SHAPED TOP RAIL INSTALLATION (refer to figures 4.1 through 4.2):

IMPORTANT: Make sure the “top brace with locking system” (3) feature is facing outward

(your right side when facing the C legs assembly).

17 (M6*35)

3.3

3.4

3.1

5 (M6*45)

16 (M6*40)

12524A

12525A

4.1

17 (M6*35)

12525A

12524A 4.2

3.2

(333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 03/30/2022

333

SAVE THESE INSTRUCTIONS

Page 8

LADDER SETUP (continued)

5. SIDE A & B LEGS INSTALLATION (refer to figure 5):

IMPORTANT: Do not fully tighten fasterners until last assembly operation.

6. MAINTENANCE: Regularly check all nuts, bolts, steps and step anchor sleeves to ensure

all parts are secured properly and the ladder is sturdy.

7. BEFORE USE OF LADDER (refer to figure 6):

With all parts now in place, verify that all fasteners/screws are fully tightened and apply

downward pressure to each step to be sure they are fully anchored in place.

IMPORTANT: The removable steps side must be located outside of the pool.

17 (M6*35) 5

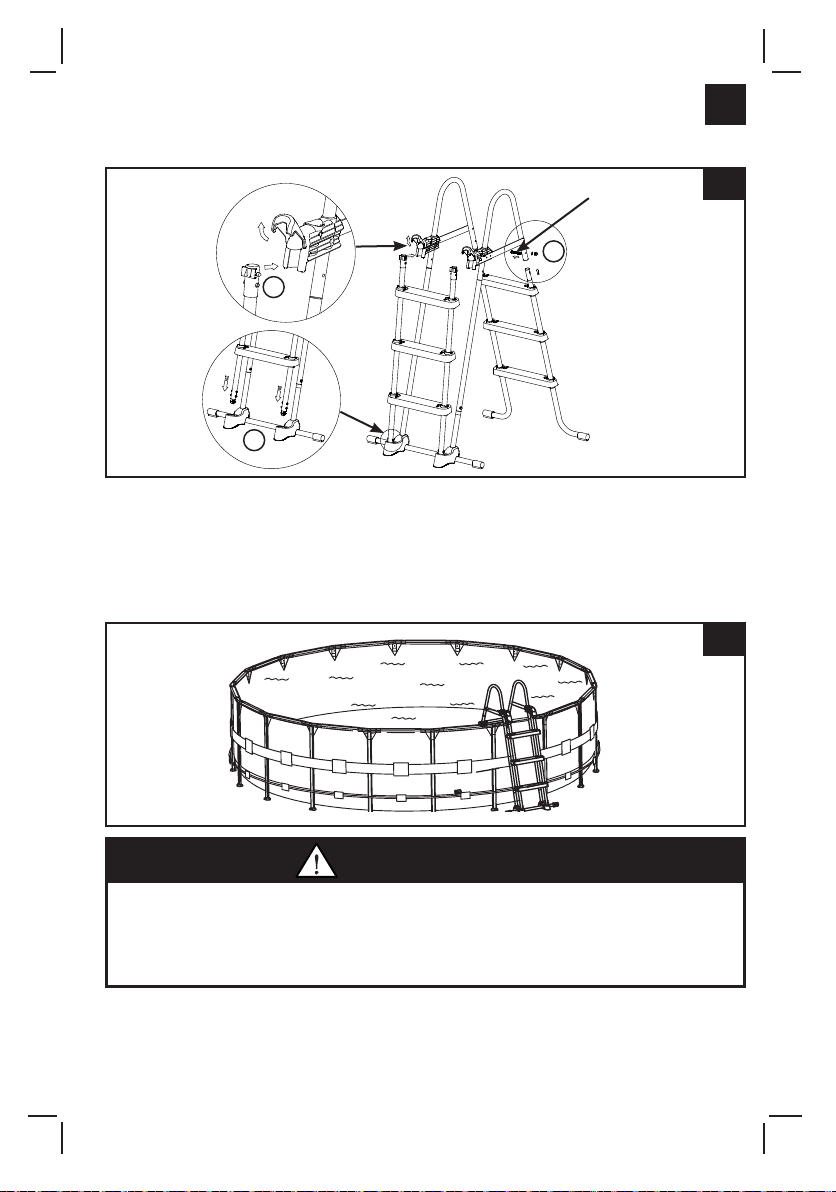

WARNING

WHEN NOT IN USE, LADDER SHOULD BE KEPT IN SAFETY POSITION.

REMOVE THE FRONT STEPS SIDE WHEN THE POOL IS NOT IN USE OR

OCCUPIED. STORE THE REMOVABLE STEPS SIDE IN A SAFE PLACE

AWAY FROM CHILDREN REACH. CLOSE THE CLASPS BACK

SAVE THE CARTON FOR STORAGE AND THE INSTRUCTIONS FOR RE-ASSEMBLY

(333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 03/30/2022

333

SAVE THESE INSTRUCTIONS

Page 9

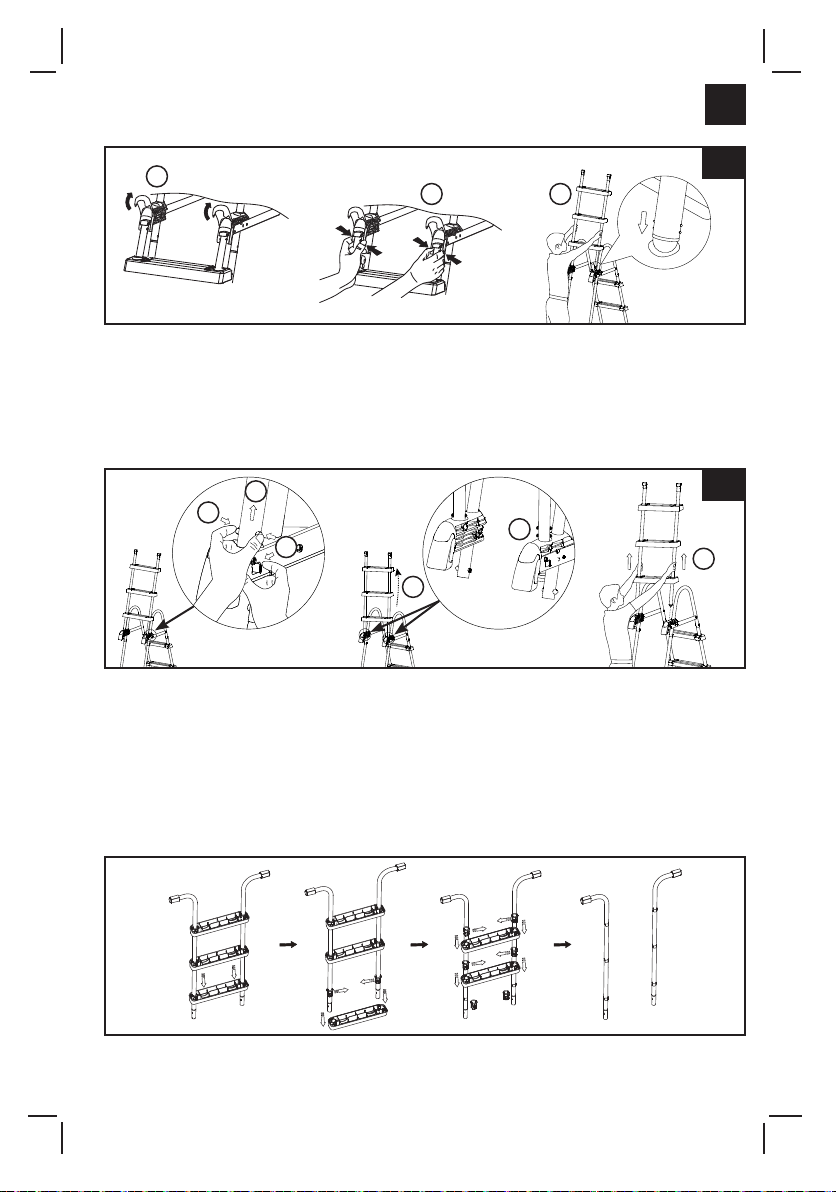

8. AFTER USE OF LADDER (refer to figure 7):

9. REMOVING THE STEPS FROM THE SECURED POSITION (refer to figure 8):

a) With your right hand pull and hold the latch towards you, while at the same time with

your left hand press the white protruding buttons and simultaneously lift that leg out of

the cavity exposing the lower white protruding buttons.

b) Allow the leg to rest over the top brace (make sure it does not fall back into the cavity),

and quickly lift up the “removable step assembly” out of its secured position.

c) See step 5 for re-attaching the removable steps.

WINTERIZING / LONG TERM STORAGE

1. Remove the “removable steps” as shown in the After Use of Ladder section, see figure 7.

2. Remove the ladder from the pool, and make sure the ladder and the removable steps are

thoroughly dry before long term storage.

3. Bring the ladder and all its components indoors and store in a safe and dry area, preferably

between 32°F (0°C) and 104°F (40°C).

4. Be sure the ladder and all components are stored in a safe place away from children’s

reach.

5. Step disassembly:

Press

and

Pull

Press

and

Pull

LADDER SETUP (continued)
