Intex 28076 Manuel utilisateur
332A
English
(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 06/15/2020
IMPORTANT
SAFETY RULES
Read, understand, and follow all
instructions carefully before installing
and using this product.
Ladder with
Removable Steps
48” (122 cm) & 52” (132 cm) models
332-*A*-R0-2106
OWNER’S MANUAL
For illustrative purposes only. 52” (132cm) Shown
©2020 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Recreation
Corp. All rights reserved/Tous droits réservés/Todos los derechos reservados/
Alle Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/
Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous
licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in
einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., G.P.O Box
28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European
Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union
durch/Intex Trading B.V., Venneveld 9, 4705 RR Roosendaal – The Netherlands
www.intexcorp.com
Don’t forget to try these other fine Intex products: Pools, Pool
Accessories, Inflatable Pools and In-Home Toys, Airbeds and
Boats available at fine retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifications and appearance, which may
result in updates to the instruction manual, without notice.
(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 06/15/2020
332A
SAVE THESE INSTRUCTIONS
Page 2
TABLE OF CONTENTS
Warnings........................................................................................................... 3
Parts References.............................................................................................. 4-5
Setup Instructions...............................................................................
..........
... 6-12
Long Term Storage.......................................................................................... 12
General Aquatic Safety.....................................................
......................
........ 13
Limited Warranty..............................................................
.......................
........ 14
(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 06/15/2020
332A
SAVE THESE INSTRUCTIONS
Page 3
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
WARNING
• Supervise children and those with disabilities at all times.
• Always assist children when they use the ladder to avoid falls
and/or serious injury.
• Never dive or jump from this ladder.
• Locate the ladder on a level, solid base.
• One person on this ladder at a time.
• Maximum load: 300 lbs (136 kg). Complies with EN16582
strength requirements.
• Face the ladder at all times for entry/exit of pool.
• Remove and secure ladder when pool is not occupied.
• Do not swim under, through or behind ladder.
• Check all nuts and bolts regularly to ensure ladder stays sturdy.
• If swimming at night use artificial lighting to illuminate all safety
signs, ladders, pool floor and walkways.
• Assembly and disassembly by adults only.
• This ladder is designed and manufactured for a specific pool wall
height and/or deck of the pool. Do not use with other pools.
• Failure to follow the maintenance instructions and warnings may
result in adverse health effects or injury, particularly to children.
• Only use this ladder for the purposes described in this manual.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN
BROKEN BONES, ENTRAPMENT, PARALYSIS, DROWNING OR
OTHER SERIOUS INJURY.
These product warnings, instructions and safety rules provided with
the product represent some common risks of water recreation
devices and do not cover all instances of risk and danger. Please
use common sense and good judgment when enjoying any water
activity.
(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 06/15/2020
332A
SAVE THESE INSTRUCTIONS
Page 4
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
48" (122 cm) model
52” (132 cm) model
4 (M6*35)
5 (M6*40)
2
1
3
12
13
4 (M6*35)
4
(M6*35)
14
15
10 11
8
9
6
7
17 18
16
4 (M6*35)
2
1
4 (M6*35)
5 (M6*40)
10
17 18
7
9
6
8
11
16
3
12
4 (M6*35)
13
14
15 4
(M6*35)
(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 06/15/2020
332A
SAVE THESE INSTRUCTIONS
Page 5
PARTS REFERENCE (continued)
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
REF.
NO.
DESCRIPTION
QUANTITY SPARE PART NO.
48" 52"
48" 52" #28076 #28077
1 U-SHAPED TOP RAIL 2 2 12512A 12512A
2
TOP PLATFORM 1 1 12182 12182
3 CLASP 2 2 12190 12190
4
SHORT FASTENER FOR U-SHAPED TOP RAIL
(WITH 1 EXTRA) 11 9 10810 10810
5 LONG FASTENER FOR TOP PLATFORM (WITH
1 EXTRA) 5 5 10227 10227
6
A SIDE - UPPER SIDE LEG (MARKED “A”) 1 1 12669AA 12643AA
7
A SIDE - UPPER SIDE LEG (MARKED “B”) 1 1 12669AB 12643AB
8
A SIDE - LOWER J- LEG (MARKED “A”) 1 1 12670AA 12644AA
9
A SIDE - LOWER J- LEG (MARKED “B”) 1 1 12670AB 12644AB
10
STEP 6812629 12629
11
STEP ANCHOR SLEEVE 12 16 12630 12630
12 B SIDE - UPPER SIDE LEG (MARKED “A1”) 1 1 12653AA 12653AA
13 B SIDE - UPPER SIDE LEG (MARKED “B1”) 1 1 12653AB 12653AB
14 B SIDE - LOWER SIDE LEG (MARKED “A1”) 1 1 12651AA 12654AA
15 B SIDE - LOWER SIDE LEG (MARKED “B1”) 1 1 12651AB 12654AB
16 C SIDE - UPPER SIDE LEG (MARKED “C”) 2 2 12652A 12655A
17 C SIDE - LOWER U-SHAPED SIDE LEG (MARKED “C”) 1 1 12650A 12650A
18 SUPPORT BASE 2 2 11356 11356
IMPORTANT
It is very important to lay out the parts correctly and identify which parts connect
together before starting the assembly. Although some parts look alike, they are
not always interchangeable. Refer to the parts list.
This ladder is designed and manufactured for Intex pool wall height:
Item # Pool Wall Height Item # Pool Wall Height
28076 48” (122cm) 28077 52” (132cm)
(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 06/15/2020
332A
SAVE THESE INSTRUCTIONS
Page 6
1. SIDE A LEGS ASSEMBLY (refer to figures 1.1 through 1.4):
WARNING
INCORRECTLY CONNECTED PARTS MAY RESULT IN AN UNSTABLE LADDER OR
LADDER FAILURE WHICH CAN CAUSE FALLING AND PERSONAL INJURY OR DEATH.
IMPORTANT: Ensure the J-shaped legs are pointing outwards before installing the steps.
LADDER SETUP
TOOLS REQUIRED: One (1) Phillips screwdriver, one (1) small flat screwdriver
One (1) pair of pliers or a small adjustable wrench
Estimated assembly time 30-60 minutes. (Note the assembly time is only approximate
and individual assembly experience may vary.)
AB
11
8
9
1.1
11
8
910
AB
1.2
AB
1.3
AA A
BB B
A A
A
A
B B
B
B
11
11
11
10 11
1
3
5
6
4
2
(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 06/15/2020
332A
SAVE THESE INSTRUCTIONS
Page 7
• UPPER SIDE A LEGS ASSEMBLY (refer to figure 1.4):
2. SIDE B LEGS ASSEMBLY (refer to figures 2.1 through 2.4):
LADDER SETUP (continued)
A1 B1
14
15
11
2.1
8
Press,hold
and insert
9
A
A
B
B
7
6
Spring pin
FOR 52" (132 cm)
1.4
A
A
B
B
7
6
FOR 48" (122 cm)
4 (M6*35)
8
9
A1 B1
14 15
11
10
A1 B1
2.2
AB
(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 06/15/2020
332A
SAVE THESE INSTRUCTIONS
Page 8
LADDER SETUP (continued)
A1
A1
A1
B1
B1
B1
4 (M6*35)
12
12
14 14
13
13
15 15
2.4
A1 A1
A1
A1
B1 B1
B1
B1
11
11
10 11
11
2.3
A A A
B B B
1
3
5
6
4
2
• UPPER SIDE B LEGS ASSEMBLY (refer to figure 2.4):
(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 06/15/2020
332A
SAVE THESE INSTRUCTIONS
Page 9
4
5 (M6*40)
2
B A
LADDER SETUP (continued)
3. SIDE C LEGS ASSEMBLY (refer to figures 3.1 through 3.4):
IMPORTANT: Make sure the legs are securely connected and locked.
4. TOP PLATFORM INSTALLATION (refer to figure 4):
4 (M6*35)
C
C
C
C17
16
3.3
18
17
C
C
3.2
C
C
3.4
18
C
C
3.1
17
(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 06/15/2020
332A
SAVE THESE INSTRUCTIONS
Page 10
5. U-SHAPED TOP RAIL INSTALLATION (refer to figures 5.1 through 5.2):
IMPORTANT: One side at a time. Do not attach the other side of the ladder until the
U-shaped top rail is installed. Make sure all nuts and bolts are securely tightened. Do not
fully tighten fasterners until last assembly operation.
6. SIDE B LEGS INSTALLATION (refer to figure 6):
LADDER SETUP (continued)
1
BA
4 (M6*35)
5.1
1
6
2
BA
CC
5 (M6*40)
4 (M6*35) 5.2
1
2
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Intex Équipement d'éclairage
Intex
Intex SL503 Manuel utilisateur
Intex
Intex 58652EU Manuel utilisateur
Intex
Intex 121PO Manuel d'utilisation
Intex
Intex 80PO Manuel utilisateur
Intex
Intex Hydro Flow Swim Trainer SM24100 Manuel utilisateur
Intex
Intex BL693 IPX8 Manuel utilisateur
Intex
Intex Rondo 126732GN Manuel utilisateur
Intex
Intex Lumo SLS360 Manuel utilisateur
Intex
Intex CS8110 Manuel utilisateur
Intex

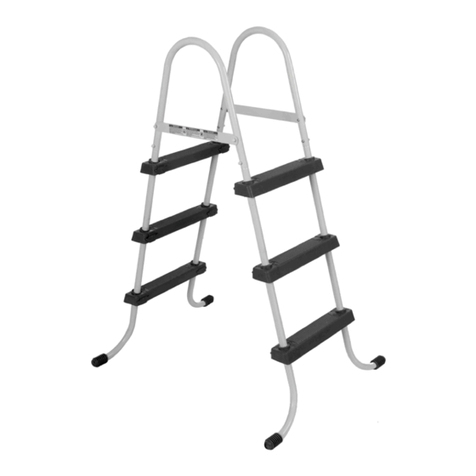

Intex 42in Manuel utilisateur
