1. Content of The Document
This document contains Interra brandmark’s ITR640-0001 & ITR641-0001 –Outdoor Intercom Unit with Linux
OS coded devices’ electronic and all essential feature information for programming these products. In each
subtitle is explained the characteristics of the device. Modifications of the product and special change requests
are only allowed in coordination with product management.
Outdoor Intercom Unit with Linux OS
6
©2022 INTERRA PM220621055BEN
IT
Product Manual
2. Product Description
ITR640-0001& ITR641-0001 are Outdoor Intercom Unit with Linux OS that is mainly used for making interacting
with the related indoor intercom unit such as an indoor monitor. ITR640-0001 & ITR641-0001 products features
are described below :
•Application: The outdoor panel is based on TCP/IP communication protocol, supporting digital video
intercom and SIP communication protocol.
•Operating System: ITR640-0001 & ITR641-0001 outdoor intercom unit’s operating system is Linux.
Outdoor Intercom Unit with Linux OS
7
©2022 INTERRA PM220621055BEN
IT
Product Manual
2.1. Technical Information
The following table shows the technical information of the ITR640-0001 & ITR641-0001 Outdoor Intercom Unit
with Linux OS.
Product Code
ITR640-0001
ITR641-0001
Power Supply
DC 12 V POE
DC 12 V POE
Power Consumption
1.5 W (Standby)
3 W (Rated)
1.5 W (Standby)
3 W (Rated)
CPU
1 GHz
1 GHz
SD Ram
64 MB DDR2
64 MB DDR2
Ethernet
10M / 100 Mbps
10M / 100 Mbps
Video Codec
H.264
H.264
Audio Codec
G.711U, G.711A
G.711U, G.711A
Camera
1/4 MP CMOS
1 MP CMOS
Camera Resolution
1280 x 720
1280 x 720
Night Vision
LED Night Vision
LED Night Vision
Flash
128 Mb
128 Mb
Reader
10,000 IC/ID Cards
10,000 IC/ID Cards
Lock Control
1x
1x
RS 485
1x
1x
Exit Button
1x
1x
Type of Protection
IP 55
IP 65
Temperature Range
Operation (-5℃...55℃)
Storage (-10℃...70℃)
Operation (-5℃...55℃)
Storage (-10℃...70℃)
Maximum Air Humidity
< 90 RH
< 90 RH
Colour
Black, Gold
Light Grey, Black
Dimensions
99,5 x 160 x 47 mm (W x H x D)
111 x 170.5 x 38.6 mm (W x H x D)
Configuration
via Web Page
via Web Page
Outdoor Intercom Unit with Linux OS
8
©2022 INTERRA PM220621055BEN
IT
Product Manual
2.2. Connection Diagram & Features
The following diagram shows how to mount the device on a proper surface. For doing a reliable and
accomplished installation, screw-down strength is less than 0.4 Nm. Once the device installation is completed,
please check the connection and if needed please re-tighten the screws.

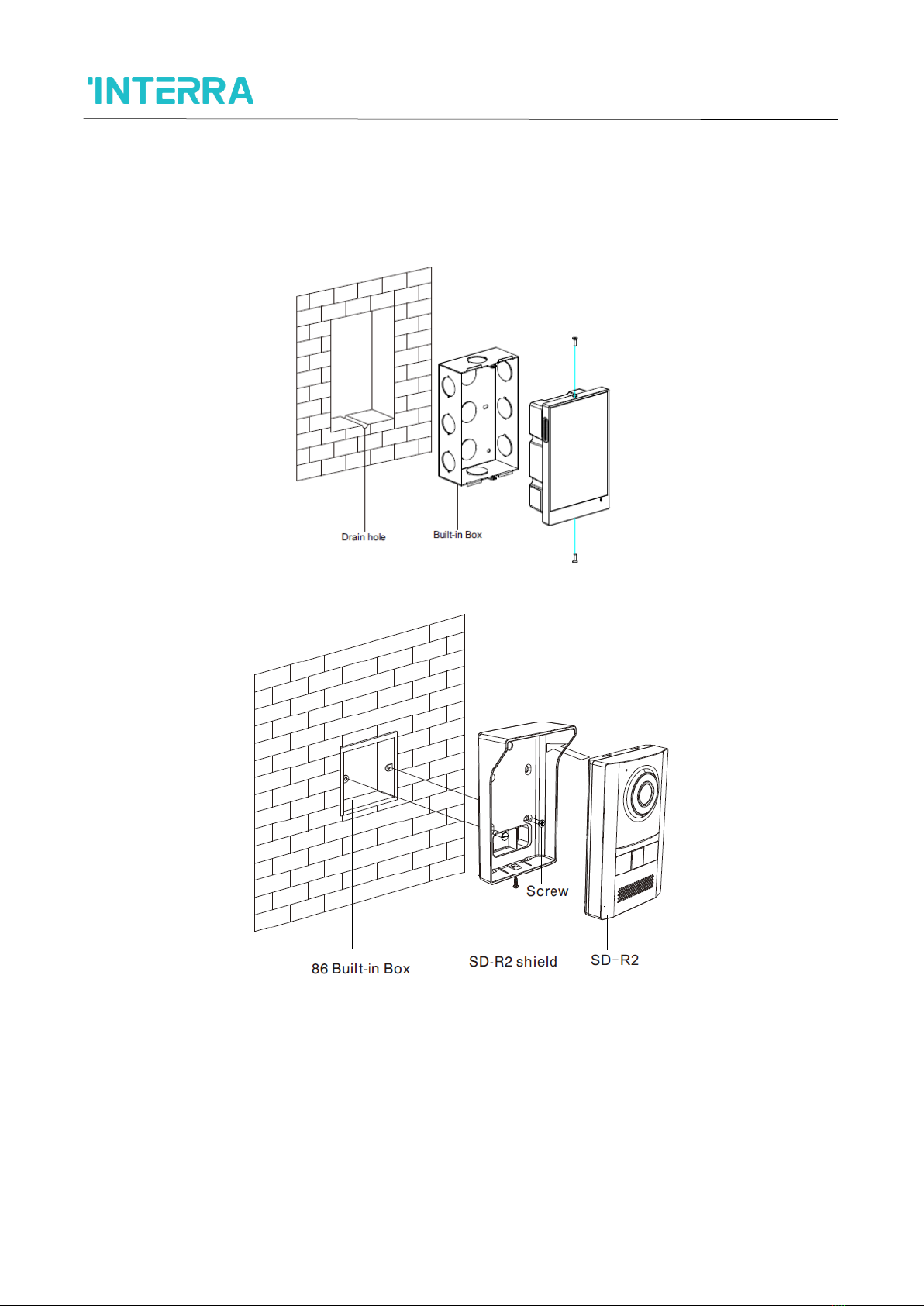

Fig. 1 : Connection Diagram of ITR640-0001 Outdoor Intercom Unit
Fig. 2 : Connection Diagram of ITR641-0001 Outdoor Intercom Unit
Outdoor Intercom Unit with Linux OS
9
©2022 INTERRA PM220621055BEN
IT
Product Manual
The following figure, shows appearance dimension drawing of the Outdoor Intercom Units :
Fig. 3 : Dimension Diagram of ITR640-0001 Outdoor Intercom Unit
Fig. 4 : Dimension Diagram of ITR641-0001 Outdoor Intercom Unit
Outdoor Intercom Unit with Linux OS
10
©2022 INTERRA PM220621055BEN
IT
Product Manual
The following figure, shows the proper location of the installation :
Fig. 5 : A proper location for installation (varies from person to person)
Recommended
During the installation, the camera should be 1450-1550 mm above the ground. The
camera tether for photographing the human face should be the top priority.
General :
Fig. 6 : General Look of the Indoor Monitor
