Interpack HSD2000-ET II MIRROR Manuel utilisateur
HSD2000-ET II MIRROR
Serial Numbers H179 or H679 XX X XXX
TAPE HEAD
UH179TW / UH679TW UDH179-02
2
UH179TW / UH679TW UDH179-02
3
TABLE OF CONTENTS
Section 1 HHHTUTUTUTable Of ContentsUUUTTTHHH---------------------------------------------------3
Section 2 HHHTUTUTUTechnical AssistanceUUUTTTHHH-----------------------------------------------4
Section 3 HHHTUTUTUWarrantyUUUTTTHHH---------------------------------------------------------------5
Section 4 HHHTUTUTUDescription Of Tape HeadUUUTTTHHH---------------------------------------- 6
Section 5 HHHTUTUTUSafety IssuesUUUTTTHHH--------------------------------------------------------- 7
Section 6 HHHTUTUTUSpecificationsUUUTTTHHH---------------------------------------------------------10
HHHTUTUTUTape Head DimensionsUUUTTTHHH--------------------------------------------10
HHHTUTUTUTape Head ComponentsUUUTTTHHH------------------------------------------ 11
HHHTUTUTUTape Head SpecificationsUUUTTTHHH-----------------------------------------12
HHHTUTUTUInstallation In Other MachineryUUUTTTHHH---------------------------------- 13
Section 7 HHHTUTUTUSet Up ProceduresUUUTTTHHH--------------------------------------------------14
HHHTUTUTUMounting AdaptersUUUTTTHHH--------------------------------------------------15
HHHTUTUTUTape LoadingUUUTTTHHH---------------------------------------------------------16
HHHTUTUTUTape ThreadingUUUTTTHHH------------------------------------------------------17
HHHTUTUTUTape CenteringUUUTTTHHH------------------------------------------------------ 19
HHHTUTUTUTape Leg Length AdjustmentUUUTTTHHH-------------------------------------20
HHHTUTUTUOne Way Clutched Roller AdjustmentUUUTTTHHH------------------------- 21
HHHTUTUTUMain Spring AdjustmentUUUTTTHHH------------------------------------------- 21
HHHTUTUTUMandrel Tension AdjustmentUUUTTTHHH-------------------------------------22
Section 8 HHHTUTUTUTroubleshootingUUUTTTHHH------------------------------------------------------23
Section 9 HHHTUTUTURecommended Spare Parts ListUUUTTTHHH---------------------------------26
Section 10 HHHTUTUTUPreventive MaintenanceUUUTTTHHH-------------------------------------------28
HHHTUTUTUKnife Blade ReplacementUUUTTTHHH----------------------------------------- 28
HHHTUTUTUOiler Pad LubricationUUUTTTHHH----------------------------------------------- 29
HHHTUTUTUUrethane Wipe Down Roller ReplacementUUUTTTHHH------------------- 30
HHHTUTUTUSpring ReplacementsUUUTTTHHH---------------------------------------------- 31
HHHTUTUTUWipe Down Brush ReplacementUUUTTTHHH---------------------------------38
HHHTUTUTUSchedule Of Preventive MaintenanceUUUTTTHHH--------------------------39
Section 11 HHHTUTUTUAppendix A-Illustrations And Parts ListsUUUTTTHHH-----------------------40
UH179TW / UH679TW UDH179-02
4
TECHNICAL ASSISTANCE
Technical Support
This is the Interpack Model HSD2000-ET II Mirror tape head you ordered. It has been set up
and tested in our factory with Intertape manufactured pressure sensitive tapes. If any problems
occur when setting up or operating this equipment, please contact the authorized distributor
from where you purchased this item.
If contact with the authorized distributor is not possible, Interpack Technical Support is
available. Should the need to contact Interpack Technical Support arise, please have the
Case Sealer model number and serial number on hand. This information can be found on
the nameplate of the side panel of the machine. Interpack Technical Support is available
during normal business hours (Eastern Time).
PHONE 800-474-8273 Option 3
If you have a technical question that does not require an immediate response, you may
contact Interpack by fax.
FAX 800-462-1293
Technical support may also be contacted via email at the address below:
Replacement Parts
Order parts by item number, part description and quantity required. Replacement parts are
available from your Authorized Interpack Distributor exclusively.
Should you require assistance selecting the correct part, you may call:
Intertape Polymer Group
Interpack Machinery
Tel: 1-800-474-8273 Option 3
Fax: 1-800-462-1293
MODEL:
SERIAL NUMBER:
DISTRIBUTOR PURCHASED FROM:
DATE OF PURCHASE:
UH179TW / UH679TW UDH179-02
5
WARRANTY
EQUIPMENT WARRANTY AND LIMITED REMEDY: The following warranty is made in lieu of all other
warranties, express or implied, including, but not limited to, the implied warranty of merchantability, the
implied warranty of fitness for a particular purpose, and any implied warranty arising out of a course of
dealing, a custom or usage of trade:
Intertape sells its Interpack Tape Heads, Case Tapers and Case Erectors with the following warranties:
1. The HSD2000 Tape Heads' knife blades, springs and wipe down rollers will be free from all
defects for a period of ninety (90) days.
2. All other HSD2000 Tape Head parts will be free from all defects for one (1) year after delivery.
3. Water Activated Tapers’ blades and brushes will be free from defects for ninety (90) days after
delivery
4. Drive Belts will be free from defects for ninety (90) days after delivery
5. The Gear Motors will be free from defects for one (1) year after delivery.
6. All other components for Case Tapers and Case Erectors will be free from defects for one (1)
year after delivery.
If any part is proven defective within its warranty period, then the exclusive remedy and Intertape's and
the seller's sole obligation shall be, at Intertype’s option, to repair or replace the part, provided the
defective part is returned immediately to Intertape's factory or an authorized service station designated
by Intertape.
A part will be presumed to have become defective after its warranty period unless the part is received or
Intertape is notified of the problem no later than five (5) calendar days after the warranty period.
If Intertape is unable to repair or replace the part within a reasonable time, then Intertape, at its option,
will replace the equipment or refund the purchase price. Intertape shall have no obligation to install the
repaired or replacement part.
Intertape shall have no obligation to provide or pay for the labor required to install the repaired or
replacement part. Intertape shall have no obligation to repair or replace (1) those parts failing due to:
operator misuse, carelessness, or due to any accidental cause other than equipment failure, or (2) parts
1. Failure or damage is due to misapplication, lack of proper maintenance, abuse,
improper installation or abnormal conditions such as temperature, moisture, dirt or
corrosive matter, etc.
2. Failure due to inadequate cleaning, improper operating environment, improper utilities
or operator error.
3. Failure due to operations above the rated capacities, or in any other improper manner,
either intentional or otherwise.
4. Failure is due to equipment, which has been altered by anyone other than an
authorized representative of Intertape Polymer Group.
5. Failure is due to an attempt by the purchaser to correct alleged defective equipment.
In this event the purchaser is responsible for all expenses incurred.
LIMITATION OF LIABILITY: Intertape and seller shall not be liable for direct, indirect, special, incidental or
consequential damages based upon breach of warranty, breach of contract, negligence, strict liability or
any other legal theory.
The foregoing Equipment Warranty and Limited Remedy and Limitation of Liability may be changed only
by written agreement signed by authorized officers of Intertape and seller.
UH179TW / UH679TW UDH179-02
6
DESCRIPTION OF TAPE HEAD
Figure 4-1
The Intertape HSD 2000-ET II Family of Tape Heads are designed to apply Intertape brand
pressure sensitive carton sealing tape to the top and bottom center seam of regular slotted
corrugated cartons.
The HSD 2000-ET II Mirror is designed to upgrade most competitive case sealers. Interpack
can provide a variety of adapter kits to install this tape head into most case sealers.
UH179TW / UH679TW UDH179-02
7
SAFETY ISSUES
There is a safety label used on all Interpack Tape Heads. This label is placed on the Tape Head
knife guard to warn operators and service personnel of the sharp cutting edge of the blade.
Please read the label and the following safety precautions before using the Tape Head.
Read this manual for other important safety operating and service information.
Only trained personnel are to operate and service Tape Head.
Wear safety glasses.
Shut off power to machine before adjusting.
Unplug electrical power before servicing.
All covers and guards must be in place before operating.
Stay clear of moving parts which can shear and cut.
Never operate the Tape Heads with the Knife Guard removed.
Turn electrical supply off before servicing the Tape Heads, including tape loading
and threading.
Note: Should any of the safety labels placed on the Tape Head be
damaged or destroyed, replacements are available.
UH179TW / UH679TW UDH179-02
8
S
AFETY
I
SSUES
The illustrated label shown in Figure 5-1 is
attached to the Knife Guard. The label
warns operators and service personnel of
the very sharp blade. The guard shall only
be removed when the torsion spring or the
guard itself is being replaced.
Should the tape head be operated without
blade guard, user voids all warranty
implied, the manufacturer bears no
responsibility for the consequences.
Tape head shall never be serviced while
mounted in a machine.
Figure 5-1
Label on Figure 5-2 is visible on carton
sealing machine.
Figure 5-2
While the tape head is processing cartons,
or it is in motion, keep your hands away.
(Figure 5-3).
Figure 5-3
UH179TW / UH679TW UDH179-02
9
SAFETY ISSUES
The illustrated label shown in Figure 5-4 is
attached to the operator side plate of each
tape head. The label provides operators
and service personnel the proper method of
threading a new roll of tape through the tape
head.
More detailed information is provided in the
“Set Up Procedures” portion of this manual.
Turn air and electrical supplies off before
servicing the tape heads.
Figure 5-4
ROLLER
GUIDE
ROLLER
CLUTCH
APPLICATION
TAPE GUIDE
ROLLER
SHOE
ADHESIVE SIDE
TAPE ROLL
GUIDE
ROLLER
PEEL OFF ROLLER
UH179TW / UH679TW UDH179-02
10
SPECIFICATIONS

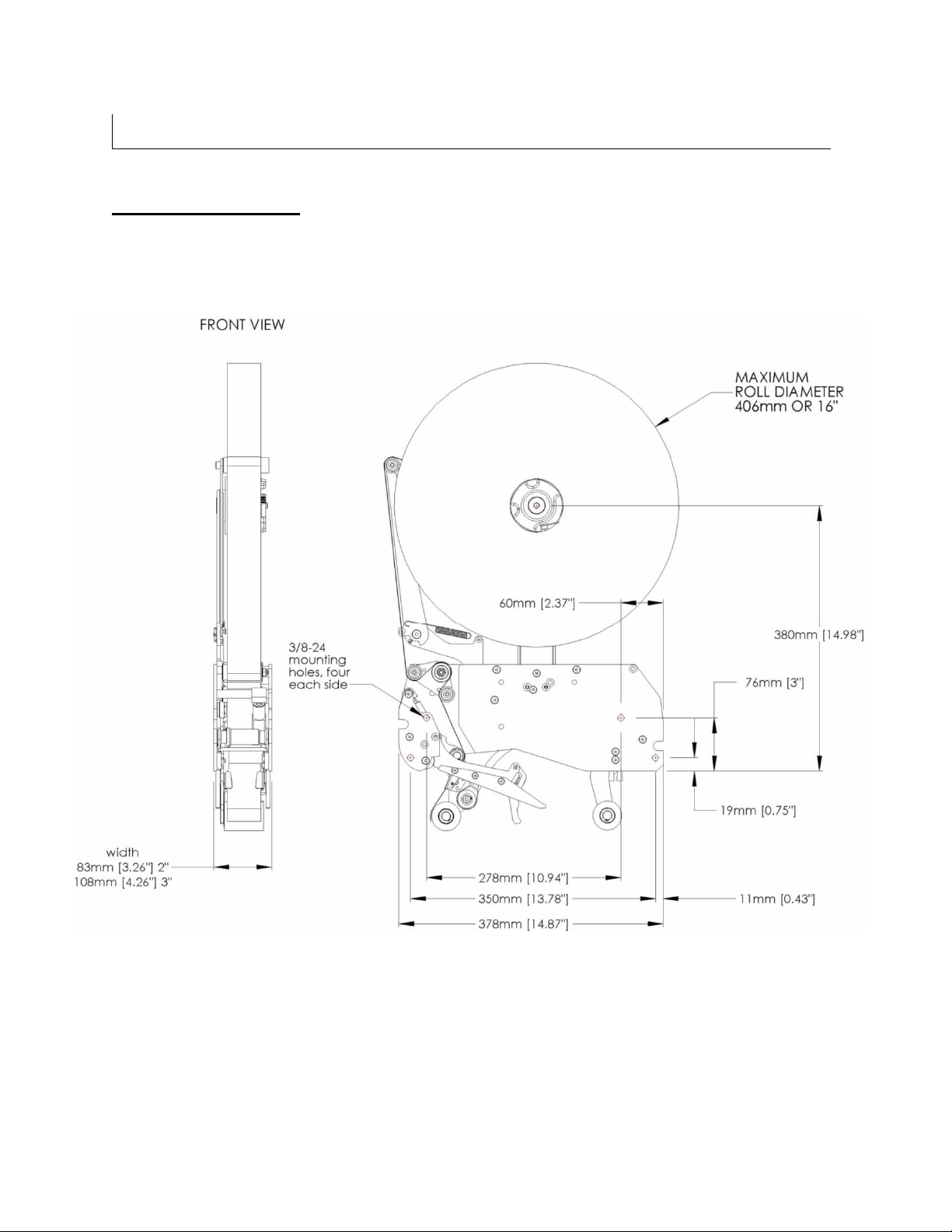

UUUTape Head Dimensions
Figure 6-1
