Intermec 5020 Manuel utilisateur

5020

Data Collection PC

™

P/N 068975

User’s Manual

Intermec Technologies Corporation

6001 36th Avenue West

P.O. Box 4280

Everett, WA 98203-9280

U.S. service and technical support: 1-800-755-5505

U.S. media supplies ordering information: 1-800-227-9947

Canadian service and technical support: 1-800-668-7043

Canadian media supplies ordering information: 1-800-268-6936

Outside U.S.A. and Canada: Contact your local Intermec service supplier.

The information contained herein is proprietary and is provided solely for the purpose of allowing customers

to operate and/or service Intermec manufactured equipment and is not to be released, reproduced, or used for

any other purpose without written permission of Intermec.

Information and specifications in this manual are subject to change without notice.

2001 by Intermec Technologies Corporation

The word Intermec, the Intermec logo, INCA (under license), MobileLAN, JANUS, IRL, Trakker Antares,

EZBuilder, TE 2000, Data Collection Browser, dcBrowser, Universal Access Point, UAP, Duratherm,

EasyCoder, Precision Print, PrintSet, Virtual Wedge, and CrossBar are either trademarks or registered

trademarks of Intermec.

Throughout this manual, trademarked names may be used. Rather than put a trademark (or ) symbol in

every occurrence of a trademarked name, we state that we are using the names only in an editorial fashion, and

to the benefit of the trademark owner, with no intention of infringement.

There are U.S. and foreign patents pending.

Manual Change Record

This page records the changes to this manual. The manual was originally released as version 001.

Version Date Description of Change

002 9/00 Added ActiveSync and Fast Config material.

003 8/01 Divided the manual into a user’s manual and a system manual. Added

material describing Release 3.0 firmware, including full alphanumeric keypad

and Windows CE 3.0 functionality. Other new sections include information

on using Task Manager and the Start menu.

alexdaddy

Contents

Before You Begin ix

Warranty Information ix

Safety Summary ix

Warnings, Cautions, and Notes x

About This Manual xi

Other Intermec Manuals xiii

Learning About the 5020

What Is the 5020 Data Collection PC? 1-3

Whats New? 1-4

Models and Options 1-4

Accessories 1-5

Getting Started 1-6

Turning On the 5020 1-7

Using the 5020 Screen 1-8

Adjusting the Screen With the Backlight Key 1-9

Understanding the System and Application Icons 1-10

Understanding the Audio Signals 1-12

Adjusting the Speaker Volume Using the Backlight Key 1-13

Using the Keypad 1-13

Finding the Special Keys 1-14

Typing Characters or Accessing Functions on the Keypad 1-15

Using the Shift and Caps Lock Key 1-16

Using the Arrow Keys 1-17

Using the Pointer 1-17

Using Modifier Keys 1-18

Using the 5020 Modifier Keys 1-19

Locking or Unlocking a Modifier Key 1-19

Overriding a Modifier Key 1-19

Keypad Navigation Shortcuts 1-20

English Keypads 1-21

International Keypads 1-21

Using the Start Menu 1-25

Programs in the Start Menu 1-26

Switching Between Applications With Task Manager 1-27

5020 Data Collection PC Users Manual

d39

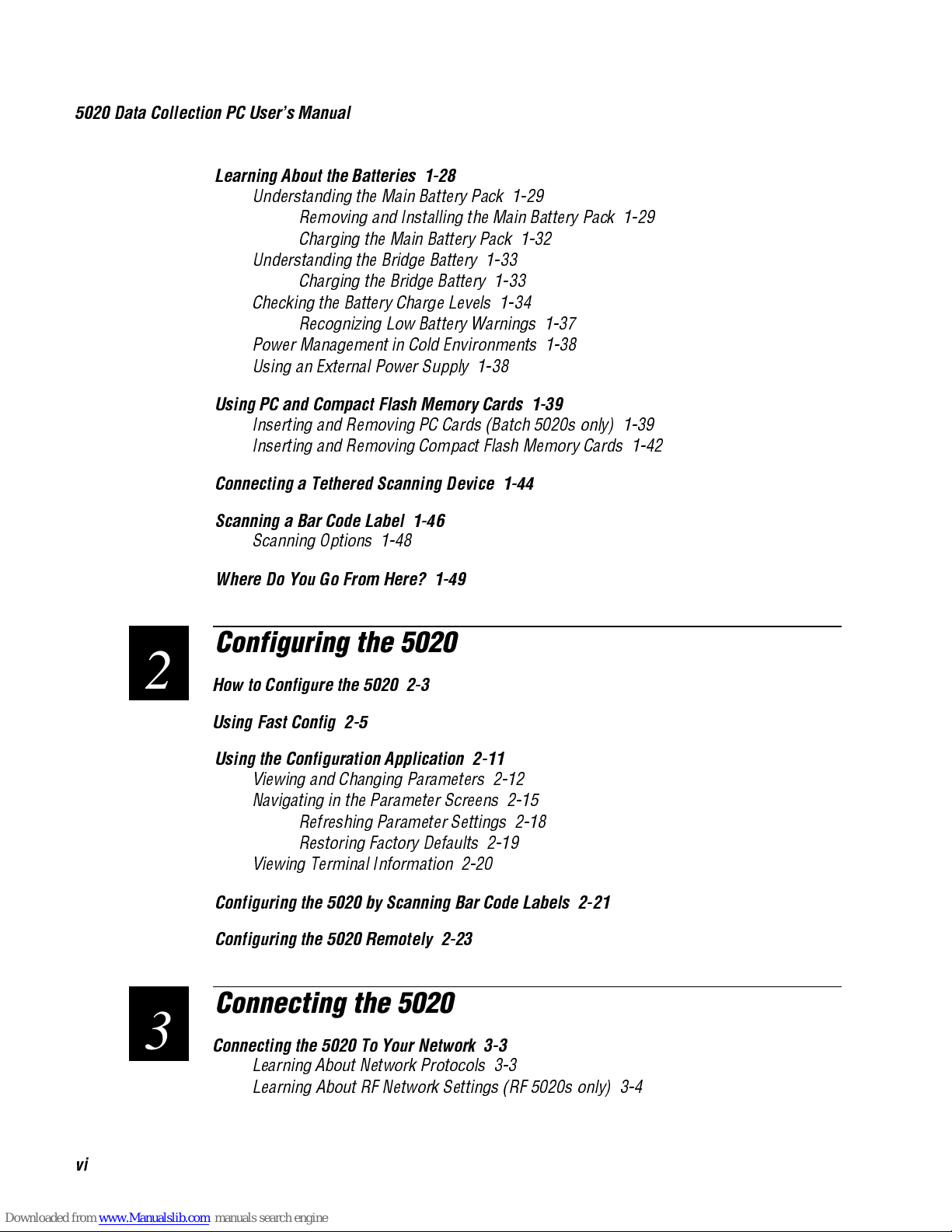

Learning About the Batteries 1-28

Understanding the Main Battery Pack 1-29

Removing and Installing the Main Battery Pack 1-29

Charging the Main Battery Pack 1-32

Understanding the Bridge Battery 1-33

Charging the Bridge Battery 1-33

Checking the Battery Charge Levels 1-34

Recognizing Low Battery Warnings 1-37

Power Management in Cold Environments 1-38

Using an External Power Supply 1-38

Using PC and Compact Flash Memory Cards 1-39

Inserting and Removing PC Cards (Batch 5020s only) 1-39

Inserting and Removing Compact Flash Memory Cards 1-42

Connecting a Tethered Scanning Device 1-44

Scanning a Bar Code Label 1-46

Scanning Options 1-48

Where Do You Go From Here? 1-49

Configuring the 5020

How to Configure the 5020 2-3

Using Fast Config 2-5

Using the Configuration Application 2-11

Viewing and Changing Parameters 2-12

Navigating in the Parameter Screens 2-15

Refreshing Parameter Settings 2-18

Restoring Factory Defaults 2-19

Viewing Terminal Information 2-20

Configuring the 5020 by Scanning Bar Code Labels 2-21

Configuring the 5020 Remotely 2-23

Connecting the 5020

Connecting the 5020 To Your Network 3-3

Learning About Network Protocols 3-3

Learning About RF Network Settings (RF 5020s only) 3-4

Contents

vii

Setting the Network Parameters 3-5

Enabling UDP Plus 3-6

Configuring for Serial or IrDA Communications 3-9

Locating the IrDA Port 3-9

Connecting to Another Device 3-10

Connecting With a Serial I/O Card (Batch 5020s only) 3-12

Setting the Baud Rate 3-17

Troubleshooting and Maintenance

Problems and Solutions 4-3

Problems While Operating the 5020 4-4

Problems With Connectivity 4-6

Problems While Configuring the 5020 4-8

Problems While Using Unit Manager 4-9

Problems While Scanning Bar Codes 4-11

Problems Upgrading the Operating System Image 4-13

Application Manager Error Messages 4-14

Booting the 5020 4-14

Warm Booting the 5020 4-15

Cold Booting the 5020 4-15

Verifying RF or Ethernet Communications 4-16

Upgrading the 5020 Operating System Image 4-16

Restoring a Corrupted Operating System Image 4-17

5020 Specifications

Physical and Environmental Specifications A-3

Index

alexdaddy

d 3

nuggetf

code39

Before You Begin

Before ou Begin

This section introduces you to standard warranty provisions, safety precautions,

warnings and cautions, document formatting conventions, and sources of additional

product information. A documentation roadmap is also provided to guide you in finding

the appropriate information.

Warranty Information

To receive a copy of the standard warranty provision for this product, contact your local

Intermec support services organization. In the U.S.A. call 1-800-755-5505, and in

Canada call 1-800-668-7043. Otherwise, refer to the Worldwide Sales & Service list

that ships with this manual for the address and telephone number of your Intermec sales

organization.

Safety Summary

Your safety is extremely important. Read and follow all warnings and cautions in this

book before handling and operating Intermec equipment. You can be seriously injured,

and equipment and data can be damaged if you do not follow the safety warnings and

cautions.

Do not repair or adjust alone

Do not repair or adjust energized equipment alone

under any circumstances. Someone capable of providing first aid must always be

present for your safety.

First aid

Always obtain first aid or medical attention immediately after an injury.

Never neglect an injury, no matter how slight it seems.

Resuscitation

Begin resuscitation immediately if someone is injured and stops

breathing. Any delay could result in death. To work on or near high voltage, you should

be familiar with approved industrial first aid methods.

Energized equipment

Never work on energized equipment unless authorized by a

responsible authority. Energized electrical equipment is dangerous. Electrical shock

from energized equipment can cause death. If you must perform authorized emergency

work on energized equipment, be sure that you comply strictly with approved safety

regulations.

5020 Data Collection PC Users Manual

nuggetf

code39

Warnings, Cautions, and Notes

The warnings, cautions, dangers, and notes in this manual use the following format.

Warning

A warning alerts you of an operating procedure, practice, condition, or statement

that must be strictly observed to avoid death or serious injury to the persons

working on the equipment.

Avertissement

Un avertissement vous avertit d’une procédure de fonctionnement, d’une méthode,

d’un état ou d’un rapport qui doit être strictement respecté pour éviter l’occurrence

de mort ou de blessures graves aux personnes manupulant l’équipement.

Caution

A caution alerts you to an operating procedure, practice, condition, or statement

that must be strictly observed to prevent equipment damage or destruction, or

corruption or loss of data.

Conseil

Une précaution vous avertit d’une procédure de fonctionnement, d’une méthode,

d’un état ou d’un rapport qui doit être strictement respecté pour empêcher

l’endommagement ou la destruction de l’équipement, ou l’altération ou la perte de

données.

Note: Notes are statements that either provide extra information about a topic or

contain special instructions for handling a particular condition or set of circumstances.
