UltraView UVC-6120-1 Digital WDR Camera

Quick Start Guide

Introduction

This is the Quick Installation Guide for the UVC-6120-1 digital WDR

color box camera.

Refer to the user manual for complete instructions on installing and

configuring this camera.

User guidelines

• Program the camera settings as much as possible before

mounting the camera. Take appropriate safety precautions while

completing programming after installation.

• Always use a 12 VDC or 24 VAC UL listed Class 2 power supply

to power the camera.

• Do not use the camera over the temperature range specifications:

-10°C to +50°C (14°F to 122°F)

• If the light source where the camera is installed experiences

rapid, wide- variations in lighting, the camera may not operate as

intended.

WARNING: To reduce the risk of fire or electronic shock, do not

expose the camera to rain or open the back of the camera.

Description

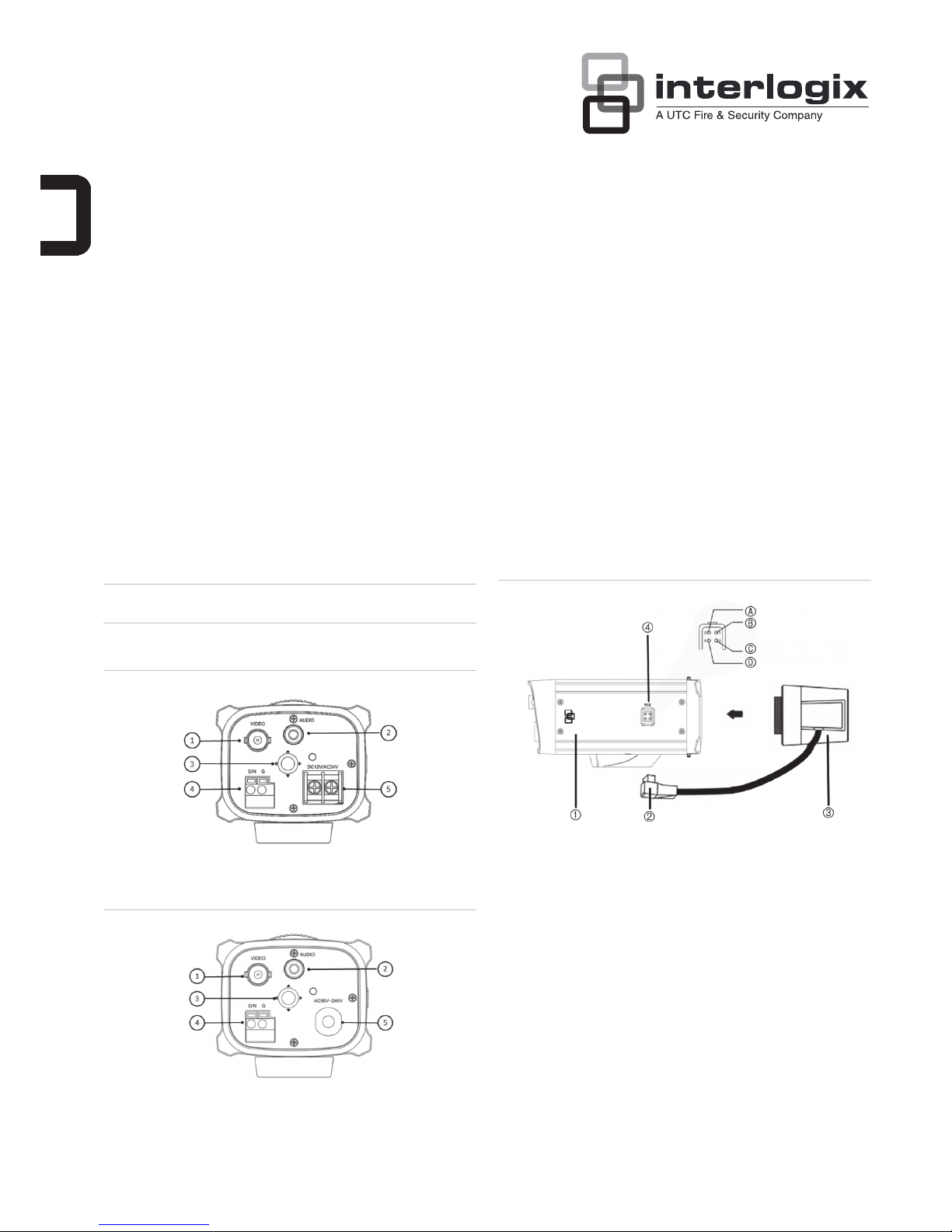

Figure 1: Camera UVC-6120-1-P/N description

1. Video output

2. Audio output

3. OSD control pad

4. D/N trigger pin

5. 12 VDC / 24 VAC dual power

Figure 2: Camera UVC-6120-1-P/N description

1. Video output

2. Audio output

3. OSD control pad

4. D/N trigger pin

5. AC96V/AC240 universal

power

Installation

Please check the package contents and make sure that the device in

the package is in good condition and all the assembly parts are

included.

Note: Before installing, please ensure that the mounting surface is

strong enough to withstand three times the weight of the camera. If the

wall is not strong enough, the camera may fall and cause serious

damage.

Install the camera

1. Connect the video cable.

Connect a coaxial cable from the camera’s BNC connector to a

CCTV monitor or video recording device.

2. Attach the lens.

Note: For optimal performance, use an auto iris lens. Refer to the

instructions that came with the lens you purchased for complete

installation instructions of that lens.

Figure 3: Attaching the lens

1. Camera

2. Autoiris lens plug

3. Lens (autoiris shown)

4. DC type autoiris lens leads

A. Damping coil (+); B.

Damping coil (-); C Driving

coil (+); D Driving coil (-)

Screw the lens clockwise onto the lens mount of the camera. For

optimal performance, please use an auto iris lens. Plug the auto-

iris drive cable to the 4-pin interface on the side of the camera.

Note: Please prevent dust from entering between the lens mount

and the lens.

3. Connect the power cable.

For UVC-6120-1-P/N:

With a screwdriver, loosen the ~AC24V/DC12V and GND terminal

screws on the terminal block. Connect a universal 12 VDC/24

VAC power supply to the terminal block.

Note: The terminal block is not polarity sensitive. Either power

lead can be connected to either terminal connector. There is no

need for an isolated ground wire. The two power terminals can

accept any polarity and any combination of power that equals 12

VDC or 24 VDC.

2 / 2 P/N 1072552B • REV 1.0 • ISS 18JUN12

Retighten the terminal screws until snug, ensuring that the power

leads are secure. Supply power to the unit by plugging the power

supply into a proper source.

Note: The power LED illuminates to show that the camera is

receiving power. If it does not illuminate, check the terminal block

connections and the power source

For UVC-6120-1-P2:

Connect the power cable of a high voltage camera to either a 230

VAC or a 120 VAC power supply outlet.

Programming

Once the camera hardware has been installed, the camera can then

be configured. Program the camera by attaching a standard video

monitor to the system.

OSD control pad

The on-screen display (OSD) control pad (see Figure 1/Figure 2) is a

five-direction button that lets you manually control the camera

functions. Table 1 below lists the OSD control pad functions and

describes their use.

Table 1 Description of the OSD control pad

Pad direction Description

Up Moves the cursor upward to select an item

Left Moves the cursor left to select or adjust the options

of the selected item.

Right Moves the cursor to the right to select or adjust the

options of the selected item.

Down Moves the cursor downward to select an item.

Enter Press the center of the control pad to display the

Setup menu. If the selected item has its own menu,

press the control pad to enter a submenu.

Accessing the menus

Press Enter on the camera’s OSD control pad to display the Main

menu (see Figure 4 below). The Main menu provides access to the

camera configuration options (Figure 5). The OSD display is only

available in English.

Figure 4: the Main menu screen

Table 2: Main menu description

Menu item Description

General Defines the camera ID, mirror, and digital noise

reduction (DNR) set up.

AE/WDR/BLC Defines the lens type as well as the WDR/BLC,

AGC, and flicker set up.

WB mode Defines the white balance (WB) set up.

D/N mode Defines the day/night (D/N) set up.

Motion Defines the motion detection set up.

Privacy Defines privacy mask set up.

Pict adjust Defines the image quality functions.

Menu item Description

Reset camera Resets the camera to factory default settings.

Exit & save Exits the menu and returns to live mode. Saves

changes made.

Specifications

Model UVC-6120-1-P /

UVC-6120-1-N UVC-6120-1-P2

Lens type C/CS-DC drive

Power supply 24 VAC / 12 VDC 96 to 240 VAC

Current 300 mA 50 mA

Power consumption Max. 3.6 W Max. 4.8 W

Operating temperature -10 to +50 °C (14 to 122 °F)

Weight 390 g (0.85 lb.)

Dimensions (L × H × W) 127 × 52 × 69 mm (5 × 2.04 × 2.71 in.)

Menu map

Figure 5: Menu map
