Intergraph InterServe 800 SL Manuel utilisateur

InterServe 800

Late-Breaking News

June 1998

DHA027720

and trademark law. This document may not, in whole or in part, be reproduced in any form or by any means, or be used to make any

derivative work, without written consent from Intergraph Computer Systems.

Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subdivision (c)(1)(ii) of the

rights in technical data and computer software clause at DFARS 252.227-7013. Unpublished rights are reserved under the copyright

laws of the United States.

Intergraph Computer Systems, Huntsville AL 35894-0001

Notice

Information in this document is subject to change without notice and should not be considered a commitment by Intergraph Computer

Systems. Intergraph Computer Systems shall not be liable for technical or editorial errors in, or omissions from, this document.

Intergraph Computer Systems shall not be liable for incidental or consequential damages resulting from the furnishing or use of this

document.

All warranties given by Intergraph Computer Systems about equipment or software are set forth in your purchase contract. Nothing

stated in, or implied by, this document or its contents shall be considered or deemed a modification or amendment of such

warrantites.

Trademarks

Intergraph Computer Systems and the Intergraph Computer Systems logo are registered trademarks of Intergraph Computer Systems.

InterServe is a trademark of Intergraph Computer Systems.

Other brands and product names are trademarks of their respective owners.

General

Disk Activity LED on non-RAID Systems

On non-RAID systems, the RAID disk array status LED does not light to show non-RAID disk

activity. When the system is powered off, this LED is not lit. This differs from the activity of

this LED as described in the System Setup document.

System BIOS Notes

Please note the following items related to the system’s BIOS:

The troubleshooting information in the System Setup document contains a list of beep

codes and error messages. These beep codes are not used by the current InterServe 800

system board. If your system powers on but does not display any video, check for proper

installation of the memory modules and the video display adapter.

The BIOS Setup options Floppy Access Control and IDE Hard Disk Access Control (used

to write-protect these devices) have no effect under Windows NT. Windows NT does not

use the BIOS for peripheral device access.

Immediately after installing a Symbios SCSI adapter card, you must run the Symbios

SCSI Configuration Utility (PCI_CFG.EXE) to disable SCAM on the SCSI adapter card,

and to change the Adapter Boot Order to include the SCSI adapter card. The correct boot

order is as follows:

Boot Order Bus / Device Description

0 0 / 60 Internal SCSI channel

1 0 / 61 External SCSI channel

2 Varies / Varies Symbios SCSI adapter card

The bus and device numbers for the card depend on the slot in which the card is installed.

Enabling the MegaRAID Audible Alarm

On an InterServe 800 with an AMI MegaRAID disk controller, the controller’s audible alarm

is disabled by default. You can configure the InterSite Watchdog program to alert you to

RAID problems such as disk failures. If you want to enable the controller’s audible alarm,

you can do so using the MegaRAID BIOS Configuration Utility or Power Console. For more

information, see Watchdog Help and the InterRAID documentation delivered with the system.

Third Channel for Secondary RAID Controllers

When expanding an InterServe 800 to use the third channel of any secondary RAID

controllers, the internal cables extend from the PCI slots to the third-channel ports above the

I/O panel. Attach the internal third-channel cable from one of the additional RAID controllers

to one of the third-channel ports. Repeat this for each of up to four additional RAID

controllers.

NOTE The primary RAID controller (in PCI slot 1) is a two-channel controller.

See the System Reference for information on PCI slot assignments, and the InterRAID

documentation for information on RAID expansion.

Resetting a Hung ISM Card

An InterSite Server Monitor (ISM) card (also called Server Monitor Module [SMM] or

Emergency Management Card [EMC]) in an InterServe 800 may hang if system power is

turned off, then on again quickly, using the system’s keyswitch.

To determine if the server’s ISM card is hung:

See the Anomalies and Open Problems\Emergency Management Card\EMC Communication

section of the README.TXT file delivered with the ISM software kit. This section describes

how to identify a hung ISM card, and how to attempt to reset the card without doing a physical

reset.

To physically reset the ISM card:

1. Shut down and power off the server. Be sure to turn off the server’s breaker switch.

2. Open the server to get at the ISM card. See the documentation delivered with the server

and with InterSite Server Monitor for more information.

3. Unplug the white J1 connector between the battery pack and the ISM card.

CAUTION Gently pull the connector loose. Do not use a metal object to separate the connector from the

socket, and do not pull on the wires in the connector, or damage may result.

4. Reconnect the J1 connector to its socket.

5. Replace the server’s right side panel.

6. Turn on system power.

ISM Server Reset Options on a System Without

Redundant Power Supplies

On an InterServe 800 without redundant power supplies, InterSite Server Monitor (ISM)

software does not support the following Server Reset Options:

If the Server Poweroff option is selected, the server reboots.

If the Server Powerup option is selected, a 3414 or a 3415 error message and a

description of the error displays in the Window Pane of the LANDesk Server Manager

Console. This error message is expected, and may be ignored.

NOTE You cannot power up a local or remote server which does not contain redundant power

supplies.

If the Server Reset option is selected, a 3414 or a 3415 error message and a description of

the error displays in the Windows Pane of the LANDesk Server Manager Console. This

error message is expected, and may be ignored.

Generally, the Warm Boot option will suffice to reboot or reset a remote server. However, if

you wish to use the Server Reset option, you must edit the SYSTEM32\DRIVERS\HOBBSRV.HDW

file in the system’s Windows NT directory. Change the options at the end of the

HOBBSRV.HDW file to appear as follows:

Hard Reset 1

Power Switch 0

Line Power OK 0

Auxilliary Power 0

Remote Temperature Probe 1

Console Redirection 0

After editing the HOBBSRV.HDW file, you must reboot the server to make the changes take

effect. If a powerdown command is issued, a 3401 error message will display, stating that the

server hardware does not support power control.

Operating System Support for USB Peripherals

Your system includes Universal Serial Bus (USB) ports to which you can connect USB

peripherals. Windows NT 4.0 does not currently support USB peripherals. Microsoft will

add support for USB peripherals to a future Windows NT release.

Windows NT 4.0

Installing QFE Software

Quick-Fix Engineering (QFE) update software contains fixes for operating system problems or

limitations. If a system requires Quick-Fix Engineering (QFE) update software, it is installed

on the system before it leaves the factory. If QFE update software is installed on the system, a

QFE backup diskette is delivered with the system. You can also create a QFE backup diskette

using InterSite Version Manager.

If you reinstall the Windows NT 4.0 operating system, and the Windows NT 4.0 Service Pack

3 software, be sure to reinstall the QFE update software as well. Install the QFE update

software after you reinstall Service Pack 3 software. QFE update software contains post-

Service Pack 3 fixes.

Autres manuels pour InterServe 800 SL

Table des matières

Autres manuels Intergraph Serveur

Intergraph

Intergraph InterServe 600 Series Manuel utilisateur

Intergraph

Intergraph InterServe 80 SL Manuel utilisateur

Intergraph

Intergraph InterServe 80 SL Manuel utilisateur

Intergraph

Intergraph InterServe 8400 Setup Manuel de service

Intergraph

Intergraph InterServe 600 Series Guide de l'utilisateur

Intergraph

Intergraph InterServe 80 SL Manuel utilisateur

Intergraph

Intergraph Rack-Mount Workstation/Server Guide de l'utilisateur

Intergraph

Intergraph InterServe 800 SL Guide de l'utilisateur

Intergraph

Intergraph InterServe 90 Manuel utilisateur

Intergraph

Intergraph InterServe 8400 Setup Guide de l'utilisateur

Intergraph

Intergraph InterServe 9000 Guide de l'utilisateur

Intergraph

Intergraph InterServe 800 SL Manuel utilisateur

Intergraph

Intergraph InterServe 600 Series Manuel utilisateur

Intergraph

Intergraph InterServe 9400 Guide de l'utilisateur

Intergraph

Intergraph InterServe 9000 Guide de l'utilisateur

Intergraph

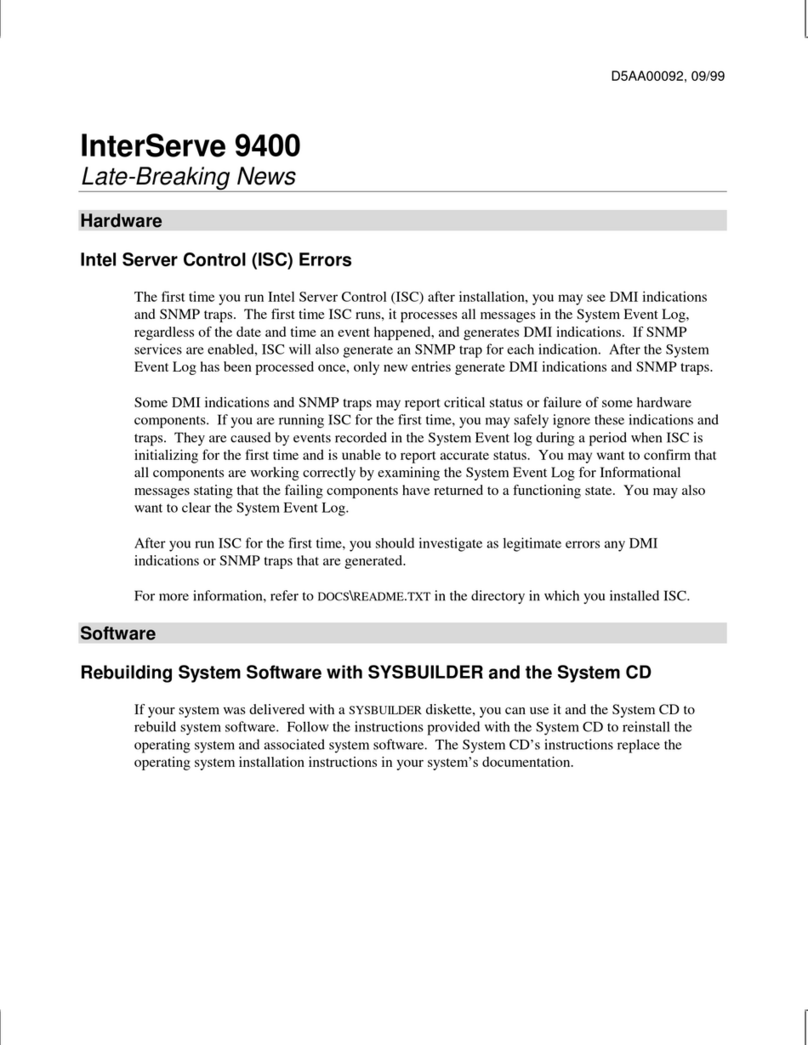

Intergraph InterServe 9400 Manuel utilisateur
