Thank you for purchasing Intenza product. Before installing or using the equipment, please read all
instructions carefully to ensure that you have the knowledge to safely and properly operate all of this
product’s features. The following will provide guidelines for quick set up and the correct way to use the
equipment. We hope you achieve the product experience that you expect.

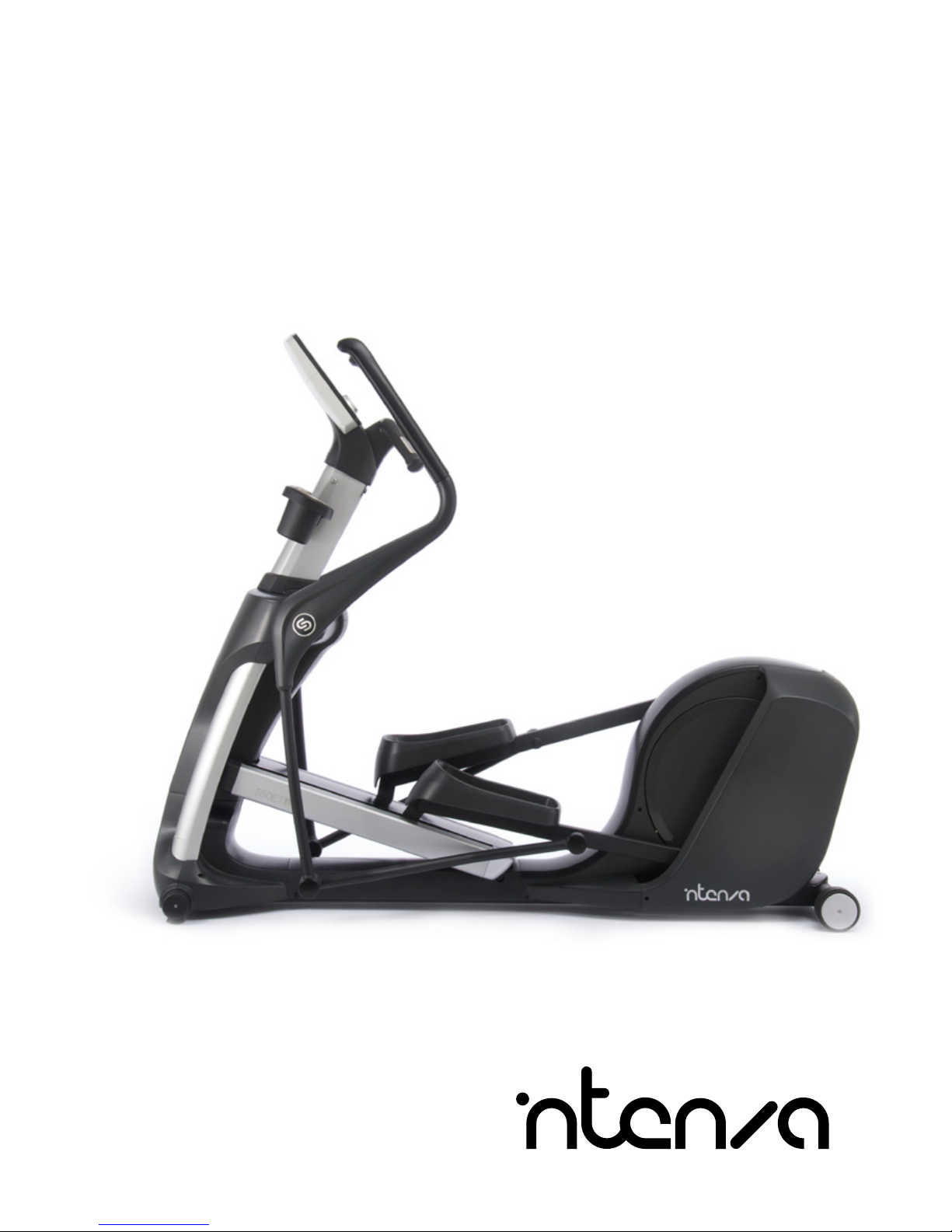

Intenza 550 series elliptical has been tested and designed to comply with the regulations for Class A
digital device and for class S, studio use. Intenza 550 series elliptical is designed to provide you with
safe, intuitive, comfortable, reliable experience, guiding you to a healthy lifestyle.
CAUTION
Any changes or modications to this equipment will affect the product warranty.
3
SECTION DESCRIPTION....................................................................................................... PAGES
TABLE OF CONTENTS
1. IMPORTANT SAFETY PRECAUTIONS...........................................................................4
2. ASSEMBLY.......................................................................................................................5
2.1 550ETe Part List................................................................................................................5
2.2 Assembly Instruction- 550ETe...........................................................................................6
2.3 550ETi Part List ...............................................................................................................10
2.4 Assembly Instruction- 550ETi..........................................................................................11
3. HOW TO USE THE ELLIPTICAL TRAINER? ................................................................15
3.1 550ETe Entertainment Console Overview ......................................................................15
3.2 How To Operate Multimedia............................................................................................16
3.3 550ETi Display Console Overview ..................................................................................17
3.4 How To Effectively Workout At Your Own Level? ...........................................................19
3.5 How To Personalize Your Workout? ...............................................................................20
3.6 Save The Workout Prole................................................................................................21
3.7 How To Track Your Workout Record?.............................................................................21
3.8 Setting Of 550ETe ...........................................................................................................22
3.9 Settings ETi .....................................................................................................................22
3.10 Begin The Workout..........................................................................................................24
3.11 Total Body Training .........................................................................................................24
4. WORKOUT OPTIONS ....................................................................................................25
4.1 Quick Start.......................................................................................................................25
4.2 Preset Program ...............................................................................................................26
4.3 Target Program ...............................................................................................................28
4.4 HRC Program ..................................................................................................................29
4.5 Custom Program .............................................................................................................31
4.6 Race Program .................................................................................................................32
4.7 Fitness Test .....................................................................................................................33
5. MAINTENANCE ..............................................................................................................35
5.1 Preventative Maintenance Tips .......................................................................................35
5.2 Self Diagnosis..................................................................................................................35
5.3 How To Charge The Battery............................................................................................36
5.4 Recycling The Battery .....................................................................................................36
6. TROUBLE SHOOTING ...................................................................................................37
6.1 When To Call For Help ....................................................................................................37
6.2 Error Message .................................................................................................................37
7. EXPLODED DRAWING & PART LIST ...........................................................................38
7.1 550ETe EXPLODED DRAWING & PART LIST ..............................................................38
7.2 550ETi EXPLODED DRAWING & PART LIST................................................................39
4
1. IMPORTANT SAFETY PRECAUTIONS
Warning
• 550 series elliptical trainer is designed for aerobic exercise in commercial environment.
• Please check with your physician prior to begin any exercise program.
• Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death.
• Stop exercising immediately and consult a physician if you feel any abnormal symptoms such as faint,
dizziness, chest pain, nausea or shortness of breath.
Safety Precautions
• Make sure all users see a physician for a complete physical examination before they begin any tness
program.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by children or other persons without assistance or supervision if
their physical, sensory or mental capabilities prevent them from using it safely.
• Assemble and operate the equipment on a solid level surface.
• Set the equipment a few feet from walls or furniture, and away from sources of heat, such as radiators,
heat registers, and stoves. Avoid extreme temperature changes.
• Do not place outdoor or in an enclosed swimming pool environment.
• Keep hands and loose clothing away from moving parts.
• Keep equipment away from water and moisture. Avoid dropping or spilling anything on / inside the
equipment to prevent electric shock or damage to the equipment.
• Never leave the equipment unattended when it is plugged in. Unplug the equipment from its power
source when it is not in use for a long time.
• The optional power adapter is considered a power source for self-powered equipment. Always unplug
this equipment from the electrical outlet immediately after use or before cleaning.
• Keep the optional power adapter and plug away from heated surfaces.
• Do not insert any object into any opening, or underneath the equipment.
• Do not attempt to remove the cover or modify the equipment. Service should only be done by an
authorized service technician.
• Wear shoes with rubber or high-traction soles. Do not wear shoes with heels, leather soles, cleats, or
spikes.
• Make sure no stones are embedded in the soles.
• Do not use the equipment with bare feet.
• Stop operating the equipment until the defective components are repaired.
5
Assembly Introduction Workout Option Maintenance Trouble ShootingSafety precaution
2.1 550ETe Part List
Open the shipping carton box, remove all parts from the carton and styrofoam inserts. Before you begin the
assembly, verify that the following hardware items are packed with the equipment.
2. ASSEMBLY

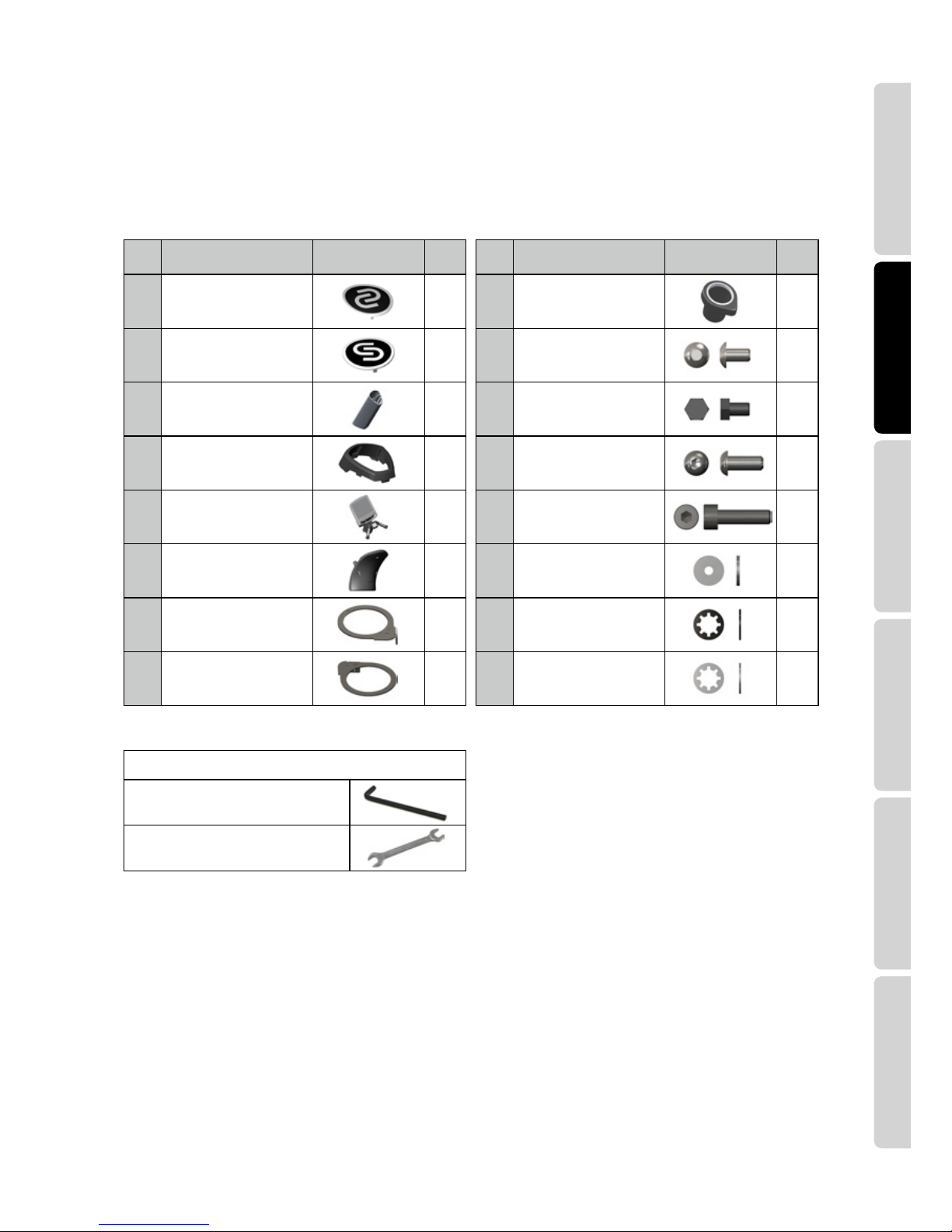

NO Part description Image QTY
1 Right bug 1
2 Left bug 1
3 Front post 1
4 Front post cover 1
5 Console 1
6 Console cover 1
7Left cup holder
bracket 1
8Right cup holder
bracket 1
NO. Part description Image QTY
9 Cup holder 2
10 Dome screw, M8 x
15L 5
11 Hex bolt, M8 x 10L 3
12 Dome screw, M6 x
15L 8
13 Tapping screw, M4 x
15L 3
14 Washer, M8 2
15 Star washer (Black),
M8 3
16 Star washer (White),
M8 3
Required tools
Hex wrench (3mm, 5mm 6mm)
Open wrench (13mm)
6
2.2 Assembly Instruction- 550ETe

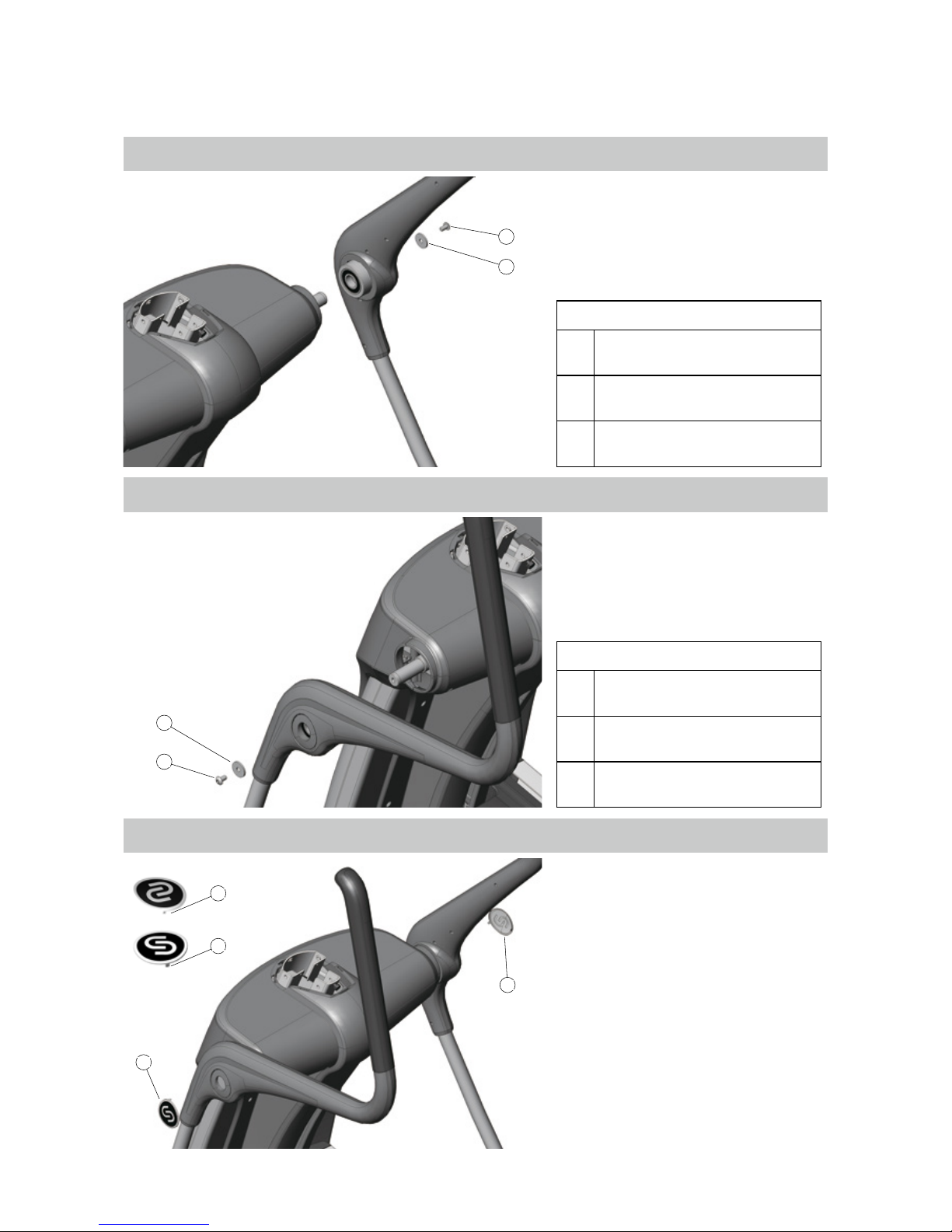

STEP 1 Assemble the right handle bar
STEP 2 Assemble the left handle bar
STEP 3 Assemble the bug cap
TOOL
10 M8 x 15 x 1
14 M8 x 1
Hex wrench- 6mm
TOOL
10 M8 x 15 x 1
14 M8 x 1
Hex wrench- 6mm
NOTE:
Align the handle bar to the pivot point.
NOTE:
Align the handle bar to the pivot point.
NOTE:
1. Distinguish the R and L side of the
bug cap as shown below.
2. Tear out the adhesive theme and
stick the bug cap on the handlebar.
2
1
14
10
10
14
R
L
7
Assembly Introduction Workout Option Maintenance Trouble ShootingSafety precaution

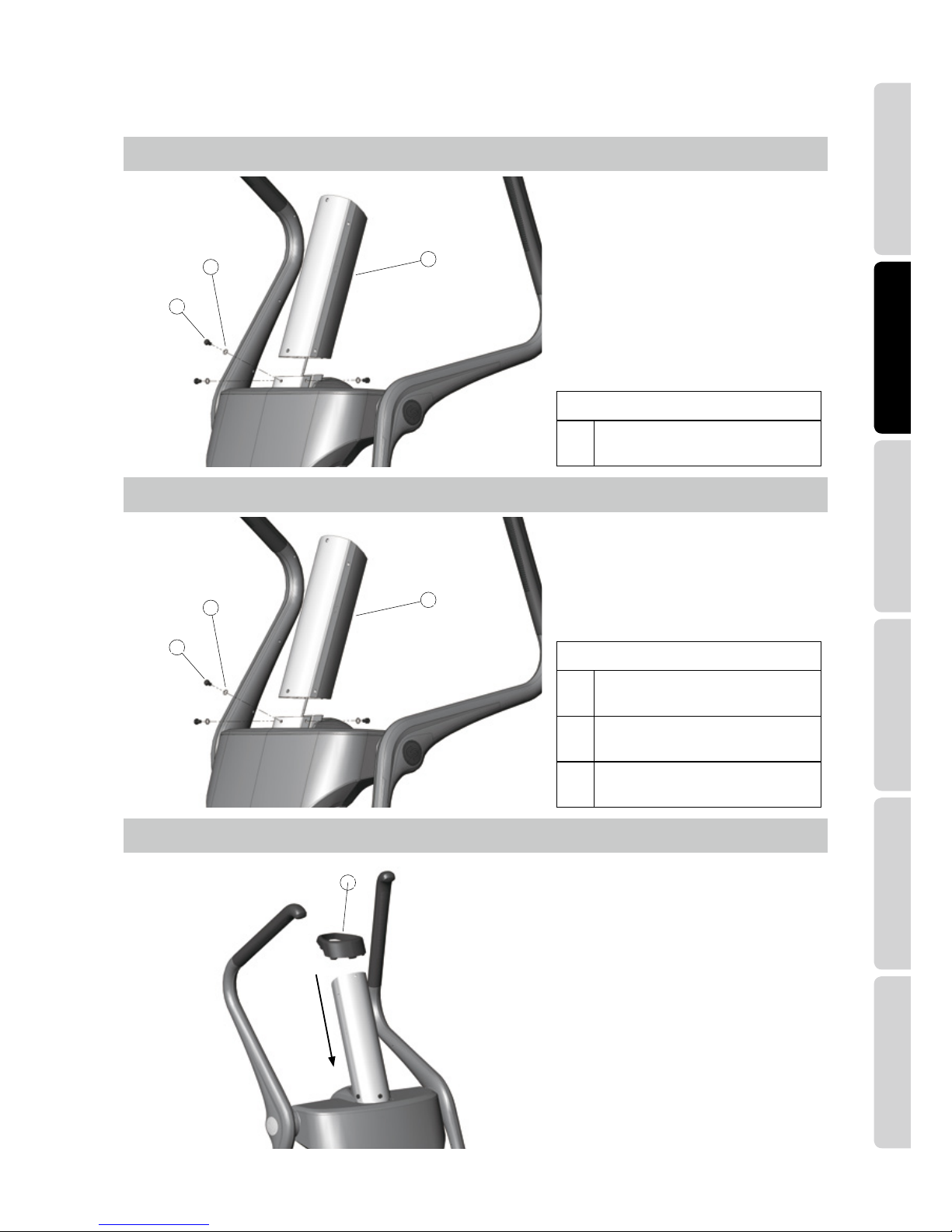

STEP 4.1 Assemble the front post
STEP 4.2 Assemble the front post
STEP 5 Assemble the front post cover
TOOL
Open wrench- 13mm
TOOL
11 M8 x 10 x 3
15 Star washer (Black), M8 x 3
Open wrench- 13mm
NOTE:
1. Make sure cable is not pinched and
insert the front post.
2. Tighten the inside screw.
NOTE:
1. Tighten the front screw rst.
2. Make sure all three screws are
tightened.
15
15
11
11
3
3
4
8

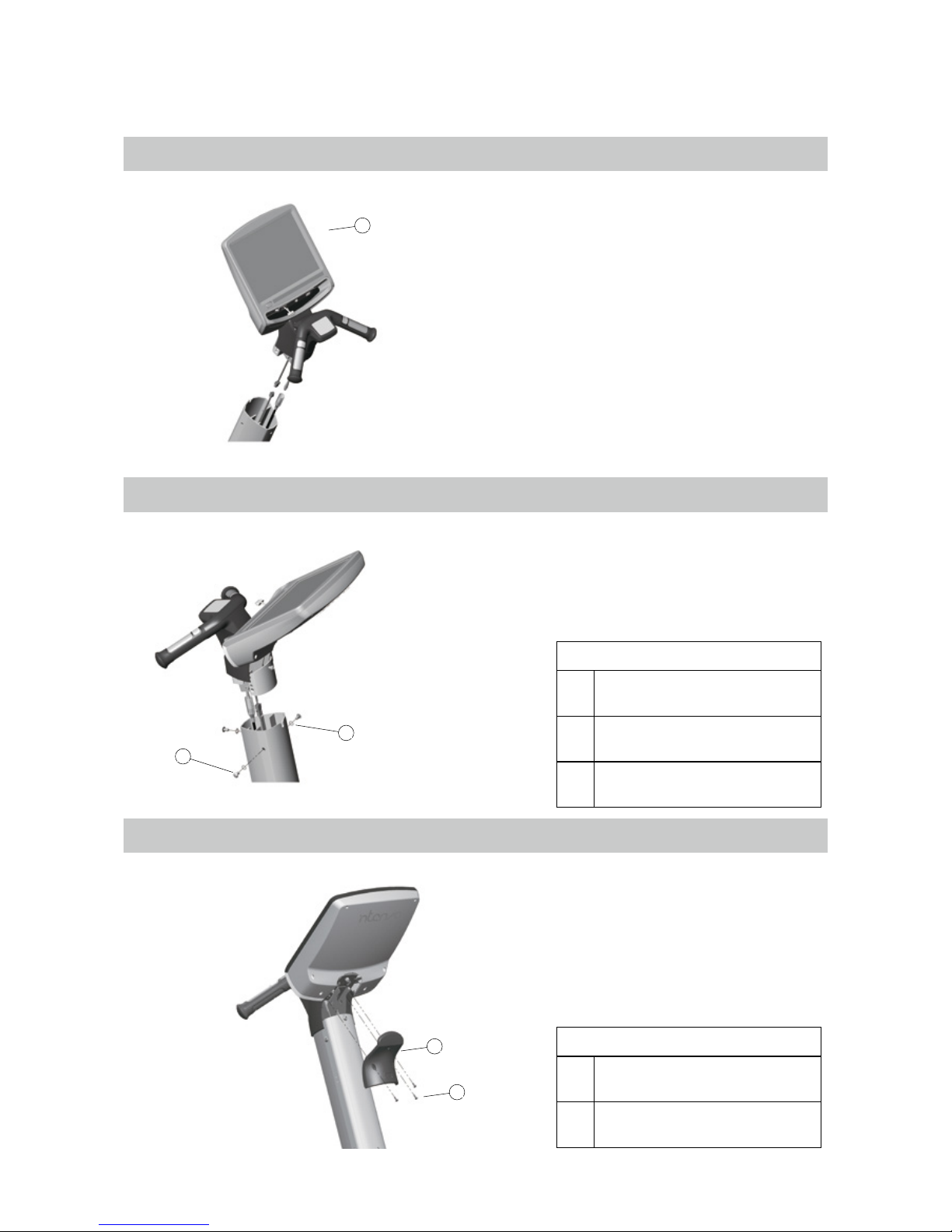

STEP 6 Assemble the console
STEP 7 Assemble the console
STEP 8 Assemble the console cover
TOOL
10 M8 x 15 x 3
16 Star washer (White) x 3
Hex wrench- 6mm
NOTE:
1. Connect the console cable, TV cable and carefully
insert the cable into the front post.
NOTE:
1. Tighten the front screw rst then make sure the
post is well positioned.
2. Tighten the other three screws of the front post.
TOOL
13 M4 x 15 x 3
Hex wrench- 3mm
NOTE:
Make sure three screws are tightened.
10
5
6
13
16
9
Assembly Introduction Workout Option Maintenance Trouble ShootingSafety precaution
STEP 9 Assemble the bracket of the cup holder
STEP 10 Assemble the cup holders
- Assemble nished -
TOOL
12 M6 x 15 x 4
Hex wrench- 5mm
TOOL
12 M6 x 15 x 4
Hex wrench- 5mm
NOTE:
Make sure the direction(R, L) of the
bracket is correct before assembly.
7
12
8
12
9
R
L
