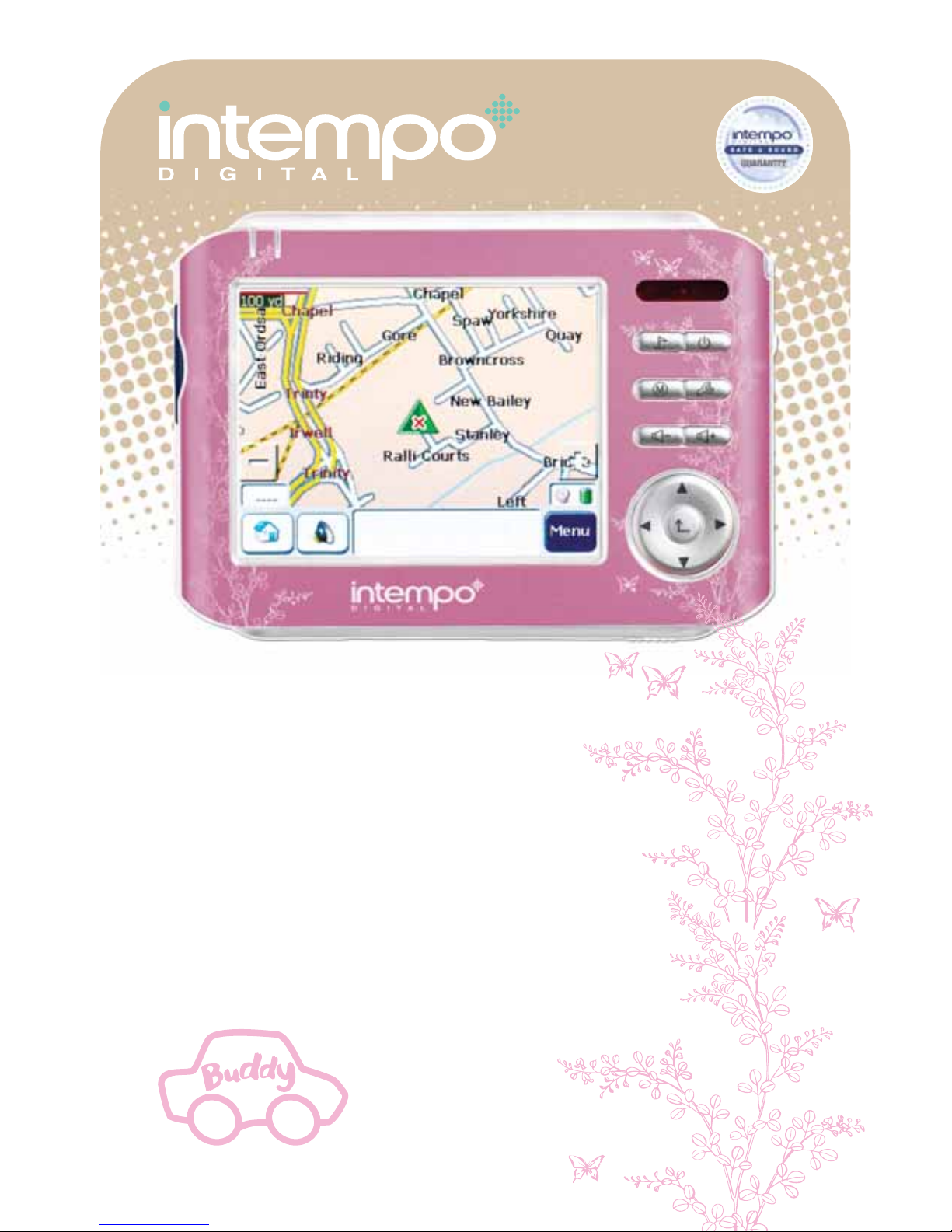

Intempo Digital BUDDY Manuel utilisateur

Love from Intempo Digital xx

BUDDY

Gorgeous and easy to use GPS Navigation Kit

USER GUIDE

1. Buddy with Styli touch screen pen

2. Buddy holder

3. USB cable

4. Car charger

5. CD-ROM

6. Memory card (SD card)

7. Windshield dock

8. AC adaptor

Contents - What’s in the box

Your Buddy keypad & layout

1. Battery indicator

2. GPS indicator

3. Menu / Power

4. zoom in zoom out on the display

5. Volume - / +

6. 5 way navigation key

7. GPS receiver

8. Reset switch

9. Power switch

rear

1 2 3

5 6 7

Your Buddy keypad & layout

1. SD Socket

2. Ear phone jack

3. USB connector

4. External antenna

5. DC in

6. Hold Key

7. Styli pen

Getting started

Before switching your Buddy on for the first time we

recommend that you fully charge the internal battery, as you

would do with a mobile phone. This takes around 4 hours,

in order to charge the battery connect the DC plug from

the AC adaptor into the DC in socket on the bottom left

hand side of your Buddy. Next connect the AC adaptor to a

working mains outlet, charging will now take place. Whilst

charging the battery indicator on the front on the Buddy will

flash orange, once charging is complete it will stop flashing

and remain orange. When the battery is very low the battery

indicator will turn red, this means you must connect either

the AC adaptor or car charger in order to charge the

battery. Whilst using your Buddy to navigate the battery will

last for 31⁄2hours without a charge, if on a journey the

battery becomes low simply connect it to the car charger.

Switching on

Fitting the SD card

Remove the SD card from the packaging and push it into

the SD card slot, the SD card is already pre loaded with

UK and Ireland maps.

Turn on the Buddy by pushing the power switch on the rear

of the Buddy to the on position. Now turn the unit around

and press and release the power key (top right hand side

key). The first time you switch on your Buddy it may take up

to 15 seconds to start up.

Calibration and registration

After the Intempo Digital splash screen the next page to be displayed is the calibration screen. At this point you

will need to remove the Styli pen from the Buddy case, once removed carefully press and briefly hold the pen

on the center of the target. Repeat as the target moves around the screen. Once you have finished with the five

targets just press on the screen again with Styli pen and it will automatically proceed to Destinator. Destinator

is the GPS navigation software that works with your Buddy.

When finally in Destinator the first screen you will see is the “Main Map”, at this point you need to go to section

number 7 “Operating Destinator” in the Destinator Quick Starter Guide.

Locating your current position

First of all ensure that the GPS antenna is positioned as far up as it will go (see diagram above).

Your Buddy must be located outside in order to locate your current position. When you first start your

navigation device, you will hear the message “Signal too low”. This message means that your Buddy hasn’t yet

located a reliable GPS signal. Under certain circumstances it may take up to 5 minutes to find your current

position. If after five minutes, you have not located a reliable signal, ensure that your Buddy has an

unobstructed view of the sky i.e. there are no tall buildings or trees blocking the GPS signal. The GPS indicator

will flash green after the position has been fixed. Normally once the unit has been initialised it shouldn’t take

more than 40 seconds to locate your current position.

N.B. Some windscreens are coated in substances that are capable of blocking the GPS signal. Also heated

windscreens can affect the GPS signal. If you are having problems receiving a GPS signal then you may have

to use an external antenna. The Buddy comes with an external socket which will allow to connect such a

device. See www.intempodigital.com

Installing your Buddy in the car

• Place your Buddy in the Buddy holder

• Click the Buddy onto the end of the windshield dock

• Use the windshield dock to position your Buddy in your car.

• Make sure your windshield is clean and dry before trying to attach the dock.

• Place the dock so it does not obscure your view of the road.

• Attach the dock to an area of the windshield where the glass is flat, not curved.

Press lever to attached

Connection to cigar-lighter

Connecting buddy to your computer (optional)

You can connect Buddy to your computer.

You can contact your buddy to your computer using the USB

cable (driver provided on CD-ROM), in order to update maps etc

via Destinator.

CD ROM

The CD ROM contains the following items:-

• Quick start guide

• User guide

• Destinator V5.5 user manual

• USB driver

• UK and Ireland maps

Information for user

Important Safety Notices and Warnings

Global Positioning System

The Global Positioning System (GPS) is a satellite-based system that provides location and timing information

around the globe. GPS is operated and controlled under the sole responsibility of the Government of the

United States of America which is responsible for its availability and accuracy. Any changes in GPS availability

and accuracy, or in environmental conditions, may impact the operation of your Buddy.

Use with car

Use of Buddy for navigation still means that you need to drive with due care and attention.

Aircrafts and Hospitals

Use of devices with an antenna is prohibited on most aircraft, in many hospitals and in many others locations.

Buddy must not be used in these environments.

Caring for your Buddy

Your Buddy contains sensitive electronic components that can be permanently damaged if exposed to

excessive shock or vibration. To minimise the risk of damage to your Buddy, avoid dropping your unit and

operating it in high shock/vibration environments.

Protecting your Buddy

Follow the precautions below to protect your Buddy from damage:

• Do not store the Buddy where prolonged exposure to extreme temperatures can occur (such as in the boot

of a car), as permanent damage may result.

• Do not expose the Buddy to water. Contact with water can cause this unit to malfunction.

• Do not leave your Buddy on view when you leave your vehicle. Unclip your Buddy from the holder and take it

with you, it maybe also a good idea to remove the windsheild dock from the windscreen and place it out

of sight.

Resetting your Buddy

If your unit locks up, please use the styli pen to press the reset switch which is located on the back of your

Buddy. If this doesn’t help, power off your Buddy and power on again.

1. Use the Styli pen to press the reset switch

2. Switch power off/on

Buddy Technical Specification

CPU Samsung 2410 266MHz

GPS SiRF III or Compatible solution

Display 3.5” Landscape type, QVGA (320x240 pixels), with touch panel

Memory

Flash/SDR 32MB NAND Flash, 64MB SDRAM

MAP Storage SD/MMC

Button Power, Hold, 5-way Joystick, Zoom in/out, Volume up/down

& Switch

Audio 1W loudspeaker, stereo earphone output.

Power &

Battery 1350mA, 3.7V Li-Poly rechargeable battery. 5V 2A AC adapter and car charger.

support

PC Interface USB 1.1 client for Active Sync.

O.S. Microsoft WinCE.NET 4.2

Extension port USB client, Earphone, External Active Antenna, SD Slot

Operating Temperature 0ºC ~ 40ºC, Humidity 40% ~ 80%

Dimension 112*73*18 mm (W*H*D)

(PCBA)

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that

this product shall not be treated as household waste. Please, dispose of this

equipment at your applicable collection point for the recycling of electrical and

electronic equipment waste. In the European union and other european countries

which there are separate collection systems for used electrical and electronic product.

By ensuring the correct disposal of this product, you will help prevent potentially

hazardous to the environment and to human health, which could otherwise be caused

by unsuitable waste handling of this product. the recycling of materials will help

conserve natural resources. Please do not therefore dispose of your old electrical and

electronic equipment with your household waste. For more detailed information about

recycling of this product, please contact your local city office, your household waste

disposal service or the stop where you purchased the product.

Intempo Digital, City Wharf, New Bailey St.,

Manchester. M3 5ER. UKtel: 0161 828 5219

email: [email protected]

www.intempodigital.com

Unauthorized reproduction is an infringement of applicable law.

Other names and trademarks fall under the proprietary rights of the respective owner.

FCC tested and certified. Patents pending.
