Intellisystem IT610W Manuel utilisateur

Intellisystem Technologies S.r.l. - http://www.intellisystem.it

Quick Installation Guide

IT610W

This guide describes the basic functions of

IT610W. All detailed information is

described in the user's manual.

Pan/Tilt Network Camera

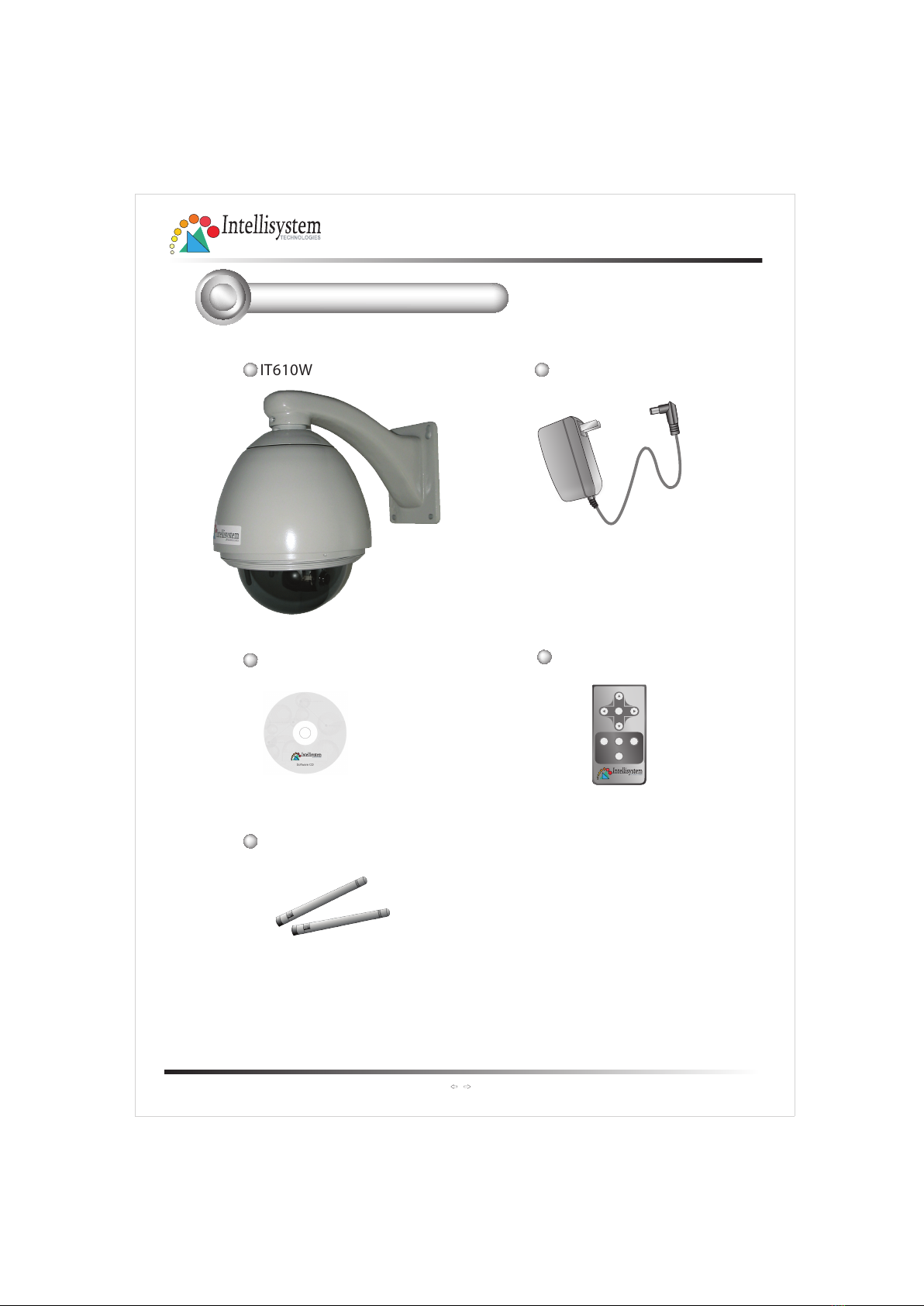

Check package contents

IT610W Power adapter

Antennas (for IT610W and

IT610-LR models only)

Software CD Remote Controller

IT610W Quick Start Guide

Intellisystem Technologies S.r.l. - http://www.intellisystem.it

Home

Auto-Patrol Auto-Pan Center

Stop

Physical description

IT610W Quick Start Guide

Intellisystem Technologies S.r.l. - http://www.intellisystem.it

Front panel

Back panel

E T H E R N E T

M IC E X T .I/O A V

O U T

12V

1 .5 A

Ethernet 10/100 RJ45 socket

Power cord socket

Microphone

A c tiv it y

P o w e r /M IC

Lens and Manual

Focus ring

Status LEDs

A/V out

EXT I/O

External mic

Install your Network Camera in Ethernet network

IT610W Quick Start Guide

Intellisystem Technologies S.r.l. - http://www.intellisystem.it

1.If you have external devices such as

sensors and alarms, make connection

from I/O terminal block

3.Finally, connect power cord to a power outlet

12V

1.5A

ETHERNET

MIC

EXT.I/O

OUT

P O W E R C O L L IS IO N

L IN K

R E C E IV E

P A R T ITIO N

12345

2.Use Ethernet cable to make connection

from Ethernet port to the hub.

Use Category 5 Cross Cable when Network

Camera is directly connected to PC.

1.Run the Installer from CD-ROM

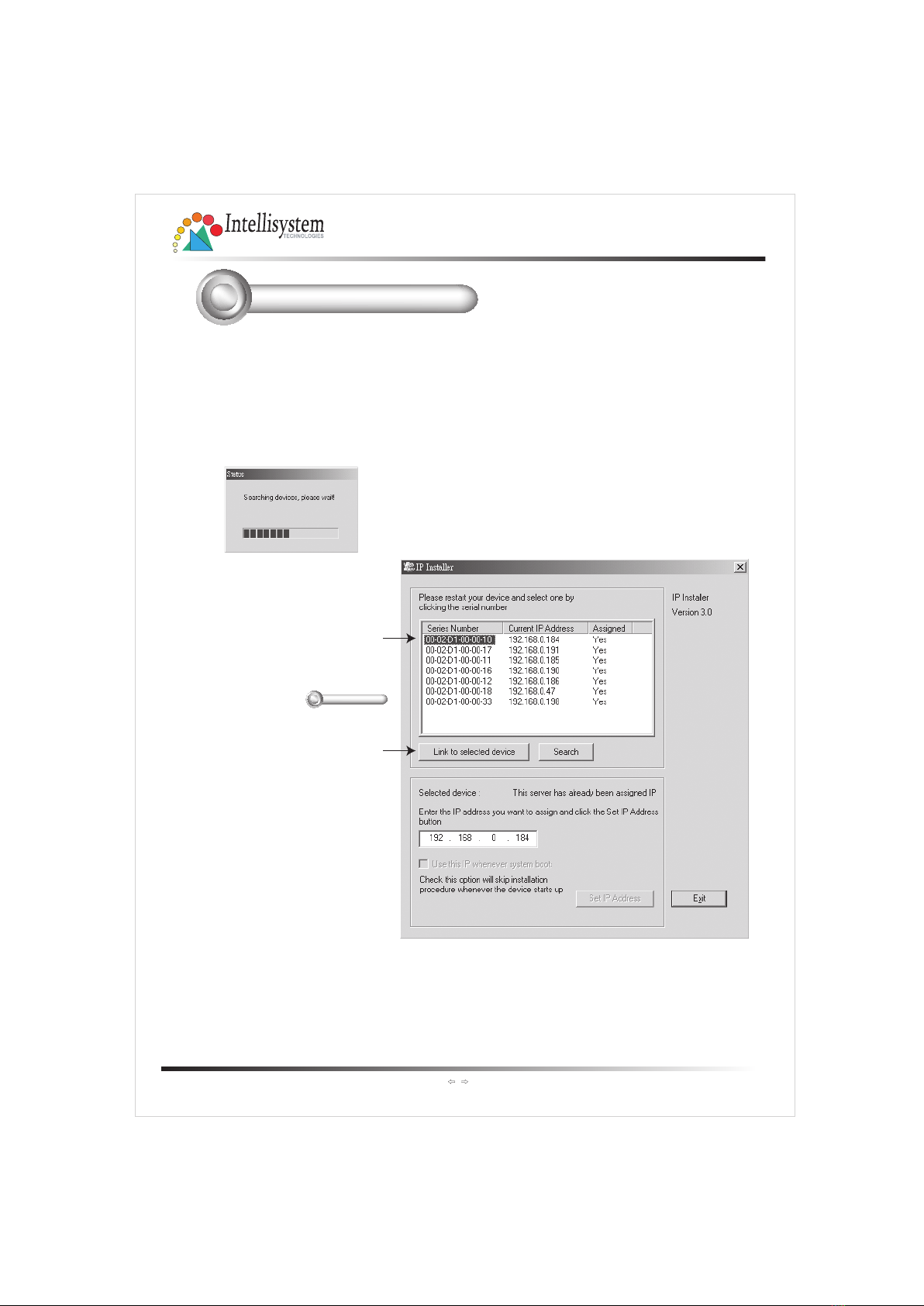

Assign IP address

3.After searching, the main

installer window will pop up.

Click on serial number that

matches the one you just

note from Physical description

2.The program will search the

cameras on the same LAN.

4.Click "Link to selected

device" to invoke web

browser to connect to the

camera.

Intellisystem Technologies S.r.l. - http://www.intellisystem.it

IT610W Quick Start Guide

Intellisystem Technologies S.r.l. - http://www.intellisystem.it

IT610W Quick Start Guide

At the initial access to the“Connection Type”page, the web browser will ask for a new

plug-in installation, the plug in being Network Camera. This plug-in has been

registered for certification and can be used to change the parameters at the client’s

site. The user may click on to install the plug-in. If the web browser does not allow

the user to complete the installation, check the Internet security in order to set on

your web browser to “Ask confirmation for download ActiveX control without

electronic Signature” and so refresh the current web page. If the problem persist

please contact your IT or networking supervisor.

TheInternet Explorer Connectsto the NetworkCamera

For detailed information on further conguration, see user's manual on

the CD-ROM.

Outdoor Housing Assembling

Components:

Step 1: Get the power wire through the

bracket rst.

Step 2: Then through out from the housing

part, meanwhile insert the red and blue

plug to the power socket (P.S. This device

is suitable for AC or DC input, no negative

or positive discriminate)

Step 3: Screw the dome on the xing

brigde.

IT610W Quick Start Guide

Intellisystem Technologies S.r.l. - http://www.intellisystem.it

Step 4: Screw on the two side screws,

and plug in the power of the dome.

Step 5: Finally cover up (plug the antennas

on the bracket, for models IT610W and

IT610W-LR only) and the assembling work

is accomplished.
