Intelbras AMT 2018 E Manuel utilisateur

Installation Guide

AMT 2018 E

AMT 2018 EG

AMT 2118 EG

AMT 2018 E3G

AMT 2018 E, AMT 2018 EG, AMT 2118 EG and AMT 2018 E3G

Alarm center

Congratulations, you have just purchased a product with Intelbras quality and safety.

The AMT 2018 E,AMT 2018 EG, AMT 2118 EG and AMT 2018 E3G monitored alarm

centers have advanced technology and are easy to program. They have 8 memories

for phone numbers,

Panic function, Emergency function, 24-hour zone, intelligent

battery charger with protection against short circuit or reverse polarity, timer and

sensor test function.

They can be connected to opening, infrared, impact, and other

sensors. They report events to 2 IP destinations (monitoring companies) and have a

remote conguration option.

For more information, access the QR codes below:

Complete manual Video tutorials

This is a product homologated by Anatel, the homologation number can be found on

the product’s label. For further information use the link

sistemas.anatel.gov.br/sch.

Attention: this product comes with a factory default password. For your safety, it

is ESSENTIAL that you change it as soon as you install the product.

Summary

1.Installation 4

1.1. Power supply board connector ....................................5

1.2. Network cable connector ........................................6

1.3. Battery connector .............................................7

1.4. Siren input...................................................7

1.5.Wireless device receiver input XAR 4000 and XAT 2000/3000/ 4000 keyboard ....8

1.6. Auxiliary output .............................................12

1.7. Telephone output ............................................12

1.8. Telephone line input ..........................................13

1.9. Connector for GPR module......................................13

1.10. Zone/sector input............................................14

2.Connection via Cloud 19

3.Apps 21

3.1. Mobile Apps ................................................21

4.Resetting Passwords and Center congurations 26

4.1. Reset......................................................26

4.2. Temporary master password and installer reset.......................26

4.3. Reset by programming mode ....................................26

4.4. Wireless device Reset ..........................................27

5.Programming 27

Warranty Terms 50

1. Installation

13 12 11

87654321

AMT 2018 E/EG

AMT 2018 E3G

AMT 2118 E/EG

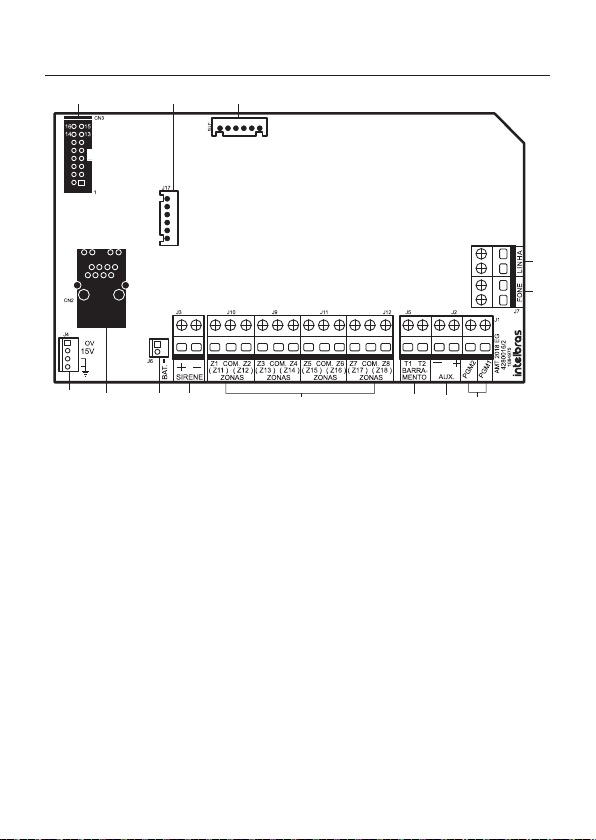

1. Connector for power supply from the switched-mode power supply;

2. Connector for network cable connection (Ethernet);

3. Battery connector;

4. Siren input;

5. Zone/sector input;

6. Bus input T1 and T2;

7. Auxiliary Output (AUX);

8. PGM programmable output;

9. Telephone output;

10. Telephone line input;

11. Connector for recording the center’s micro;

12. Connector for recording the micro that controls the GPRS card;

13. Connector for GPRS module.

Note:

The GPRS XL 865 module is only compatible with the AMT 2118 EG center,

whereas the GPRS AMT E/EG module is only compatible with the AMT 2018 EG center

AMT 2018 E3G is only compatible with 3G module.

1.1. Power supply board connector

When purchasing the alarm center, a complementary kit containing resistors, cables

and guides is provided to the user.

Before starting to use the product it is necessary to integrate the main and power

supply boards. This process must be done manually by connecting the 4-way cable

from connector J4 on the main board to connector CN3 on the power supply board.

Ground

Connect to electrical network

Power supply for the alarm center

Power supply

14.5 V/1.8 A

Alarm center

Yellow

Orange

Black

Red

1. PTH fuse 5,1x20 Delay 250 V/1 A.

2. PTH fuse 5,1x20 Delay 250 V/1 A.

3. 90 and 265 Vac mains input - full range, i.e., without the need for a voltage selec-

tor switch.This way, even if some variation of voltage occurs in the power grid, the

center will continue working normally.

4. Ground.

5. 14.5 Vdc/1.8 A DC output to power the alarm center, meeting the needs of most

installations.

Connecting the power cable

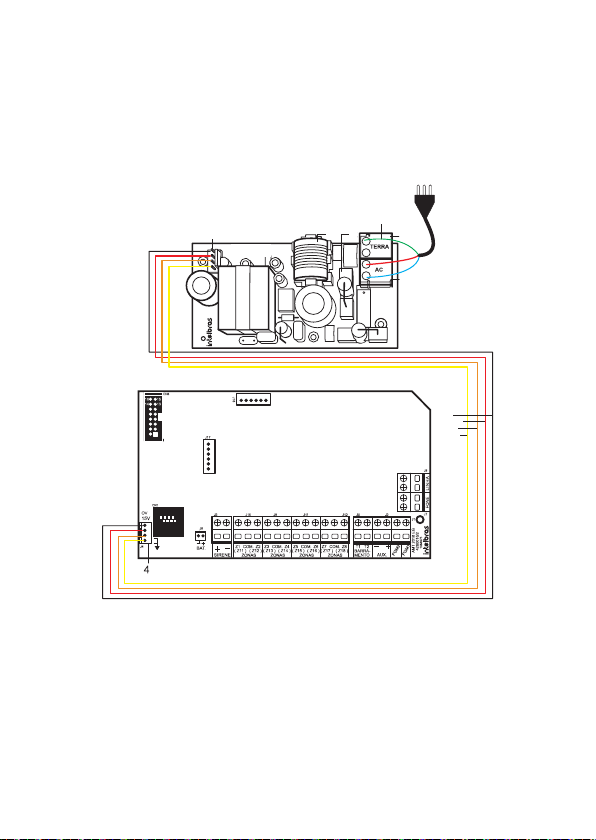

To connect the board to the AC mains it will be necessary to connect the cable to the

CN1 (AC) and the (CN2) GROUND connector of the power supply board, as shown

in the image below:

OUND

AMT 2018 EG

and

AMT 2118 EG:

Antenna Connector



 1 SIMl

 SIM2

AMT 2118 E3G:

lnlbs

O a■■■a ■a 

   °

 

Antenna Connector

Note: Intelbras alarm centers have on their sides some aps that can be cut to pass

cables without losing the product warranty.

OUND

AMT 2018 EG

and

AMT 2118 EG:

Antenna Connector



 1 SIMl

 SIM2

AMT 2118 E3G:

lnlbs

O a■■■a ■a 

   °

 

Antenna Connector

OUND

AMT 2018 EG

and

AMT 2118 EG:

Antenna Connector



 1 SIMl

 SIM2

AMT 2118 E3G:

lnlbs

O a■■■a ■a 

   °

 

Antenna Connector

1.2. Network cable connector

Communication via Ethernet is done through cabling on the main board. To use this

type of communication simply place one end of an RJ45 cable into the connector on

the board and the other end should be connected to an internet port on the router/

modem.

OUND

AMT 2018 EG

and

AMT 2118 EG:

Antenna Connector



 1 SIMl

 SIM2

AMT 2118 E3G:

lnlbs

O a■■■a ■a 

   °

 

Antenna Connector

OUND

AMT 2018 EG

and

AMT 2118 EG:

Antenna Connector



 1 SIMl

 SIM2

AMT 2118 E3G:

lnlbs

O a■■■a ■a 

   °

 

Antenna Connector

Note:the port speed is 10 Mb.

1.3. Battery connector

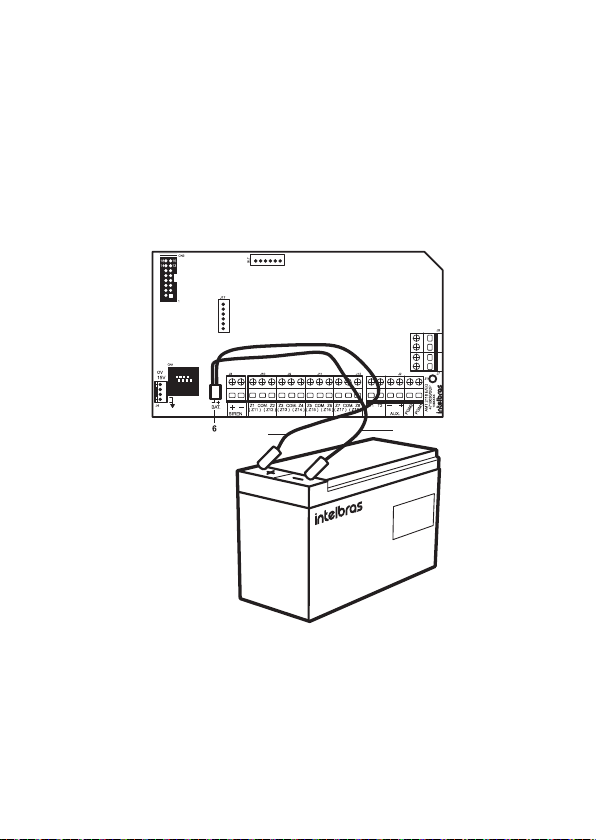

To connect the battery to the center, observe the polarity, i.e., red wire (positive)

connected to the center’s positive side and black wire (negative) connected to the

center’s negative side.As shown in the illustrative gure below:

The center has protection against reverse polarity, battery short-circuit, and also pro-

tection to prevent the battery from being damaged in case of a mains failure. If the

battery voltage is below 10 V, the siren and auxiliary outputs will be deactivated.

Note:the battery charger works pulsatively, so it cannot be measured using a volt-

meter.

ALARM CENTER

Red Black

ZONES ZONES ZONES ZONES BUS

PHONE LINE

1.4. Siren input

One or more sirens can be connected, provided that the total current is:

» Without battery: 400 mA;

» With battery: 1 A.

Note: to connect more than one siren, the system must be equipped with a battery.

It is important to emphasize that if the siren is connected to the center being fed only

by the electrical network, without the battery, its tone will be pulsative.

Resistor

Golden

Red

2K2

Attention: connect a 2K2 Ohm resistor (supplied with the center) in parallel with

the siren wire, this procedure prevents the siren from making noise while it is turned

off.This noise is generated by the siren wire’s short-circuit or cut detection circuit and

does not cause any damage to the equipment.

For the alarm center to recognize the cut or short circuit of the siren wire, it must be

enabled in programming mode.

1.5. Wireless device receiver input XAR 4000 and XAT 2000/3000/

4000 keyboard

Used for communication of wireless keyboards and device receivers.

Keyboard Connection:

The AMT 2018 E/EG control panel comes with the XAT 2000 LCD keyboard, which is

used to program the product.

Note: The AMT 2018 E/EG alarm center can also be connected to the XAT 3000 LED

and XAT 4000 LCD keyboards.

When unpacking the keyboard it will have some connected wires with colors and

meanings explained below:

Keyboard Connector Wire Color

Power Vdc +12V Red Wire

Grounding or (-) Black Wire

T1 Bus Green Wire

T2 Bus Yellow Wire

Zone 9 (Z9) or Wired Single Zone (*) Blue Wire

Zone 10 (Z10) or Wired Single Zone (*) White Wire

Common for zones Black Wire

To cancel the keyboard zones connect the blue and white wire to the black wire of the 6 way cable

The Vdc +12 V power supply, red wire, of the keyboards should be connected to the

AUX+ point of the alarm center. The grounding, black wire, for the keyboards must

be connected to the center’s AUX- point. As for the busbars T1, green wire, and T2,

yellow wire, from the keyboards must be connected to points T1 and T2 of the alarm

center units, respectively.

Note:

The keyboard zones (Zone 09 and Zone 10) behave as single zones, they

can’ t be duplicated.

We recommend that you do not use external power supplies to feed the devi-

ces connected to bus T1 and T2, their power supply must be connected to the

center’s AUX output.

If it is necessary to use an external power supply for powering some device on

bus T1 and T2, it must be connected the Negative (-) of the power supply in

common with the Negative of the Auxiliary Output of the center (AUX -).

Keyboard addressing jumper

A maximum of 4 keyboards may be connected per center.The jumper’s position in the Address

connector denes which will be Keyboard 1, Keyboard 2, Keyboard 3, and Keyboard 4.

Keyboard 4 Keyboard 3 Keyboard 2 Keyboard 1

Address

The following table shows the identications of the zones according to the addres-

sing of the keyboard jumper.

Keyboard Blue Wire White Wire

Keyboard 1 Zone 09 Zone 10

Keyboard 2 Zone 19 Zone 20

Keyboard 3 Zone 21 Zone 22

Keyboard 4 Zone 23 Zone 24

Wireless device Receiver connection

The AMT 2018 E/EG,AMT 2018 E 3G and AMT 2118 EG centers are compatible with

the XAR 4000 receiver, operating only in OOK modulation (unsupervised devices).

Note:we do not guarantee the operation of XAR 4000 Smart with centers or wireless

sensors not manufactured by Intelbras.As for remote controls from other manufactu-

rers, they must have the following features to work with XAR 4000 Smart:

1. Operate in OOK modulation;

2. Operate on 433.92 Mhz frequency;

3. Transmission rate 1.886 Kbps.

Connection to the T1/T2 bus

1. Connect the receiver’s T1 terminal to the center’s T1 input and the receiver’s T2

terminal to the center’s T2 input. Use 4 × 26 AWG or higher cable with a maxi-

mum length of 100 m and a total resistance of up to 40 ;

2. Power is connected to the auxiliary output of the alarm center;

3. For addressing the XAR 4000 SMART, there are four jumpers: JP1, JP2, JP3, and

JP4.All receivers leave the factory with the jumper in position JP1. If you are using

more than one device, the second one should have the jumper in the JP2 position,

and so on;

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Intelbras Système de sécurité

Intelbras

Intelbras 8000 Series Manuel utilisateur

Intelbras

Intelbras AMT 1000 SMART Manuel utilisateur

Intelbras

Intelbras AMT 8000 Manuel utilisateur

Intelbras

Intelbras XSS 8000 Manuel utilisateur

Intelbras

Intelbras AMT 8000 Slim Manuel d'utilisation

Intelbras

Intelbras AMT 4010 Smart Manuel utilisateur

Intelbras

Intelbras AMT 8000 LITE Manuel utilisateur

Intelbras

Intelbras AMT 8000 Manuel utilisateur

Intelbras

Intelbras AMT 8000 Manuel d'utilisation

Intelbras

Intelbras AMT 8000 LITE Manuel d'utilisation

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
