Slimline CD-ROM/Floppy Drive
Option Kit Installation Guide for
Intel®ISP1100 Internet Server
The most current version of this document and other documents relating to the
Intel®ISP1100 Internet Server can be found at http://www.intel.com/isp.
Copyright © 2000 Intel Corporation.All rights reserved. No part of this document
may be copied, or reproduced in any form, or by any means without prior written
consent of Intel.
Intel Corporation (Intel) makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of merchantability and fitness for a
particular purpose. Intel assumes no responsibility for any errors that may appear in
this document. Intel makes no commitment to update nor to keep current the informa-
tion contained in this document.
† Third-party brands and trademarks are the property of their respective owners.
February 29, 2000
Revision 1.0
Document Number: A16414-001
Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit 1
Introduction
This document explains how to install the slimline CD-ROM and floppy drive
assembly in the Intel ISP1100 Internet Server.
Before you begin:
1. Make sure you have the following parts:
• One (1) Teac CD-224E 24x slimline CD-ROM drive
• One (1) Slimline CD-ROM drive mounting bracket
• One (1) Slimline CD-ROM drive backplane
• Four (4) m2 x 4mm screws for attaching the CD-ROM drive to the bracket
• Two (2) m2 x 7.75mm screws for attaching the backplane to the CD-ROM
drive
• One (1) Mitsubishi slimline floppy drive
• One (1) Slimline floppy drive mounting bracket
• Four (4) m2.5 x 4mm long screws for attaching the floppy drive to the bracket
2. Make sure you have the following tools:
• Phillips (cross-head) screwdrivers, numbers 1 and 2 bit
• An antistatic wrist strap and conductive foam pad (recommended)
3. Read the safety and warnings information in the Intel®ISP1100 Internet Server
Quick Start Guide.
4. Make sure the server is turned off and is not plugged into an electrical
outlet.
Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit2
Assemble the Slimline CD-ROM Drive
1. Attach the CD-ROM drive backplane to the CD-ROM drive.
• Plug the backplane (A) into the back of the CD-ROM drive (B).
• Fasten the backplane to drive with two m2 x 7.75mm long screws (C).
B
A
C
OM09768
2. Attach the CD-ROM drive to the CD-ROM mounting bracket.
• Place the CD-ROM drive on top of the CD-ROM mounting bracket (A).
• Fasten the drive to the bracket using four m2 x 4mm long screws (B).
A
B
OM09775
Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit 3

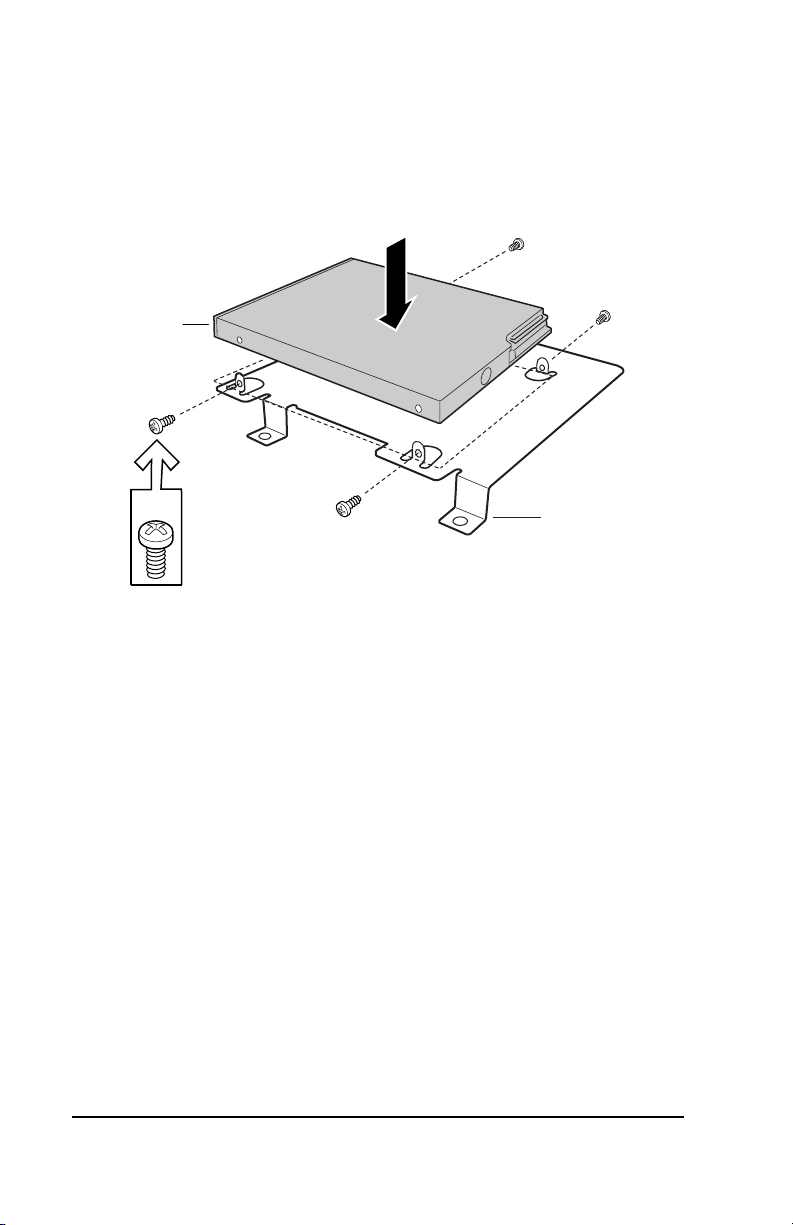

Assemble the Slimline Floppy Drive
1. Place the floppy drive (A) on top of the floppy mounting bracket (B).
2. Fasten the floppy drive to the bracket using four m2.5 x 4mm long screws (C).
A
B
C
OM09774
Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit
Open the Server Cover
1. Remove the screw (A) from the cover.
2. Slide the cover back and out from under the edge of the server’s front panel.
3. When the cover is free of the front panel, use the notch (B) in the cover to lift the
cover off the chassis.
A
BOM09745
4
Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit
Remove the Riser and Add-in Card(s)
Because the left add-in card blocks access to the slimline connectors on the server
board, you must remove the riser card and its add-in card(s) while you install the
slimline drives. If the riser card does not contain an add-in card in the full-length PCI
slot (left side), skip this step.
1. Remove the screws (A) from the retention bracket (B), and remove the retention
bracket.
2. Grasp the riser card at each end (C) and gently rock and lift until the riser releases
from the server board connector.
3. If the system is configured for SCSI, disconnect the SCSI cable from the SCSI
card.
A
B
C
OM09747
5
Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit
Remove the 3.5 Floppy Drive and Cable
1. Remove the three screws (A) that hold the drive in the chassis.
2. Lift the back end of the floppy drive at an angle and disconnect the power cable
(B) and data cable (C).
3. Remove the drive from the bay.
OMO9771
C
A
B
6
Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit 7
4. Move the hard drive data cable out of the way of the 3.5" floppy drive data cable.
• If the system is configured for IDE, disconnect the data cable (A) from the
server board’s primary IDE connector (B).
• Slide the cable (A) out from under the retention bracket (C), and set it to the
side as shown.
5. Disconnect the 3.5” floppy drive cable (D) from the connector (E) on the server
board.
6. Slide the cable out from under the retention bracket.
• Turn the part of the cable that goes under the retention bracket so the cable (D)
is at an angle (not perpendicular) to the head of the retention bracket (C).
• Gently slide the cable from under the retention bracket, being careful not to
scrape it against the retention bracket.
E
B
A
OM09742_R
D
C
A/D
Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit
Install the Slimline Data Cables
1. Place the slimline floppy cable (A) in the chassis and carefully slide it under the
retention bracket (B).
2. Connect the slimline floppy cable to the slimline floppy connector on the server
board (C).
• Unlock and extend the connector tab (D) by gently pulling the handles (E) at
each end of the tab.
• Gently slide the end of the slimline floppy cable (F) into the space between the
tab and the top of the connector.
• Holding the cable in place, press the handles (E) at each end of the tab inward
to lock the cable in.
C
D
FE
B
A
OM09743
8
