Integra DRX-5.3 Manuel
a
b
c
Install & Connections
ba
＊2
4-16Ω
1 2
3
ᴧº1/2˝
(12 mm)
ᴧ
a
＊3
＊1
*29403676*
SN 29403676 F1902-0
aSpeaker cable, bSubwoofer cable
http://integraworldwide.com/manual/drx53/top.pdf
Refer to the instruction
manual available on our
website to install and
connect speaker systems
other than 7.1 ch.
a: 22° to 30°, b: 90° to 110°, c: 135° to 150°
Front Speakers
Center Speaker
Surround Speakers
Powered Subwoofer
Surround Back Speakers
1,2
3
4,5
6
7,8
7.1 ch System
DRX-5.3
AV Receiver
Initial Setup Guide
http://integraworldwide.com/manual/drx53/top.pdf
Refer to the instruction manual available
on our website to install and connect
speaker systems other than 7.1 ch.
＊1 ＊2 ＊3
SN29403676_DRX-5.3_QSG_En.indd 1 2019/02/14 17:06:17

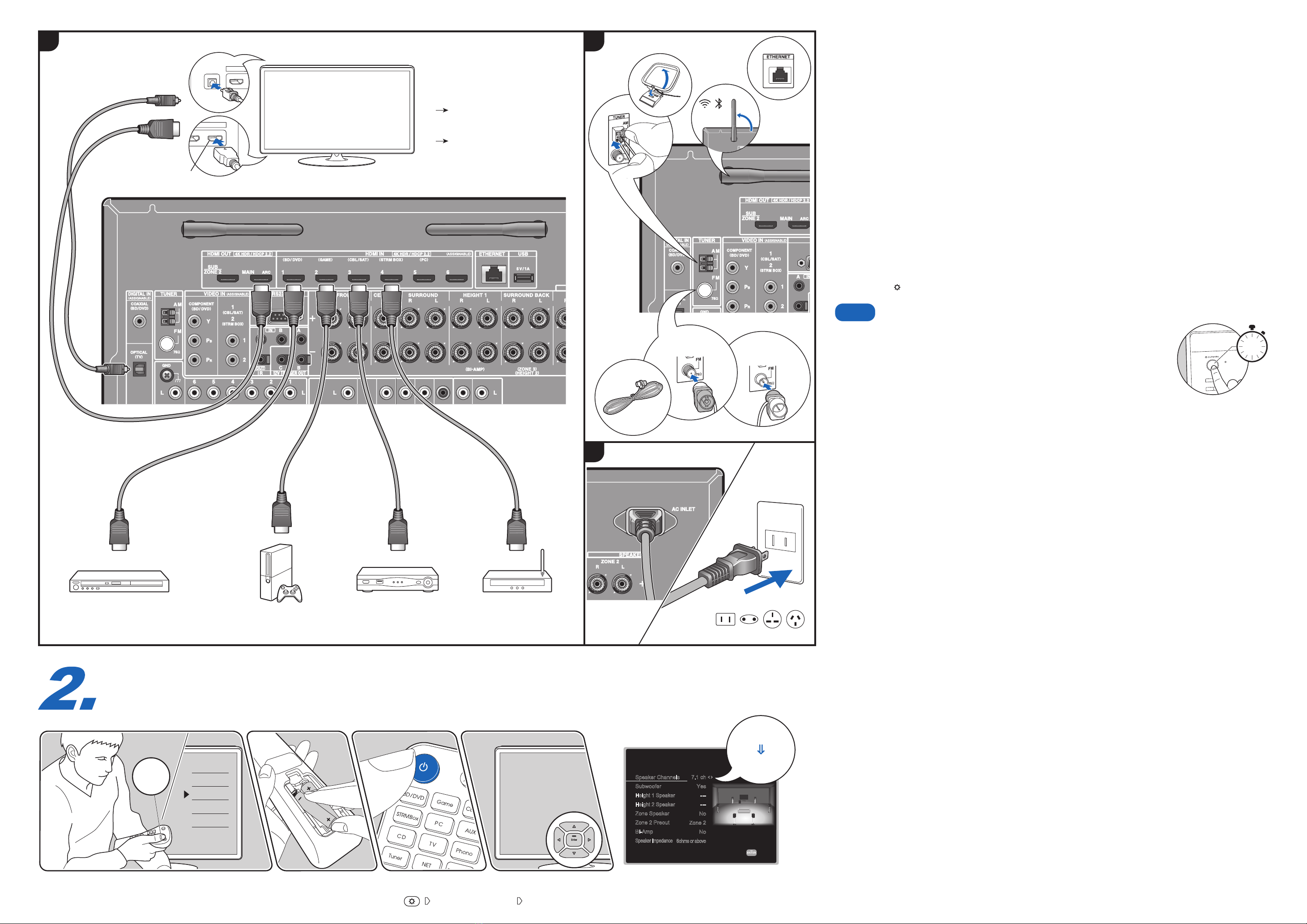

BD/DVD Cable/Satellite set-top box
Streaming
media playerGAME
ARC TV
c
Non-ARC TV
c+ d
IN(ARC)
d
ARC
c
DIGITAL
OPTICAL OUT
＊4
＊5
＊6
5
4 5
6
Initial Setup with Auto Start-up Wizard
Inputs
TV
HDMI 1
HDMI 2
HDMI 3
TV
INPUT
TV’s REMOTE
＊7
Speaker Setup
Next
< >
Speaker Channels
Subwoofer
Height 1 Speaker
Select how many speakers you have.
Speaker Impedance
6ohms or above
Height 2 Speaker
Zone Speaker
Bi-Amp
No
Zone 2 Preout Zone 2
No
-
-
-
7.1 ch
Yes
-
-
-
Initial Setup
1st Step : Speaker Setup
2nd Step: AccuEQ Room Calibration
3rd Step : Multi Zone Sound Check
4th Step : ARC Setup
5th Step : Network Connection
7.1.2ch
7.1ch
To redo the initial setup
"8. Miscellaneous" "4.Initial Setup"
＊1
Used during Initial Setup.
＊2
Connect speakers with 4 Ω to 16 Ω impedance. If any of the connected speakers have 4 Ω or more to
less than 6 Ω impedance, in "Initial Setup", "Speaker Setup", set "Speaker Impedance" to "4ohms".
＊3
Make sure the wires at the ends of the speaker cables are twisted tightly and do not stick out of the
speaker terminals when connecting. The unit can be damaged if the exposed wires of the speakers
touch the rear panel or the + and - wires touch each other.
＊4
If it is an ARC TV, connect to the ARC compatible input jack on the TV. Settings are required to use the
ARC function. Select "Yes" for "ARC Setup" in "Initial Setup".
＊5
To output the audio of an AV component to ZONE 3, as well as connecting using the HDMI cable, it is also
necessary connect using an analog audio cable. For details, refer to the instruction manual.
＊6
If you connect this unit to the network using wired LAN, connect an LAN cable to the ETHERNET port.
＊7
Switch the input on the TV to that assigned to the unit. Follow the guidance displayed on the screen to
complete Initial Setup. Note that there are a maximum of 9 listening points available for measuring with
"AccuEQ Room Calibration" when the listening area is large. Also, if you selected "No, Skip" for "ARC
Setup", to enable HDMI CEC and HDMI Standby Through function, after completing Initial Setup, you will
need to press on the remote controller and make the settings in "6. Hardware" - "1. HDMI".
Tips
When the unit is operating erratically
If operation becomes unstable, try restarting the unit. Set the unit to standby,
then press and hold
On/Standby
on the main unit for 5 seconds or more.
If restarting doesn’t x the problem, try unplugging the power cord and HDMI
cables then replugging them in again, initializing settings (with the unit ON, while
pressing CBL/SAT on the main unit, press
On/Standby
.), and trying Firmware
Update.
5"
(North American
models)
(Australian models)
cHDMI cable
dDigital optical cable
SN29403676_DRX-5.3_QSG_En.indd 2 2019/02/14 17:06:21
