INTECH Micro

2100-R2 REV 1.0

Installation Guide.

14.08-1

TECHNOLOGY

& QUALITY

ISO9001

Z985

14.08-2

Section A. Description, Ordering and Specifications.

2100-R2 Installation Guide Index.

Section A. Description, Ordering and Specifications.

Index. Page 2

Features and Ordering Information. Page 3

Specifications. Page 4

Dimensions. Page 4

Terminals and layout. Page 5

Section B. Jumpers and LED Functions Tables.

H1 Power Supply Settings. Page 6

LED Descriptions. Page 6

Section C. Output Connection Diagrams.

2100-A4Relay Output Expansion - Using 2100-R2 Relay Expansion. Page 7

2100-A16 Relay Output Expansion - Using 2100-R2 Relay Expansion. Page 8

2100-A16 Relay Output Allocation for Single Action Controllers. Page 9

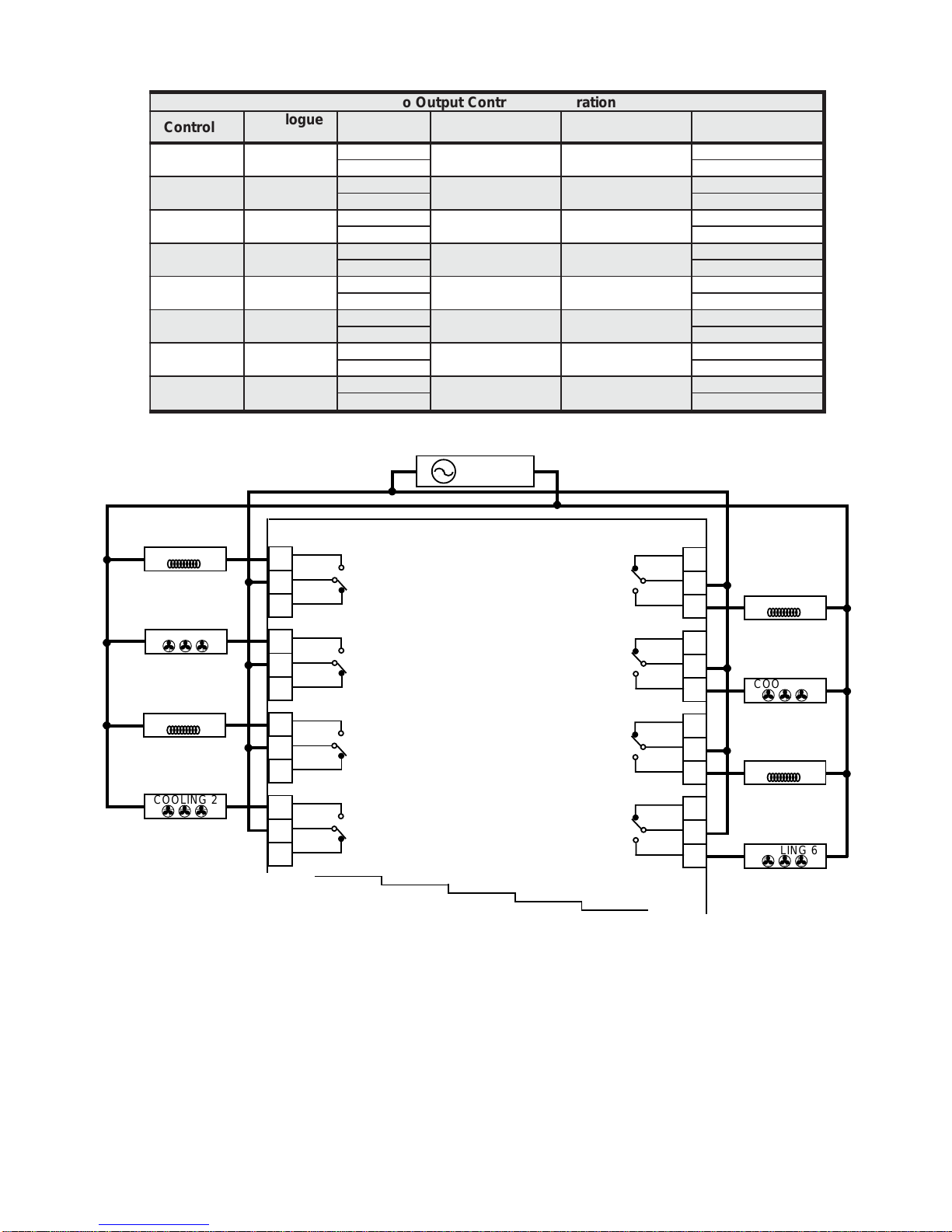

Relay Output Connection Example for Single Action Controllers. Page 9

2100-A16 Relay Output Allocation Table for Dual Action Controllers. Page 10

Relay Output Connection Example for Dual Action Contollers - Single 2100-R2. Page 10

Relay Output Connection Example for Dual Action Contollers - Casdaded 2100-R2. Page 11

Section D. Wiring and Installation.

Mounting. Page 12

Cover Removal and Fitting. Page 12

Power Supply Wiring. Page 12

Analogue Signal Wiring. Page 12

Commissioning. Page 12

Software Programming Page 12

16 Channel Relay

Ouput Expander.

INTECH Micro

2100-R2 Rev 1.0

Features.

z16 Digital, Isolated, Relay Outputs.

zCascade option for a 2nd 2100-R2.

zEnables 32 Digital, Isolated, Relay Outputs.

zCost Effective Output Expansion for 2100-A16 and 2100-A4.

zEasy Programming Via Microscan Maps.

zProgrammable Relay States - NO or NC.

zUniversal AC/DC Power Supply.

zEasy to Install.

zCompact DIN Rail Mount Enclosure

Ordering Examples.

1/ 2100-R2-M 2100-R2; 23~90Vdc Power Supply.

Quality Assurance Programme.

The modern technology and strict procedures of the ISO9001 Quality Assurance Programme applied during design,

development, production and final inspection grant long term reliability of the instrument. This instrument has been

designed and built to comply with EMC and Safety Standards requirements.

14.08-3

2R-0012rofsnoitpOgnignaR lppuSrewoP

)2(

cdV/caV462~58H

cdV09~32 M

cd/caV82~01L

Note 1) The 2100-R2-X is field selectable for H or M power supply.

Note 2) Power supply ‘H’ is field selectable for ’M’, and ‘M’ for ‘H’. Power supply ‘L’must be ordered separately.

2100 models include:

2100-4S : RS422 to RS485 Converter.

2100-A16 :16AI, 4DI, 2 Relay Out, 2 AO.

2100-A4 :4AI, 4DI, 4 Relay Out, 2 AO.

2100-A4e :4AI, 4DI, 8 Relay Out, 2 AO.

2100-AO :8 AO, 8 AI, 12 DI, 2 Relay Out.

2100-D :12DI, 12 Relay Out.

2100-IS :Isolated RS232 to RS422/485.

2100-M :16AI Multiplexer.

2100-ME :Memory Expansion for 2100-A.

2100-NET :Isolated Ethernet to RS232/422/485.

2100-NS :Non-Isolated RS232 to RS422/485.

2100-R2 :16 Relay Expansion for 2100-A.

2100-RL2 :2 Relay Expansion for 2100-A.

TECHNOLOGY

& QUALITY

ISO9001

Description.

The 2100-R2 16 Channel Relay Output Expansion Module is used in conjunction with the 2100-A16.

This allows the 2100-A16 to stand alone as a 16 channel controller / alarm unit.Asecond 2100-R2 can

be then connected to the first 2100-R2, creating a 32 channel controller / alarm unit. The 2100-R2

relay outputs can be used for any combination of control and alarm functions. The control parameters

for each of the 16 controllers is downloaded from user friendly Microscan Sofware, and stored in

permanent memory on the 2100-A16. These parameters include Setpoint (SV), Switching Differential,

Auto / Manual, Manual Output Setting, Dual Action Control, Single Action Control, Heat / Cool, Heat

Only, Cool Only.

The 16 controller alarms will operate unaffected by computer power downs, reboots, etc. The relay

outputs can also be accessed directly from the Scada. The 2100-R2 can also be used in conjunction

with the 2100-A4for general purpose alarms, generated by the Scada.

Ordering Information.

2100-R2-X Standard Unit: 85~264Vac/dc Power Supply.

2100-R2

Z985

14.08-4

2100-R2 Dimensions.

2100-R2 Relay Expander2100-R2 Relay Expander

2100-R2 Relay Expander

SerialNo.SerialNo.

SerialNo.

195mm

120mm

2100-R2 Specifications.

Input: Interfaced with the 2100-A16 or 2100-A4.

Digital Outputs: 16IndividuallyIsolatedChangeoverRelayswithLEDIndicationofEachOutput.

-Functions When used with a 2100-A16, the relays can be used as Set Point (SV)

SwitchingDifferential,Auto/Manual,ManualOutputSetting,DualActionControl,

Single Action Control, Heat/Cool, Cool Only, Heat Only.

-Contact Material SilverAlloy

-RelayRatings Maximum Rating Approved to Standard

250Vac, 2A UL

125Vac, 2A CSA

110Vdc, 0.3A;

30Vdc, 2A;

250Vac,1/6hp;

125Vac, 1/10hp.

-Number of Operations 2 x 105Min, at 1A, 250Vac Resistive Load.

Power: -H 85~264Vac/dc;50/60Hz; 10VA.

-M 23~90Vdc;10VA.

-L 10~28Vac/dc; 50/60Hz; 10VA.

Referto‘2100-R2H1PowerSupplySettings’forvoltageselectioninstructions.

Safety and EMC Compliances:

EMC Emissions Compliance EN 55022-A.

EMC Immunity Compliance EN 50082-1.

Safety Compliance EN 60950.

Mains Isolation 250Vac.

Mains Isolation Test Voltage -To all Inputs and Outputs: 3000Vac 50Hz for 1min.

-To Earth: 1500Vac 50Hz for 1min.

Isolation Test Voltages: -Interface to Outputs 3000Vac 50Hz for 1min.

-BetweenOutputs: 1500Vac 50Hz for 1min.

General Specifications: (Unless otherwise stated in other input specifications.)

RF Immunity <±1% Effect FSO Typical.

Operating Temperature 0~60C.

Storage Temperature -20~80C.

OperatingHumidity 5~85%RH Max. Non-Condensing.

Housing -Material ABS Inflammability V0 (UL94)

-Dimensions L=195, W=120, H=70mm.

-Mounting 35mm Symmetrical Mounting Rail.

-Weight 800g. Includes Packaging.

Note 1. Contact INTECH INSTRUMENTS for more detailed programming information.

Product Liability. This information describes our products. It does not constitute guaranteed properties and is not intended to affirm the suitability

of a product for a particular application. Due to ongoing research and development, designs, specifications, and documentation are subject to

change without notification. Regrettably, omissions and exceptions cannot be completely ruled out. No liability will be accepted for errors, omissions

or amendments to this specification. Technical data are always specified by their average values and are based on Standard Calibration Units at

25C, unless otherwise specified. Each product is subject to the ‘Conditions of Sale’.

Warning: These products are not designed for use in, and should not be used for patient connected applications. In any critical installation

an independant fail-safe back-up system must always be implemented.

CAUTION: Dangerous Voltages may be present. The 2100-R2has no user serviceable parts.

Protective enclosure only to be opened by qualified personnel.

Remove ALL power sources before removing protective cover.

14.08-5

2100-R2 Terminals and Layout.

Relay 1 COM

Relay 2 COM

Relay 3 COM

Relay 4 COM

Relay 5 COM

Relay 6 COM

Relay 7 COM

Relay 8 COM

H1: SUPPLY VOLTAGE

SELECTOR

RELAY

OUT

RELAY

OUT

COM Relay 9

COM Relay 10

COM Relay 11

COM Relay 12

COM Relay 13

COM Relay 14

COM Relay 15

COM Relay 16

Power LED 1

WRITE

H3. 2nd 2100-R

Interface

Connector

Earth ( )

Neutral (-)

Phase (+)

POWER

WARNING.

High Voltages May be

Present in This Area.

Only adjust jumpers with power OFF.

H2.A16

Interface

Connector

Intech

INSTRUMENTS LTD

www.intech.co.nz

snoitpircseDDEL

emaNDEL noitcnuFDEL

etirWA-0012 .atadlairesgniviecersi2R-0012nehwylnoevitcA

rewoPA-0012 .nosiylppusrewopA-0012setacidnI

rewoPR-0012.nosiylppusrewop2R-0012setacidnI

61~1tuptuO .dezigrenesiyalertuptuoevitcepserriehtnehwsetacidnI

sgnitteSrepmuJylppuSrewoP

1H egnaRegatloVylppuSrewoP

Hcd/caV462~58rofrepmuJ

M cdV09~32rofrepmuJ

14.08-6

2100-R2 H1 Power Supply Settings.

Note 1. Power must be OFF before changing H1’s position.

Note 2. Exceeding these parameters may damage the unit.

Note 3. Ensure the enclosure label is correctly labelled for the jumper position.

Note 4. Low Voltage Power Supply version is fixed, and has no jumper. This must be ordered separately.

2100-R2 LED Descriptions.

Section B. 2100-R2 Jumpers and LED Functions Tables.

* Refer to ‘2100-R2 Terminals and Layout’ for the location of the following jumpers.

CAUTION: Dangerous voltages may be present. The 2100-R2 has no user serviceable parts.

Protective enclosure only to be opened by qualified personnel.

Remove ALL power sources before removing protective cover.

H2 A16

Interface

H3 2ND

2100-R2

14.08-7

Section C. Output Connection Diagrams.

2100-A4Relay Output Expansion - Using 2100-R2 Relay Expansion.

Output relay expansion is available using the 2100-R2, 16 relay output expansion module. These relay outputs can

only be used as general purpose alarms generated by the Scada.

Connecting the 2100-A4to the 2100-R2.

1/ Power must be off before installing the 10 way ribbon cable and 2100-ARI

board supplied with the 2100-R2.

2/ Remove the cover off the 2100-A4.

3/ An exchange cover, with a precut slot for the ribbon cable, is available

free of charge from your supplier. P/N: 2100-A4-COVERSLOT.

Alternatively you may wish to modify the existing cover:

Cut a 1mm slot, 20mm deep, just below terminal numbers 1, 2 & 3.

Carefully smooth the edges of the cut so the ribbon cable does not get damaged.

4/ The 2100-ARI is supplied with the ribbon cable attached. Use antistatic precautions

when installing. Carefully orientate the 2100-ARI board as shown above. Locate the

two plastic standoffs over the corresponding holes in the 2100-A4, and the 10 pin

connector. Once all three are aligned, push the 2100-ARI firmly into the 2100-A4.

5/ Connect the other end of the cable to the 2100-R2, ‘H2A16 Interface’ connector. Ensure both ends of the cable

are firmly connected.

6/ Slide the cable into the slot, and replace the cover on the 2100-A4.

7/ If a 2nd 2100-R2 is used, connect the ribbon cable from the ‘H3 2ND 2100-R2’ header on the first 2100-R2, to

the ‘H2A16 Interface’ connector on the second 2100-R.

8/ The2100-R2mustbeenabled in the programming dialogueboxes.Advanced‘2100-R2RelayExpander’options.

For detailed programming info, refer to

‘Programming 2100-Series Remote Station’in the Microscan Manual.

9/ A 2100-R2 connected to the 2100-A4must share the same power supply disconnect device and over current

device. Both units must be powered and unpowered at the same time to prevent indeterminate relay states.

WARNING: The2100-ARIis STATICSENSITIVE.

Only touch the edges of the PCB.

Ensurestandoffslockfirmlyintothe2100-A4board.

2100-R2Relay Expander2100-R2Relay Expander

2100-R2Relay Expander

SerialNo.SerialNo.

SerialNo.

2100-ARI

2100-A4

A B B

INPUT 2

A B B

INPUT 1

1 2 3 4 5 6

1x20mm

SLOT

FIRST 2100-R2

H2 A16

Interface

H3 2ND

2100-R2

H2 A16

Interface

H3 2ND

2100-R2

14.08-8

Connecting the 2100-A16 to the 2100-R2.

1/ Power must be off before installing the 10 way ribbon cable and 2100-ARI

board supplied with the 2100-R2.

2/ Remove the cover off the 2100-A16.

3/ An exchange cover, with a precut slot for the ribbon cable, is available

free of charge from your supplier. P/N: 2100-A16-COVERSLOT.

Alternatively you may wish to modify the existing cover:

Cut a 1mm slot, 20mm deep, just below terminal numbers 1, 2 & 3.

Carefully smooth the edges of the cut so the ribbon cable does not get damaged.

4/ The 2100-ARI is supplied with the ribbon cable attached. Use antistatic precautions

when installing. Carefully orientate the 2100-ARI board as shown above. Locate the

two plastic standoffs over the corresponding holes in the 2100-A16, and the 10 pin

connector. Once all three are aligned, push the 2100-ARI firmly into the 2100-A16.

5/ Connect the other end of the cable to the 2100-R2. Ensure both ends of the cable are firmly connected.

6/ Slide the cable into the slot, and replace the cover on the 2100-A16.

7/ If a 2nd 2100-R2 is used, connect the ribbon cable from the ‘H3 2ND 2100-R2’ header on the first 2100-R2, to

the ‘H2A16 Interface’ connector on the second 2100-R.

8/ The2100-R2mustbeenabled in the programming dialogueboxes.Advanced‘2100-R2 Relay Expander’options.

For detailed programming info, refer to

‘Programming 2100-Series Remote Station’in the Microscan Manual.

9/ A 2100-R2 connected to the 2100-A16 must share the same power supply disconnect device and over current

device. Both units must be powered and unpowered at the same time to prevent indeterminate relay states.

2100-A16 Rev1.1 Relay Output Expansion - Using 2100-R2 Relay Expansion.

Output relay expansion is available using the 2100-R2, 16 relay output expansion module. This allows the 2100-A16 to

stand alone as a 16 channel controller / alarm unit. The 2100-R2 relay outputs can be used for any combination of control

and alarm functions. The control parameters for each of the 16 controllers is downloaded from user friendly Microscan

Software, and stored in permanent memory on the 2100-A16. These parameters include Setpoint (SV), Output Switching

Differential, Auto / Manual, Manual Output Setting, , Dual Action Control, Single Action Control, Heat / Cool, Heat Only,

Cool Only. The 16 controller / alarms will operate unaffected by computer power downs, reboots, etc. The relay outputs can

also be accessed directly from the Scada.

2100-R2Relay Expander2100-R2Relay Expander

2100-R2Relay Expander

Serial No.Serial No.

Serial No. 2100-ARI

2100-A16

A B B

INPUT 2

A B B

INPUT 1

1 2 3 4 5 6

1x20mm

SLOT

WARNING: The2100-ARI is STATIC SENSITIVE.

Only touch the edges of the PCB.

Ensurestandoffs lock firmly into the 2100-A16 board.

2100-R2Relay Expander2100-R2Relay Expander

2100-R2Relay Expander

Serial No.Serial No.

Serial No.

FIRST 2100-R2

SECOND 2100-R2

14.08-9

2100-R2

COM Relay 1

COM Relay 2

COM Relay 3

COM Relay 4

COM Relay 5

1/6hp, 250Vac

Inductive

2A, 250Vac

Resistive

2A, 30Vdc

Resistive

2100-R2 Relay Output Connection Example for Single Action Controllers.

Note 1. With relays NOT energized, and ‘Normally Off’state

selected (refer Note 3)

NO = Normally Open.

COM = Common.

NC = Normally Closed.

Heating Relay: NO, closes when heating required.

Cooling Relay: NO, closes when cooling required.

Note 2. All relays are change-over.

Note 3. Each relay can be configured for a ‘Normally ON’ or

‘Normally OFF’ output state. (E.g. for fail safe

operation.) The ‘Normally ON/OFF’ settings are

retained in software on power down, but the relays

are de-energized. The ‘Normally ON/OFF’ state of

the relay can be changed in the Advanced dialog

boxfortheonboardrelays,orusingtheRelayStates

dialog box for the 2100-R2. Refer to MicroScan

ConfigurationManual.

Note 4. LED indication on each output when each

relayis energized.

Note 5. SingleActionSettingisa globalsettingforthestation.

COOLING

HEATING

noitarugifnoClortnoCtuptuOottupnI

rellortnoC tupnIeugolanA .oNyaleR .edoMlortnoC

11 1 ylnOlooCroylnOtaeH

2 2 2 ylnOlooCroylnOtaeH

33 3 ylnOlooCroylnOtaeH

4 4 4 ylnOlooCroylnOtaeH

55 5 ylnOlooCroylnOtaeH

6 6 6 ylnOlooCroylnOtaeH

77 7 ylnOlooCroylnOtaeH

8 8 8 ylnOlooCroylnOtaeH

99 9 ylnOlooCroylnOtaeH

01 01 01 ylnOlooCroylnOtaeH

111111ylnOlooCroylnOtaeH

21 21 21 ylnOlooCroylnOtaeH

313131ylnOlooCroylnOtaeH

41 41 41 ylnOlooCroylnOtaeH

515151ylnOlooCroylnOtaeH

61 61 61 ylnOlooCroylnOtaeH

2100-R2 with 2100-A16 Relay Output Allocation Table for Single Action Controller.

16 controllers, one relay per controller.

14.08-10

2100-R2 Relay Output Connection Example for Dual Action Contollers - Single 2100-R2.

2100-R2

Controller 5 COM

(Relay 9) NO

Controller 5 COM

(Relay 10) NO

Controller 6 COM

(Relay 11) NO

Controller 6 COM

(Relay 12) NO

NO Controller 1

COM (Relay 1)

NO Controller 1

COM (Relay 2)

Power

NO Controller 2

COM (Relay 3)

NO Controller 2

COM (Relay 4)

Note 1. With relays NOT energized, and ‘Normally Off’ state selected (refer Note 3)

NO = Normally Open. COM = Common. NC = Normally Closed.

Heating Relay: NO, closes when heating required. Cooling Relay: NO, closes when cooling required.

Note 2. All relays are change-over.

Note 3. Each relay canbeconfiguredfor a ‘NormallyON’ or‘NormallyOFF’output state. (E.g.for failsafeoperation.)

The ‘Normally ON/OFF’ settings are retained in software on power down, but the relays are de-energized.

The‘Normally ON/OFF’ stateofthe relay canbe changed intheAdvanced dialog boxfor the onboardrelays,

or using the Relay States dialog box for the 2100-R2. Refer to MicroScan Configuration Manual.

Note 4. LED indication on each output when each relay is energized.

Note 5. In DualAction mode, if the controller is set to heat only, the cool relay is always off. If the controller is set to

coolonly,theheatrelay is always off. LikewisewhenusingManual Mode intheheat only mode, onlythestate

of the heat relay can be changed, and on the cool only mode, only the state of the cool relay can be changed.

Note 6. Dual Action Setting is a global setting for the station.

HEATING 2

HEATING 1

HEATING 5

HEATING 6

COOLING 1

COOLING 2

COOLING 5

COOLING 6

noitarugifnoClortnoCtuptuOottupnI

rellortnoC eugolanA tupnI yaleR noitcAlortnoC yaleRylnOtaeH noitcAlortnoC yaleRylnOlooC noitcAlortnoC yaleRlooC/taeH

1111 taeH1

22looC2

2 2 3 3 taeH3

4 4 looC4

3 3 55 taeH5

66looC6

4 4 7 7 taeH7

8 8 looC8

5 5 99 taeH9

0101looC01

6 6 11 11 taeH11

21 21 looC21

7 7 3131taeH31

4141looC41

8 8 51 51 taeH51

61 61 looC61

2100-R2 with 2100-A16 Relay Output Allocation for Dual Action Controller.

Eight controllers, two relays per controller.

Table des matières

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
