INSTEON 2844-222 Manuel utilisateur
Motion Sensor
Owner’s Manual
Contents
Getting Started
Device Overview 4
Installation 5
Battery
Micro USB Power
Mounting Options 6
Tabletop
Corner Mount
Flexible Mount
Basic Linking
Control an Insteon Device with Motion Sensor 8
Control Multiple Insteon Devices with Motion Sensor 9
Removing Control of an Insteon Device From Motion Sensor 10
Removing Control of Multiple Insteon Devices From Motion Sensor 11
Insteon app for iPhone, iPad and iPod touch
Add to the Insteon Hub 13
Congure Motion Sensor 14
Congure Motion Sensor 15
Control a Device with Motion 16
Control a Device with Motion 17
Insteon app for Android
Add to the Insteon Hub 19
Congure Motion Sensor 20
Congure Motion Sensor 21
Control a Device with Motion 22
Congure Arm and Disarm 23
Local Programming
About Local Programming 25
Local Programming Flow Chart 26
Factory Reset
Factory Reset 28
Appendix
Specications 30
Troubleshooting 32
Certications and Warnings 33
Product Warranty 34
3
Everything you need to quickly get up and running.
Getting Started
4

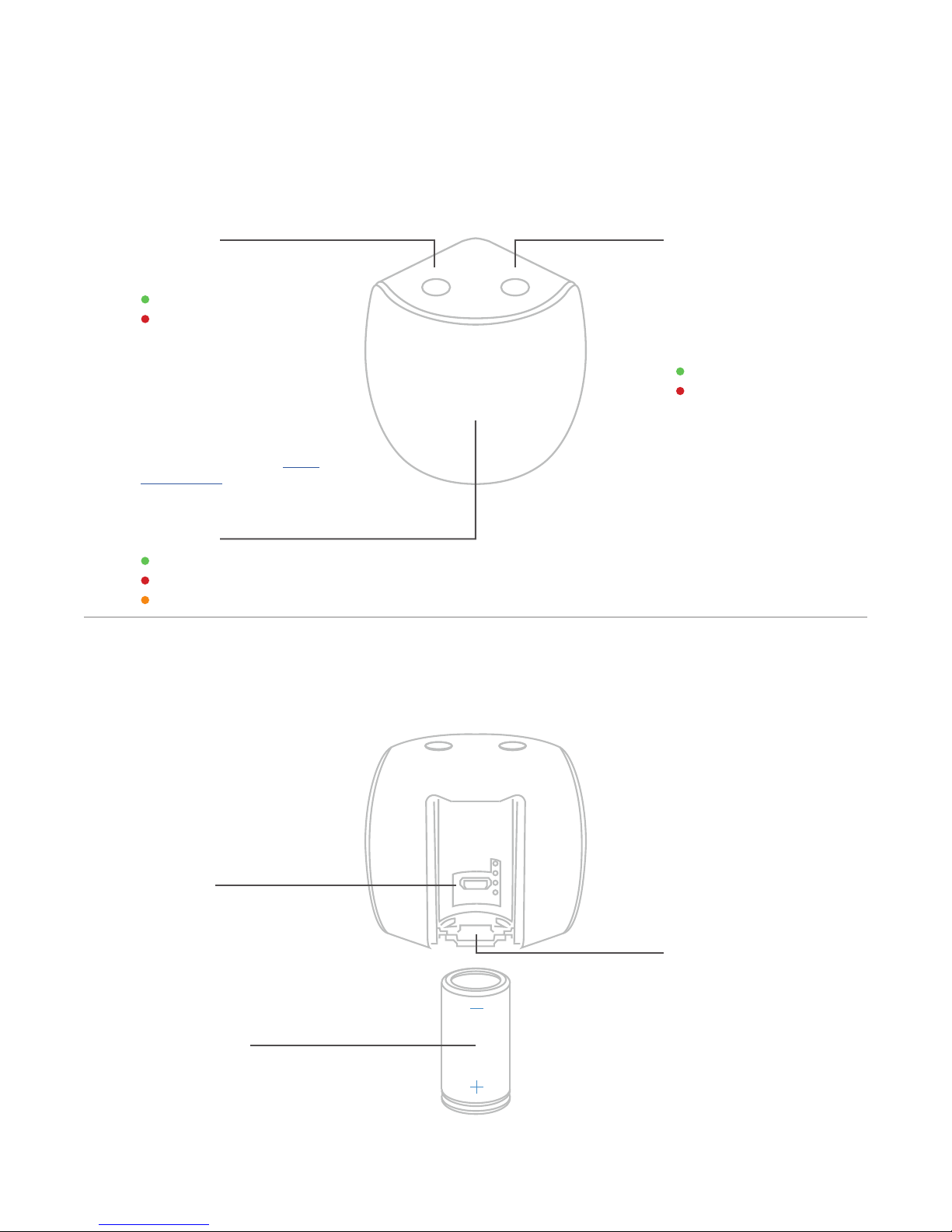

Device Overview
Motion Detected
Motion Enabled
Error Controlling a Device
Motion Disabled
Low Battery
Motion Override Button
Tap to toggle motion
detection enable/disable.
All other sensor features
are not affected. Motion
detection will automatically
resume after 12 hours.
Set Button
Tap to send on/off commands
to linked devices.
Link: press & hold until LED
blinks green.
Unlink: press & hold until LED
blinks green. Press and hold
again until LED blinks red.
For more functions see Local
Programming
Battery Compartment
Tamper Switch
Not Pictured
Micro USB
Optional power
through Micro USB
(cable sold separately)
CR123A Battery
Depending on
activation frequency,
the battery should last
6 to 18 months
On
Off
Status LED
5
Battery Micro USB Power
Installation

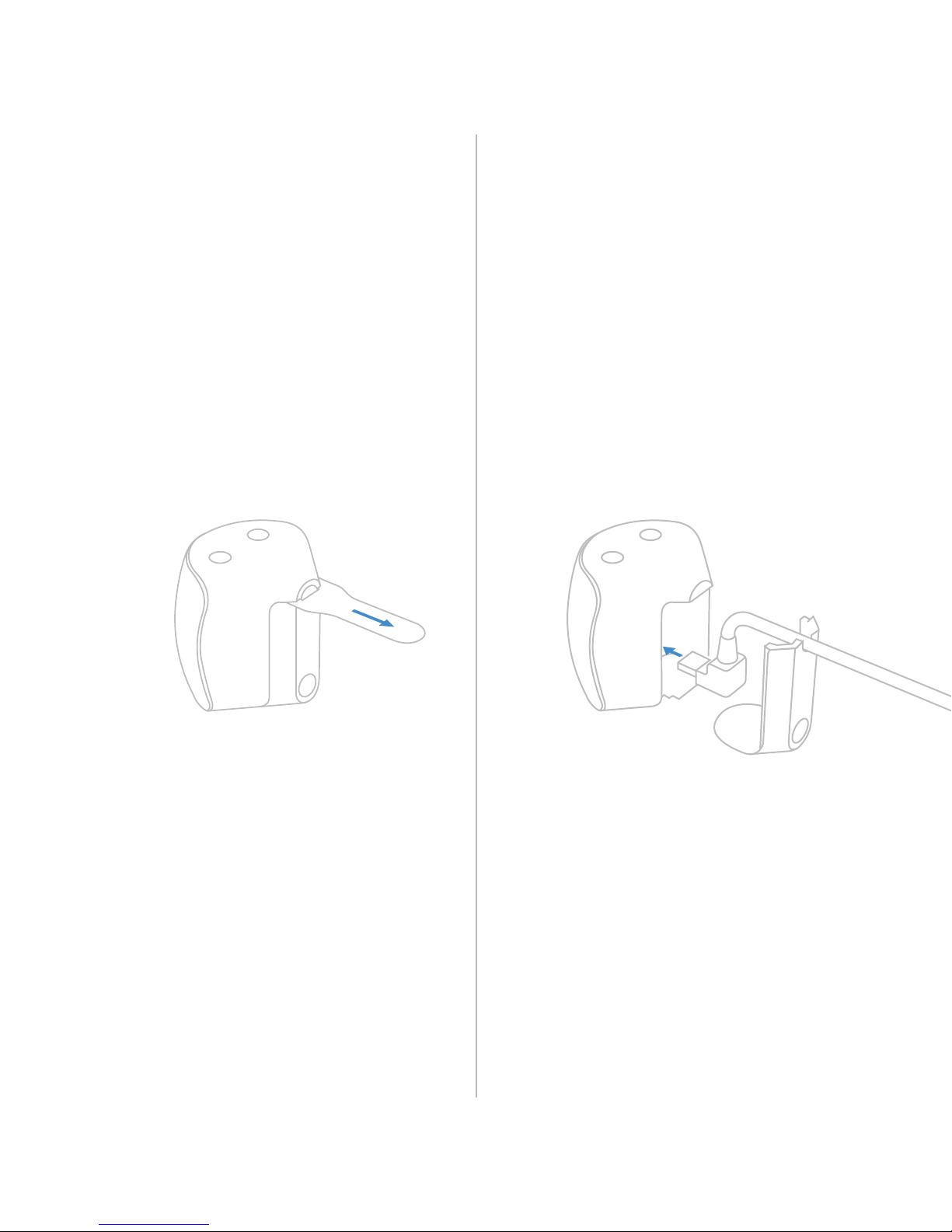

Remove the battery tab to
power Motion Sensor.
Motion Sensor can be powered using a
right-angled Micro USB Cable (2822-222) and
standard USB power adapter.
6
Tabletop
Corner Mount
Flexible Mount

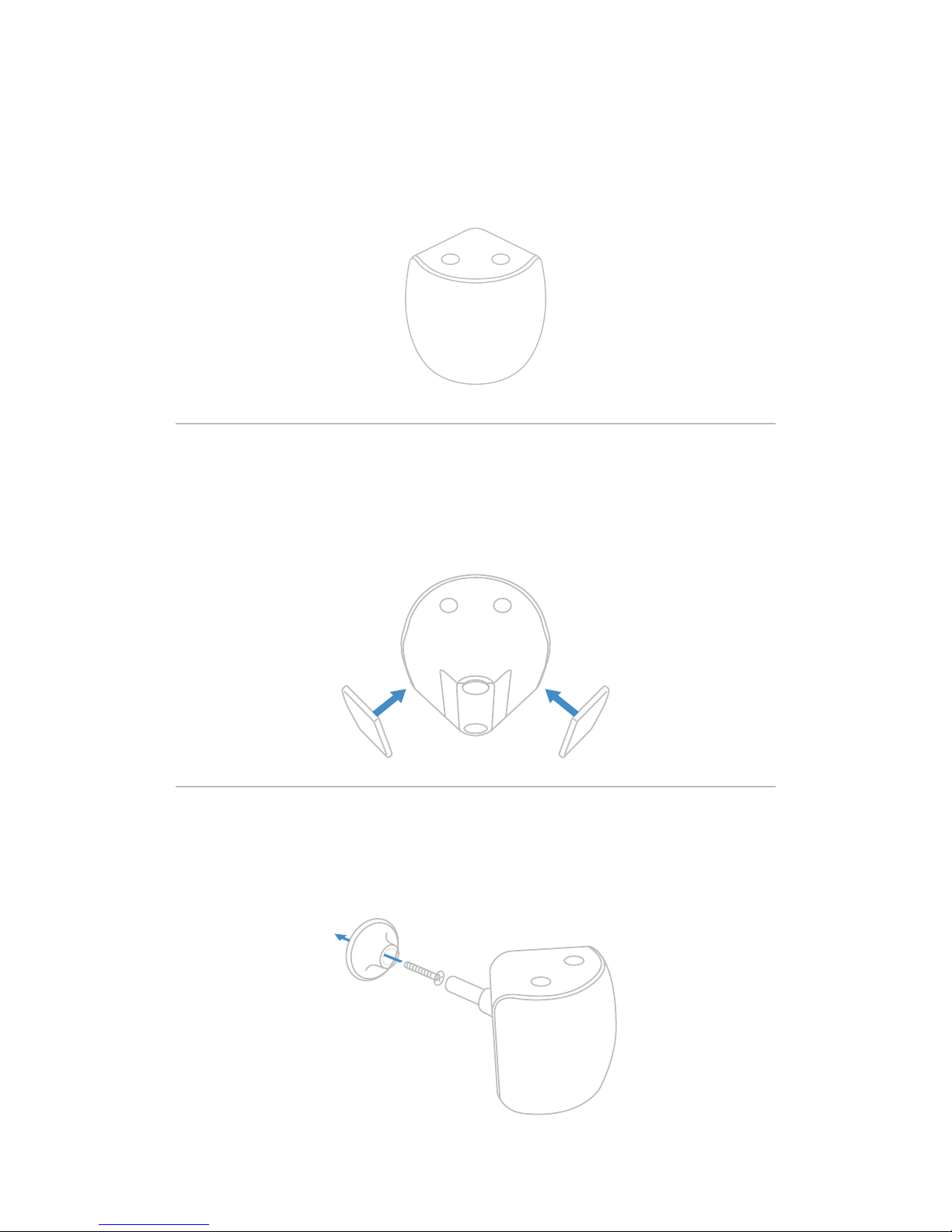

Mounting Options
To place Motion Sensor on a tabletop or other at
surface, leave the at battery cover in place.
To mount Motion Sensor in a corner, leave the at battery
cover in place and apply the two adhesive strips. Ensure
the wall surface is clean before mounting. Motion Sensor
must be unmounted when replacing battery. Adhesive
strips are designed to be reusable for this purpose.
To precisely position Motion Sensor, slide off the at back
and install the exible mount. Screw the mounting bracket to
a solid surface and position the Motion Sensor as desired.
7
Congure Insteon Motion Sensor without Insteon Hub; do not use these
instructions if you intend to use Motion Sensor with Insteon Hub or other
Insteon management software.
Basic Linking
8
Test Motion Sensor by
tapping Motion Sensor’s
set button to simulate
motion.

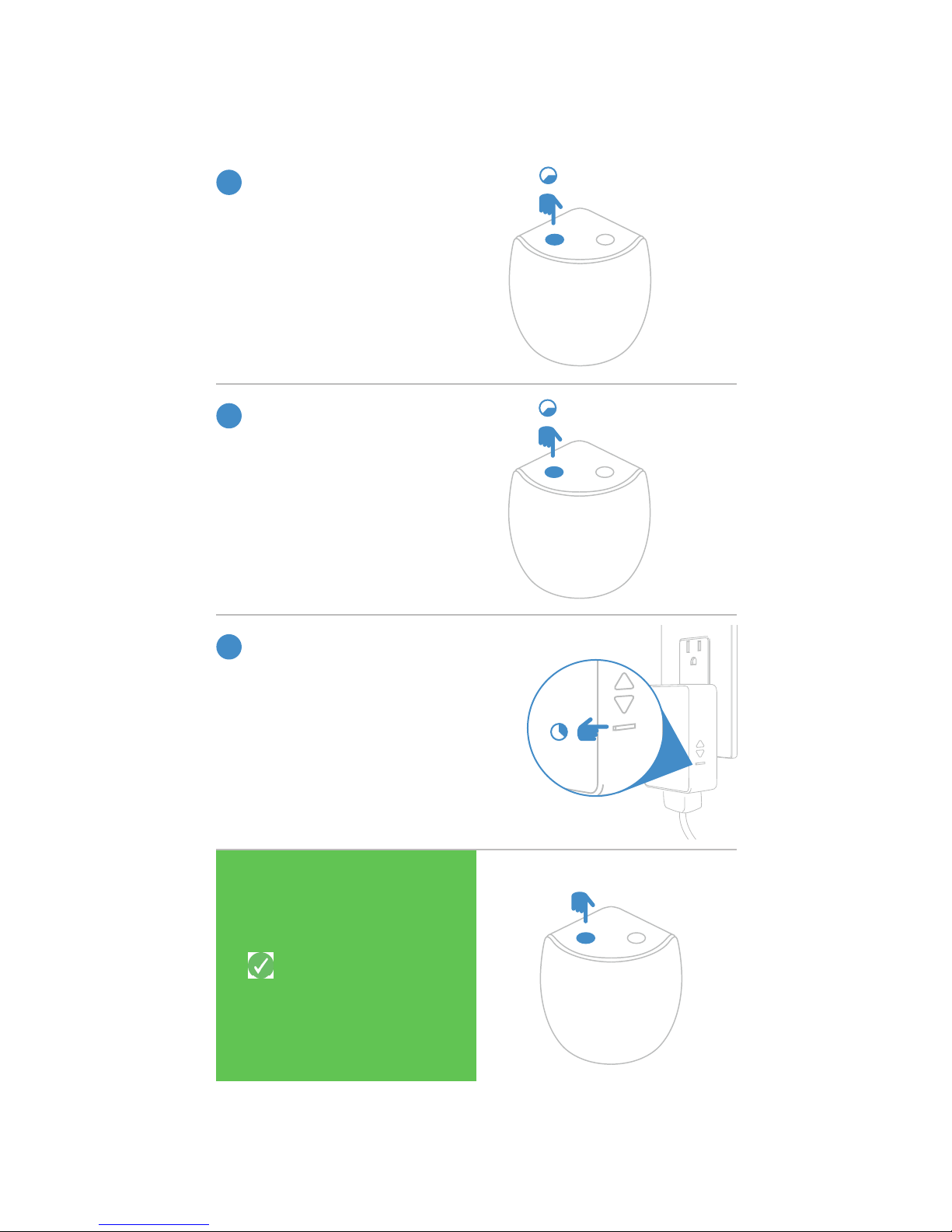

Control an Insteon Device with Motion Sensor
1On Motion Sensor, press and
hold the set button until its LED
begins blinking green.
2On the device that you would like
Motion Sensor to control, turn
on the device and adjust it to the
desired brightness, if applicable.
3Press and hold the set button
until you hear a double-beep.*
*For Insteon bulbs, remove from power and then return
to power. For devices that do not have a beeper, look
for their status LED to ash and return to normal.
9
Test Motion Sensor by
tapping Motion Sensor’s
set button to simulate
motion.

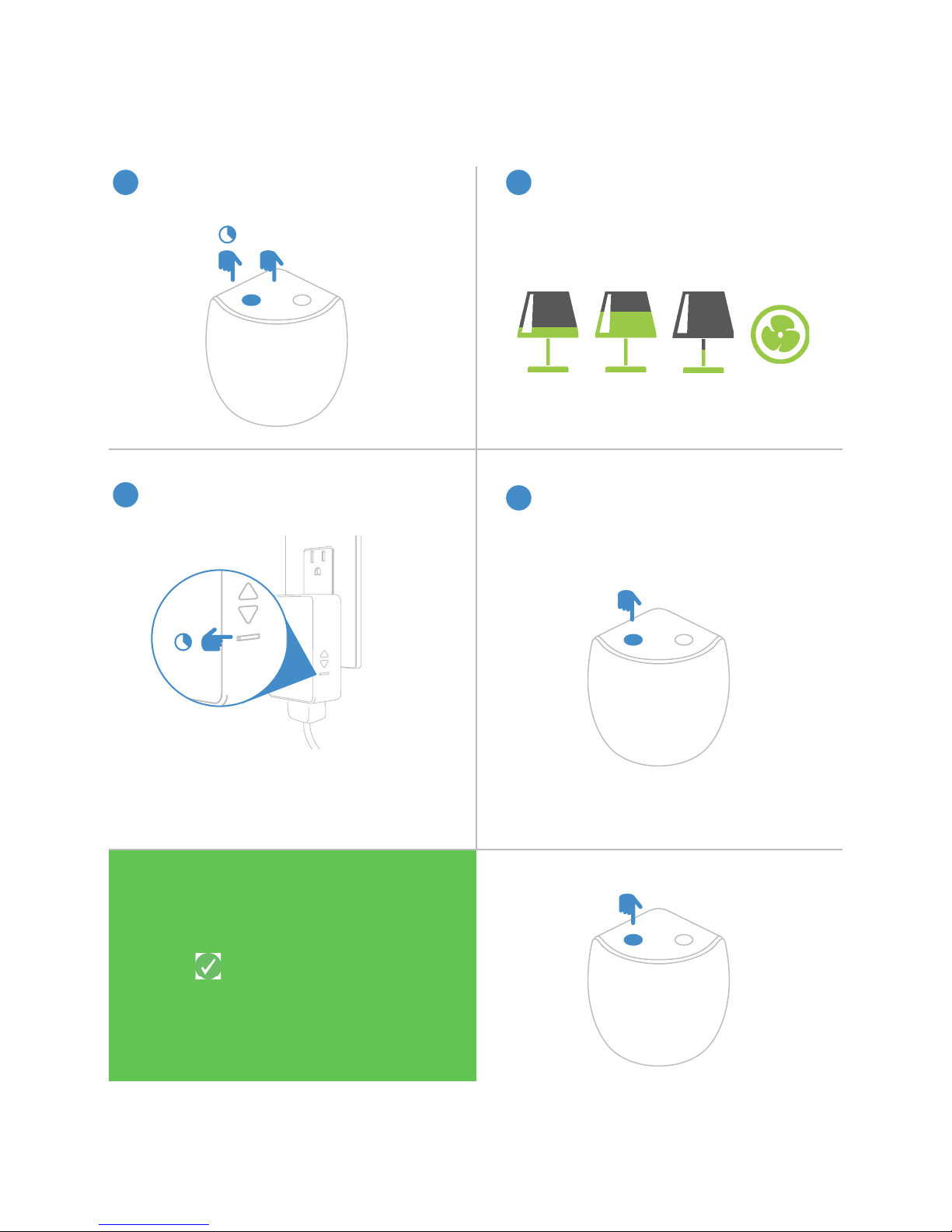

Control Multiple Insteon Devices with Motion Sensor
1On Motion Sensor, press and hold the
set button until its LED begins blinking
green then tap the set button.
3One at a time, press and hold the set
button on each device until it double-
beeps.*
*For Insteon bulbs, remove from power and then return
to power. For devices that do not have a beeper, look
for their status LED to ash and return to normal.
2
4
Adjust each device to their desired state:
On, off, or brightness level if dimming.
Tap the set button on Motion Sensor to
exit multi-link mode.
Lamp 1 Lamp 3
Lamp 2 Appliance
50% 72% 30% ON
A B
10
Test Motion Sensor by
tapping Motion Sensor’s
set button to simulate
motion.
Removing Control of an Insteon Device From Motion Sensor
1On Motion Sensor, press and
hold the set button until its LED
begins blinking green.
2Press and hold the set button
again until its LED begins blinking
red.
3Press and hold the controlled
device’s set button until the
device double-beeps.
*For Insteon bulbs, remove from power and then return
to power. For devices that do not have a beeper, look
for their status LED to ash and return to normal.
