USER MANUAL - EN

IN 7559/IN 7559-2 Magnetic Upright Bike inSPORTline

Kalistic

(ST-2630)

IMPORTANT!

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE BIKE

CONTENTS

IMPORTANT SAFETY INFORMATION.................................................................................................. 3

EXPLODED VIEW (A)............................................................................................................................. 4

EXPLODED VIEW (B)............................................................................................................................. 5

PARTS LIST............................................................................................................................................ 6

ASSEMBLY ............................................................................................................................................. 8

TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 13

IMPORTANT SAFETY INFORMATION

We thank you for choosing our product. To guarantee your safety and health, please use this

equipment correctly. Please read the information as below carefully before using this equipment.

1. It is important to read this entire manual before assembling and using the equipment. Safe and

effective use can only be achieved if the equipment is assembled, maintained and used

properly. It is your responsibility to ensure that all users of the equipment are informed of all

warnings and precautions.

2. Before starting any exercise program you should consult your doctor to determine if you have

any medical or physical conditions that could put your health and safety at risk, or prevent you

from using the equipment properly. Your doctor’s advice is essential if you are taking

medication that affects your heart rate, blood pressure or cholesterol level.

3. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.

Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,

irregular heartbeat, extremely shortness of breath, lightheadedness, dizziness or feelings of

nausea. If you do experience any of these conditions you should consult your doctor before

continuing with your exercise program.

4. Keep children and pets away from the equipment. The equipment is designed for adult use

only.

5. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.

To ensure safety, the equipment should have at least 0.6 meters of free space all around it.

6. Before using the equipment, check that the nuts and bolts are securely tightened.

7. The safety of the equipment can only be maintained if it is regularly examined for damage

and/or wear and tear.

8. Always use the equipment as indicated. If you find any defective components while

assembling or checking the equipment, or if you hear any unusual noises coming from the

equipment during use, stop immediately. Do not use the equipment until the problem has been

rectified.

9. Computer has many functions display, it will be based on different level of different people.

Warm reminded here, it could only give you some reference.

10. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get

caught in the equipment or that may restrict or prevent movement.

11. This device can be only assembled by adult person.

12. Only one person can use this product at the time. Do not use this product if any pats limit the

movement or use of the device.

13. When in use, keep safety distance.

14. The equipment is suitable only in indoor and household.

15. Maximum weight of user: 110kg.

16. Class - HC (according to EN ISO 20957) for home use.

17. Care must be taken when lifting or moving the equipment to avoid causing unnecessary

damage.

18. Please keep this manual and installation tools.

19. This product can’t be used as medical equipment.

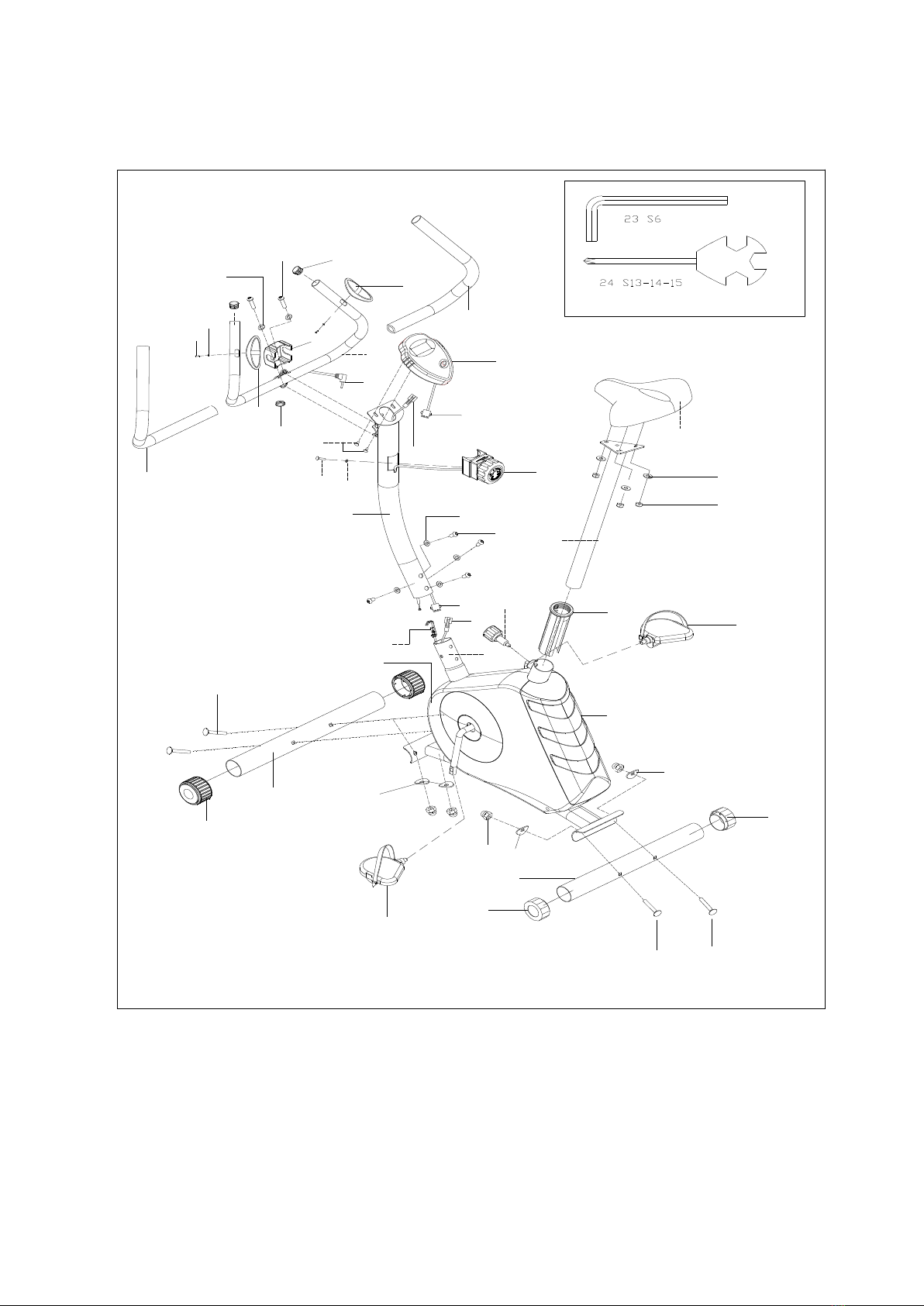

EXPLODED VIEW (A)

33L

33R

28 28

35 21

39L

39R

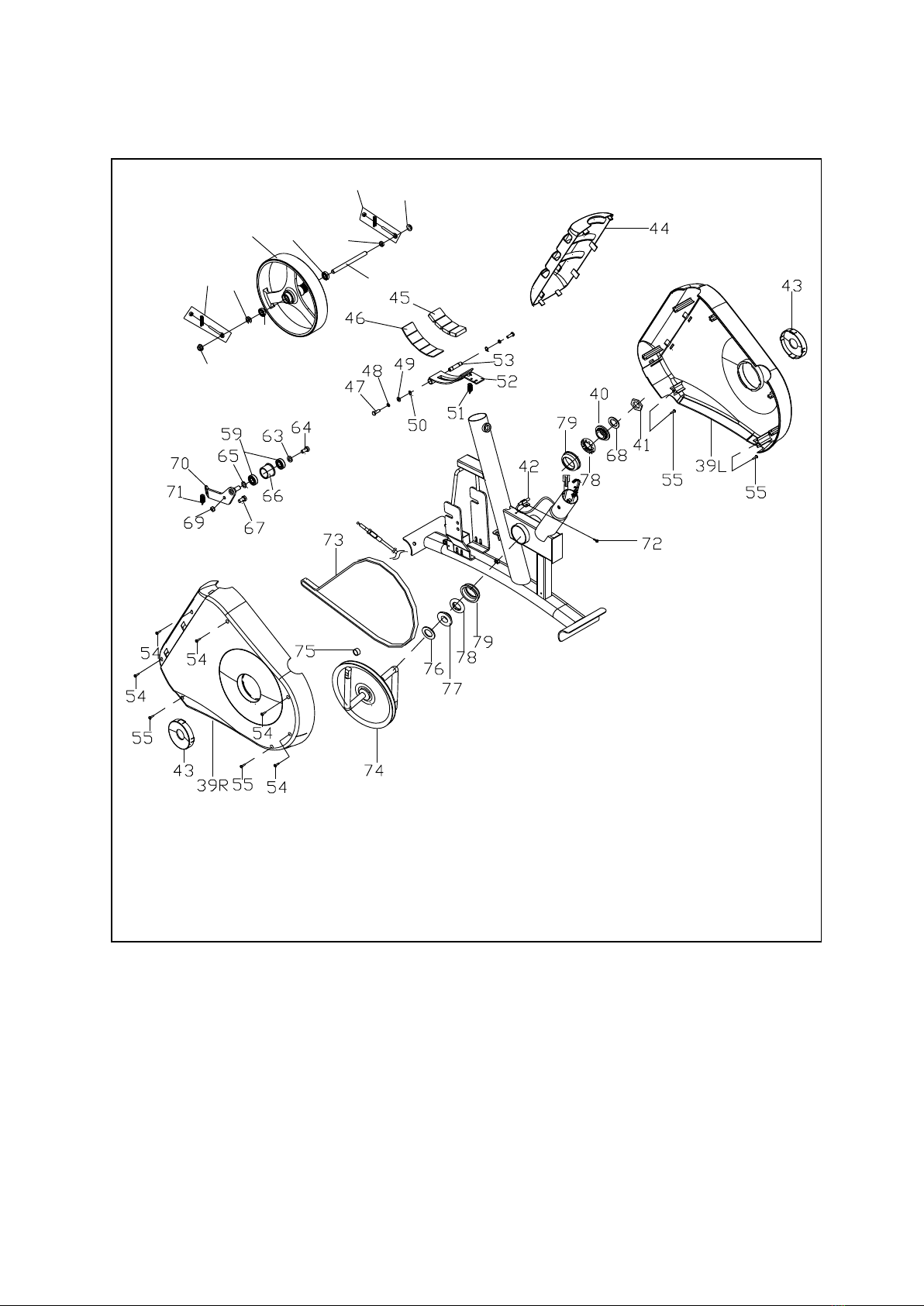

EXPLODED VIEW (B)

PARTS LIST

NO.

Description

Q’TY

Computer

Computer cable

Tension Control

Cap 71*58*40

Bolt M5*16

Washer d5*Φ10*1

Tension wire

Force tube join

Handle pulse Φ25

Washer d6*Φ12*1

Bolt ST4.0*19

Handlebar join

Spacer d8

Bolt M8*30*S6

Washer d8*Ф20*1.5*R30

Bolt M8*16*S6

Foam gripΦ25*5*470

Nylon nut M8

Washer d8*Ф16*1.5

Main frame join

Knob M16*1.5*22*Φ37

BushingΦ50*Φ38*164*8

Seat post join

Spanner S6

Spanner S13-14-15

Saddle

Front bottom tube

End cap Φ50*Φ67*45

Bolt M8*60*20*H5

Nut M8*H16*S13

Wire

Back bottom tube

End capΦ50*45.5*64.5

33 L/R

Pedal

1set

Sensor Wire

Bolt M5*10

End cap Φ25*16

End capΦ12*11*Φ3

39L/R

Chain cover

NO.

Description

Q’TY

Nut 2

Nut

Inductor

Crank cover

Rear cover of chain cover

Square magnet 40*25*10

Magnet location grid

Bolt M6*16

Spacer d6

Washer d6*Φ12*1.2

Washer d12

Tension spring Φ1.5

Magnetic board join

Magnetic board axle

Bolt ST4.2*19

Bolt ST4.2*16

Fly wheel 2KG

Flywheel axle

Nut M10*1*H2

Bearing

Adjust bolt set

Nut M10*1*H5

Nut M10*1

Washer d6*Φ16*1.5

Bolt M6*10

Washer d12*Φ15.5*0.3

Idle wheel

Bolt M8*16

Washer

Nylon nut M8

Idle wheel join

Tension spring Φ2.5

Bolt

Belt

Crank join

Round magnetΦ15*7

Washer

Nut1

Rolling ball

Nine bowl

ASSEMBLY

STEP 1:

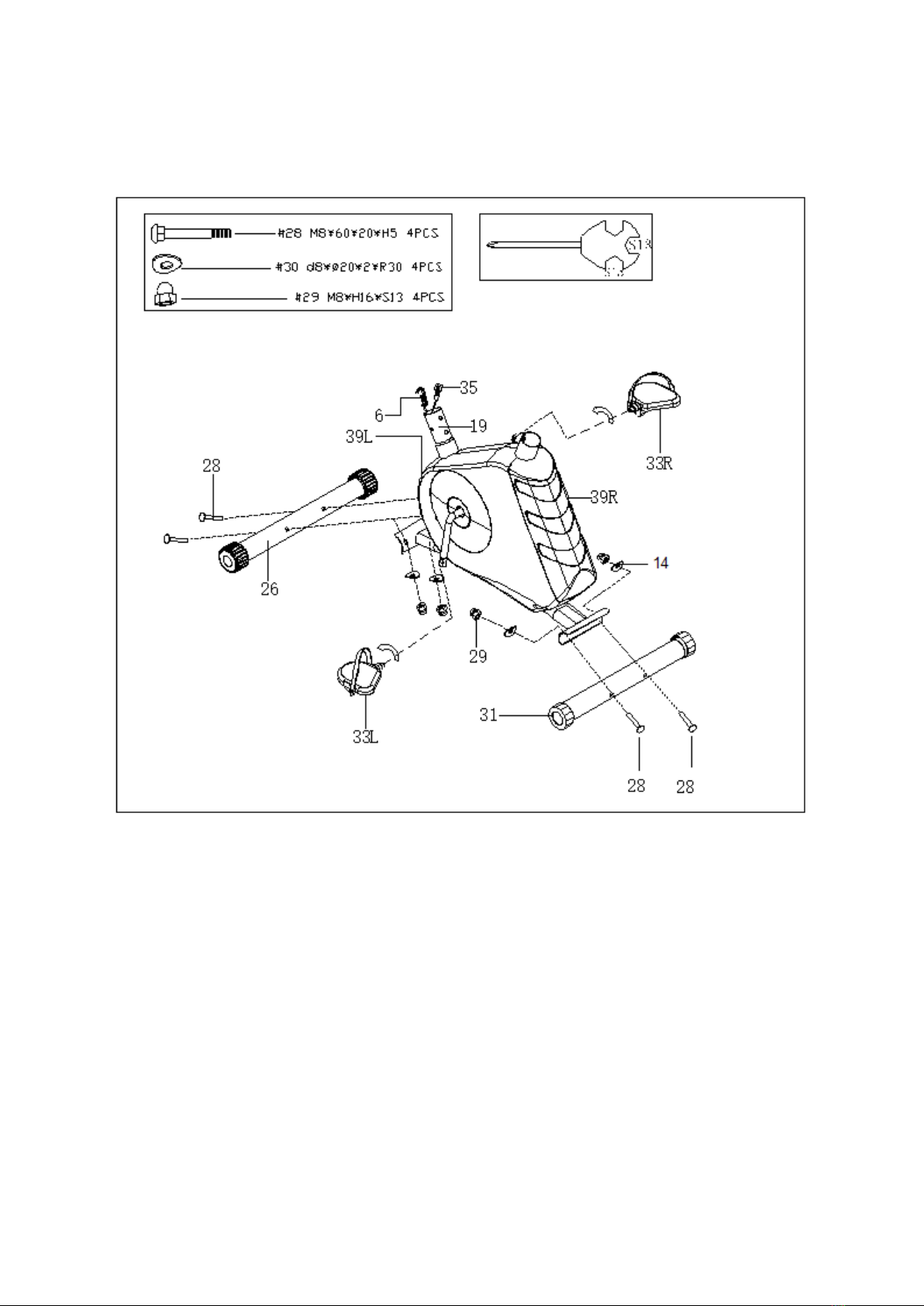

Attach front bottom tube (26), back bottom tube (31) to main frame join (19) with bolt (28), washer (14)

and nut (29).

Lock pedal (33L/R) to crank of main frame join (19).

STEP 2:

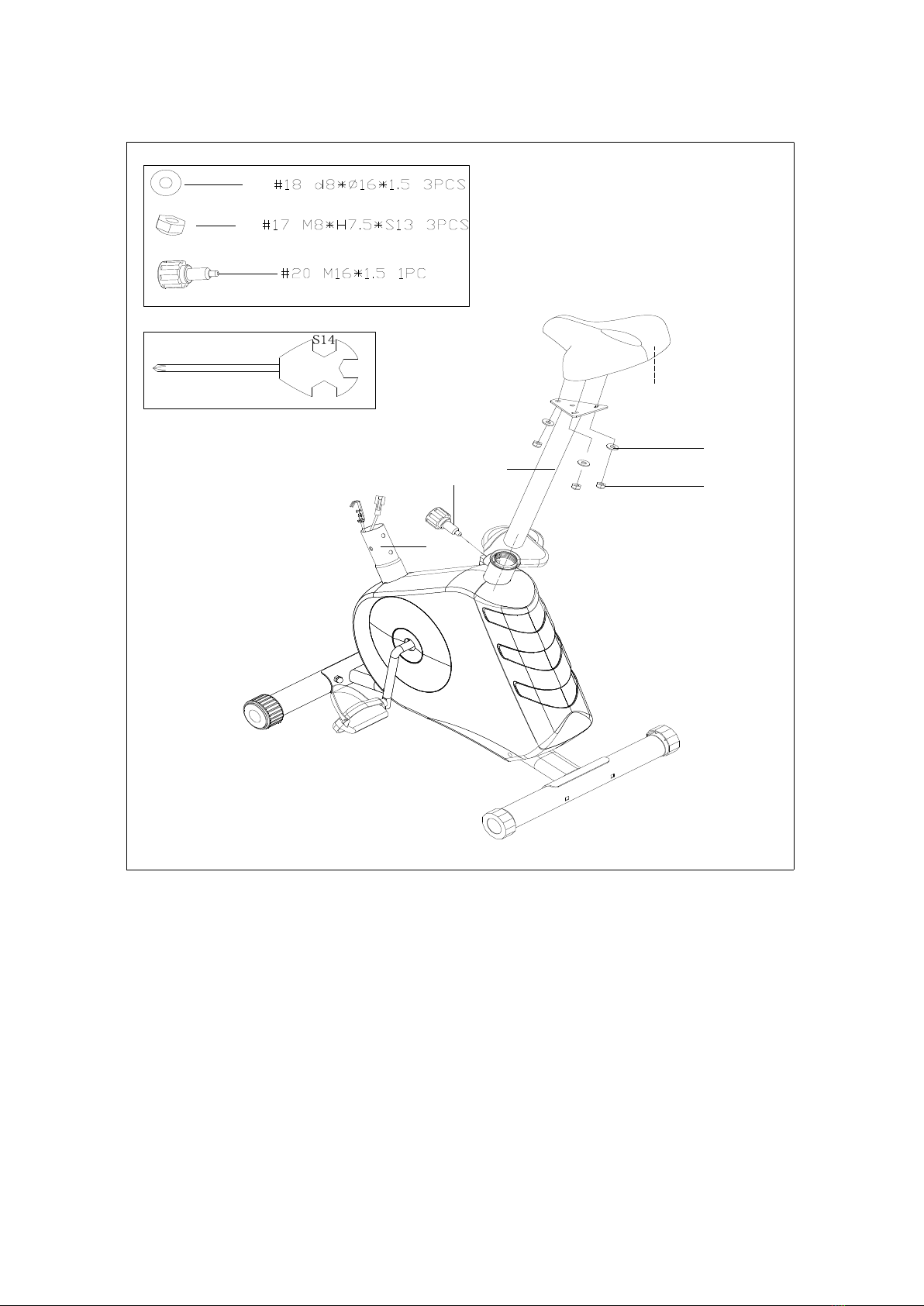

Secure the saddle (25) to the Seat post join (22) with the washer (18) and nylon nut (17)

Insert the Seat post join (22) to the main frame (19), then tighten it after adjusting it to the suitable

position.

STEP 3:

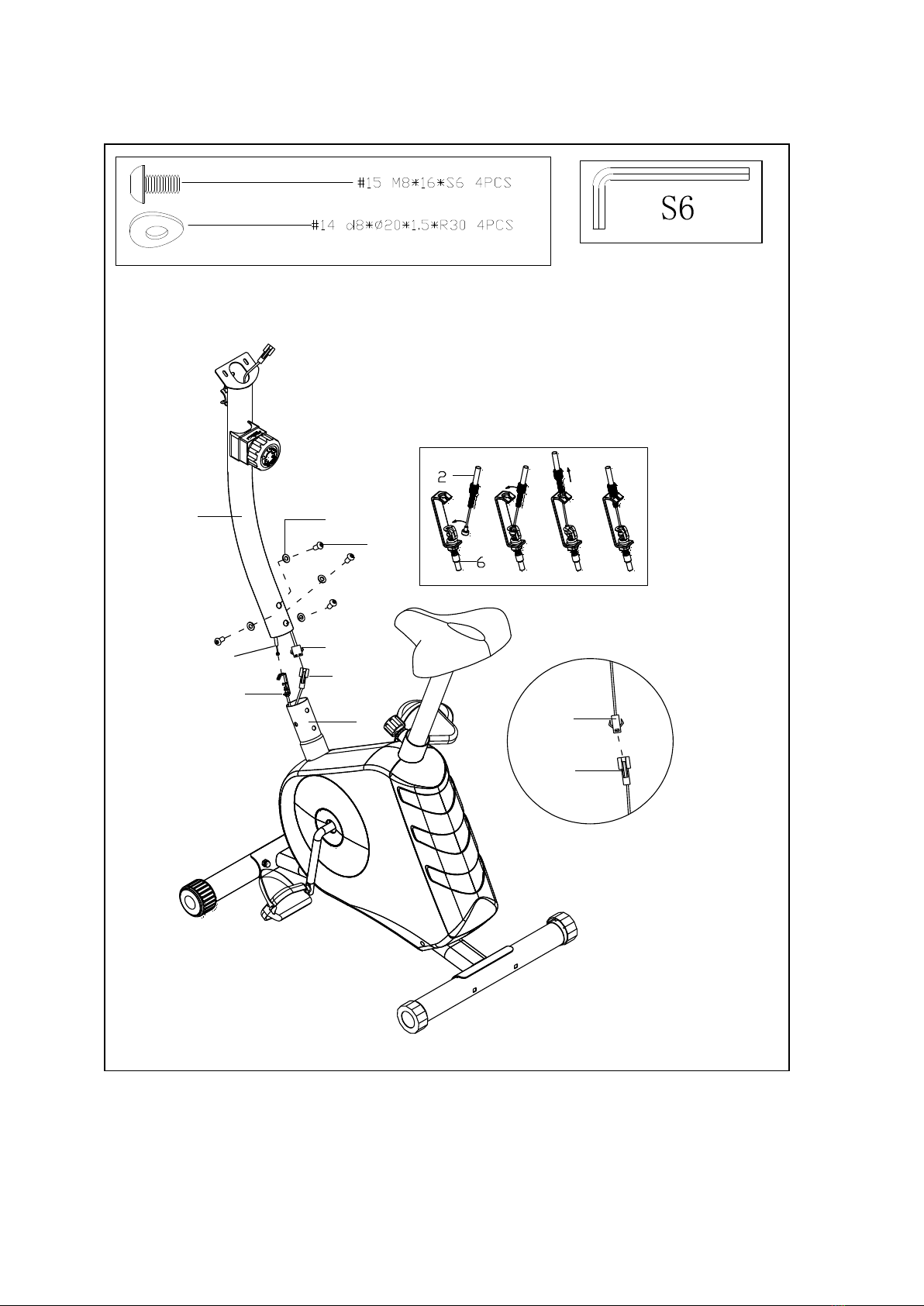

Connect sensor wire (35) with Trunk wire (34).

Connect tension wire (2) with tension wire (6).

Lock force tube join (7) to main frame join (19) with bolt (15) and washer (14).

714
