User Manual for Ultima Bath Transfer with Foldable Base
Manual: UltimaTransferFoldable201704
IMPORTANT CONSUMER INFORMATION NOTICE:
This manual contains important instructions that
must be passed on to the user of this product.
Please do not remove this manual before delivery
to the end user.
SUPPLIER:
This manual must be given to the user of this product.
USER:
Before using this product, read entire manual and save
for future reference.
Ultima
Bath Transfer
with foldable base
Installation and
User Manual
Distributed by Medifab Ltd
32 Detroit Drive, Rolleston 7675, New Zealand
+64 3 307 9790
solutions@medifab.com
www.medifab.com
2
ATTENTION
Your Ultima/Ultima Access Bath Transfers have been built to the highest
standards of quality to ensure years of superior service. Please take the
time to read this informative instruction guide and pay particular attention
to the safety information provided.
Here are some precautions you should take to reduce the risk of injury:
1. Read and understand ALL instructions.
2. To reduce the risk of injury or drowning, NEVER leave the user
unsupervised or unattended while using this product.
3. Determine, with a physician or therapist, the suitability of this product
for the intended user.
4. Check regularly that all tubing, bolts, buckles, and other parts are
tight at ALL times.
5. When occupied, make sure the user is buckled in at all times.
6. SAVE THESE INSTRUCTIONS.
If you require additional assistance, please contact Inspired by Drive
Customer Service at (800) 454-6612, or email at
Thank you for choosing Inspired by Drive.
Maximum Weight Capacity
To ensure the occupant’s safety, DO NOT exceed the following
maximum weight limits:
MODEL NO. MAXIMUM WEIGHT CAPACITY
BTUF-8130M / BTUAF-5130M
BTUF-8132M / BTUAF-5132M
160 lb
BTUF-8140L / BTUAF-5140L
BTUF-8142L / BTUAF-5142L
180 lb
3
BEFORE YOU BEGIN
The Ultima/Ultima Access Bath Transfer is shipped partially
unassembled. Inside the package, you will nd these following pieces:
• Back Frame
• Calf Frame
• Adjustment Pull Handle(s)
• 4 Casters
• Cover and Hardware Kit
• 4 Leg Tubes
• Seating Frame
• Rolling Base
• Transfer Frame
Adjustment Pull Handle
Rolling Base
Back and Calf Frames
Casters
Cover and Hardware Kit
Tub Base
Leg Tubes
Seating Shuttle
Frame
4
ASSEMBLY OF SEATING
Assembling the Back Support:
1. One by one, pull on each of the pull tabs and
change the pivot angle to vertical (Fig. 1).
Insert the U-shaped stainless steel back and
calf frames into the pivots and fasten with
bolts and nuts provided.
2. Insert the ends of the angle adjustment pull
handles into the small holes located on the
pull tab on each side of the frame (Fig. 2).
Firmly press the stainless steel caps
over the ends of the pull handle. Please
ensure that the end cap ts tightly over
the groove on the pull handle. Test it by
tugging at the cap. If it comes off, then
reinstall.
Figure 2
Figure 1
Back
Frame
Pull Tab
Bolt
A. Back angle adjustment pull handle
B. U-shaped back support frame
C. Insertion point for back frame
D. Back angle adjustment pull tab
E. U-shaped calf support frame
F. Calf angle adjustment pull handle
(straight calf panel)
G. Calf angle adjustment pull tab (bent
calf panel)
H. Knee support bar
C
E
F
G
H
D
B
A
5
Before using your assembled bath chair, please verify that the back
and calf supports are properly installed and locked in position. When
correctly installed, the pull tab should click into place and completely
engaged into the slot. There should not be a gap between the pull tab
and connector. See the gures below.
Adjustments to the bath transfer SHOULD NOT be made while the
product is in use or occupied.
ATTENTION
SAFETY CHECKS
INCORRECT (NOT LOCKED)
No Gap
Connector
Pull Tab
Gap
CORRECT (LOCKED)
6
Cover Installation:
Ultima (BTUF-8130M, BTUF-8140L):
• Pull on the angle adjustment pull handles (A, G)
to set the backrest and calf supports to the most
upright position (Fig. 3). Slip the cover over the
backrest and adjustment pull handle and then
calf support and pull handle (Fig. 4). Wrap the
velcro straps around the top side-tube and secure
underneath the seating (Fig. 5).
Ultima Access (BTUAF-5130M, BTUAF-5140L):
• Pull on the back angle adjustment pull handle (A)
to set the backrest support to the most upright
position (Fig. 3). Slip cover over the back rest
and adjustment pull handle (Fig. 4). Wrap the
velcro straps around the seat frame and secure
underneath the seating (Fig. 6).
Adjusting Back Angle:
1. Locate the adjustment pull handle (A) on the back
of the seating under the cover (it is not necessary
to remove the cover to operate the lever).
Using both hands, grip the lever and back
frame and squeeze together.
2. With a lifting motion, adjust the back angle
up or down.
WARNING: Back angle should not be
adjusted when the seating is occupied.
Adjusting Calf Support Angle:
1. On the calf support frame, under the cover, locate
the adjustment pull handle (G) for the Ultima or
the adjustment pull tab (Fig. 1) on each leg for
the Ultima Access. It is not necessary to remove
the cover. Using both hands, grip the lever and
calf support frame and squeeze together for
the Ultima or pull out the pull tabs for the Ultima
Access.
2. With a lifting motion, adjust the angle up or down.
COVER INSTALLATION AND ANGLE SETTINGS
Figure 6
Figure 3
Figure 4
Pull handles
Figure 5
Hook & loop strap
7

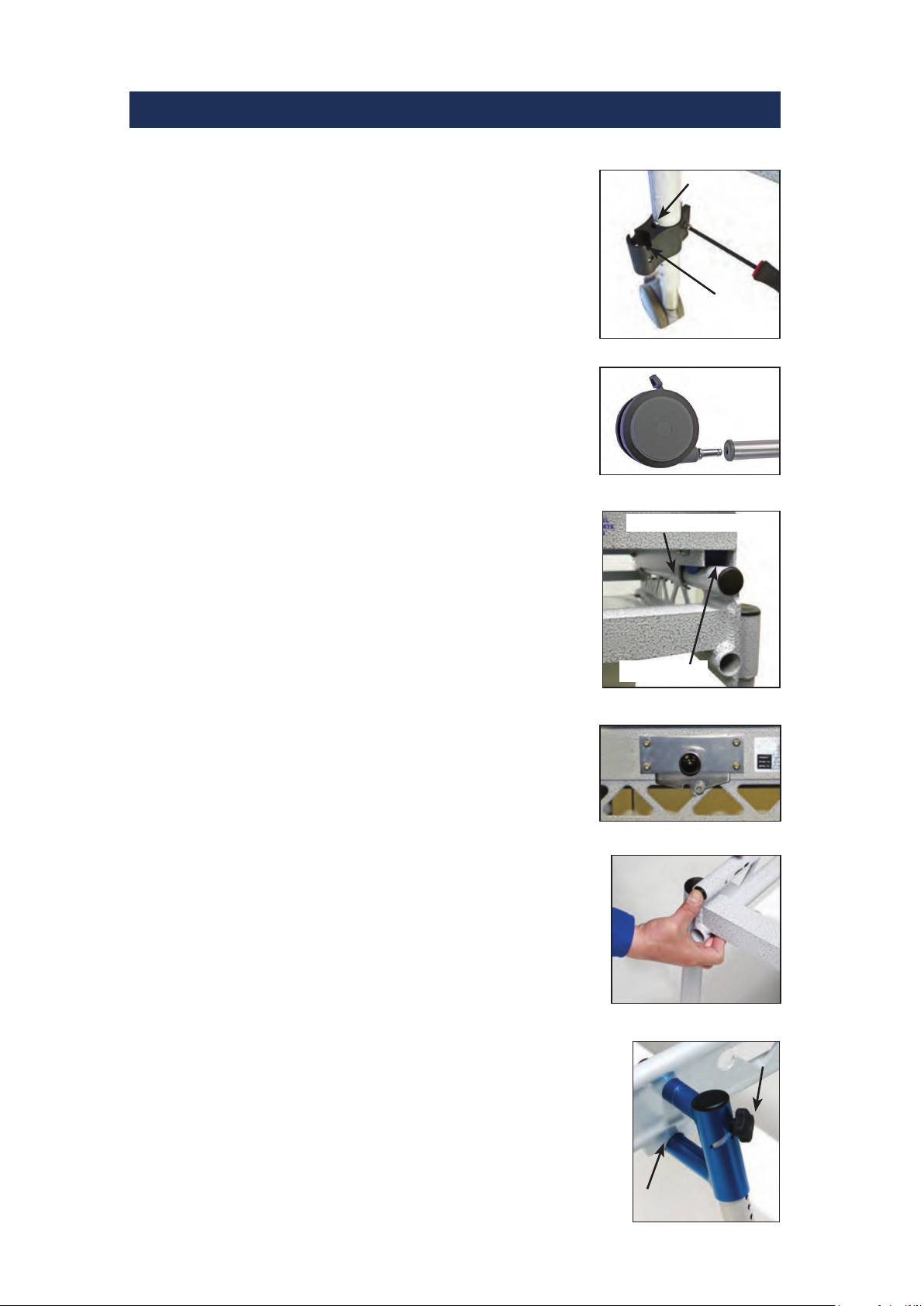

Rolling Base Assembly:
1. If ordering footrests, slide the footrest clamp over
the leg tubes making sure the notched end faces
upward. Align the center slot on the clamp to
the holes on rolling base leg (Fig 7). Secure the
clamps with bolts. The height is adjustable and
can be re-positioned when the seating is fully
assembled for correct t.
2. Insert the casters into the socket on the bottom of
the individual leg tubes (Fig 8).
3. Insert the leg tubes into the rolling base by
depressing the locking buttons and sliding the leg
tube up the frame.
Seating and Rolling Base (Shuttle) Assembly:
4. Insert the guide rail hooks into the guide rail and
slide the seating frame assembly onto the rolling
base. (Fig. 9). Be sure to slide the seating all the
way until the safety latch locks into position on the
base (Fig. 10).
Note: To remove the seating from base, release
the safety latch in the back and press the Slider
Safe™ button (Fig. 11).
5. If ordering with footrests, insert them by aligning
the slots on the footrests with the notches onto
the footrest clamps.
Tub Base Assembly:
6. Unfold the tub base legs by pulling the legs out
and rotating them into position. Each leg is in
position when it locks into the slots at the bottom
of the frame rail (Fig 12).
Note: When unfolding the legs, grab the leg on the
darker-colored pivot section as close to the top
as possible. This will prevent damage to the leg and
make it easier to unfold.
Note: When folding the tub base for storage, fold
the two front legs (the legs closest to the latch) rst.
The adjusting legs do not have to be removed when
folding for storage.
Figure 12
Slot
Fine-tuning knob
Figure 10
Figure 11
Figure 9
Guide Rail
Guide Rail Hooks
ASSEMBLY OF THE TRANSFER SYSTEM
Figure 8
Align slot to
the holes
Notch
Figure 7
8
1. With the legs in the open and locked
positions, place the transfer base into
the shower or tub (Fig 13). Then, roll the
seating to the end of the tub base (Fig 14).
Note: The shuttle base is reversible and
can be installed on the slide rails in either
direction to accommodate any bathroom
layout.
2. Adjust the leg height of the tub base so
the frame tubes are at the same height as
the rolling base and both are aligned when
positioned end to end (Fig. 15).
3. Make rough adjustments (¾”) with the
detent buttons (Fig. 15), or make ne
adjustments by loosening the back knobs
(refer back to Fig. 12) and turning the legs
to the desired height. Tighten the adjusting
knobs when the height is set.
4. When the heights of the tub base and the
rolling base are equal, move the rolling base
as close as possible to the tub base. Place
the tongue of the manual locking latch over
the receiver on the tub base (Fig. 16).
5. Lock the rolling base to the tub base
with the center latch before attempting
to transfer or slide the rolling base. Loop
the tongue from the tub base over the
hook receiver on the rolling base. Lock
the base to the seating by pulling down on
the manual locking handle until the safety
lock clicks in place (Fig. 17). The safety
lock prevents the seating base from rolling
away.
Figure 13
Figure 14
Figure 16
Tongue
Figure 17
Locking latch
Figure 15
detent button
ne-tuning
knob
OPERATING THE TRANSFER SYSTEM
9
6. Prior to transfer, raise the calf support high enough to clear the sides
of the tub (Fig. 18).
7. When transferring, roll the shuttle base
until the latch on the back clicks into the
position lock bolt (Fig. 19). There are
position lock bolts on rolling base and
tub base. These will lock the seating into
a secure position and eliminate any side
movement and/or rolling during use.
Note: The lock bolt on the tub base can be
repositioned into two other locations
for better positioning of the individual
over the tub in certain applications
(Fig. 20).
8. To release the lock, pull upward on
the black knob on the lower back
of the slider and allow it to travel
between the coupled rolling base and
bath tub base.
Figure 19
Figure 18
Figure 20
OPERATING THE TRANSFER SYSTEM
10
Soapy water or mild cleansers may be used on all parts of your bath
transfer. Harsh abrasive cleansers may dull the nish.
The fabric cover for the bath transfer is made of polyester that is durable,
antimicrobial, resilient, quick drying, fade resistant, and machine
washable.
Cleaning Instructions:
1. Remove the seating cover by following these steps below:
• Adjust the back and calf support frames to horizontal. Turn the
seating up-side down and remove velcro strap.
• Slip the cover over the back and calf supports.
2. Using warm water (100°F/38°C) and household laundry detergent,
wash the cover in the washing machine using gentle cycle.
3. Air dry.
CLEANING INSTRUCTIONS
FABRIC CARE
