Insinger AQUA SCRUBBER QUADJET Manuel utilisateur

❏ Undershelf on clean end

drainboard

❏ Sink overflows

❏ 1 to 8 hour pump timer

❏ Scrap trough in drainboard

❏ Overshelf with mounting brackets

(12” increments, 36” and up)

❏ End splash

❏ Disposal and cone (in soiled

drainboard, 48” minimum length)

❏ Hot water sanitizing

booster heater

❏ Scrapper drainboard with

pre-rinse faucet

❏ Shelves (cantilevered or

wall mounted)

OPTIONAL ACCESSORY EQUIPMENT

STANDARD EQUIPMENT

Item #_____________

CSI - 11400

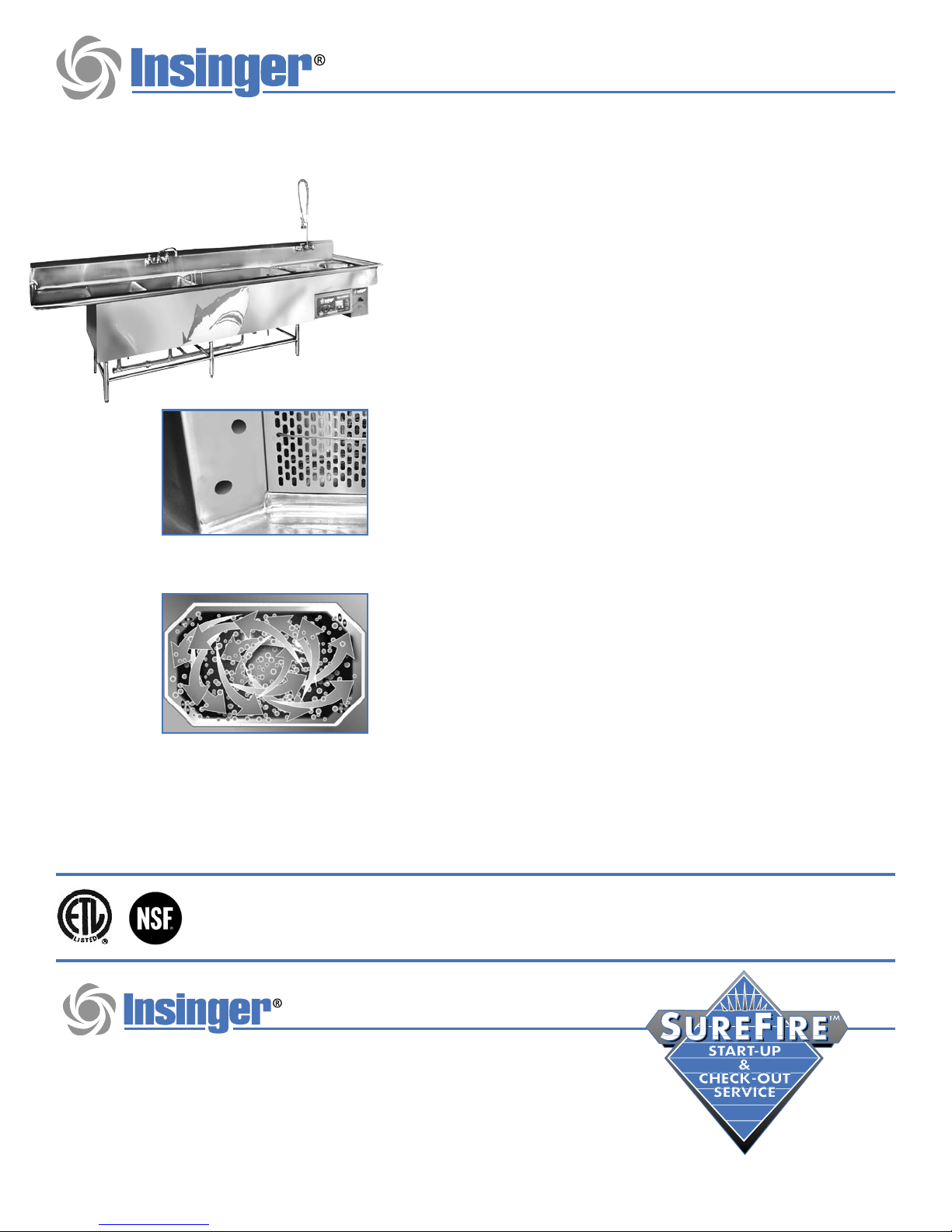

QUADJET AQUA●SCRUBBERTM

AUTOMATIC POT & PAN WASHING SYSTEM

6245 State Road

Philadelphia, PA 19135-2996

215-624-4800

215-624-6966 FAX

800-344-4802

www.insingermachine.com

● Patented design

● Heavy duty pump with a 2HP

TEFC motor

● Basket style high capacity lever

action waste drain

● Easy clean seamless front skirt

● Fast flow mixing faucets

● Single point electrical connection:

motor, controls, heater

● Stainless steel utensil basket

● Dual water temperature settings—

110° low/130° high

● 2.5 kw heater with low water

protection and dual

temperature control

● Welded support legs with S/S feet

● 14 gauge type 304 stainless steel

● NEMA 4X control panel enclosure

DESIGN

Automatic scrub sink reduces labor costs up to 56%. The spe-

cially designed patented nozzles scrub heavily soiled pots and

pans. Available in either right or left hand operation. Custom build

an Aqua.ScrubberTM System or choose from two pre-engineered

systems–The Dash 109 or the Marathon 140.

The QuadJet Aqua•Scrubbre jets

(PATENT PENDING)

are easy to maintain

Unique whirlpool action keeps

pots and pans moving so they get

cleaner faster.

Note: For all rough in connections see Installation and Layout Detail Drawing.

SPECIFICATIONS

CONSTRUCTION - Entire unit constructed of type 304 polished stainless steel.

SINKS AND DRAINBOARDS - Constructed of 14 gauge stainless steel. All interior corners are coved to 3/4” radius. Top is 14

gauge stainless steel all welded with 11” high backsplash and 3” high splash on front and sides with a 1

3/4” rolled edge.

WASH SINK - Consists of an intake and discharge manifold both side mounted with specially designed nozzles strategically placed

for maximum scrubbing action. Intake manifold includes hinged access panel to facilitate cleaning of the intake chamber, heater and

probes.

PUMP - The pump is heavy duty cast iron construction with a 4” diameter intake and 3” diameter discharge. The motor is 2HP totally

enclosed, fan cooled with permanently sealed bearings.

SUPPORT - The wash sink is supported by heavy gauge stainless steel channels welded to the underside of the sink. H frame leg

assemblies are removable and have stainless steel adjustable bullet feet.

CONTROL PANEL - Control enclosure is made of S/S type 304 completely welded and waterproof (NEMA 4X). On/off power

switch, dual water temperature switch (low and high), on/off pump motor switch and reset switch. Heavy duty pump contactor and

overload. Heavy duty grounded plug. Controls labeled in English and Spanish.

PRE-ENGINEERED SYSTEMS - The Dash 109, Marathon 140.

Current draw amps Heater Pump & Controls Total

Motor size Heater size

2 hp 2.5 kw

Shipping weight

Dash 109 575 lbs.

Marathon 140 650 lbs.

240/60HZ/1PH .............10.4 ................ 11.9 ................... 22.3

480/60HZ/3PH .............. 3.0 ..................... 3.6 ........................ 6.6

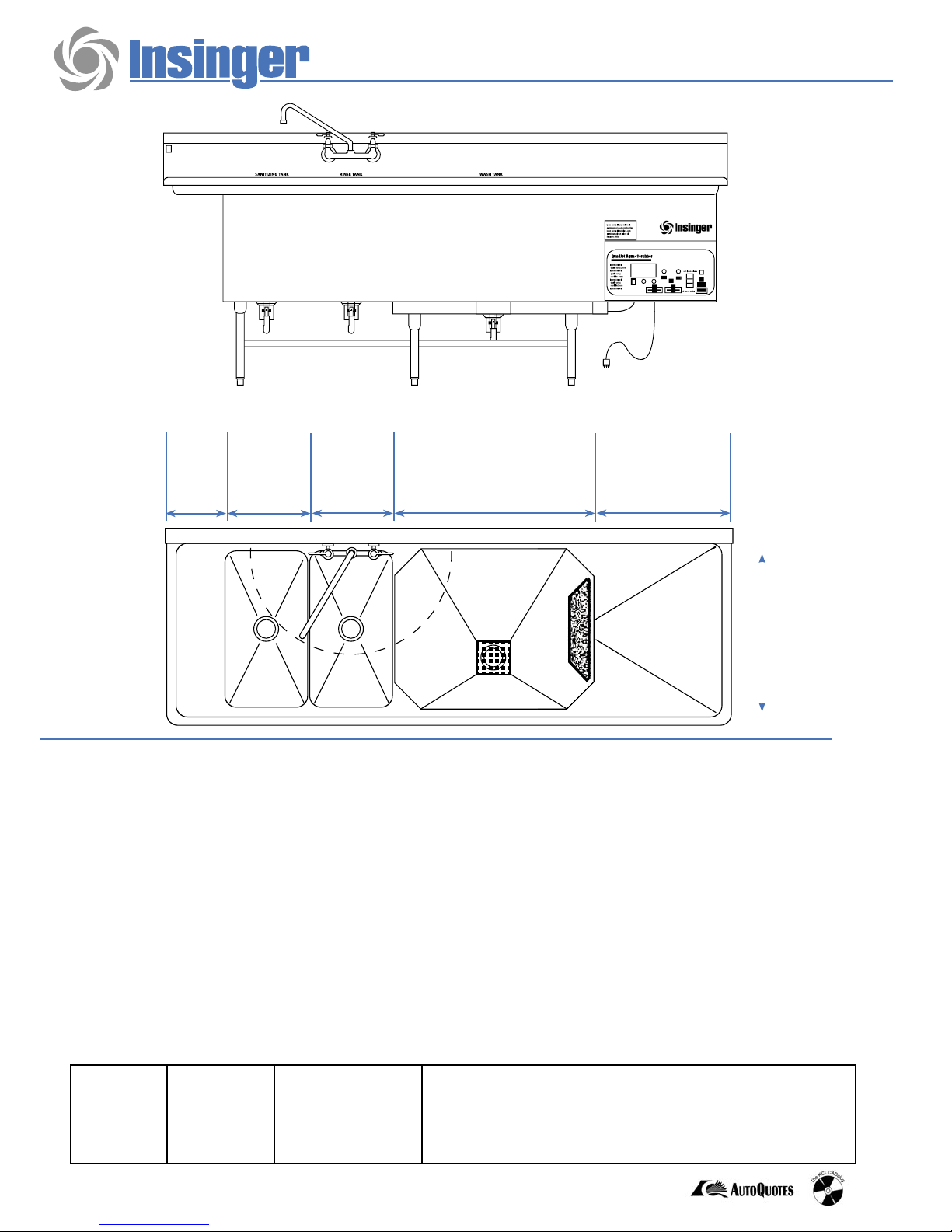

QUADJET AQUA●SCRUBBER

DRAINBOARD

AVAILABLE

LENGTHS

15”

20”

24”

28”

36”

42”

48”

SANITIZER SINK

AVAILABLE

LENGTHS

15”

20”

24”

30”

36”

RINSE SINK

AVAILABLE LENGTHS

15”

18”

20”

24”

30”

36”

SCRAPPING STATION AVAILABLE LENGTHS

28” minimum

36”

SOILED DRAINBOARD

28” minimum

36”

42”

48”

QUADJET AQUA.SCRUBBER WASHING STATION

AVAILABLE LENGTHS

36”

48”

54”

60”

28”

3M 10/06 PRINTED IN USA

Information and specifications subject to change without notice
