Insignia GT8004a Manuel utilisateur

www.insigniarange.com Last Modied: 08/10/2014

INSTALLATION MANUAL

GT8004a

ATTENTION INSTALLERS:

These instrucons must be

le with the customer

30 Day Technical Support: 01908 226545

(NOTE: This service is only available to customers from the day of delivery,

please have your supplier’s details and your postcode to hand before calling)

Replacements Parts: inside of your warranty contact:

www.insigniarange.co.uk/customerService.aspx

Spares/Replacements Parts: outside of your warranty

contact 0844 800 3069

www.insigniarange.co.uk

WARRANTY REG NO: __________________________

To claim your full 5 year warranty, register your shower within 90 days of delivery at:

www.insigniarange.co.uk/warrantyreg.aspx. Standard 12 month warranty applies if outside this me period.

www.insigniarange.com Last Modied: 08/10/2014

Contents

Introduction

Electrical Requirements

What’s In The Boxes?

Screw Pack Contents

Plumbing Requirements

Starting The Installation

Electric Box Connections

Steam Generator Connections

Sealing and Water Testing

MK117 Control Panel Instructions

Help Book Information

Part list

www.insigniarange.com Last Modied: 08/10/2014

Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that

will last for many years to come!

Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of

your finish.

OUR BADGE RATING IN TERMS OF DIFFICULTY OF ASSEMBLY IS BASED ON CLIENT FEEDBACK

1 Badge = Very easy

2 Badges = Easy

3 Badges = Moderate

4 Badges = Harder than average

5 Badges = Professional skills required

This shower is rated 3 Badges

www.insigniarange.com Last Modied: 08/10/2014

ASSEMBLY AND SIMPLE PLUMBING

THIS PRODUCT BUILD IS RATED SUITABLE FOR DIY PURPOSES PROVIDING THE CUSTOMER IS OF ABOVE AVERAGE SKILLS AND FEELS CONFIDENT IN

THEIR ABILTY. ONLY YOU THE CUSTOMER WILL KNOW THIS SO BEFORE ANY ATTEMPT IS MADE TO ASSEMBLY READ THROUGH THE FOLLOWING

PAGES IN DETAIL THEN DECIDE. IF YOU HAVE ANY DOUBT USE THE SERVICES OF A PROFESSIONAL. IN PICKING SUCH, ALLOW THEM TO DECIDE IF

THEY ARE CAPABLE OF BUILD BY FIRST SHOWING THESE INSTRUCTIONS TO THEM. ALWAYS GET THREE QUOTES.

REMEMBER THE BEST IS NOT ALWAYS THE CHEAPEST!

REMEMBER PLUMBERS PLUMB! 90% OF THIS JOB IS NOT PLUMBING!

DUE TO THE NATURE OF THIS PRODUCT WE HIGHLY ADVISE THE PURCHASE AND FITTING OF A WATER SOFTENER

ELECTRICAL CONNECTION TO HOUSE MAINS

WHEN YOUR ITEM IS ASSEMBLED ALWAYS USE THE SERVICES OF A FULLY QUALIFIED ELECTRICAL COMPANY TO COMPLETE CONNECTION FROM

SHOWER TO HOUSE SUPPLY. LAWS DEMAND IN MANY CASES YOU DO THIS AND YOUR WARRANTY IS VOID REGARDS ELECTRICAL ITEMS IF THIS IS NOT

UNDERTAKEN.

YOURS AND OTHERS SAFETY IS PARAMOUNT. NEVER ATTEMPT THIS YOURSELF.

REMEMBER:

These showers are designed to be free standing and movable from their location should you have need to replace anything. ALWAYS USE Flexible braided water inlet

pipes at least a metre long (not central heating plastic type! )

from house supply to the shower and again flexible waste pipe to join to your house waste. NEVER fix with rigid pipes, never fix the unit to the wall.

DURING BUILD, LIKE ALL SHOWERS CORRECT SEALING IS IMPERATIVE.

ATTENTION

ALWAYS FIT EASY TO GET TO TAPS ON BOTH HOT AND COLD WATER SUPPLY. AS A DISHWASHER OR WASHING MACHINE, THIS

PRODUCT MUST BE ISOLATED WHEN NOT IN USE. FLEXI SUPPLY HOSES (SUPPLIED) COUPLE HERE AS ORIGIN OF SUPPLY

www.insigniarange.com Last Modied: 08/10/2014

YOU WILL NEED

TOTAL ELECTRICAL REQUIREMENTS

Voltage Rating 220 -240AC

Frequency Rating 50HZ

Power Rating 3.0KW

Other than steam generator

Internal Circuit Voltage is 12V

Internal Current Rating 0.17A

Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation.

UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!!

Note for electrician. This product comes with 13 amp plug(s) fitted with an RCD unit. We leave it this way for you to connect this your own way due to continued additions

to current regulations. As at October 2010 we offered two methods.

1) Connect within current laws and IP directives using plug and RCD provided with steam version or supply one for non steam version

2) (Preferred) Wire into isolated fused feed connecting directly to the house consumer/service box. Remove the fitted plug and ensure the Consumer unit has capabilities to

replace RCD feature if RCD is removed.

Always use protection against electrical surge. Your shower should be treated the same as a home computer. A surge protector should eradicate the possibility of either

the transformer or computer control being burnt out. Please note earth is required and found on chassis of shower tray. A further earth is required from Steam Generator

unit. Each earth must ground through power supply line.

Requirements

Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill

www.insigniarange.com Last Modied: 08/10/2014

Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice

is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word

“DRY RUN” this means you do not silicone anything, just simply construct the shower, align, drill and screw everything together. Once you are happy with the build take the

unit apart and carry out the final fix.

What’s In The Boxes?

Tray Box

1x Tray

1x Roof

2x Curved Rails

Internal Accessories, Screw Pack & 2 x extension cables

Glass Room

2x Door seals

2x Glass doors

2x fixed glass

2 x Magnetic Seals

Column

1x Complete column with control panel

2 x Front columns with pre-fitted LEDs

2 x Aluminium Uprights

Backwalls

1x Left Panel Backwall

1x Right Panel Backwall

www.insigniarange.com Last Modied: 08/10/2014

Insignia Screw Pack

VERY IMPORTANT

Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been

checked and is present. No replacement/missing parts can be obtained free of charge during or after the build. Any claims can only be within the timescale permitted (48

hours after delivery) and always BEFORE build.

Product Code Descripon Quanty

SP097 Door Handles 2

SP008 Door Wheels 8

ST20 20mm Screws 20

ST35 35mm Screws 10

ST14 14mm Screws 6

ST25 25mm Screws 10

SW9 Small Washers 20

DB6 Drill Piece 1

ST55 55mm Screws 9

Note: In some cases you may have more screws than needed, this is done so you have spares!

www.insigniarange.com Last Modied: 08/10/2014

Pressure Requirements from your house supply

We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type

installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump. We cannot advise on which type of pump is used, location or design because

all house plumbing layouts vary. This is a job for your installer/plumber. The end delivery however must fall within the scope above.

Debit Requirements

You will need the debit capabilities of at least 10 litres per minute. Again an average combi boiler will supply this but please check if you have a gravity feed system.

Important Note Do not exceed 3.4 BAR pressure under any circumstances. Warranty is void if so as damage will occur. If you have a combi supply, please use a pressure

reducing valve if required to lower the BAR pressure to the shower.

Please Remember that this product is free standing and is designed to be pulled away from the wall. The water supply and waste require flexible pipes. If you purchased the

fitting kit with this shower you will have the required fittings. The water supply pipes need to be at least 1 metre in length and must be that of a flexi braided type..

DO NOT OVERTIGHTEN IT CAN CAUSE THE CONNECTION TO POP AFTER A FEW WEEKS OF USE

Please note if a shower pump is used via gravity system we recommend a separate cold feed bypassing pump direct to generator to avoid damage to the

generator.

Further to this as you would with a washing machine or dishwasher, it is highly recommended that accessible water valve taps are installed to turn off the shower when not

In use. This will avoid any possible flooding due to a burst pipe or connection failure in the future.

www.insigniarange.com Last Modied: 08/10/2014

TO START

Make sure you have a clear space, remember when finished and in place you need access to check your build and

able to pull the shower out for servicing or should you have the need to replace anything!

Take the shower tray and remove all the protective wrapping and fit the waste. If you purchased the fitting kit it is

possible this may have already been fitted in the tray hole yet please note this is only for transportation reasons

therefore you will still need to ensure the correct sealing and alignment is carried out. In the side of the waste

supplied in the optional fitting kit you will notice a spigot not seen on an ordinary waste. In most cases this is blanked

yet should you have a steam version you need to gently drill this out as this item is for the steam generator drainage

and will be connected in the instructions later.

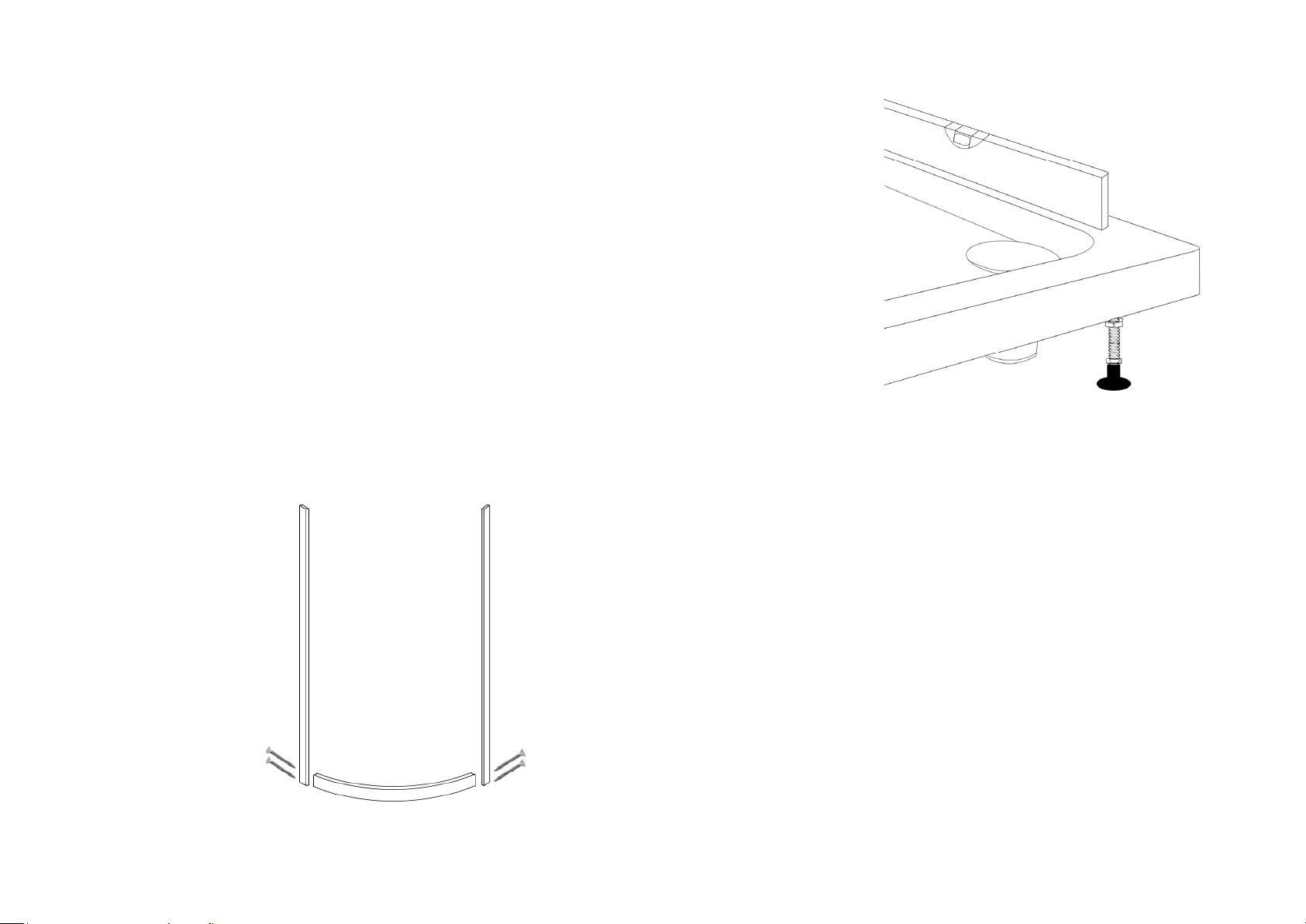

Now please level the tray by firstly placing the tray in its final location and then using a spirit level, adjust the tray feet

accordingly. Once you are happy with the levelling of the tray, you can pull it out to begin the main construction.

Step 1

Attach the uprights to the bottom curved rail using the ST55 screws

(Thinner rail without Insignia logo on)

www.insigniarange.com Last Modied: 08/10/2014

Step 2

Push the “U Shape” glass seal onto each side of the glass panels prior to insertion

into the frames.

The next step is to attach both front fixed glass panels. In order to do this take the

glass panel and offer it up to the upright as shown by the arrows.

Step 3

Attach both front uprights and the top rail. In order to do this insert the front uprights

over the glass seal as push on tightly as directed by the arrows in the image. The

columns are handed and can only fit one way.

Now place your completed front frame on the front of

the shower tray as per the image on the right

IMPORTANT! When fitting the top rail ensure the wires

from the column lights are held against the back of the

grey plastic clips poking out of the top. The rail is

designed to sandwich the wires between the front of the

rail and the back of the grey clips.

Now attach the top rail (wide rail with logo) and then screw

into place using the ST55 screws

Once the top rail is in place, secure the front uprights to the

top and bottom rails (from inside the cabin)

using ST14 screws

Once you are happy with the alignment, run a bead of

silicone along the bottom of the frame
