Inside Weather SOFETTE Manuel utilisateur

SOFETTE

Gather Your Eggs...

Note: Please retain all boxes until you are certain that your product isn’t damaged and that you

do not wish to return it. Disposal of boxes may prevent/delay our ability to resolve your request.

BACK PILLOWS

BACK PLATE

2 ARMS

SEAT CUSHIONS

INNER SUPPORT BRACE

FRONT PLATE

18 SLATS

You should have:

4x LEGS

4x CORNER BRACKETS

8x NEOPRENE

STICKY PADS

32x BUTTON HEAD HEX SCREW

(5 MM HEX BIT)

16x SOCKET HEAD CAP SCREW

DRILL + EXTENSION

5MM HEX BIT

4MM BALL HEAD BIT

USB CHARGER

Note: Drill may need to be charged before use

Note: Don’t be surprised if you find a few extra screws, washers and even an extra support brace

among your supplies. It’s just our way of being extra sure you have everything you need.

Stand the arm on its side.

Identify the corresponding hooks

located on the arm and back panel.

Align the arm and back panels

so that the wooden frames

meet at a right angle. Lean

the arm slightly away from the

back panel. Lift the top of the

back panel and gently lower

the hook until it connects.

Repeat on both sides.

Step 1: Connect the Arms

Connect the Hooks

This is how they connect.

The connection is the same

for both sides

Let’s start by connecting the arms to the back panel. Lay the back panel flat

on the floor, workbench or other stable surface with the metal strip is facing up.

The process is identical for both arms.

Connect the Arms (Continued)

Place a corner bracket to connect

the back and arm panels.

Put a 5mm button head socket cap

screw in each of the three holes in

the back panel. Losely hand tighten

only for now.

Screws will be tightened after they

have all been placed.

Connect the corner bracket to the

arm by hand-threading a button

head socket cap screw into each

of the three remaining holes.

Once all six screws have been

connected, use the drill to fasten

each bracket until secure.

Step 2: Install the Inner Support Brace

You’ll Need: 1x INNER SUPPORT BRACES

8x BUTTON HEAD SOCKET CAP SCREW (5 MM HEX BIT)

Install the Inner Support Brace (Continued)

Make sure the edges are flush

Hand tighten before finishing with

the drill to make sure everything is

properly aligned.

Line up the holes in the support

brace with the corresponding

holes on the frame.

Step 3: Attach the Front Plate

In this step we’ll be

adding the front plate.

But first let’s make sure

everything is ready!

FRONT PLATE

CORNER BRACKETS

5MM BUTTON HEAD SCREWS

12x

You’ll Need:

Set the front plate between the two

arms as shown. Make sure that the

flap of excess fabric is facing the top

of the couch and hanging toward the

inside of the frame.

This will ensure that the plate is

rotated correctly.

Attach the Front Plate (Continued)

Attach a corner bracket to

the front plate using 3 bolts.

Hand tighten only

Hold the corner bracket flat

against the front plate and

add 3 more bolts to attach

the bracket to the arm.

Use the drill to fasten each

bolt until secure. Repeat on

the other side.

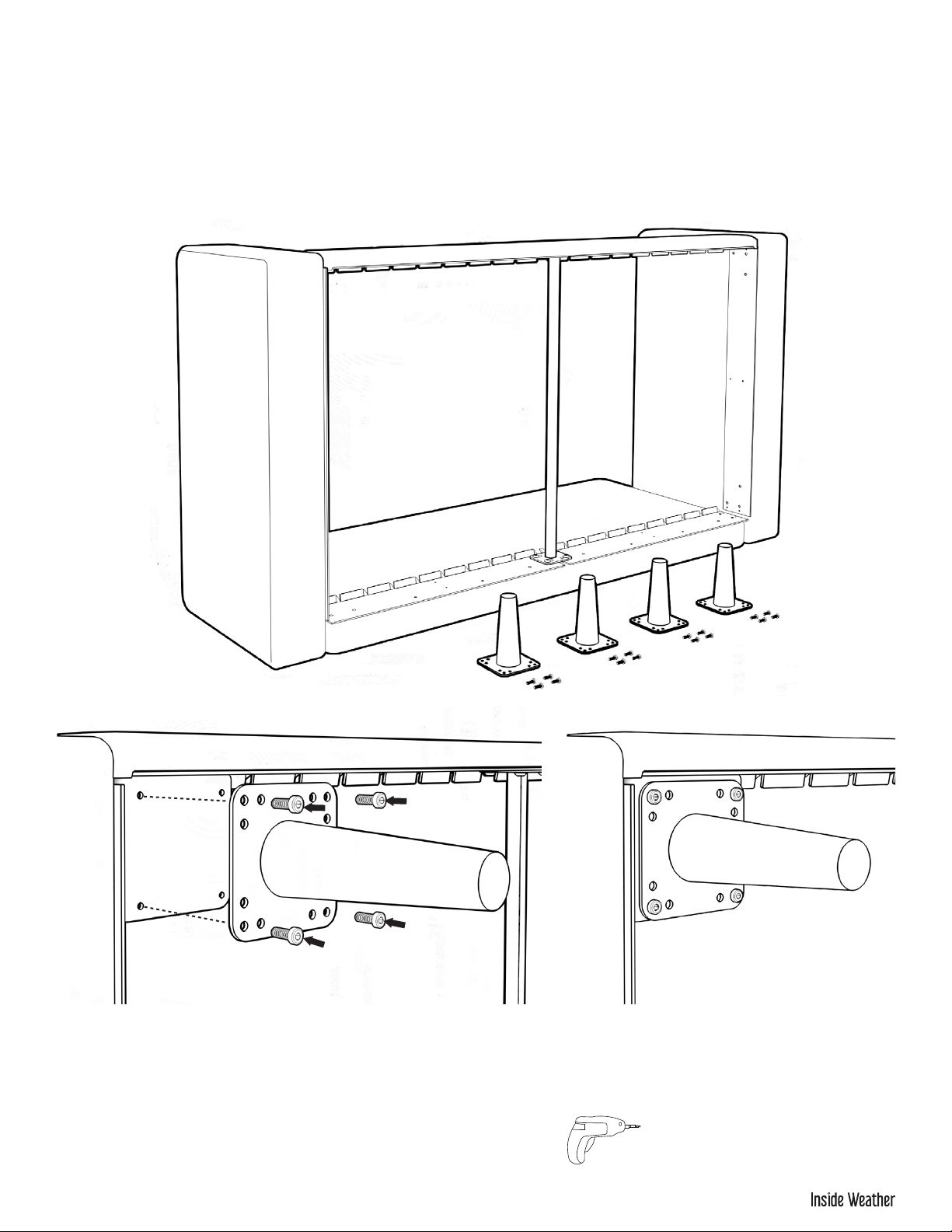

Step 4: Install the Legs

Start by aligning the leg over the mounting holes. Insert

bolts into corresponding threaded holes as shown and

tighten by hand.

Note: if you have flared legs, make sure that each leg

points outward toward its respective corner.

Once each bolt is started by hand, use the

drill to finish securing the leg.

Repeat for all four legs.

4x LEGS

16x SOCKET HEAD CAP SCREW

You’ll Need: Note: Our legs are universal, and are used across

multiple products. All sofa and ottoman legs will

attach securely with 4 fasteners per leg.
