Innovative MPE33-2 Manuel utilisateur

33" Electric Fireplace

MODEL:

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

This manual will enable you to obtain a safe, efﬁcient and dependable

installation and operation of your electric ﬁreplace. Please read and

understand these instructions before beginning your installation.

Do not alter or modify this ﬁreplace or its components under any circum-

stances. Any modiﬁcation or alteration of the ﬁreplace system, including

but not limited to the ﬁreplace and accessories, may void the warranty,

listings and approvals of this system and could result in an unsafe and

potentially dangerous installation.

IMPORTANT! IF OPTIONAL GLASS DOORS ARE PURCHASED, TO

ASSURE PROPER ALIGNMENT, INSTALL THIS FIREPLACE IN A

SQUAREANDPLUMBCONDITION,USINGSHIMSASNECESSARY

AT SIDES. THIS APPLIANCE IS MOUNTED ON RUBBER FEET TO

ENSURE ADEQUATE AIR CIRCULATION BENEATH FIREPLACE.

DO NOT BLOCK AIRFLOW AT THE BOTTOM AIR INTAKES.

INSTALLER: DO NOT DISCARD THIS MANUAL

PLEASE LEAVE FOR THE HOMEOWNER

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE

VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER

APPLIANCE.

electric ﬁreplaces are designed for use as a decora-

tive appliance and/or as a supplemental heater. They are

not intended for continuous use as a primary heat source.

A French manual is available upon request. Order P/N 850,032CF

Ce manuel d’installation est disponible en francais, simplement en

faire la demande. Numéro de la pièce 850,032CF.

INSTALLATION AND

OPERATION INSTRUCTIONS

Report # C1482763

CUS

DrAFt

06-06-06

Publication:506009-10

Innovative Hearth Products

MPE33-2,ERT3033,Capella 33

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

IMPORTANT SAFETY AND

WARNIING INFORMATION

READ THIS MANUAL IN ITS

ENTIRETY AND UNDERSTAND

THESE RULES TO FOLLOW FOR

SAFETY.

TO PREVENT A POSSIBLE FIRE,

DO NOT BLOCK AIR INTAKES OR

EXHAUSTS IN ANY WAY. DO NOT

USE NEAR SOFT SURFACES, LIKE

A PILLOW, WHERE OPENINGS MAY

BECOME BLOCKED.

THIS APPLIANCE MAY BECOME HOT

WHEN IN USE. TO AVOID BURNS, DO

NOT LET BARE SKIN TOUCH HOT SUR-

FACES. KEEP COMBUSTIBLE MATERI-

ALS, SUCH AS FURNITURE, PILLOWS,

BEDDING, PAPERS, CLOTHES AND

CURTAINS AT LEAST 3 FEET (1 METER)

FROM THE FRONT OF THIS APPLI-

ANCE.

DO NOT OPERATE ANY HEATER WITH

DAMAGED WIRING OR CONNECTORS,

OR AFTER THE APPLIANCE MALFUNC-

TIONS, OR IF IT HAS BEEN DROPPED

OR DAMAGED IN ANY WAY.

ANY REPAIRS TO THIS FIREPLACE

SHOULD BE PERFORMED BY A QUALI-

FIED SERVICE TECHNICIAN.

WARNING

If the information in this manual

is not followed exactly, an elec-

trical shock or ﬁre may result

causing property damage, per-

sonal injury or loss of life.

IMPORTANT

Before starting your ﬁreplace

installation, read this instal-

lation and operation manual

very carefully to ensure you

understand it completely and in

entirety. Failure to follow these

instructions may result in a pos-

sible electric shock, ﬁre hazard

and/orinjuryor propertydamage

and will void the warranty.

CAUTION

This appliance is mounted on

rubberfeet. Thepurpose ofthese

feet is to ensure adequate air

circulationbeneaththeﬁreplace.

Do not remove these feet. Do not

install the ﬁreplace directly onto

acarpet, rug,furnitureorsimilar

surfaces, which could hinder or

block the airﬂow.

CAUTION

Extreme caution is necessary

when any heater is used by or

near children or invalids and

whenever the heater is left oper-

ating and unattended.

UNDER NO CIRCUMSTANCES SHOULD

THIS FIREPLACE BE MODIFIED. PARTS

HAVING TO BE REMOVED FOR SERVIC-

ING MUST BE REPLACED PRIOR TO

OPERATING THE FIREPLACE AGAIN.

DO NOT USE THIS APPLIANCE OUT-

DOORS. DO NOT EXPOSE FIREPLACE

TO THE ELEMENTS (SUCH AS RAIN,

ETC.).

THIS APPLIANCE IS NOT INTENDED

FOR USE IN BATHROOMS, LAUNDRY

AREAS OR SIMILAR INDOOR LOCA-

TIONS. NEVER LOCATE THIS APPLI-

ANCE WHERE IT COULD FALL INTO

A BATHTUB OR OTHER WATER CON-

TAINER.

DO NOT RUN ELECTRICAL WIRING OR

POWER CORD UNDER CARPETING. OR

COVER WITH THROW RUGS, RUNNERS

OR SIMILAR MATERIALS.

FOR 120 VAC POWER CORD AVOID THE

USE OF AN EXTENSION CORD BECAUSE

THE EXTENSION CORD MAY OVERHEAT

AND CAUSE A RISK OF FIRE. HOW-

EVER, IF YOU HAVE TO USE AN EXTEN-

SION CORD, THE CORD SHALL BE NO.

14 AWG MINIMUM SIZE AND RATED

NOT LESS THAN 1800 WATTS, 15

AMPS. THE EXTENSION CORD MUST

BE A THREE CONDUCTOR SHEATH

CABLE WITH GROUNDING TYPE PLUG

AND CORD CONNECTION.

THIS APPLIANCE HAS HOT AND ARCING

OR SPARKING PARTS INSIDE. DO NOT

USE IT IN AREAS WHERE GASOLINE,

PAINT OR FLAMMABLE LIQUIDS ARE

USED OR STORED.

THIS FIREPLACE SHOULD NOT BE USED

AS A DRYING RACK FOR CLOTHING, NOR

SHOULD CHRISTMAS STOCKINGS OR

OTHER DECORATIONS BE HUNG NEAR IT.

USE THIS APPLIANCE ONLY AS

DESCRIBED IN THIS MANUAL. ANY

OTHER USE IS NOT RECOMMENDED BY

THE MANUFACTURER AND MAY CAUSE

A FIRE, ELECTRIC SHOCK OR INJURY

TO PERSONS.

IF APPLIANCE IS TO BE DISCON-

NECTED, TURN OFF CONTROLS FIRST.

DO NOT INSERT OR ALLOW FOREIGN

OBJECTS TO ENTER ANY VENTILATION

OR EXHAUST OPENING, AS THIS MAY

CAUSE AN ELECTRIC SHOCK, FIRE, OR

DAMAGE TO THE APPLIANCE.

SAVE THESE INSTRUCTIONS.

WARNING

To prevent contact with sag-

ging or loose insulation, the

appliance must not be installed

againstvaporbarriersorexposed

insulation. Localized overheat-

ing could occur and a ﬁre could

result. Insulation and a vapor

barrier should be placed a

minimum of 2 inches from the

appliance.

IMPORTANT

Cold climate installation recom-

mendation: when installing this

ﬁreplaceagainstanon-insulated

exterior wall or chase, it is

mandatory that the outer walls

be insulated to conform to appli-

cable insulation codes.

IMPORTANT

These ﬁreplaces are designed

assupplementalheaters.There-

fore, it is advisable to have an

alternate heat source when

installed in a dwelling.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Installation must conform to local codes.

In the absence of local codes, electrical

wiring and grounding must comply with

the National Electrical Code ANSI/ NFPA

70 - latest edition. In Canada, the cur-

rent CSA C22-1 Canadian Electrical Code

- latest edition.

CONGRATULATIONS!

In selecting this Merit electric ﬁreplace, you have chosen the ﬁnest and

most dependable ﬁreplace found anywhere. A beautiful and prestigious addition to

the ﬁnest homes. Welcome to a Family of hundreds of thousands of satisﬁed

SuperiorNOXFireplace Owners.

Please read and carefully follow all of the instructions found in this manual. Please

pay special attention to the safety instructions provided in this manual. The instruc-

tions included here will assure that you have many years of dependable and enjoyable

servﬁce from your product.

TABLE OF CONTENTS

Important Safety Information. Page 2

Packaging List. Page 3

Introduction . Page 3

General Information . Page 3

Locating Fireplace. Page 3

Tools/Supplies Required . Page 3

Framing Speciﬁcations. Page 4

Fireplace Speciﬁcations. Page 4

Clearances . Page 5

Pre-installation. Page 5

Installation Steps . Page 5

Electrical Connections. Page 5

Final Finishing. Page 6

Break-In Period. Page 6

Control Panel Operation. Page 6

Remote Control Operation . Page 7

Maintenance. Page 8

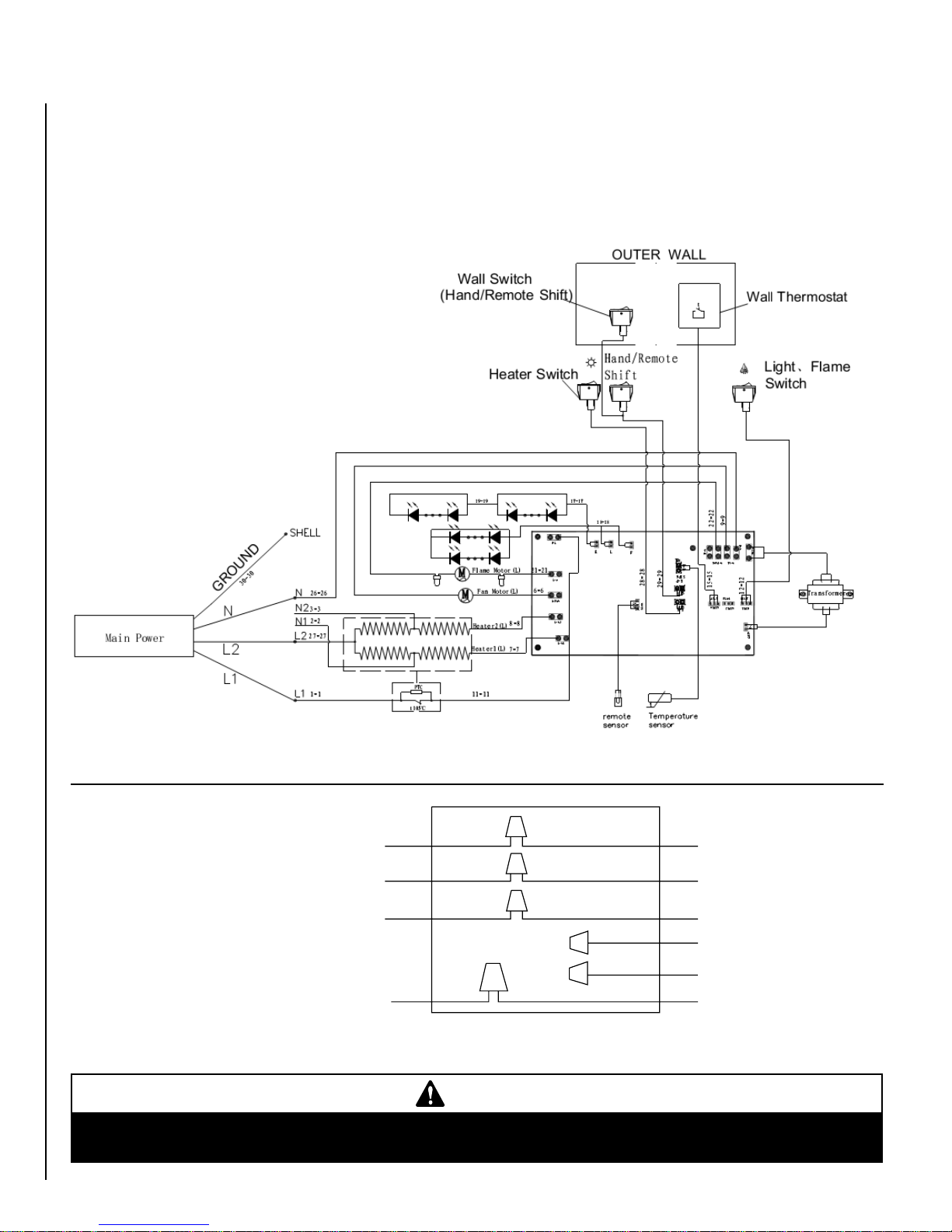

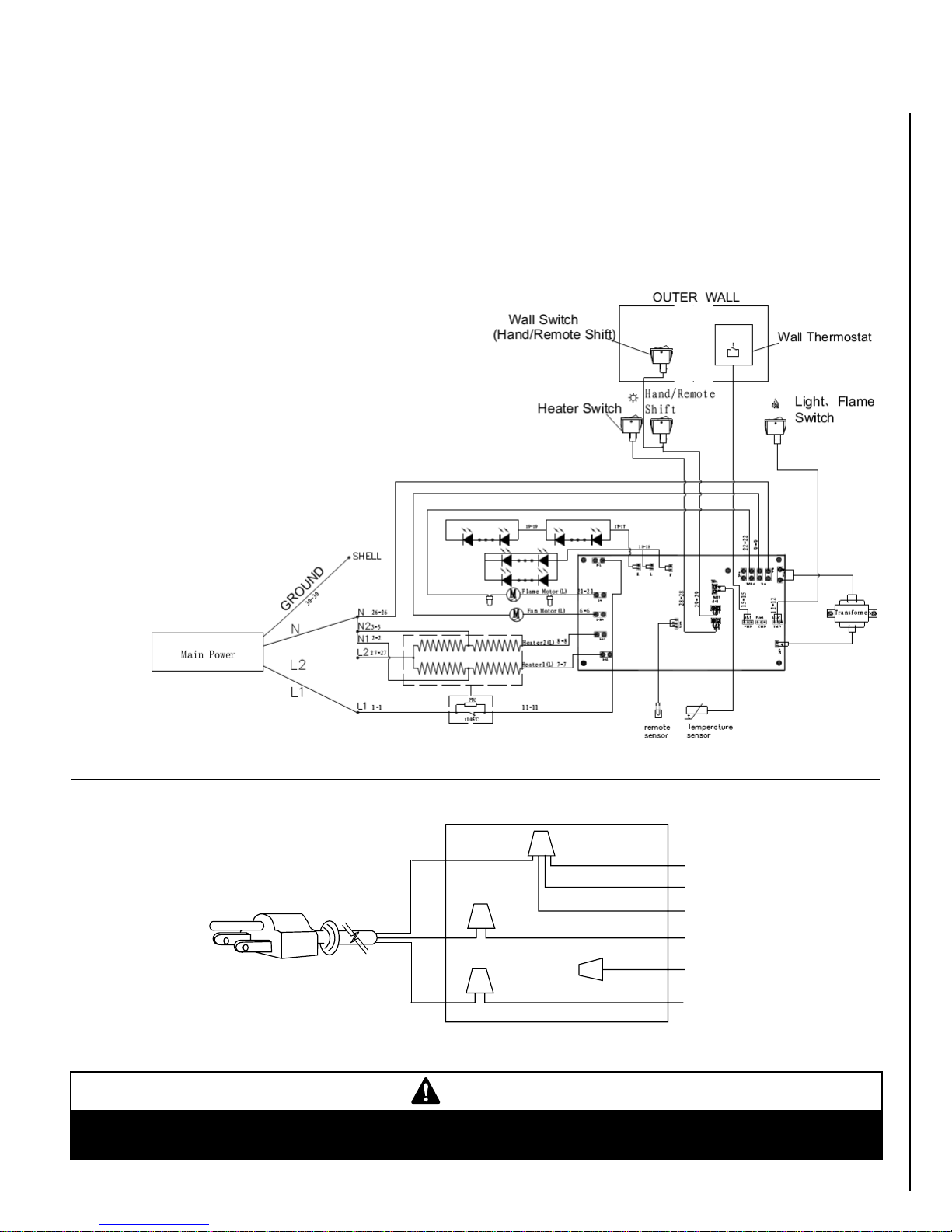

Wiring Diagrams. Page 9

Troubleshooting . Page 14

Replacement Parts. Page 15

Optional Accessories. Page 17

PACKAGING LIST

This assembled Electric Room Heater is

packaged with:

• One accessory package located in the

ﬁrebox, containing;

1. One Installation and Operation Manual.

2. One Warranty Certiﬁcate.

3. One Remote Control.

INTRODUCTION

This Electric Fireplace is designed for

residential applications to be framed in

as a ﬁreplace.

This appliance has been tested in accor-

dance with UL 2021 and CSA C22.2 No.

46-M198 standards for ﬁxed and location

dedicated electric room heaters.

WARNING

Do not install or operate this ﬁre-

placethroughaswitchwiredinthe

120 VAC or 240 VAC circuits. The

only approved wiring for a switch

is through the low voltage circuit

(24 VAC) as shown on Page 14.

GENERAL INFORMATION

Power Supply Wire Speciﬁcations

120 Volt, 60 Hz, 1600 Watts:

(ref. Page 9)

Hard Wire Connection - Use two conductor,

non-metallic sheath cable with ground wire

(total three wires) for the incoming power

supply. The wire used must conform to local

and national electrical codes for the speciﬁed

power consumption rating. See Table 1.

240 Volt, 60 Hz, 3000 Watt:

(ref. Page 10)

Use three conductor, non-metallic sheath cable

with ground wire (total four wires) for the

incoming power supply. The wire used must

conform to local and national electrical codes

for the speciﬁed power consumption rating.

See Table 1.

Wall Switch or Wall Thermostat Kits

(optional kits, see Page 17)

Low voltage wire is provided for the wall switch

connection. The wires gage requirements are

shown on Table 1.

Power Supply Wire Gage

Voltage Wire Gage Fuse

120 V 14 GA. 15 AMP

240 V 14 GA. 20 AMP

Wall Switch / Thermostat Wire Gage

Voltage Wire Gage

5 VOLTS 18 GAGE

Table 1

Figure 1

LOCATING YOUR MERIT ELECTRIC

FIREPLACE

Your new ﬁreplace maybeinstalledintoexisting

framing or built into a wall (see Figure 1).

When choosing a location for your new ﬁre-

place, ensure that the general instructions are

followed. Also, for the best effect, install the

ﬁreplace out of direct sunlight and away from

overhead lighting. See Figure 1.

ﬁreplace shown in gray.

TOOLS AND BUILDING SUPPLIES

NORMALLY REQUIRED

TOOLS:

Phillips Screwdriver

7/16" Socket Drive

Hammer

Saw And/or Saber Saw

Level

Measuring Tape

Plumb Line

Electric Drill And Bits

Pliers

Square

Gloves

IMPORTANT NOTE: This ﬁreplace system

is not difﬁcult to install. However, in the

interest of safety, it is recommended that

the installer be a qualiﬁed or certiﬁed

“tradesman” familiar with commonly

accepted ﬁreplace installation and safety

techniques as well as prevailing local

codes.

BUILDING SUPPLIES:

Framing Materials

Wall Finishing Materials

Caulking Materials

(noncombustible)

Top View Showing Approved

Room Locations of Fireplace

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

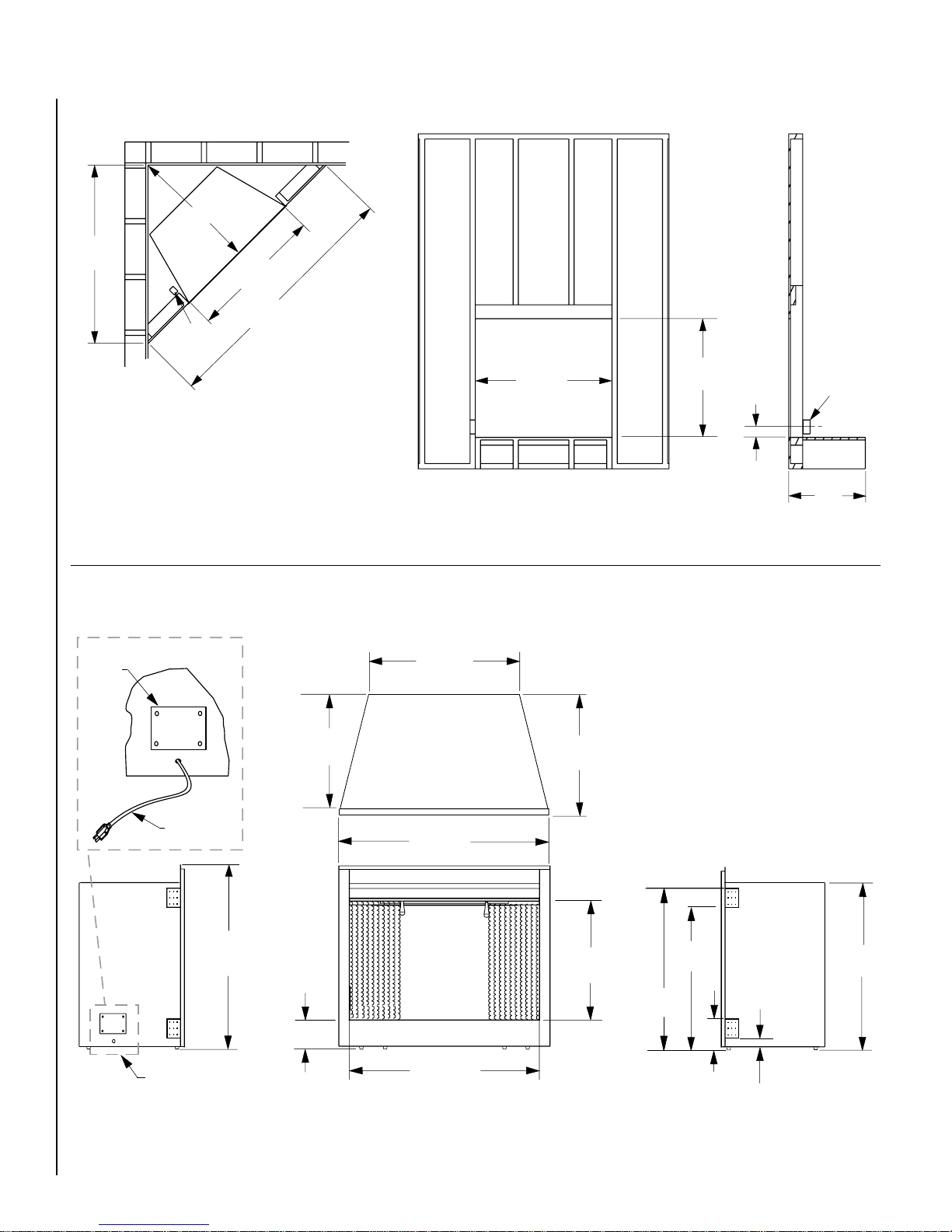

FRAMING SPECIFICATIONS

34-1/2"

(876 mm)

21-1/8 "

(537 mm)

14-7/8"

(37

mm)

5-1/8 "

(130 mm)

33 "

(838 mm)

2-1/4 "

(55 mm)

29-3/4 "

(754 mm)

32 "

(812 mm)

Front View

Top View

Right Side

Left Side

13-3/4"

(350 mm)

5-1/4 "

(134 mm)

24-1/2"

(

622 mm

)

27-1/2 "

(

700 mm

)

21-1/8 "

(537 mm)

Electrical Access

Cover

Power Cord

Electrical Access

FIREPLACE SPECIFICATIONS

Front View

Side View

36-1/4 "

(921 mm)

25-5/8 "

35-1/4 "

(651 mm)

(895 mm)

51-1/4 "

(1302 mm)

32 "

(812 mm)

4 "

(102 mm) 15-1/8 "

(384 mm)

Corner View

Electrical

(left side)

Junction

Box

Electrical

Junction

Box

35-1/4 "

(895 mm)

Figure 2

Figure 3

Note: Framing dimensions are calculated for a nailing ﬂange depth of 1/2"

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 5

MINIMUM CLEARANCES TO COMBUS-

TIBLES

Mantel Clearance: Combustible and Non-com-

bustible mantels may be installed at any height

above the top of the face of ﬁreplace.

Model: MPE33-2,ERT3033.Capella 33

Description: Merit Electric Fireplace,

33” Radiant

Shipping Weight: 81 lb.'s (36.75 KG)

Packaging:

41” x 17 3/4” x 33 1/2”

(1040 mm x 451 mm x 850 mm)

14.1 cu. ft.

Power Requirements:

(120 Volt, 60 Hz.)

Rated Wattage - 1600 Watts

Amperage - 13.33 Amps

(240 Volt, 60 Hz.)

Rated Wattage - 3000 Watts

Amperage - 12.5 Amps

Blower CFM: 83 CFM

(120 V): 5,461 BTU/HR

(240 V): 10,239 BTU/HR

FIREPLACE SPECIFICATIONS

This appliance is an electric ﬁreplace designed

to be framed in with combustible materials (up

to the edge of the appliance). A drywall lip at

the top of the ﬁreplace and 4 nailing ﬂanges

on the sides of the appliance is provided to

facilitate installation.

Hearth Protection: A hearth is not mandatory,

but it is recommended for aesthetic purposes.

Secure the hearth extension to the ﬂoor to

prevent possible shifting. Do no block the air-

ﬂow beneath the appliance (read the following

WARNING).

Clearances

Sides 0 inches - 0 mm

Floor 0 inches - 0 mm

Top 0 inches - 0 mm

Table 2

WARNING

Electrical wiring must comply

with local building codes and

other applicable regulations to

reduce the risk of ﬁre, electrical

shock and injury to individuals.

IMPORTANT

Any electrical re-wiring of this

appliance must be done by a

qualiﬁed electrician.

WARNING

Do not use this ﬁreplace if any

part of it has been underwater.

Immediately call a qualified

service technician to inspect the

ﬁreplace and replace any part of

the electrical system which has

been under water.

3. Wire a dedicated, properly fused circuit with

an Amp rating for the appropriate voltage

(120 V - 15 Amps or 240 V - 20 Amps).

A dedicated circuit is required to prevent

overloadingahousecircuitincases of having

multiple appliances on the same circuit.

Use an outlet that is protected by a ground

fault circuit interrupter where required by

electrical code.

4. (If applicable) Make wall mount wall switch

or wall thermostat connections as outlined

on Pages 10& 11.

5. Perform a function test. See Manual Control

Panel Operation on Page 6 and Remote

Control Operation on Page 7.

ELECTRICAL CONNECTIONS

Refer to the electrical diagrams on Pages 9

to 13

PRE-INSTALLATION

Before You Start

Check appliance for any concealed damage.

DETAILED INSTALLATION STEPS

1. Complete the framing opening to the dimen-

sions speciﬁed in Figure 2.

2. Prepare the connections to power source:

120 Volt Connections - Locate the power

cord on the left side of the unit and connect

it to the outlet installed during the framing

(see Figure 2).Verify that the power to the

receptacle is off.

Hard wired installation:

Ensure that there is a minimum of 8" of the

service cable for connection to the junction

box on the ﬁreplace.

- Loosen four screwstoremove the junction

box cover plate.

- Disconnect and removethe 120 Voltpower

cord from the ﬁreplace wires.

- Position the ﬁreplace into the framed-in

opening. Attach ﬁreplace to frame using

nailing ﬂanges provided.

- Complete the wiring to the ﬁreplace as

shown on Page 9.

- Place allwire connectors insidethe junction

box.

- Attach junction box cover plate with four

screws.

240 Volt Connections - Ensure that there

is a minimum of 8" of the service cable

for connection to the junction box on the

ﬁreplace.

- Loosen four screwstoremove the junction

box cover plate.

- Disconnect and removethe 120 Voltpower

cord from the ﬁreplace wires.

- Position the ﬁreplace into the framed-in

opening. Attach ﬁreplace to frame using

nailing ﬂanges provided.

- Complete the wiring to the ﬁreplace as

shown on Page 10.

- Place allwire connectors insidethe junction

box.

- Attach junction box cover plate with four

screws.

The ﬁreplace wires L1, L2, N, N1, N2 and

G are attached to the rear of the junction

box cable clamp for easy access.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

MANUAL CONTROL PANEL

Main Power On/Off (rear most switch)

Figure 4

FINAL FINISHING

Materials such as brick and tile can be

extended down to the top of the ﬁreplace. Do

not extend down, covering the outlet or glass

enclosure panel (optional kit).

There are a wide variety of “ﬁnished looks” for

these ﬁreplaces, from formal wall decor with

elaborate mantels to rustic wood paneling or

warm brick facings.

Accent Trim Installations

An optional accent trim kit is available from

your dealer (see Page 17). These options give

the appliance an attractive ﬁnished look.

Hearth

An aesthetically pleasing ﬁreplace hearth can

be installed, if desired (see hearth protection

on Page 5).

BREAK-IN PERIOD:

During the ﬁrst few initial uses of this heater,

there may be a release of a slight, harmless

odor. This odor is a normal occurrence caused

by the initial heating of the internal heating

elements and should not reoccur.

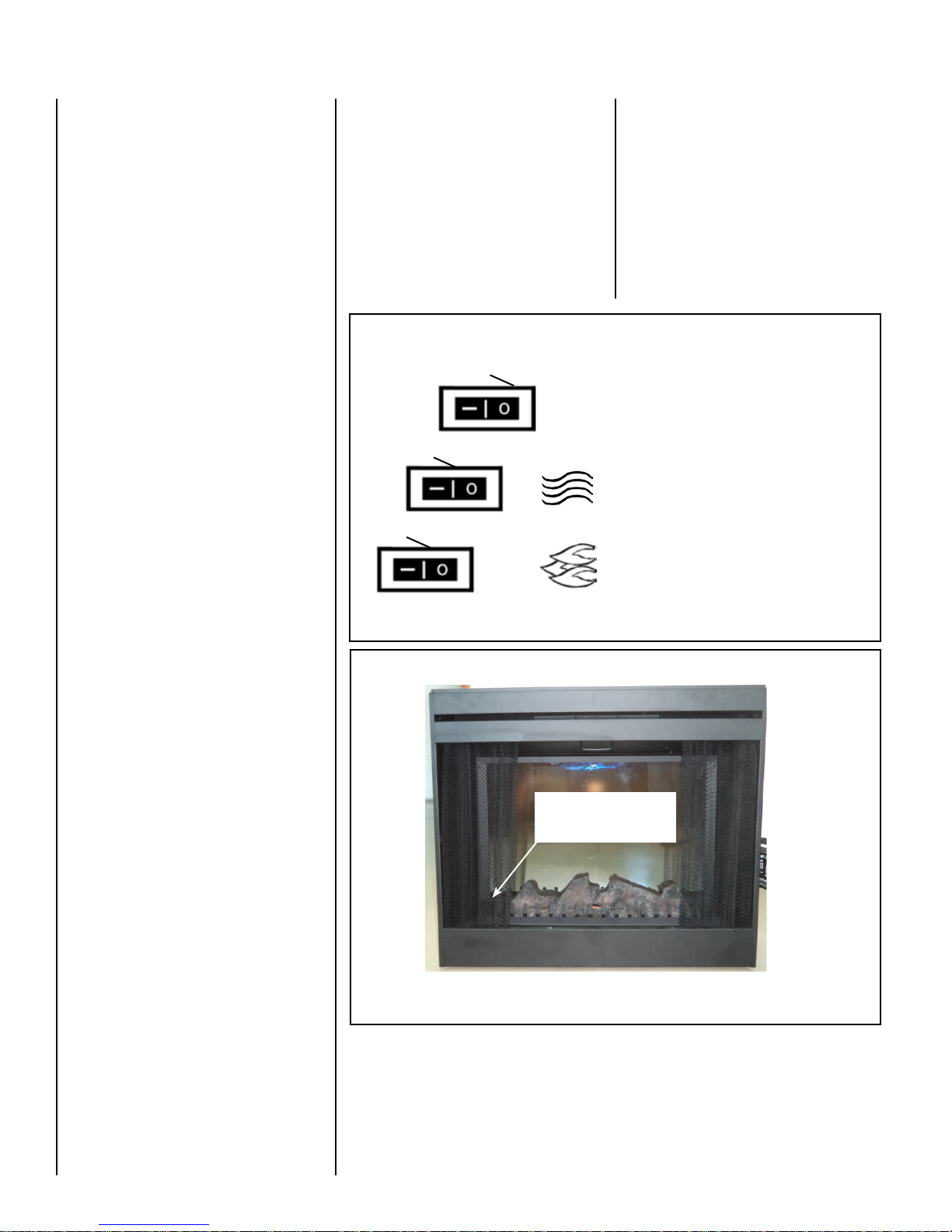

MANUAL CONTROL PANEL OPERATION

(refer to Figures 5 & 6)

Once this appliance has been properly installed

and connected to the power supply as deﬁned

in this manual, it is ready to operate.

Flame / Ember On/Off (front most switch)

Figure 5

On Off

Off

Heater On/Off (center switch)

Manual Control Switches

are located behind pull

screen on inside ﬂoor

Note: Ensure the circuit breakers for the power

supply are turned on.

This appliance can be operated either from the

manual control panel (see Figures 4 & 5)or

by using the remote control, wall switch or wall

thermostat (optional kits).

The manual controls are located on the ﬁrebox

ﬂoor on the front left (see Figure 5). If an

optional glass enclosure is installed, it must

be removed to access.

Main Power ON/OFF Switch

Whenthe main powerswitch is turnedon, power

is supplied to the ﬁreplace. This switch must be

on for all other switches to operate.

Heater ON/OFF Switch

When this switch is turned on, the heater will

emitheat in the temperature range selected (see

Figure 6; G, H & I). The ﬁreplace can operate

with or without heat.

Flame / Ember On/Off Switch:

Turns lights on inside ember bed and ﬂame

cylinder.

• When using the main power on/off switch

inside the manual control panel, the power

on/off switch outside the manual control

panel (optional wall switch kit) must be in

the OFF position.

• When using power on/off switch outside

the manual control panel (optional wall

switch), the power on/off switch inside the

manual control panel must be in the OFF

position.

• When using the remote control, the power

on/off switch inside the manual control

panel and the wall switch (optional kit)

must be on the OFF position.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 7

• When using the remote control, the power

on/off switch inside the body and the wall

switch (optional kit) must be on the OFF

position.

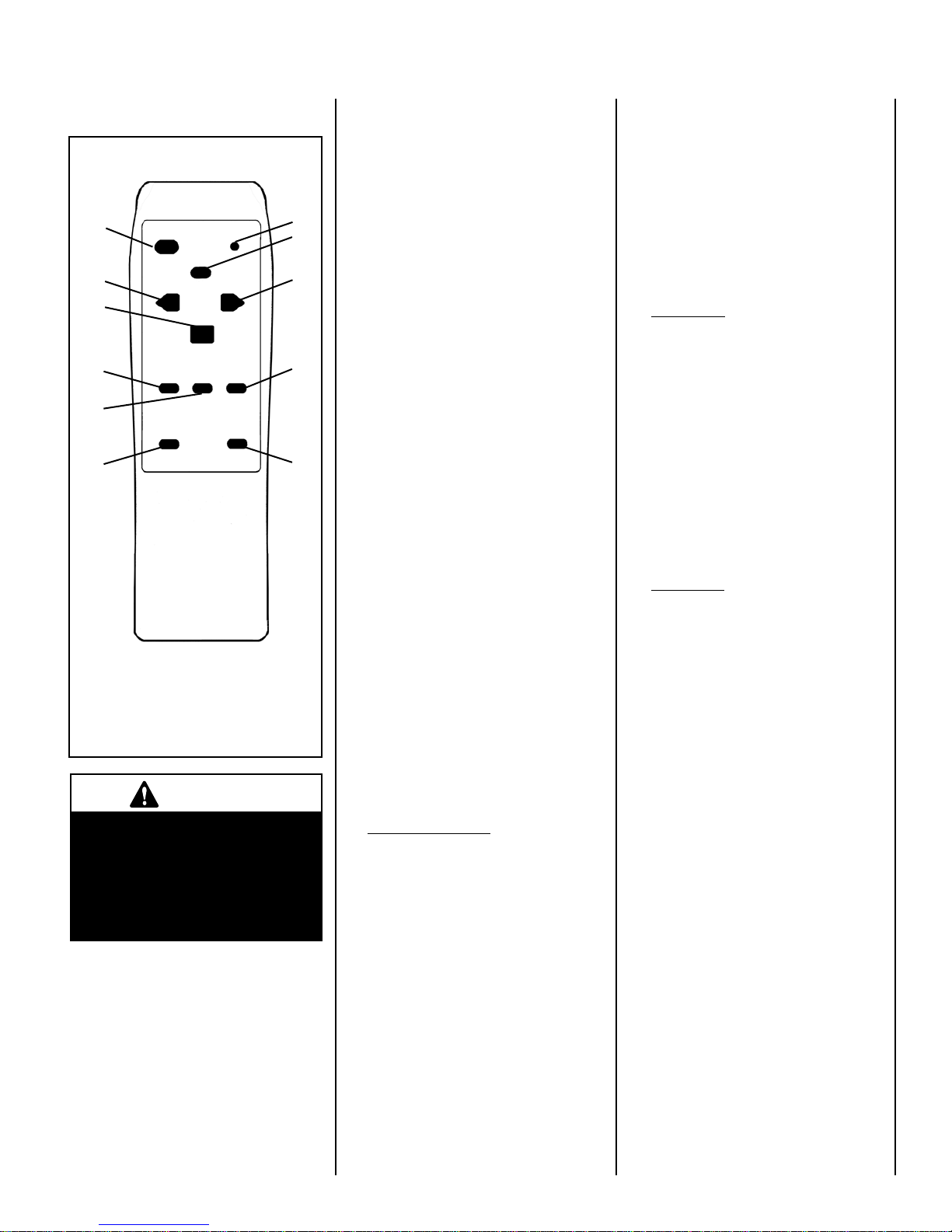

REMOTE CONTROL OPERATION:

Figure 6

The Electric Fireplace is provided with

an Infrared light Remote Control. All functions

of the ﬁreplace can be con-trolled through

the remote control. Note: The Effective range

of the remote control is up to approximately

26 feet (8 meters).

The functions identiﬁed on the remote (see

Figure 6)are as follows:

A. POWER BUTTON

Press once to turn on power to ﬁreplace.

B. INDICATING LIGHT

Illuminates when signal is sent.

C. LIGHT BUTTON

On/off switch for ﬂame and ember light.

D. LIGHT ADJUSTING BUTTON (DIM)

Reduces brightness of embers.

E. LIGHT ADJUSTING BUTTON (BRIGHTEN)

Increases brightness of embers.

F. HEATER ON/OFF

This button will turn the heater ON and OFF

independent of the main button.

G.TEMPERATURE ADJUSTMENT BUTTON

(HIGH)

Highest heat output, up to 86° F.

H.TEMPERATURE ADJUSTMENT BUTTON

(MED.)

Medium heat output, up to 75° F.

I. TEMPERATURE ADJUSTMENT BUTTON

(LOW)

Lowest heat output, up to 64° F.

J. FLAME ADJUSTING BUTTON (LOWER)

Reduces ﬂame intensity.

K. FLAME ADJUSTING BUTTON (HIGHER)

Increases ﬂame intensity.

Remote Control Operation Steps:

1. To control the electric ﬁreplace by remote

control, the main power on/off switch

should be in the off position. This switch is

located on the front left ﬂoor of ﬁrebox (see

Figures 4 & 5).

2. When operating the remote control, it must

be pointed at the logs inside the electric

ﬁreplace and a beep must be heard each time

you press a function button. The beep lets

you know the remote control is operating the

function button you are pressing.

3. Remote On/Off Button - The button on the

top left (see A) is the on/off power button.

When pressing this button you will hear a

beep, this will activates the power to the

ﬁreplace. You must then press the display

button (C) to activate the lights.

Note: If the ﬂame does not come on immedi-

ately, adjust brightness and intensity (buttons

E & K).

4. To increase the brightness, press and

release the light brighten button (see E).

Each time you press this button you will

heara beep, and thebrightness will increase

slightly until the maximum brightness

is achieved. To decrease the brightness,

press and release the light dimming button

(see D). Each time you press this button

you will hear a beep, and the brightness

will decrease slightly until the minimum

brightness is achieved.

5. Heater Button - To activate the heater, press

the heater button (see F), then press HI

(G),

MED (H), or LO (I). The heater is preset to

the following temperatures:

• HIGH will shut off when room reaches

approximately 86° F (30° C).

• MED. will shut off when room reaches

approximately 75° F (24° C).

• LO. (Low) will shut of when room reaches

approximately 64° F (18° C).

6. Flame Button - Press the Flame Adjusting

Buttons to achieve a higher or lower ﬂame

intensity (see J & K).

8. To turn the electric ﬁreplace off, Press the

On/Off button once (A), when you hear the

beep the ﬁreplace will be completely off.

When you restart your ﬁreplace with the

remote control, all settings will restart at the

high settings programmed at the factory. You

may also simply press the (C) button to turn

off the ﬂame and still use the heater.

REMOTE CONTROL

CAUTIONS

• Do Not Use Old Batteries With

New Ones.

• Do Not Use Batteries Other That

The Type Speciﬁed (2 Ea. AA).

• Ensure Batteries Are Correctly

Installed In Remote Control.

(J) button:If you need Yellow Flame, you

need touch the FLAME BLUE button It

controls Blue LED Brightness, Total 6

setting. It will be let Blue Flame from

Biggest to disappear. Then It only left

Yellow Flame on the fire surface. If touch

repeated. (K) button:If you need Blue

Flame, you need touch the FLAME

YELLOWbutton. It controls Yellow LED

Brightness, Total 6 setting. It will be let

Yellow Flame from Biggest to disappear.

Then It only left Blue Flame on the fire

surface.

POWER

ON/OFF

DISPLAY

Dimmer Brighter

EMBERS

HEATER ON/OFF

TEMP. CONTROL

HIGH MED. LOW

FLAME

BLUE YELLOW

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

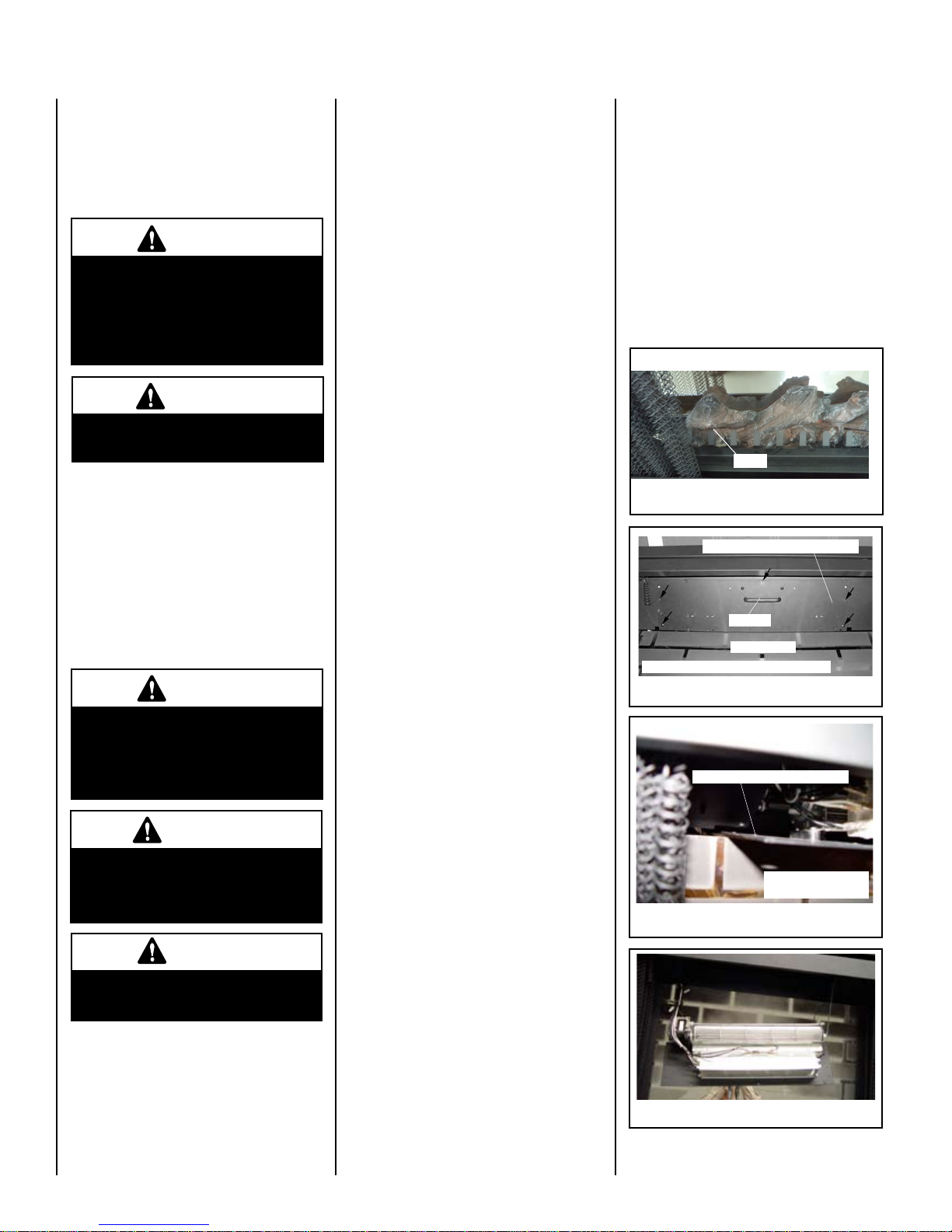

Figure 9

MAINTENANCE

This appliance has been designed to provide

many years of trouble-free service. The com-

ponents that will need to be serviced have been

kept to a minimum. Periodic dusting of the

ﬁreplace is all that should be required.

HEATER/BLOWER REPLACEMENT PROCE-

DURE

1. Turn off power to the ﬁreplace.

2. Let the ﬁreplace completely cool, if it has

been operating.

3. Open the screens (remove glass panel

enclosure, if applicable).

Blower / Heater

Figure 11

Figure 10

Figure 8

4. OPTIONAL: To ensure that the brick panel

isn't accidentally scratched, you may wish

to remove it before proceeding:

Mirror glass Removal Procedure:

a. Remove the 2 screws on the front of the

grate. Remove Grate (see Figure 8).

b. Lift out Log / Ember assembly and set

aside. Caution: Be careful not to scratch

the ﬁnish.

c. Remove the top Mirror glass retaining

bracket (see Figure 15). Be very careful

to hold the bracket when removing the

2 screws to ensure the bracket doesn't

fall.

d. Remove the left and right side mirror

glass retaining brackets (see Figure

15). Be very careful to hold the bracket

when removing. Remove the bottom

screw ﬁrst to avoid the frame falling

down after both screws are removed.

TAKE CARE TO HOLD MIRROR GLASS

IN PLACE TO PREVENT POSSIBLE

DAMAGE.

Suggestion: Slide the screens toward

the middle of the ﬁreplace for easier

access to the screws on the sides.

Return the screens to the sides before

proceeding to instruction e.

e. Tip mirror glass forward from the top,

just enough to clear screens. Carefully

remove brick panel from ﬁrebox and set

aside in a safe place.

5. Remove the screws which secure the heater

blower mounting plate using a phillips screw-

driver as follows (see Figures 9 & 10):

a. While using one hand to hold the handle

ofthe heater/blowerassembly (seeFigure

9), remove the 5 screws which secure

the mounting plate. Remove the 4 side

screws ﬁrst (2 on each side). Remove

the middle screw that is on the top of

the handle last.

b. Slowly lower the heater/blower assembly

and let it rest on the 2 support chains

(1 on each side).

IMPORTANT NOTE: Label all wire

locations prior to disconnecting to

ensure that wires are reconnected in

the correct positions.

6. Replace the heater/blower as follows:

a. Replace the old heater/blower with the

new one. Note: when replacing the

heater/blower, ensure that all the wires

on the heater are correct, otherwise the

heater will not function properly.

b. Turn the power and heater switches on

and check for proper operation.

c. Turn off power to the ﬁreplace.

d. Using one hand to hold the handle of the

heater/blower assembly, slowly push it

back up and line up the holes for the 5

screws. Install the 5 screws to secure

the new heater/blower assembly to the

mounting plate.

7. (If mirror glass was removed)Reverse

instructions on Step 4.

8. Reinstall glass panel enclosure, if appli-

cable.

Handle

Heater/blower Mounting Plate

Mirrorglass

Panel

Remove screws indicated by arrows

Heater/blower Mounting Plate

Be careful not to

damage mirror glass

Grate

WARNING

An authorized service represen-

tative should perform any other

servicing.

CAUTION

Handle glass very carefully to

prevent accidental breakage.

CAUTION

Do not use abrasive cleaners on

the glass panel. Do not spray

liquids directly onto any surface

of the ﬁreplace.

WARNING

When cleaning the ﬁreplace, the

ﬁreplace must be cool.

CLEANING THE GLASS ENCLOSURE

PANEL (OPTIONAL KIT)

Over time the front glass panel may become

dirty or dusty. Dust can be removed by lightly

rubbing the glass surface with a clean, lint free

cloth or paper towel. To remove ﬁngerprints

or other marks, use a damp cloth with a good

quality household glass cleaner. The front glass

panel should be completely dried with a clean,

lint free cloth or paper towel.

CAUTION

Disconnect power before

attempting any maintenance or

cleaning to reduce the risk of

ﬁre, electrical shock or personal

injury.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

WIRING DIAGRAM - 120 VOLT

Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance

on the left side.

CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DAN-

GEROUS APPLIANCE OPERATION.

WIRING - 120 VOLT

Figure 19

L1 = BLACK (POWER)

L2 = ORANGE (POWER)

G = GREEN (GROUND)

N = WHITE (COMMON)

N1 = BLUE (COMMON)

N2 = BLUE (COMMON)

Outer Wall

WARNING

Do not install or operate this ﬁreplace through a switch wired in the 120 VAC or 240 VAC circuits. The only approved

wiring for a switch is through the low voltage circuit (24 VAC) as shown on Page 13.

HOME POWER -

SUPPLY 120 VAC FIREPLACE WIRE

HARNESS

See Power Supply Speciﬁcations on Page 3. N

GROUND

YELLOW AND GREEN

ORANGE

BLACK

BLUE

WHITE N

120 V 1600 W

120 V AC

GROUND

IF THE APPLIANCE IS TO BE HARD WIRED

IN, THE POWER CORD MUST BE REMOVED

(SEE INSTRUCTION #2 ON PAGE 5).

Figure 20

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

WIRING DIAGRAM - 240 VOLT

Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance

on the left side.

CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DAN-

GEROUS APPLIANCE OPERATION.

WIRING - 240 VOLT

Figure 21

Figure 22

HOME POWER SUPPLY

240 VAC

120 V (L1) + 120 V (L2) = 240 V

FIREPLACE WIRE

HARNESS

120 VAC

WHITE

BLACK

ORANGE

BLUE

YELLOW AND GREEN

GROUND

240 V 3000 W

GROUND

See Power Supply Speciﬁcations on Page 3.

WARNING

Do not install or operate this ﬁreplace through a switch wired in the 120 VAC or 240 VAC circuits. The only approved

wiring for a switch is through the low voltage circuit (24 VAC) as shown on Page 13.

THE 120 VOLT POWER CORD INSTALLED ON

THIS APPLIANCE MUST BE REMOVED (SEE

INSTRUCTION #2 ON PAGE 5). G

L1 = BLACK (POWER)

L2 = ORANGE (POWER)

G = GREEN (GROUND)

N = WHITE (COMMON)

N1 = BLUE (COMMON)

N2 = BLUE (COMMON)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Innovative Cheminée intérieure

Innovative

Innovative MPE36-2 Manuel utilisateur

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
