Innovation Technology ITNS-401 Manuel utilisateur
ITNS
Film and Slide Converter
-401
User Manual
-1-
Index
I. Unpack ITNS-401……........................................................2
II. Install film into the film holder........................................3
III. Quick Start.......................................................................6
IV.Operaon Guide............................................................11
V. Specificaons............
...................
.................................31
-2-
I. Unpacking the ITNS-401
Negave/Slide
ITNS-401 FilmHolder
User
Manual(EN)
User Manual(FR)
AC Adaptor
USB/Video Cable
Cleaning Brush
Note
We strongly suggest using a clean, dry, non-alcohol coon swab to clean the glass
surface periodically to produce a clear image during
operaon.
Clean dust from Film Scanner back light with the cleaning
brush.
Dust or dirt on negaves, slide films or cover trays may
affect the scanned image quality. Please make sure all
materials are cleaned before inserng into the scanner.
To avoid damage to your original negaves or slides,
clean only with a recommended, professional purger from your photo store.
ITNS-401
Guide d’ulisaon
-3-
II. Install film into the film holder
●
Placing a slide into the slide holder
1. Open the slide holder as illustrated
2. Put slide into posive slide slot 3. Close the film holder
●
Placing negave film into the film holder
1. Open the film holder as illustrated
2. Install film into negave film slot 3. Close the film holder
-4-
Note
To avoid creang a mirror image, make sure the serial numbers on top of the film read
correctly (from le to right) when placed into the holder [fig. 1].
If the image is upside down [see fig. 2], you can correct it with the Flip funcon. Press
the Flip funcon hard key on the device before image capture, or from the playback
edit menu aer capture [see fig. 3.1].
Figure 1
Figure 2
-5-
●
Press hardkey on top of device in live view
Figure 3
●
Playback mode menu
Figure 3.1
Down/Flip buon
(Flip hard key)
Flip
-6-
III. Quick Start
Up/Mirror buon
Film Slot
OK buon
SD cardSlot
Down/Flip buon
USB port
TV out jack
Power status LED
Power
/
Standby
buon
-7-

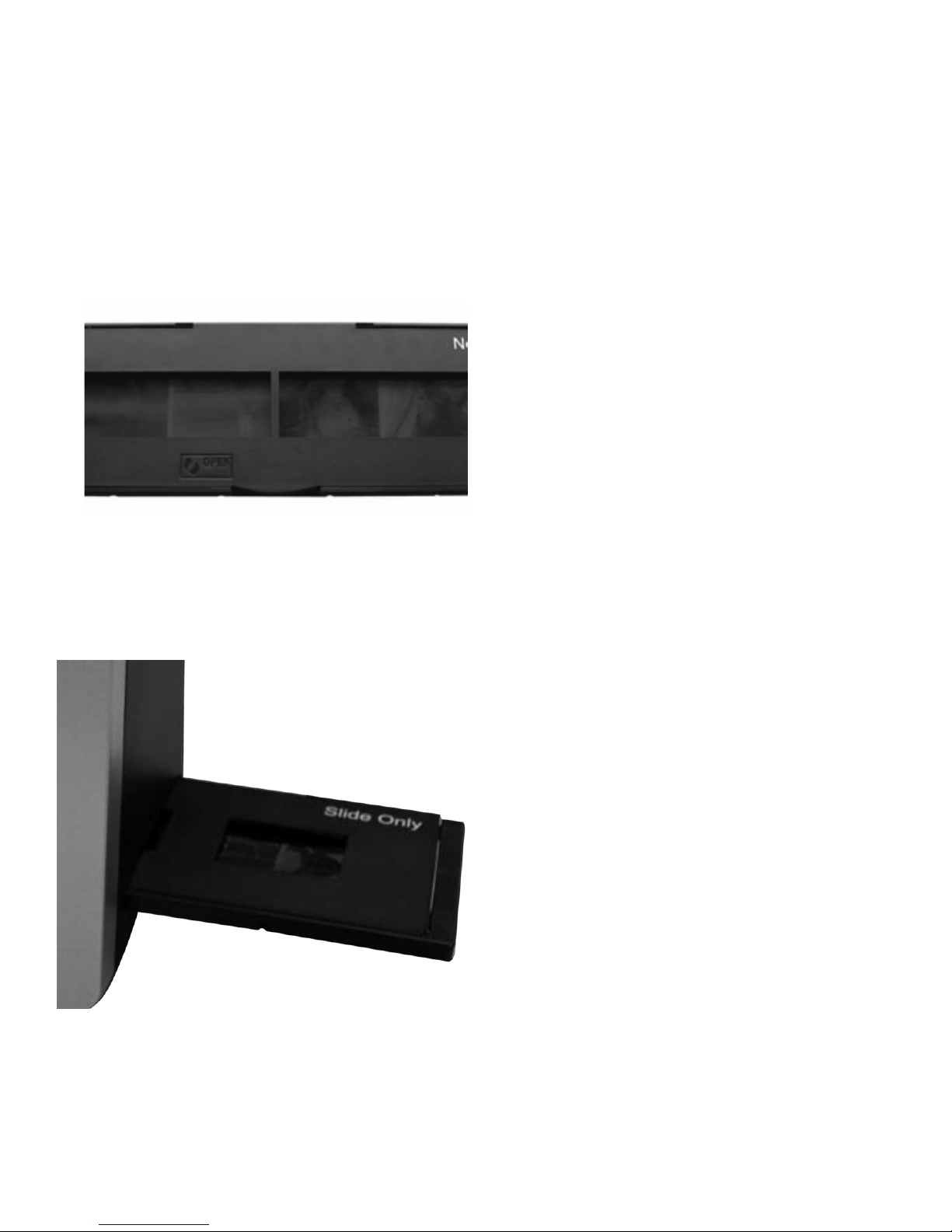

1.Put Film onto the film cartridge
2.Insert the film cartridge into the ITNS-401
-8-

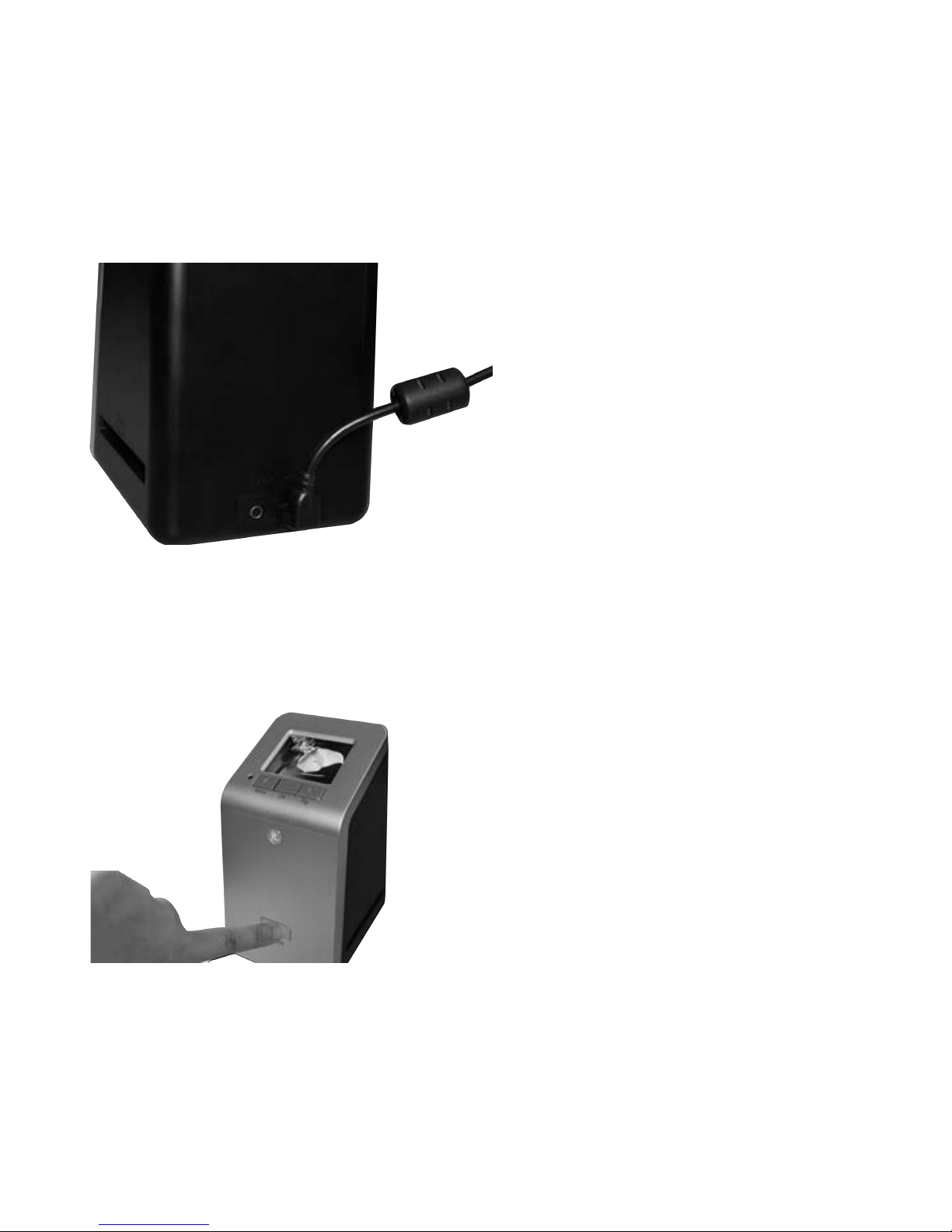

3.Connect USB cable to ITNS-401
4. Turn on the unit by pressing the Power / Standby buon
