Introduction

Overview

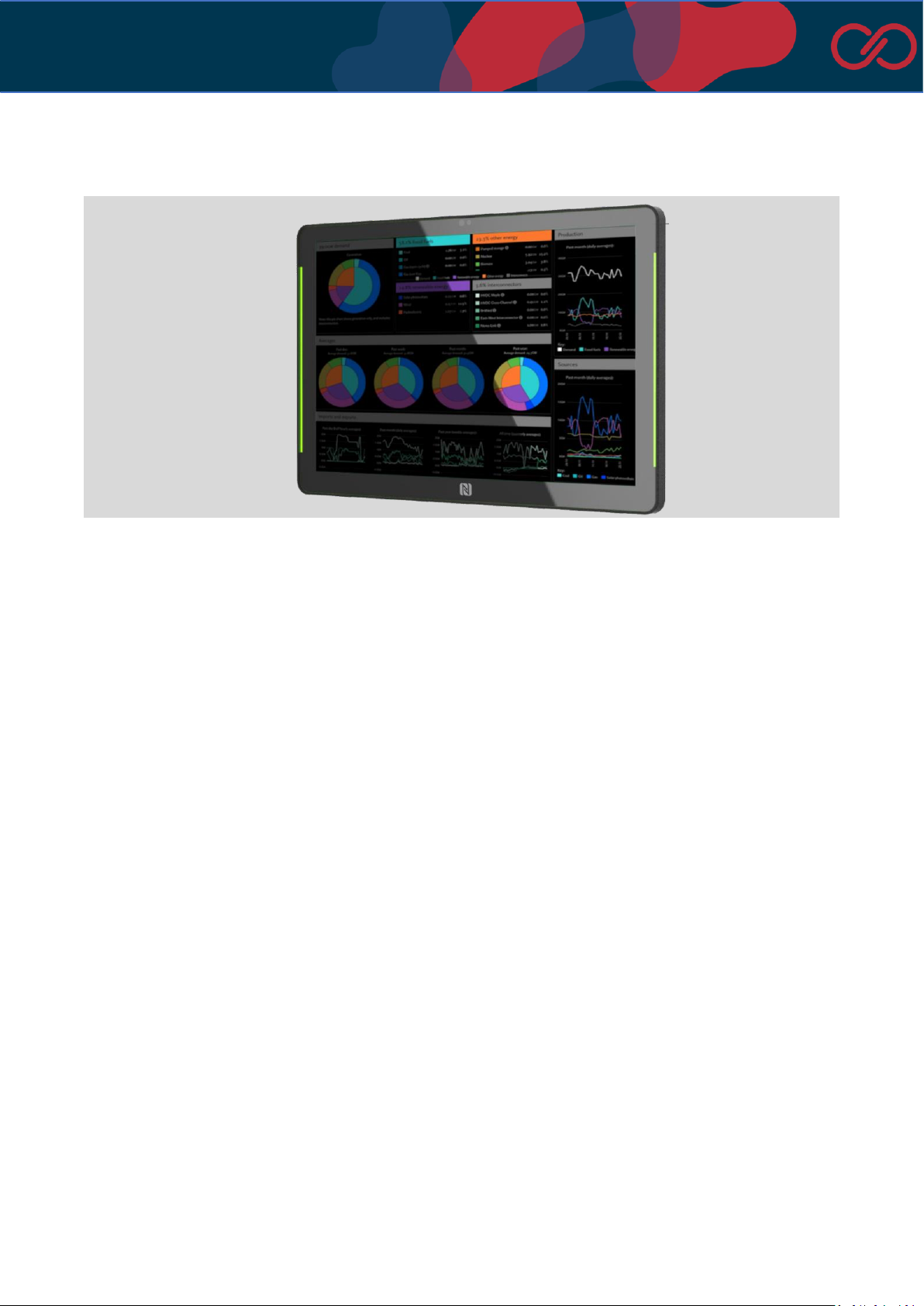

HMIs have developed heavily in the last decades.

With more and more development available with the use of HTML5, improved graphics and high-resolution

panels, displays now are opening on visualizations that look so nice to be used in kiosk dashboards on stores,

in public places, showing data transformed and with clear graphic that becomes an addition to the system

rather than just a tool to interface with by engineers.

Powerful high-resolution panels are becoming a must to get nice graphic displayed on touch screens, with

the required high responsiveness that makes operating the system practical and easy.

At Innon we believe on helping our clients achieving the best results, achieving greatness. We started with

the very powerful Link Touch 10 and 15 inches Android panels with 6 cores CPUs flushed mounted, a pair of

success stories in our industry.

But we wanted to improve the product choice even further with a new device that was more geared towards

the room installation and appreciated by end users.

The Link Touch Surface Mount comes with slightly less power compared to Link Touch flush mounted

options, allowing to provide a clever ultra-thin profile (19mm max) 10.1 inches touch display that aims to be

the perfect choice for a wall mount screen for office spaces, residential properties, and any other installation

where look and durability need to go hand in hand.

Heat dissipation and durability are still guaranteed by the solid full metal case construction, completely

designed to be optimised for being mounted cleverly to a wall or a VESA stand, without the need for external

antennas and with cleverly positioned hidden away cabling, additionally optimisable by using a single PoE

ethernet connection to provide both power and data.

Link Touch Surface Mount Manual

Document date: 1.0 29/11/23

Innon Energy UK Ltd

Registered address: Global House, 1 Ashley Avenue, Epsom, Surrey, KT18 5AD,

United Kingdom

Company number: 6740177 VAT Number: 941 2897 05

In the box you will find:

1x Link Touch Surface Mount display

1x wall mount bracket

4x wall mount screws

4x VESA screws

2x adhesive tapes for glass mount

Available model

LNK-T10-IP-SM (Original part number DS7610 OEM) 10.1” touch panel 1280x800

Hardware

Connectivity with the network devices can be achieved using the onboard WiFi or through an Ethernet cable

using the RJ45 socket at the bottom. The power supply barrel connector and a USB type C connector are also

located at the bottom of the device.

The integrated NFC reader and LoRa WAN gateway are not being used by the Link Touch app and there are

currently no plans at Innon to use such features.

The SDK is primarily designed to use LoRa WAN data only within the app itself and not to distribute to other

networked devices.

Being constantly evaluating innovation and improvements, we will notify should we implement new features

to the app and by consequence to the product itself.

Link Touch Surface Mount Manual

Document date: 1.0 29/11/23

Innon Energy UK Ltd

Registered address: Global House, 1 Ashley Avenue, Epsom, Surrey, KT18 5AD,

United Kingdom

Company number: 6740177 VAT Number: 941 2897 05

LNK-T10-IP-SM connections

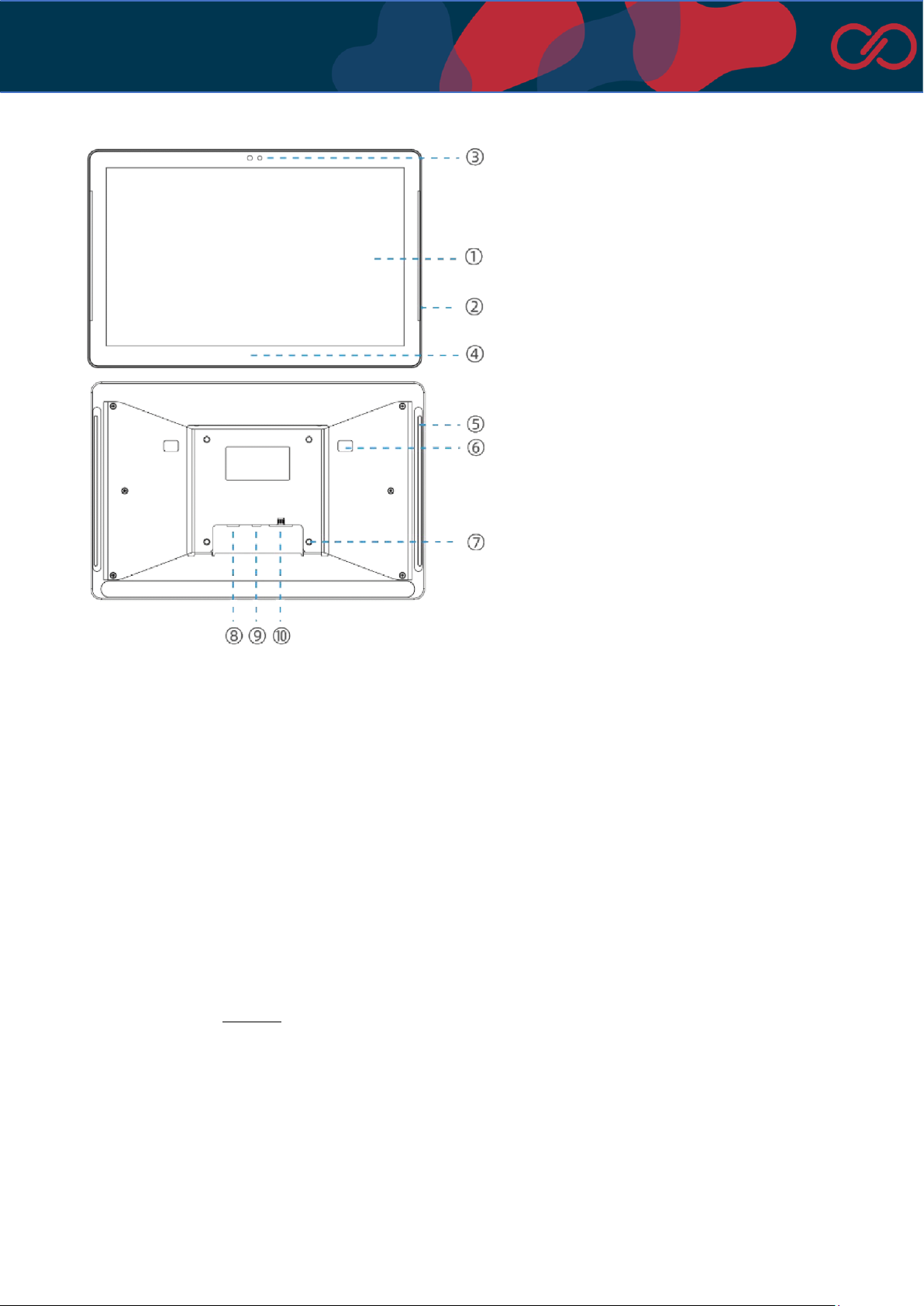

1) Touch screen

2) Front RGB LED light strips

3) Light and proximity sensors

4) NFC area (not used)

5) Back RGB LED light strips

6) Wall mount bracket holes

7) 75x75 VESA mount screw holes

8) Type C USB port (can be used also for power)

9) DC power jack

10) RJ45 ethernet port (PoE enabled)

Important notes:

1) The back RGB LED light strips will need the blackout cover removed to be used

2) Please do not operate the reset button placed near the USB type C connection without consulting

the manual carefully or checking with Innon. Operating the reset button wrongly might brick the

device

Link Touch Surface Mount Manual

Document date: 1.0 29/11/23

Innon Energy UK Ltd

Registered address: Global House, 1 Ashley Avenue, Epsom, Surrey, KT18 5AD,

United Kingdom

Company number: 6740177 VAT Number: 941 2897 05

Wiring power supply

Note: a power supply is NOT provided with the device.

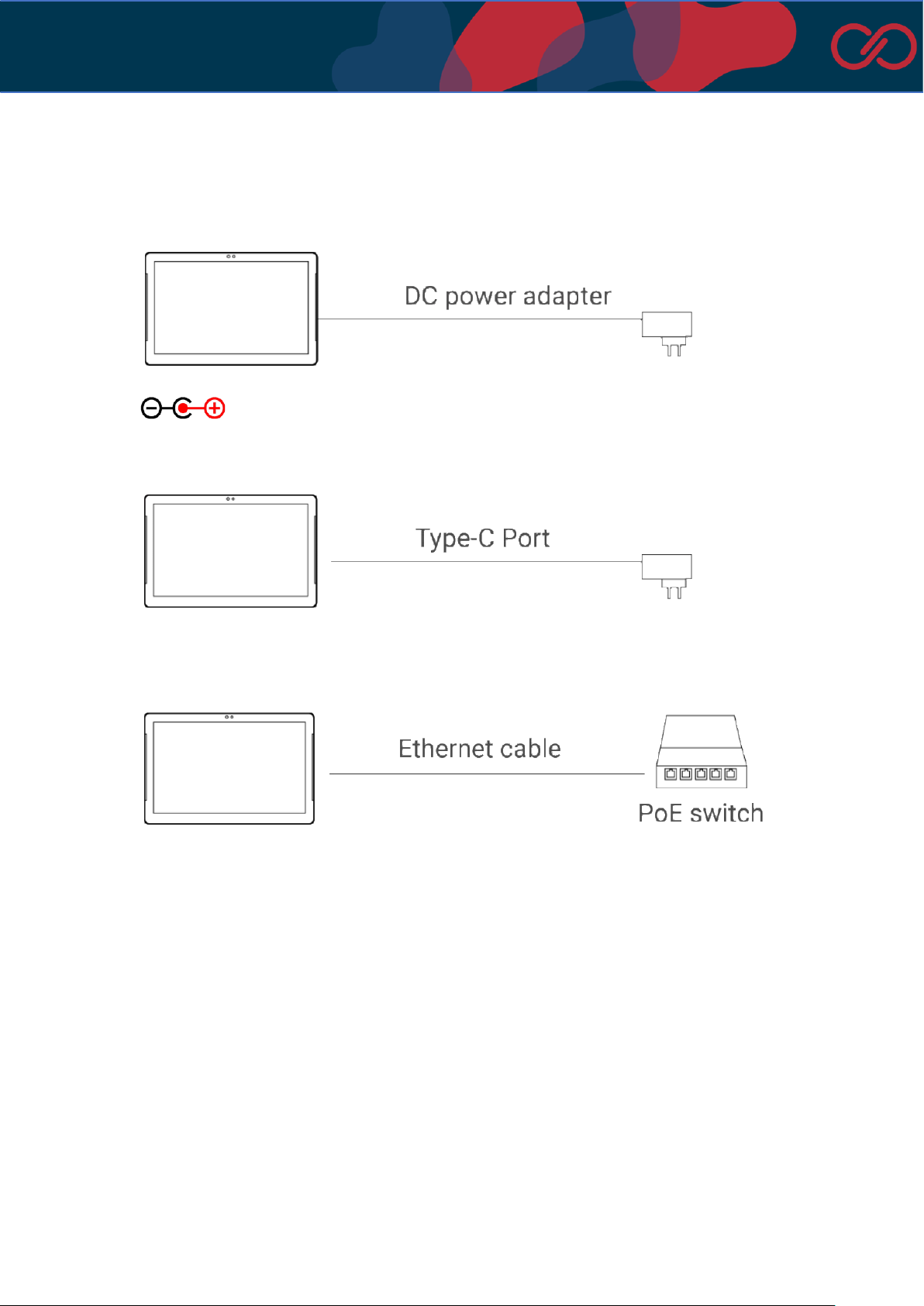

Link Touch Surface Mount can be powered in 3 different ways:

•Via DC barrel jack

Requires a 3.5 x 1.35mm barrel jack connector with the following configuration

And a power supply unit providing 12Vdc and at least 1A

•Via USB type C

Requires a USB type C connection providing 5Vdc and at least 2A. This can be a dedicated USB power

supply unit or another device powering the screen with at least the 2A required

•Via ethernet over PoE

Requires either a PoE enabled ethernet switch (picture above) or a PoE injector. The device will

receive power directly from the ethernet cable together with the data

Internal speaker

Link Touch is provided with an internal small mono speaker. The volume control is available also when using

the Link Touch application.

Link Touch Surface Mount Manual

Document date: 1.0 29/11/23

Innon Energy UK Ltd

Registered address: Global House, 1 Ashley Avenue, Epsom, Surrey, KT18 5AD,

United Kingdom

Company number: 6740177 VAT Number: 941 2897 05

Wall installation

1) Install the 4 mounting screws for the wall bracket (6mm drill bit, 30mm depth)

2) Mount the wall bracket to the wall using the 4 provided screws, carefully positioning the “TOP”

signed part of the bracket the right way around

3) Connect the cables to the device and mount it carefully to the wall bracket, starting from the top

4) Fix the display using the 2 screws at the bottom of the wall mount bracket

Link Touch Surface Mount Manual

Document date: 1.0 29/11/23

Innon Energy UK Ltd

Registered address: Global House, 1 Ashley Avenue, Epsom, Surrey, KT18 5AD,

United Kingdom

Company number: 6740177 VAT Number: 941 2897 05

Glass/stickers installation

1) Attach the 2 adhesive strips to the wall bracket first, then stick the wall bracket to the desired

location on glass, making sure the “TOP” signed part is the right way around

2) Connect the cables to the device and mount it carefully to the wall bracket, starting from the top

3) Fix the display using the 2 screws at the bottom of the wall mount bracket

Link Touch Surface Mount Manual

Document date: 1.0 29/11/23

Innon Energy UK Ltd

Registered address: Global House, 1 Ashley Avenue, Epsom, Surrey, KT18 5AD,

United Kingdom

Company number: 6740177 VAT Number: 941 2897 05

VESA mount installation

NOTE: VESA brackets are not provided by Innon. These brackets are standard and can be found on any

retailer, including Amazon. Look for “VESA wall mount 75x75” or “VESA desk 75x75”. VESA arms can be also

found, depending on the mounting requirements.

1) Provide a standard VESA mount bracket (wall mount, desk or arm) and fix the Link Touch Surface

Mount device to it using the provided 4 VESA mount screws

With this installation the wall mount bracket will not be used

Link Touch Surface Mount Manual

Document date: 1.0 29/11/23

Innon Energy UK Ltd

Registered address: Global House, 1 Ashley Avenue, Epsom, Surrey, KT18 5AD,

United Kingdom

Company number: 6740177 VAT Number: 941 2897 05

First power up from factory: select the right launcher

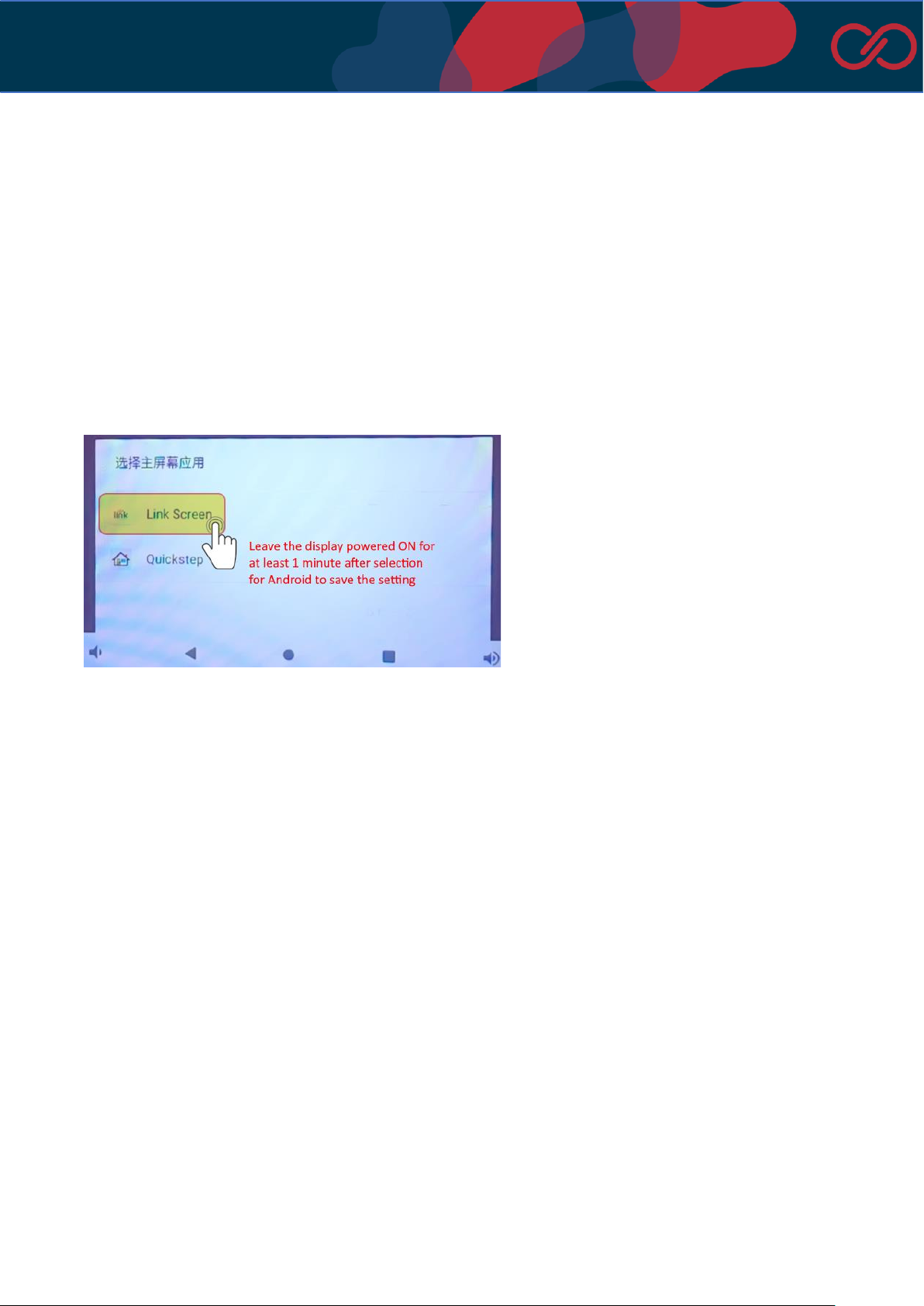

When factory defaulting the screen or when powering ON for the very first time, the Android operating

system is going to ask which launcher you would like to use (bottom part of the screen, see image below).

Please select “Link Screen” to get the right application running and leave the device powered ON for at least

1 minute for Android to save the setting.

This will not be asked again on future reboots.

If you accidentally selected the wrong launcher, you can factory default the screen from the Android settings

to start again.
