Infobit ISpeaker CM800 Manuel utilisateur

www.infobitav.com

iSpeaker

All-in-One Speakerphone with UC controller

Model: iSpeaker CM800

User Guide

All contents of this manual, whose copyright belongs to our Corporation cannot be cloned,

copied or translated without the permission of the company. Product specifications and

information which were referred to in this document are for reference only. We may change,

delete, or update any content at any time and without prior notice.

===================================================================================

This is class A production. Electromagnetic radiation at specific frequencies may affect the

image quality of TV in home environment.

 www.infobitav.com
Catalog
1Packing List...................................................................................1
2About Product...............................................................................2
1 Product Features..................................................................................2
2 Appearance and Interface....................................................................3
3Connection and Power On/Off.......................................................5
1 Connection Cable.................................................................................5
2 Power On/Off........................................................................................6
4Audio Control ................................................................................7
1 Built-in Microphone...............................................................................8
2 Built-in Speakers & External Speakers.................................................8
3 USB Connection Instructions................................................................8
4 Phone 3.5 & Bluetooth..........................................................................8
5 HDMI ....................................................................................................9
6 Recording.............................................................................................9
7 Audio Settings ....................................................................................10
5Application Scenarios.................................................................. 11
1 Speakerphone.................................................................................... 11
2 Headset Function ...............................................................................12
3 Connect Gooseneck Microphone.......................................................13
4 Bridge Access.....................................................................................14
5 Wireless Projection.............................................................................14
6 Android Conference Platform.............................................................17
6System Upgrade .........................................................................21
1 TF card upgrade.................................................................................21
2 HTTP upgrade (supported by software upgraded).............................21


www.infobitav.com

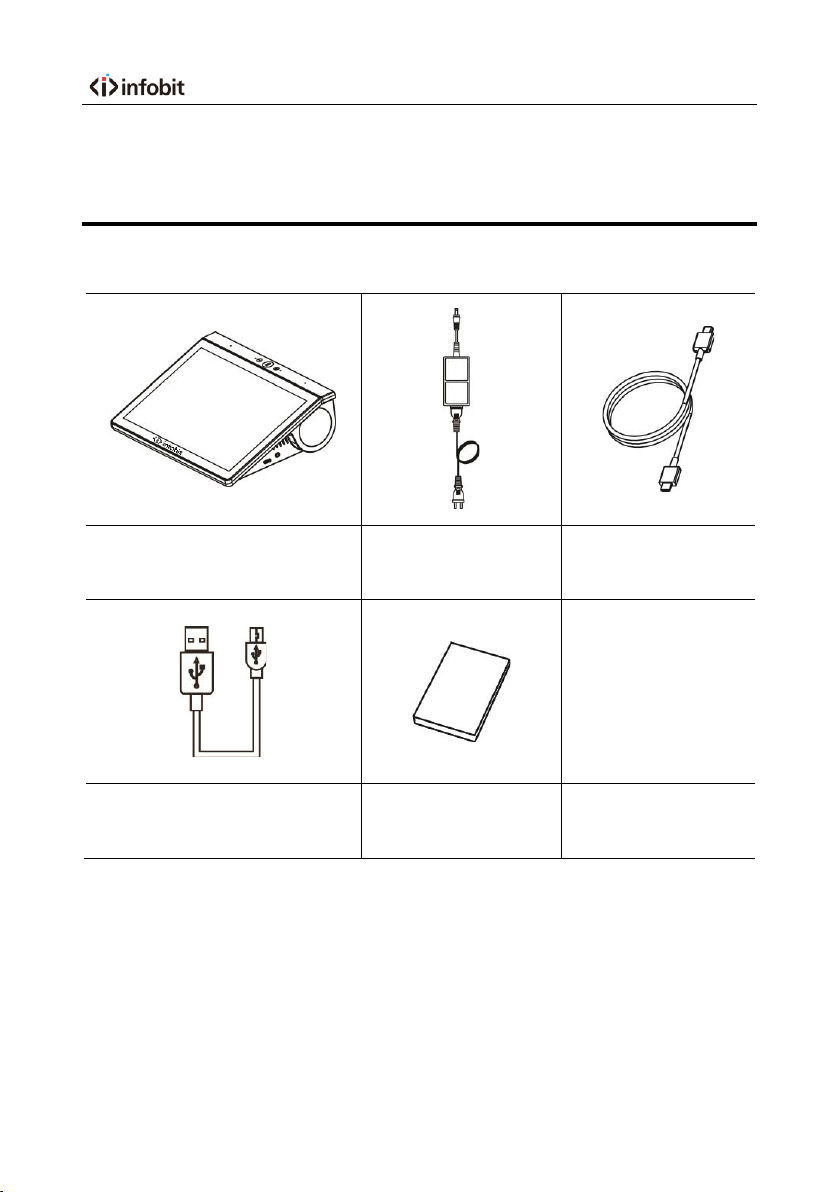

1 Packing List

When unpacking, please check and confirm all accessories that should be provided.

ISpeaker CM800 x 1

Power Adapter x 1

HDMI Cable x 1

USB Cable x 1

User Guide x 1

www.infobitav.com

2 About Product

This iSpeaker CM800 is a touch screen device that integrates multiple conference functions,

and can be flexibly deployed in a variety of application scenarios. The main application

scenarios include speaker phone, hands-free headset, voice meeting bridge, and android

tablet with touchscreen.

2.1 Product Features

All-in-one Unit

The main unit integrates a microphone array with high SNR and a high-fidelity speaker.

It can be connected to computers, video terminals, mobile phones, etc. via USB, 3.5mm, and

Bluetooth, and be used as a microphone and a speaker with AEC (Auto Echo Cancellation),

AGC (Auto Gain Control) and ANS (Auto Noise Suppression).

Built-in Audio Console and Status Indicator

Using the Audio Console app, you can quickly adjust the input and output gains of various

audio interfaces, and display the connection status in real time. Flexible mixing and routing

supporting multiple input and output.

Android Tablet with Touch Screen

The device has a 10.1-inch capacitive screen, running android 8.1 system. The third-party

conference control applications such zoom controller can be installed to control your

conferences or terminals.

HDMI Input

The HDMI input can be connected to a computer to display and present wirelessly to TV.

Built-in VoIP

Built-in VoIP client supports H.323 and SIP.

Bluetooth

The device can be connected to a mobile phone via Bluetooth, used as a headset.

Multiple Power Supply Methods

Support power supply with DC adapter, PoE switch, and PD (requires host side support).

www.infobitav.com

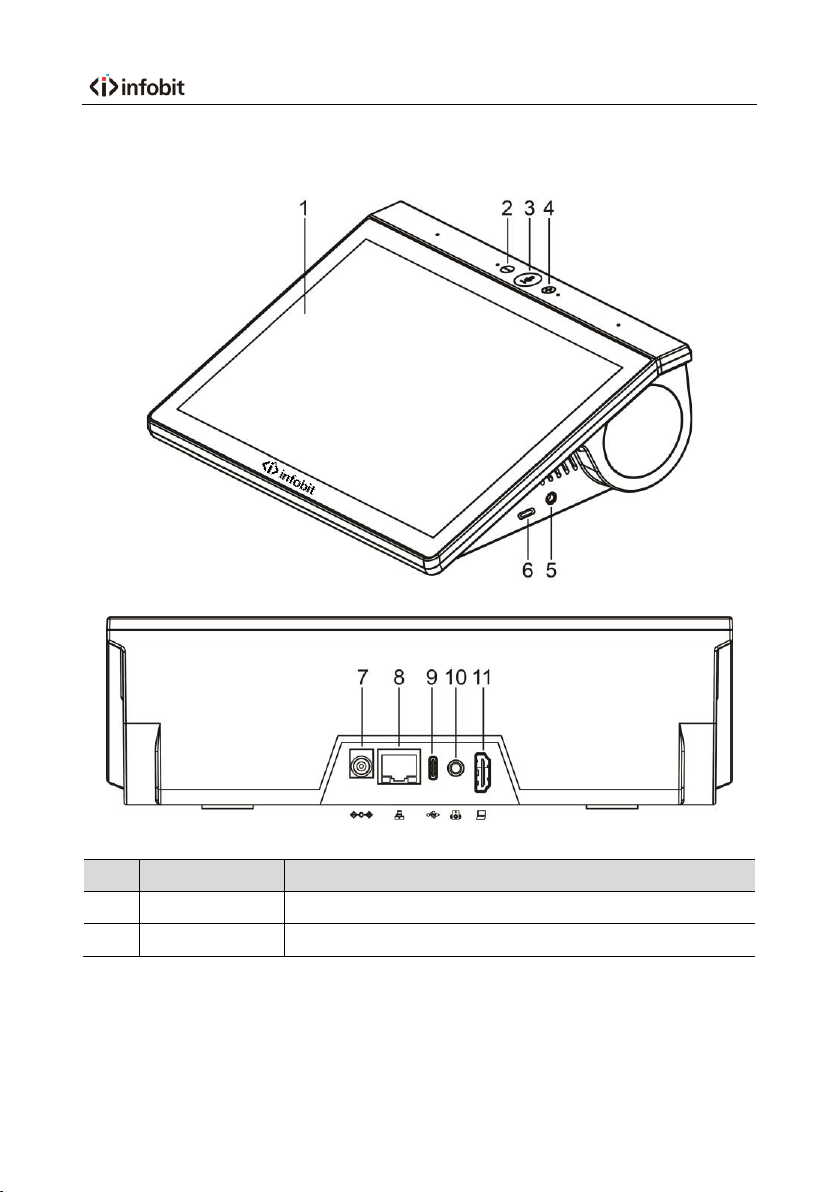

2.2 Appearance and Interface

No.

Name

Function

Touch Screen

Touch input and display

Volume -

Decrease the volume of the built-in or external speakers

www.infobitav.com

No.

Name

Function

Power/Mic Key

and LED

When power off: Short press to power on.

When power on: Short press to mute/unmute built-in

microphone. LED is green when microphone is unmuted, and

red when microphone is muted.

Long press for 3 seconds to show power option.

Long press for more than 5 seconds to force reboot.

Volume +

Short press to increase the volume of the built-in or external

speakers

Phone 3.5

3.5mm audio in/out that can be connected to mobile phones or

computers

Type-C

Type-C interface, used to connect the expansion microphone.

DC 12V

Connect to DC adapter

NET

10M/100M Ethernet, support PoE

Type-C

USB interface that supports USB Audio (UAC)

AUDIO

3.5mm audio out that can be connected to external speaker

HDMI

It can be connected to a computer

www.infobitav.com

3 Connection and Power On/Off

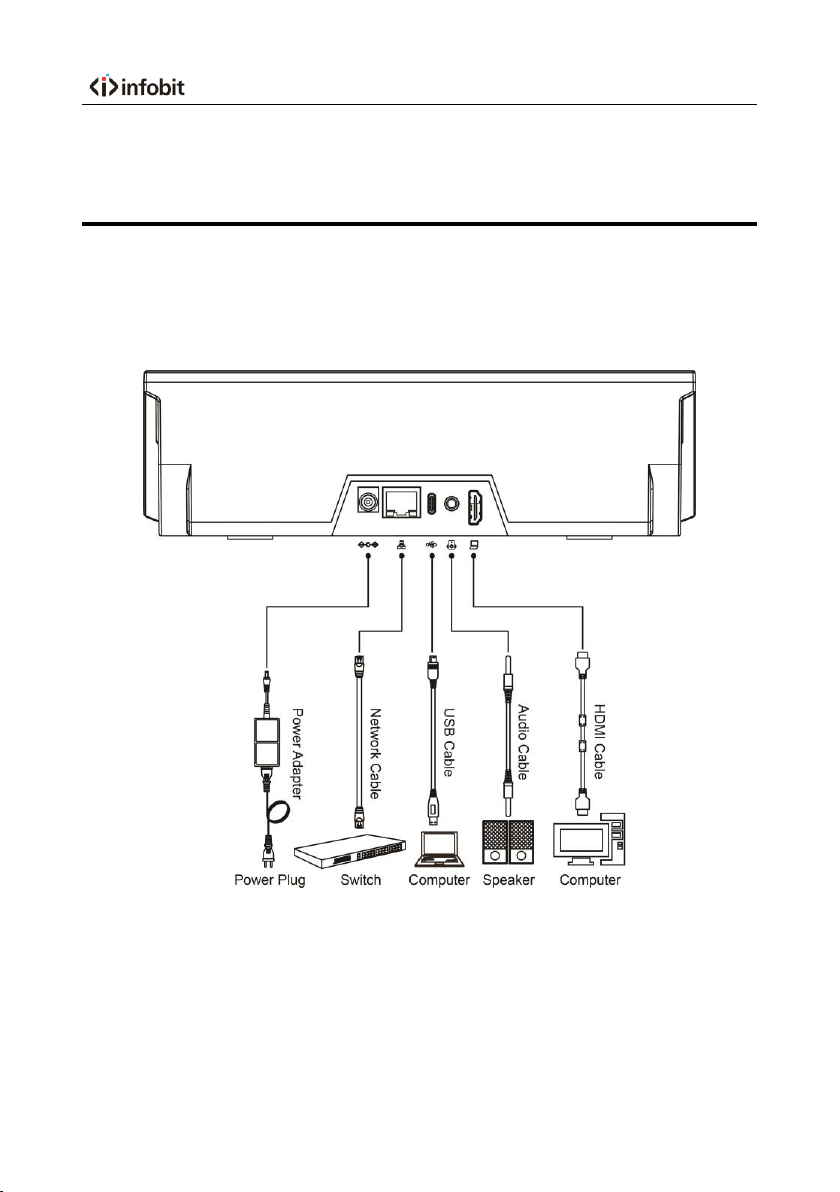

3.1 Connection Cable

The cable connections shown in the following figure contains optional configurations. They are

for reference only. Please connect cables according to actual needs.

www.infobitav.com

3.2 Power On/Off

Power On

Non-power-on state: plug in the power source and the device will automatically turn on.

Shutdown state: Short press the power button to turn on the device.

Restart

Long press the power button for 3 seconds to let go, the "Shutdown and Restart Options"

pops up, and select restart.

Long press the power button for 5 seconds to let go, and the device restarts.

Power Off

Unplug the power cord of the device and shut down.

In the power-on state, press and hold the power button for 3 seconds, and the "Shutdown

and Restart Options" pops up, and select shut down.

Standby

In the power-on state, press and hold the power button for 3 seconds, the "Shutdown and

Restart Options" pops up, and select standby.

www.infobitav.com

4 Audio Control

Audio Console software is the built-in audio central control software of the device, which can

finely configure various audio input and output interfaces of the device. After the device is

started, short press the floating ball on the system desktop to run the application. Audio

Console interface Figure 4-1:

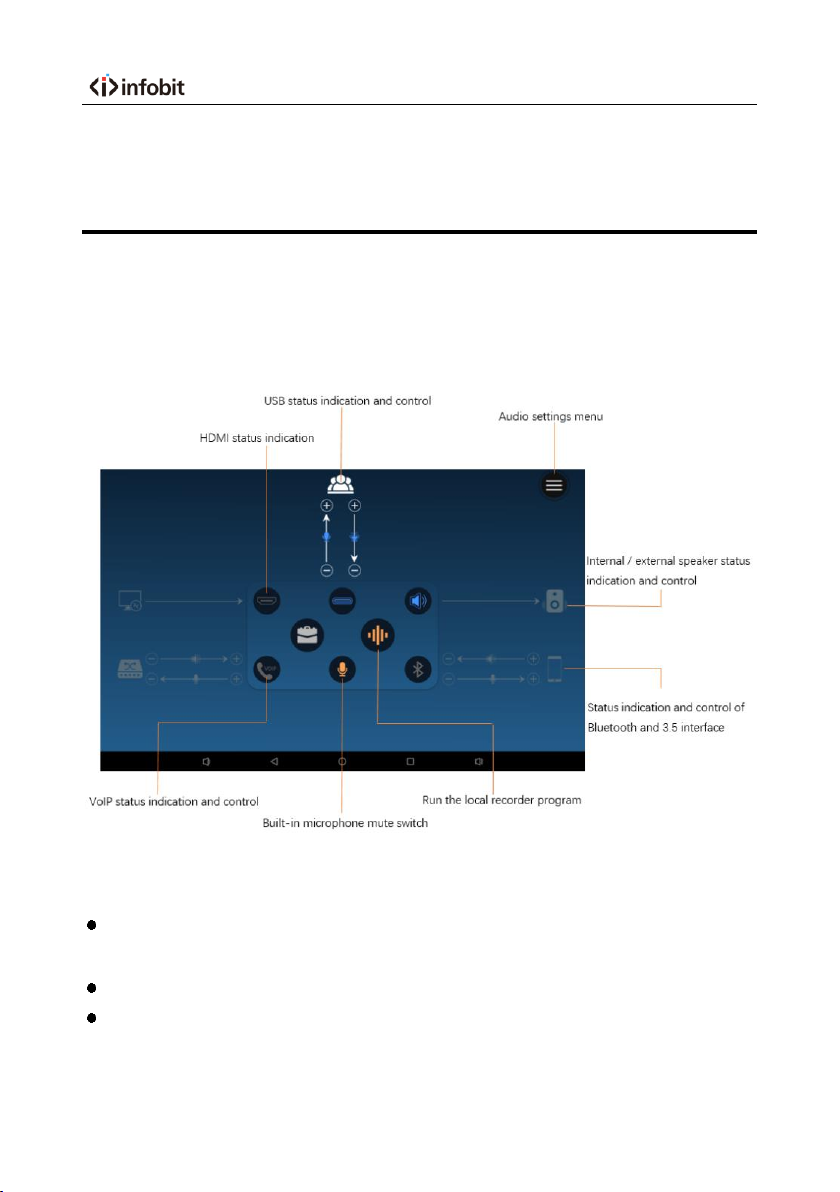

Figure 4-1 Audio Console operation interface

Audio Console buttons and instructions:

Status indication: gray indicates "not connected"; blue indicates "connected";

red indicates "mute".

Gain adjustment: Click "➕" or "➖" to increase or decrease the gain.

Microphone mute or speaker mute; click "Microphone icon" or "Speaker icon" to complete

the microphone mute, or speaker mute.

www.infobitav.com

4.1 Built-in Microphone

Short press the microphone icon to switch the built-in microphone pickup or mute.

4.2 Built-in Speakers & External Speakers

Click the speaker icon in the gray area to pop up the volume adjustment bar. Click the

"volume icon" on the left side of the adjustment bar to quickly mute the sound.

Key points of speaker operation:

When the external audio equipment is not connected, the volume of the built-in speaker

is adjusted.

When an external audio device is connected, it adjusts the volume output to the external

audio device. At this time, the built-in speaker switches to a silent state.

Directly press the "blue speaker icon" to quickly turn off the sound. When the sound is

turned off, the status indicator icon is red.

The interface is plugged into a 3.5mm audio head, it is recognized as connecting to an external

speaker.

4.3 USB Connection Instructions

It is a USB connection status indicator, gray means USB is not connected, Blue means

USB is connected. Slide the gain bar above the indicator to adjust the USB audio input and

output gain.

The gain bar with the arrow outward, adjusts the audio gain output to the PC or terminal.

The gain bar with the arrow inward adjusts the audio gain of the input device.

4.4 Phone 3.5 & Bluetooth

Click the gray area Phone3.5 indicator to pop up Bluetooth and 3.5mm connection

interface. The interface includes the following functions:

Sub-module function:

Provide a quick entry to establish a Bluetooth connection.

Real-time display of Phone 3.5mm or Bluetooth connection status

Adjust the audio gain of the phone in headset mode.
