Infinova V5410-A2 SERIES Manuel utilisateur
V5410-A2 SERIES
INDOOR COLOR DOME CAMERA
User Manual
CONTENTS
Chapter I Description ............................................................................. 1
Chapter II Main Features ....................................................................... 2
Chapter III Installation........................................................................... 3
3.1 Mounting Process .......................................................................................3
3.2 Handling Precautions..................................................................................6
3.3 Installation Precautions...............................................................................6
Chapter IV Camera Function Setting...................................................... 7
4.1 Camera Module – Back ..............................................................................7
4.1.1 Operation Instruction ...............................................................................7
4.1.2 Lens Driving Signal Selection.................................................................8
4.2 Power Board ...............................................................................................9
Appendix I Specifications.......................................................................11
Appendix II Cable Diameter Calculation and Lightning &
Surge Protection ................................................................................... 12
1
CHAPTER I DESCRIPTION
Thank you very much for purchasing our product.
This manual addresses the operation and programming procedures of V5410-A2
color dome camera.
Infinova’s V5410-A2 series indoor color fixed minidome cameras feature a high
resolution 1/3" CCD sensor and excellent low light operation. They are available in
resolutions of 480 lines. They are equipped with a 4.0~9.0mm auto-iris, vari-focal
lens. The cameras are designed for surface mount with 2-axis adjustment and require
12VDC/24VAC for power. The cameras provide excellent image quality along with
ease of installation.
This manual is for the following models:
V5410-A2014SK Analog minidome camera, 2-axis, Indoor,
1/3 inch CCD, Electronic day/night, 480TVL,
PAL, 12VDC/24VAC, Surface mount,
4.0~9.0mm vari-focal lens
2
CHAPTER II MAIN FEATURES
y1/3" SONY HAD CCD sensor
yHigh Resolution and Excellent Low Light Sensitivity
yResolution: 480 TVL
yElectronic day/night switch function
yAspherical, auto-iris, vari-focal lens with IR correction
yDigital Signal Processor (DSP) for high quality image
yAuto Electronic Shutter (AES), Auto Gain Control (AGC), Auto Tracking
White Balance (ATW), Flickerless (FL), and Backlight Compensation (BLC)
yInternal (INT) Sync. System
yPower cable and video cable included
y12VDC/24VAC power input, low power consumption
3
CHAPTER III INSTALLATION
3.1 Mounting Process

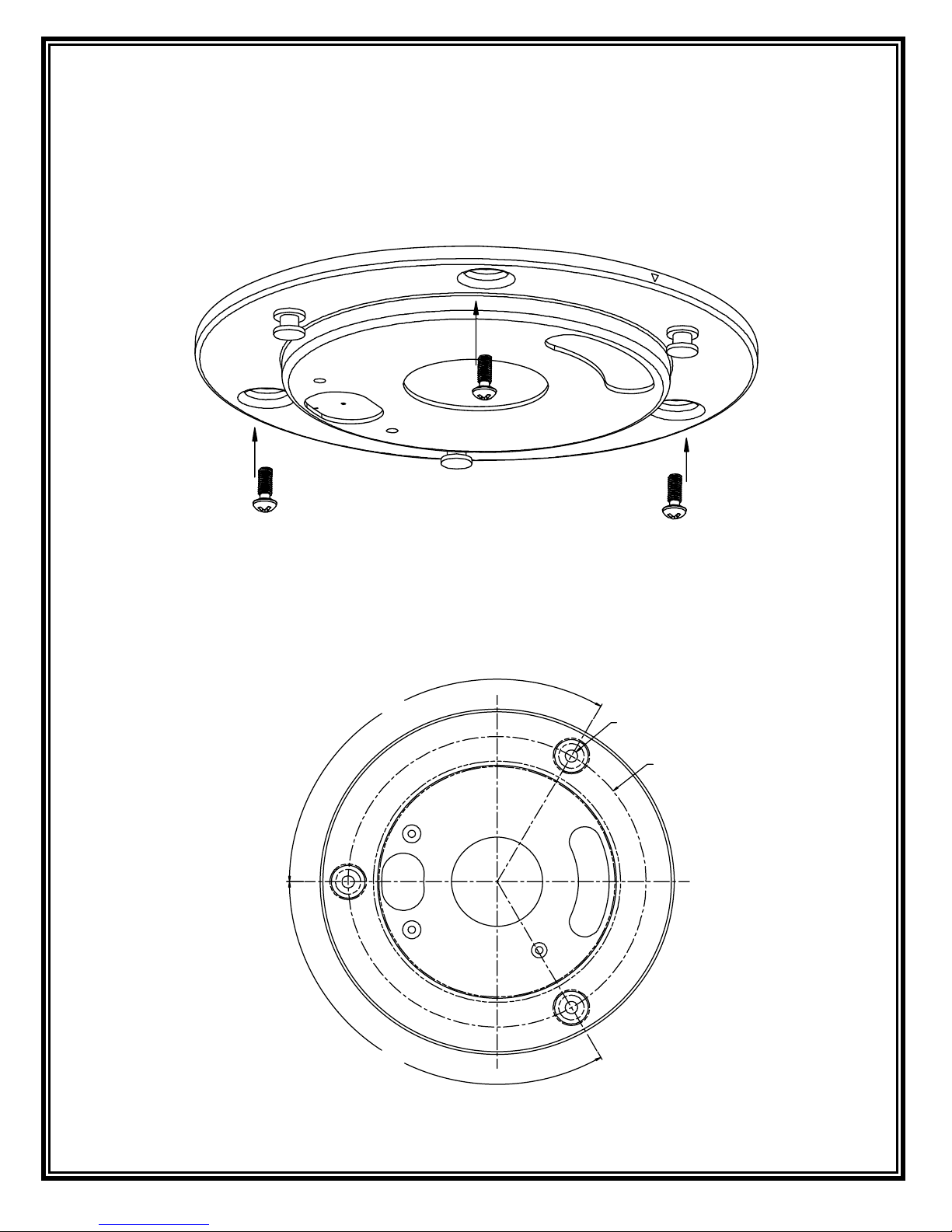

STEP 1: Secure Dome’s Adapter in the desired ceiling position with the 3 fixed
screws as shown in Figure 1.
Figure 1
See the figure below for the adapter mounting holes: (Unit: mm)
3- Ø4.40
Ø106.00
120°
120°
Figure 2
4

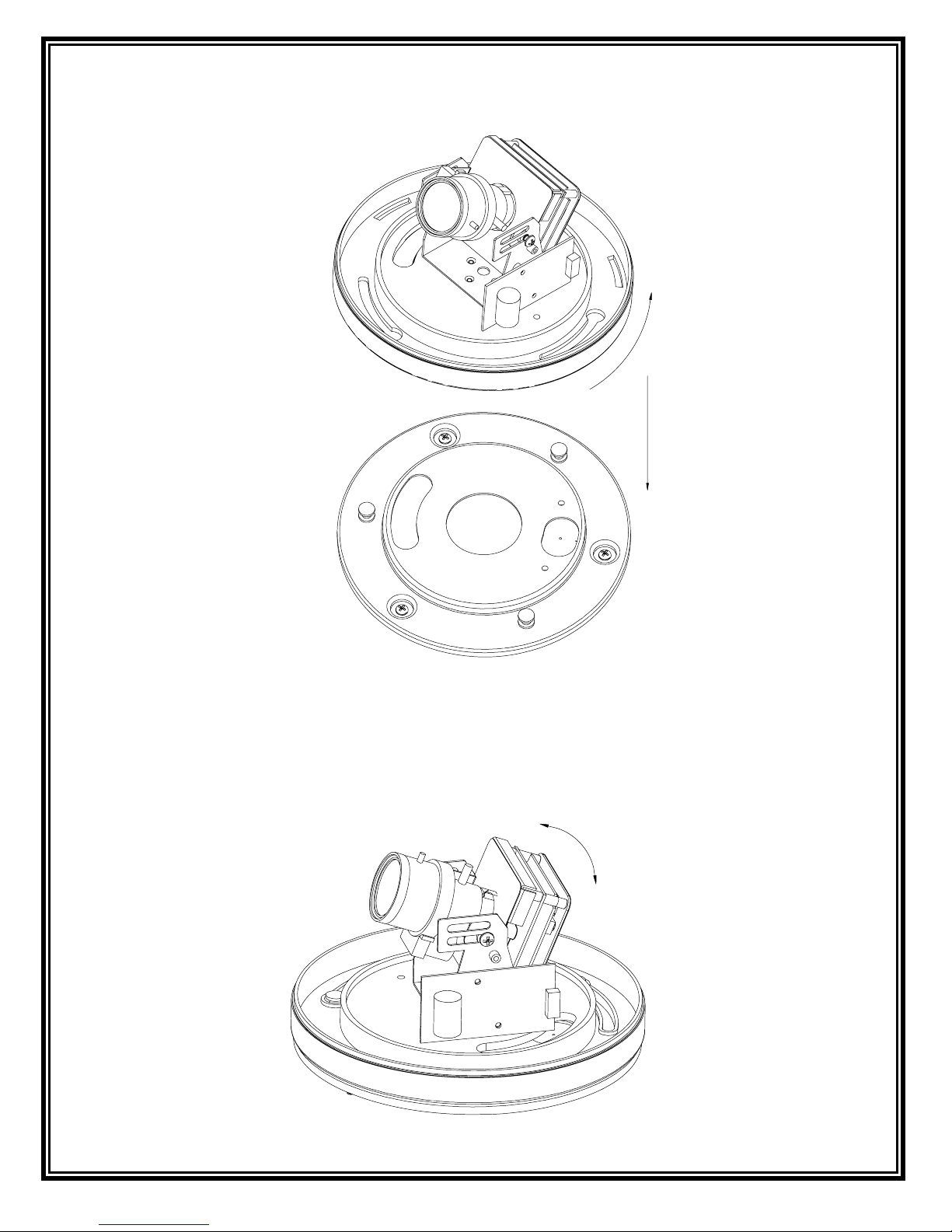

STEP 2: Remove the Dome Cover. Align the 3 grooves of the camera unit with
the 3 bolts in the adapter and turn counterclockwise to make it fixed.
Figure 3
STEP 3: The vertical angle can be adjusted by loosening the screws as shown in
Figure 4 and by turning the Camera Case vertically.
Figure 4
5

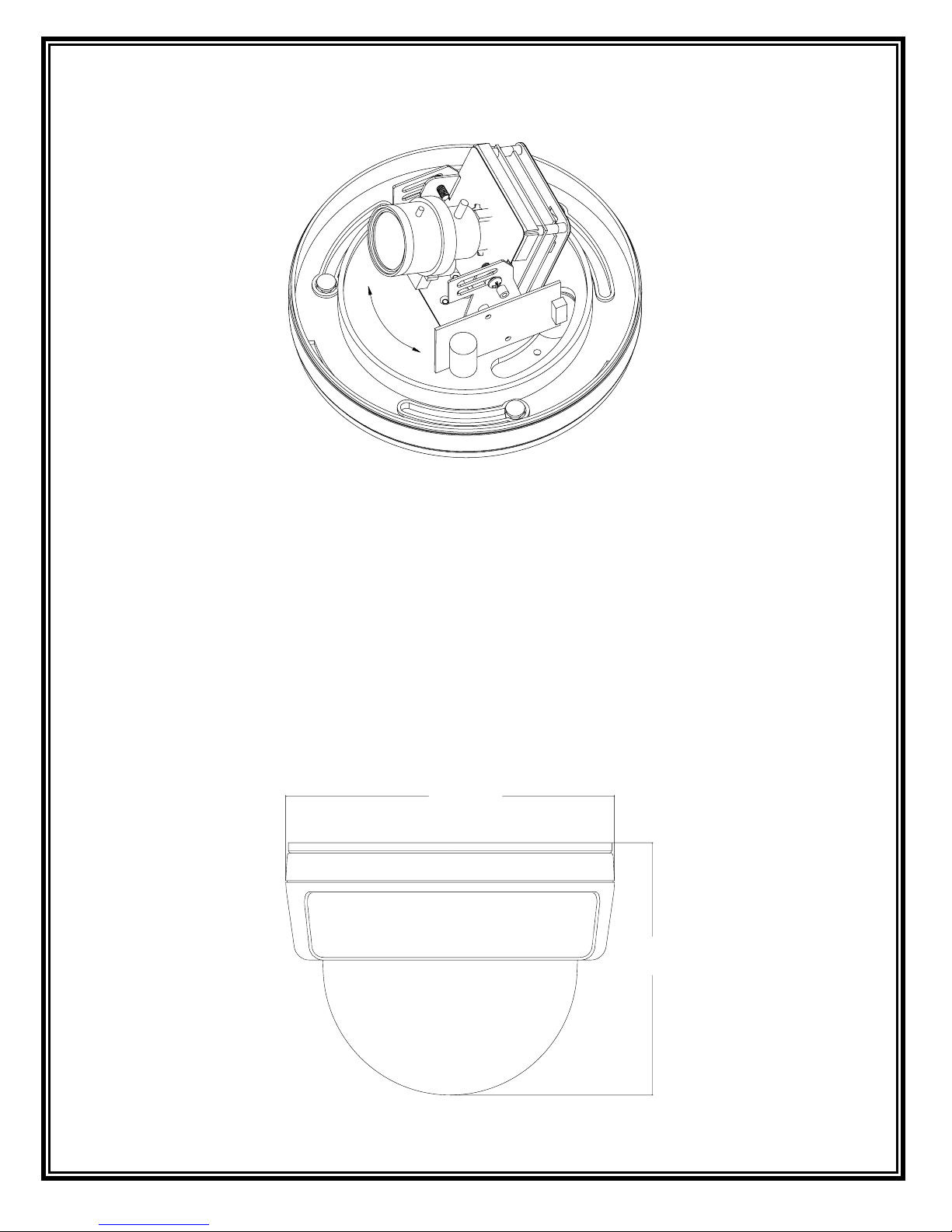

STEP 4: The horizontal angle can be adjusted by turning the Camera Case and
bracket in Figure 5 and by turning the Camera Platform horizontally.
Figure 5
STEP 5: After finishing angle adjustment, set the camera function by using the
buttons in the back panel (see Chapter IV).
STEP 6: Place the Dome bubble over the Camera and tighten it by turning it to the
right. In this process, the shielding cover may block the camera. User can adjust the
position of shielding cover by turning the bubble. With the shielding cover at the
proper position, the installation is finished.
Dimensions: (Unit: mm)
97.5
Ø128.0
Figure 6
6
3.2 Handling Precautions
1. Never let liquid of any kind flow into this unit.
2. Do not directly touch the CCD element. If it is necessary to clean the dome bubble,
use a soft cloth moistened with alcohol to wipe off any dust.
3. If any abnormality occurs, make sure to unplug the unit and contact your local
dealer.
4. This camera possesses AGC circuit. Therefore, when the camera is used under
lower luminance, the sensibility will strengthen automatically and make the
image very rough in vision. It is normal.
5. When the camera is used in ATW mode, due to the working principle of auto
trace white balance, the recorded color is slightly different from the real color.
It is normal.
6. If the subject is with high luminance (like lamp), vertical stripes will occur on
the monitor (tailing shadow) or the surrounding image becomes vague
(flowering). It is special phenomenon of CCD, not error.
7. The power supply for this camera is 12VDC or 24VAC. 24VAC must be
isolated power.
3.3 Installation Precautions
1. Do not drop the camera or subject it to strong knock.
2. Do not point the camera lens toward the sun or other strong light.
3. It’s recommended to apply auto-iris lenses for changeful light conditions.
4. Do not install the camera in environment with temperature beyond the
acceptable range (from -10°C to 50°C), or with high humidity, direct rainfall,
frequent vibrations and shocks.
7
CHAPTER IV CAMERA FUNCTION SETTING

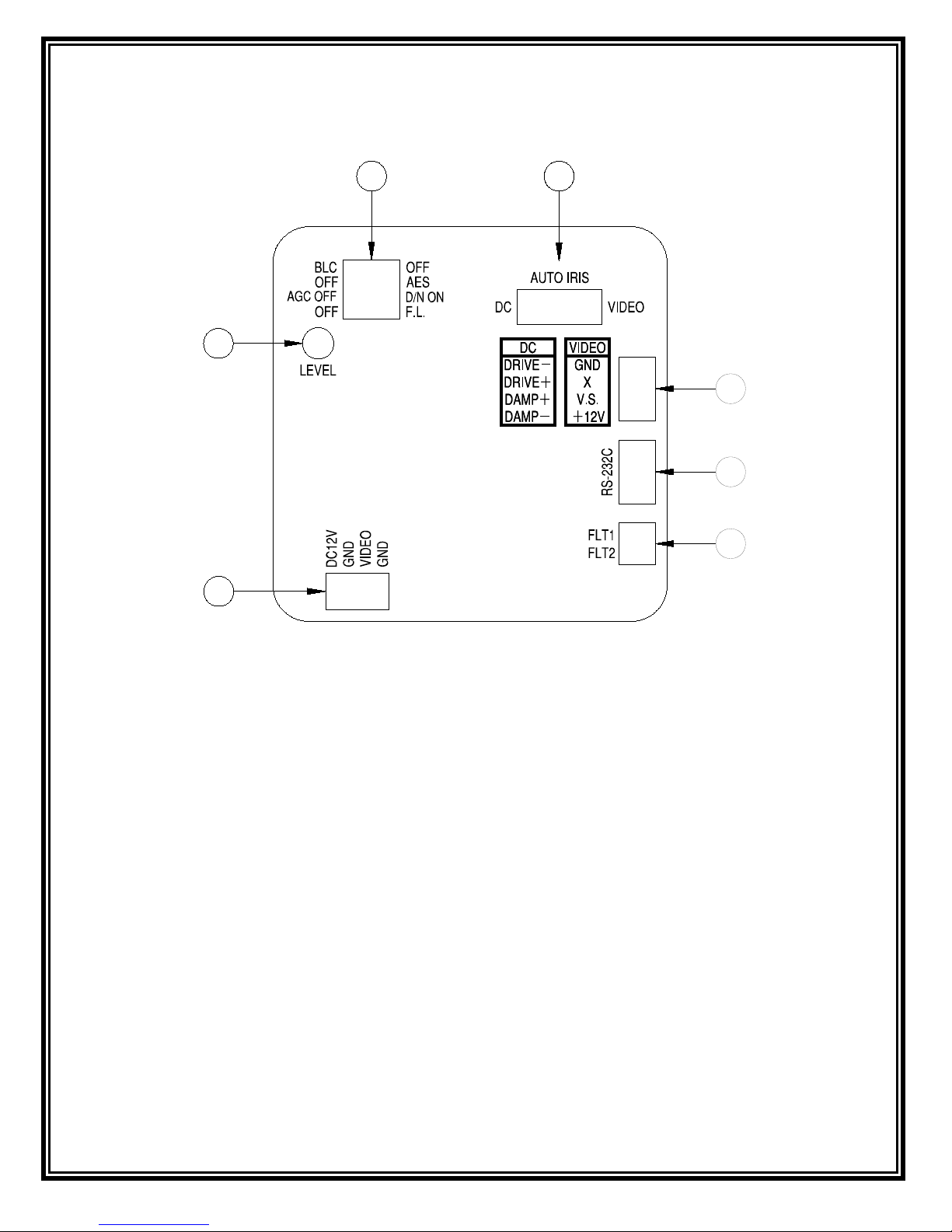

4.1 Camera Module – Back
6
7
12
3
4
5
Figure 7
①Function Setup Switch ②Auto IRIS lens select
③Auto IRIS lens Jack ④RS-232C Jack
⑤Reserved ⑥Power Input and Video Out Jack
⑦LEVEL – Video adjust
4.1.1 Operation Instruction
[FL Function]
F.L.: If fierce image flicker caused by the conflicting frequency between camera
and environment, switch “OFF/F.L.” to “F.L.”, to activate the F.L. function,
strengthening the camera image stability with electronic shutter set to 1/120s
(PAL).
OFF: Shut.
Default as: “OFF”.
Notice: “F.L.” function cannot be activated simultaneously with “AES”. If “F.L.”
function activated, “AES” becomes not available.
8
[AGC-HIGH/AGC-LOW Selection]
Magnify the signal collected from CCD to an available standard to video amplifier,
and how much it magnifies equals to gain, which means the sensitivity. Adjust
AGC properly to have camera work under a larger illumination area.
D/N ON: Activate AGC-HIGH function, and it can add 25dB illumination
sensitivity under faintly light environment to promote the image signal strength for
better impression. Auto Day/Night switch function is activated.
AGC OFF: Activate AGC-LOW function, and it can add 5dB illumination
sensitivity with less video signal noise. Auto Day/Night switch function becomes
not available.
Default as: “D/N ON”.
[AES Selection]
Camera automatically modulate the exposure time if AES function is activated.
Default as: “OFF” for auto iris lens, “AES” for non-auto iris lens.
Notice: When it comes to auto iris lens, if trying to modulate brightness via LEVEL,
AES switch has to be set to “OFF”.
[BLC Function]
When the background of view is pretty bright and objects on front cannot be seen
clearly, it needs to use back light compensation function.
BLC: Activate BLC, and then the workstations of AGC, AES, and IRIS confirm the
entire view to distinguish the bright background area and the dark front objects.
OFF: Shut. When the contrast between view background and front objects is not
big, it will not need to activate back light compensation function.
Default as: “OFF”.
Notice: It has to activate AGC in the first place to make BLC function take effect.
4.1.2 Lens Driving Signal Selection
1) This item is used to select the mode of the auto-iris to provide the driving
signal to the auto-iris driving interface on the lens.
2) If the lens applies DC drive, please set the lens driving signal selection switch
to DC.
3) If the lens applies VIDEO drive, please set the lens driving signal selection
switch to VIDEO.
