Infinix X689D Manuel utilisateur

Infinix X689D

User Manual (Ap)

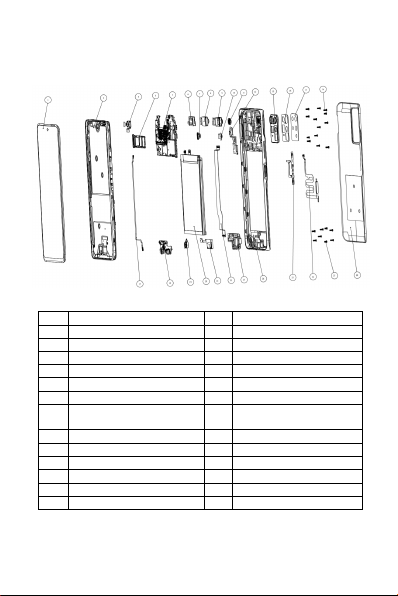

1 (CTP+LCM) 6.95 HD 2 Front cover asm

3 Front cover asm 4 Card holder

5 PCBA MAIN 6 REC

7 CAM FF 2M 8 CAM AF 64M

9 CAM AF 8M 10 CAM FF 2M

11 Rear flash lens 12 Cam support

13 Rear cam deco 14 Cam lens ad

15 Cam lens 16 Screw

M1.4*L3.5*D2.5*H0.5

17 Coaxial cable 18 PCBA SUB

19 Motor 20 Battery

21 SPK 22 FPC MAIN

23 SPK frame asm 24 MIDDLE frame asm

25 Side key fpc 26 Fingerprint module

27 Screw M1.4*L2.5*D2.5*H0.5 28 Battery cover asm

Know your phone

1. Front camera

2. Volume + key

3. Volume - key

4. Power key

①

SIM/SD card installation

1. Power off mobile.

2. Refer to the following picture for SIM / SD card

installation.

Charging the phone

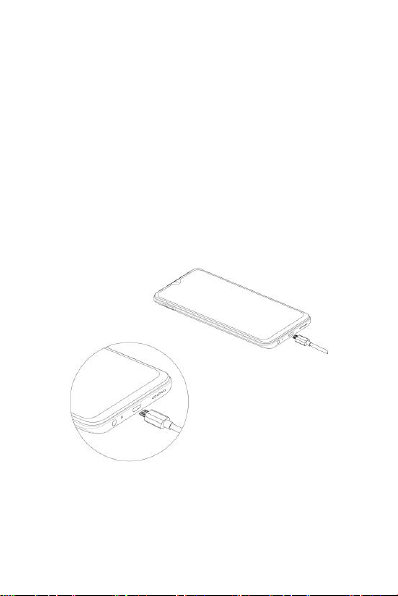

You can charge your device using a charger or by connecting

it to the computer using a USB cable (comes with the

phone).

1. Please remind the front and back of the plug.

2. Use only INFINIX charger and cables. Other chargers or

cables may damage the device. This will invalidate your

phone warranty.

FCC Caution

Labelling requirements.

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

Information to user.

Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to

operate the equipment.

Information to the user.

Note: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Specific Absorption Rate (SAR) information:

This mobile phone meets the government's requirements for

exposure to radio waves. The guidelines are based on standards that

were developed by independent scientific organizations through

periodic and thorough evaluation of scientific studies. The standards

include a substantial safety margin designed to assure the safety of

all persons regardless of age or health.

FCC RF Exposure Information and Statement The SAR limit of USA

(FCC) is 1.6 W/kg averaged over one gram of tissue. Device types:

X689D(FCC ID: 2AIZN-X689D) has also been tested against this SAR

limit. The highest SAR value reported under this standard during

product certification for use at the ear is 1.34W/kg and when

properly worn on the body is 0.62W/kg. This device was tested for

typical body-worn operations with the back of the handset kept

10mm from the body. To maintain compliance with FCC RF exposure

requirements, use accessories that maintain a 10mm separation

distance between the user's body and the back of the handset. The

use of belt clips, holsters and similar accessories should not contain

metallic components in its assembly. The use of accessories that

does not satisfy these requirements may not comply with FCC RF

exposure requirements, and should be avoided.

Body-worn Operation

This device was tested for typical body-worn operations. To comply

with RF exposure requirements, a minimum separation distance of

1.0 cm must be maintained between the user’s body and the

handset, including the antenna. Third-party belt-clips, holsters, and

similar accessories used by this device should not contain any

metallic components. Body-worn accessories that do not meet these

requirements may not comply with RF exposure requirements and

should be avoided. Use only the supplied or an approved antenna.

For DTS patents, see http://patents.dts.com. Manufactured under license

from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol

together are registered trademarks or trademarks of DTS, Inc. in the

Operating System：AndroidTM

Android is a trademark of Google LLC.
