Infinity OVERTURE Manuel utilisateur

INFINITY OVERTURE

ASSEMBLY GUIDE

INFINITY OVERTURE

ASSEMBLY GUIDE

72 Stard Road, Seabrook, NH 03874

603-910-5000

www.infinitymassagechairs.com

Please contact Technical Support at

603-910-5000 with any questions or concerns, or watch our

helpful tutorials at www.youtube.com/infinitymassagechairs!

Thanks for choosing Infinity Massage Chairs

to help unlimit your wellness!

UNPACKING THE MASSAGE CHAIR

1

For best results, please follow these instructions in order.

This chair must be removed from the shipping container before

powering on. The wooden frame on the bottom of the container will

impede chair movement. Try to have two people, one on either side,

lift the chair straight up using the metal frame. Carefully remove the

armrests from their box and lay them flat on the floor. Remove the

legrest from its box by gripping the front and back sides and carefully

sliding it out.

Installation is complete! Enjoy your

Overture massage chair!

Two people grasp left

and right seat metal

frame, while another

holds the back of the

chair as it is tilted.

Then remove the

massage chair body

from the box.

2

ATTACHING THE LEGREST

Move the legrest over to the front of the chair. Attach the air hose to

the air nozzle, marked with the yellow arrow below. Attach the two

power cables to the connectors, marked with red arrows. Make sure

the thumb release lines up with the right side of the connectors so

they lock in.

ATTACHING THE ARMRESTS

5

Next, carefully insert the alignment nub on the arm with the

corresponding socket on the chair body. Bump it into place and make

sure it is secure:

Now tighten the Phillips screw on the hole of the arm until tight.

Replace the rubber plug in place and repeat on the other armrest:

Finally, zip the backrest into place and put the velcro pillow in place.

4

ATTACHING THE ARMRESTS

ATTACHING THE LEGREST

3

Remove the Phillips screw from the legrest axle holder on the front of

the chair body. Flip up the axle holder into the position shown:

Attach the power cord and remote control to the chair, then power on

the chair and put it into the zero gravity position (if it is not already in

that position). Take one of the armrests and position it on the correct

side of the chair—not fully in place, just enough so you can connect

the air and power. Connect the air hoses as shown, Black to #1 and

Gray to #2. Connect the power connector, carefully making sure the

thumb button is lined up correctly and clicks into place:

Remove the rubber plug from the hole shown below in the arm.

Under the plug is a captive Phillips screw for tightening on the arm.

Lower the arm onto the metal frame of the chair carefully:

Make sure to install the axle bushings onto the axles on the legrest

before placing the legrest on the chair:

Now place the legrest axles on the axle holders, lower the latch, and

install the Phillips screws.

Autres manuels Infinity masseur

Infinity

Infinity RT1880 Manuel utilisateur

Infinity

Infinity IT- 8000 Series Manuel utilisateur

Infinity

Infinity Presidential Manuel utilisateur

Infinity

Infinity 8500 series Manuel utilisateur

Infinity

Infinity RockerTech Bliss Manuel utilisateur

Infinity

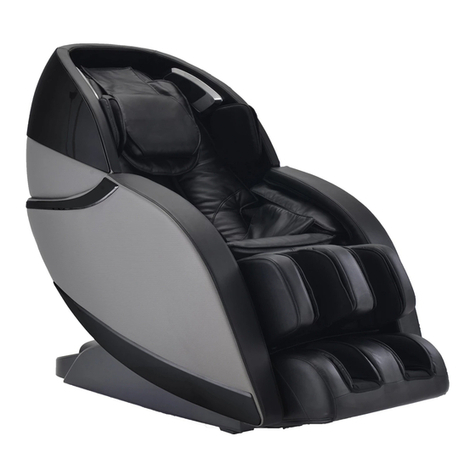

Infinity EVOLUTION 3D/4D Manuel utilisateur
