Installation Manual | KM Copier Serial Interface Kit
KM Copier Serial Interface
Kit
Product Version: N/A
Version of this manual: 1.0.9
Version 1.0.9 Inepro B.V. http://www.inepro.com
Table of Contents
Introduction 2
Check Kit Content 4
Hardware Setup 6
........................................................................................................................................................ 61Construct the Kit
........................................................................................................................................................ 72Attach the kit to the copier
Set up the copier 12
Appendixes 16
........................................................................................................................................................ 161Technical Details
........................................................................................................................................................ 172 How to connect an Inepro PayMatic?
........................................................................................................................................................ 183How to connect an Inepro PayCon / PayMatic Coin & Card?
Introduction
Part
I
2 - KM Copier Serial Interface Kit
Introduction
Introduction
The purpose of this kit is to provide an interface for a payment or registration system for a wide range Kyocera Mita
based copiers.
This kit is tested for the following copiers:
-KM-3050 / KM-4050 / KM-5050
-KM-C2520 / KM-C3225 / KM-C3232
Although we have only tested it with these copiers, it was designed to work with all copiers that support the "Japanese
coin vender".
The kit has two connections for a payment or registration interface, a advanced keycounter interface and a serial
interface.
At this moment (may 2007) the serial interface is not yet available.
To install this kit we shall:
1. Check the content of kit, read more on page
2. Prepare and construct the hardware. To read more go to page
3. Set up the copier, read more on page
4
4
4
Check Kit Content
Part
II
4 - KM Copier Serial Interface Kit
Check Kit Content
Check Kit Content
Before you start installing the kit, you should check if you have received all the packages you need.
KM Copier Serial Interface Kit
Please check the content of the box and make sure all kits are complete.
KM Copier Serial Interface Kit

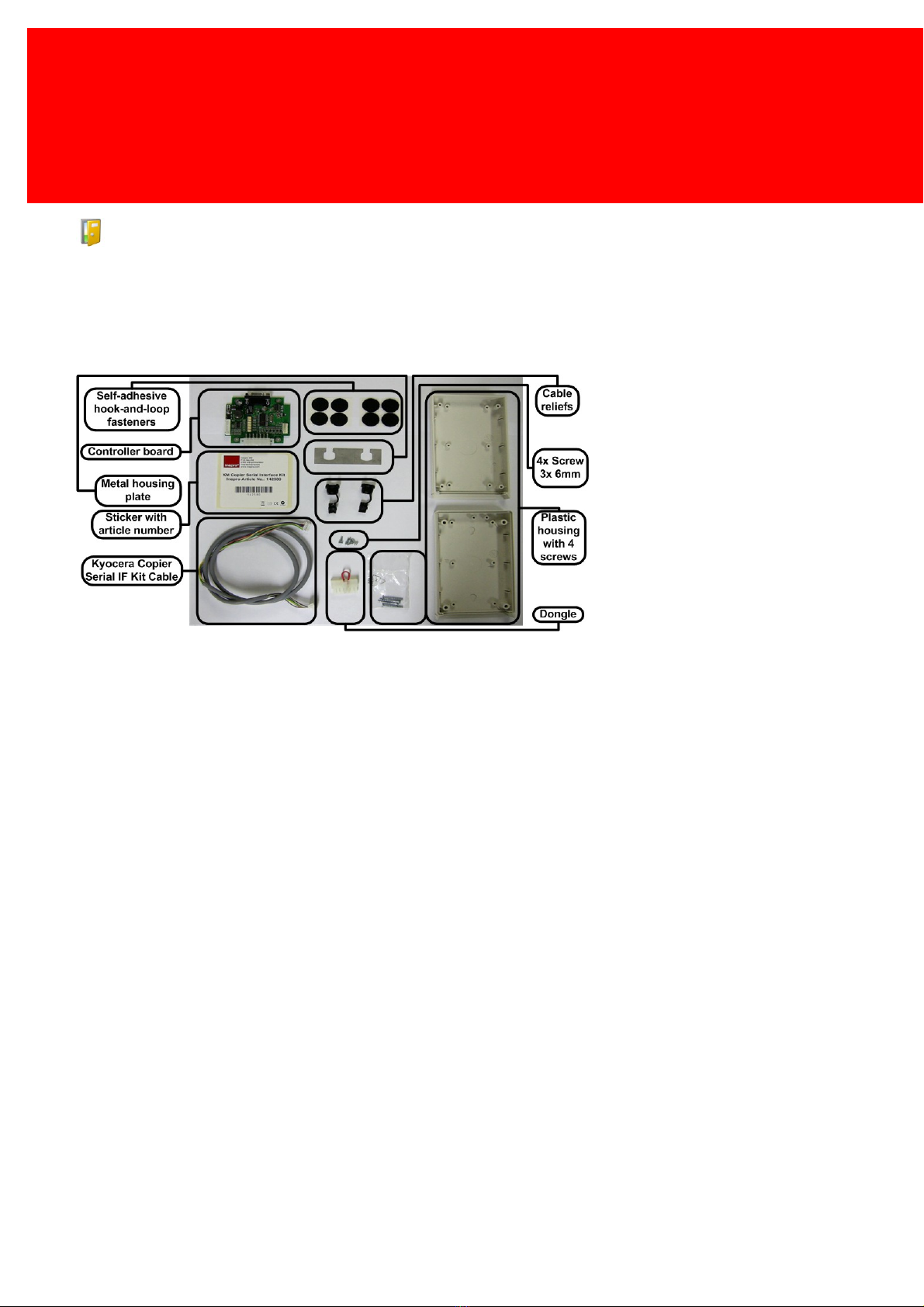

In the "KM Copier Serial Interface Kit" you should find:
·1x Controller board
·1x Plastic housing with 4 screws
·1x Metal housing plate
·1x Kyocera Copier Serial IF Kit Cable Art. No. 142582
·1x Sticker with article number
·2x Cable relief
·4x Screw 3x 6mm
·4x Self-Adhesive hook-and-loop fasteners
·1x Dongle for copier release
·1x Standard copier data cable (not visible in the image) Art. No. 251006
·1x This manual
Additional requirements for installation
·Payment device
Hardware Setup
Part
III
6 - KM Copier Serial Interface Kit
Hardware Setup
Hardware Setup
Additional requirements:
·No. 1 PosiDriv head screwdriver
·Payment device

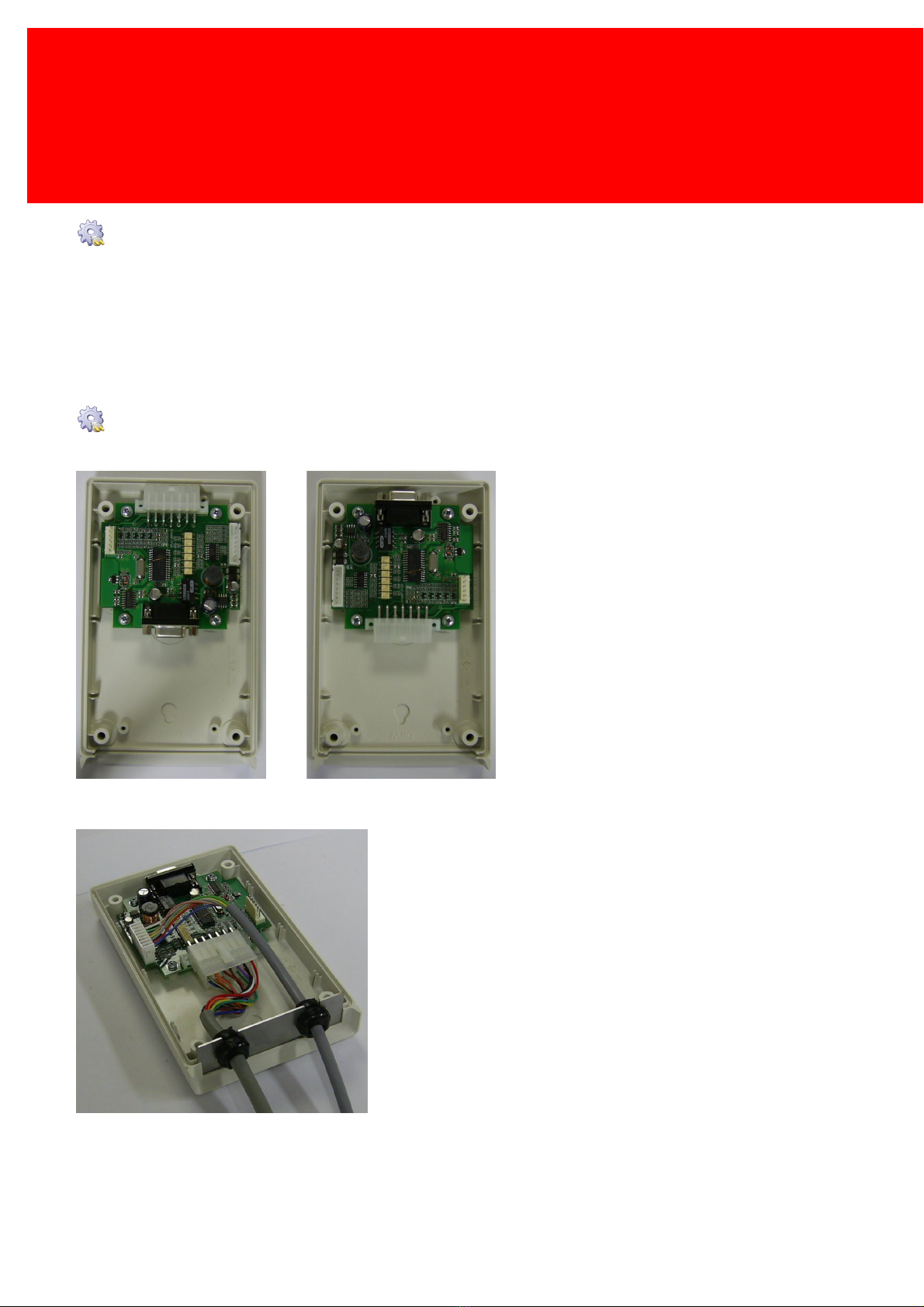

Construct the Kit
or
1. Fasten the print board with the screws in the housing, placing the connector you will use on the open side of the
housing
2. Insert the metal plate
3. Connect the copier data cable and the payment device cable. Note: If you temporarily want to copy without a payment
device connect the dongle to release the copier.
4. Insert the cable reliefs
