Induction Dynamics S2.c Manuel utilisateur

S2.c

Corner Speaker

Table of Contents

Introduction

General Information

Check Speaker and Parts

 GeneralCareofYourLoudspeakerandAmplier

Bass and Loudness Contour Controls

S2.c Location

Stands

Speaker Wire

Speaker Information

S4X Crossover

Wide Angle Phase Alignment

Multi-Channel (Home Theater) Installation

Speaker Placement and Mounting

S2.c Speaker Connection

S2.cSpecications

Warranty

Contacts

Audio Perfection Realized™

Introduction

Congratulations on your selection of the Induction Dynamics S2.c 2-way corner-mount

loudspeaker. The S2.c is engineered for smooth performance as a wall-mounted, bookshelf,

or freestanding speaker.

The S2.c incorporates exclusive, patented S4X™ crossover and driver-control technology,

which makes possible virtually perfect integration of drivers which are ideal for their intended

frequencies. S4X also provides greatly increased control over frequency response, phase,

and impedance, resulting in superior performance and imaging. Because of S4X technology,

any of Induction Dynamics’ speakers can be used to build a custom home theater system.

Your S2.c can be combined with any of our main, center, and surround speakers, be they

in-wall, on-wall, or free-standing.

Your S2.c incorporates a 6.5” Kevlar cone woofer with rubber surround and cast frame, and

a 1.125” inverted titanium dome tweeter.

TheS2.cisavailableinRosewoodGloss,BlackSatin,andBlackGlossstandardnishes.

Custom paints and stains are also available. Grille fabric is available in 63 room-

complementing colors.

WARNINGS:

WARNING! - SHOCK HAZARD

WARNING! - DO NOT OPEN

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED PERSONNEL

General Information

Please read these instructions thoroughly before attempting to connect and operate the

S2.c.

Check Speaker and Parts

Unpack and carefully check each loudspeaker. If you suspect damage from transit, report the

problem immediately to your dealer and/or delivery service. If possible, save the shipping

cartons for future use.

General Care of Your Loudspeaker

Whenever changing speaker wires, interconnect wires, or power cords, always turn off all

equipment.Topreventreorshockhazard,donotexposetheampliertorainorexcessive

moisture.Toavoidelectricshock,donotopentheamplier.Therearenouserserviceable

parts inside.

Yourspeakersandampliercomeinahighqualitynishthatisbothattractiveanddurable.

To clean, use a soft, damp cloth. If your drivers become dusty, dust them with a paintbrush

or a brush vacuum attachment. Do not use a strong or abrasive cleaner.

The grille is covered in acoustic cloth. To keep your grille clear of debris, we recommend

you use a lint roller (like you would use on clothes).

Bass and Loudness Contour Controls

Do not use bass or loudness contour controls. Induction Dynamics’ subwoofers produce

very low frequencies without these controls. Use of these controls will make the bass sound

“boomy”, obscure higher frequencies, and possibly cause damage.

S2.c Location

S2.c speakers are normally mounted on-wall, but may also be used as bookshelf speakers.

The height of the S2.cs should be determined by locating the tweeter at ear level. The

tweeter reproduces high-frequency audio, which our ears perceive as most directional, so

we are most attuned to their level and placement. Consider whether people will be sitting

or standing in the listening area when placing the S2.cs.

A pair of S2.cs should be placed a few feet from the front wall of the listening area, six

feet or more apart, usually mounted in the corner between two walls, or between a wall

and ceiling. Experiment with the distance between the two speakers to achieve an evenly

spread sound stage. Speakers should be at the same height (with the tweeter at ear level).

Tooptimizebassresponse,varythedistanceofyourS2.cspeakersfromthefrontwall.

4Audio Perfection Realized™

Stands

A speaker stand is not included with the S2.c, but is available for purchase through your

authorizedInductionDynamicsdealer.ThecompanionstandfortheS2.cistheST1.S2.c.

Speaker Wire

Use approved wire designed for in-wall or exposed use, as appropriate for your installation.

For the S2.c, we recommend using high-quality speaker wire that is 12 gauge or lower,

witheasilyvisiblepolaritycodingtomakeyourconnections.Thefollowingchartidenties

minimum gauge requirements for various lengths. See your local dealer or installation

contractor for more information.

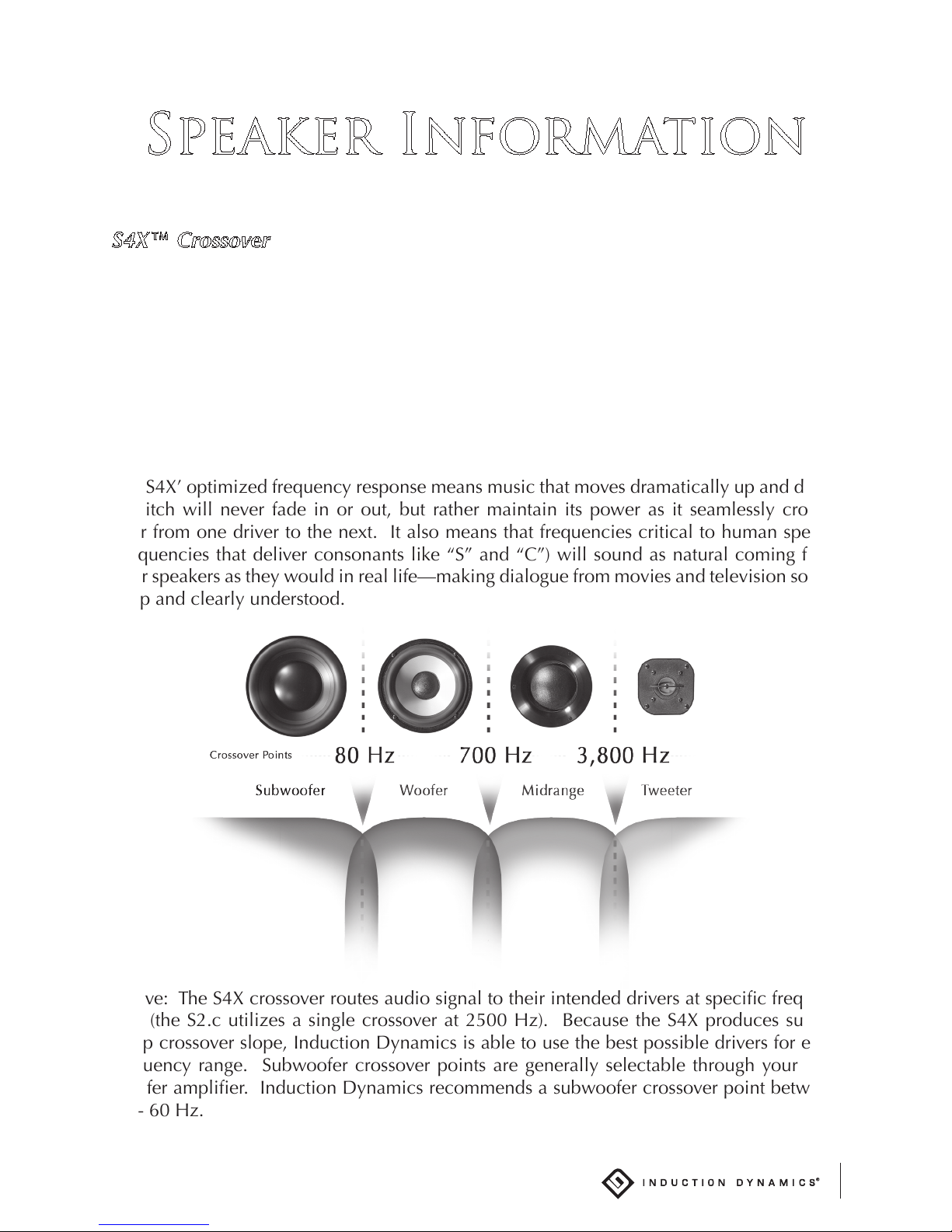

Speaker Information

S4X™ Crossover

The heart of Induction Dynamics® is found in the S4X™ Super Fourth-Order Crossover. The

patentedS4Xinductivelycouplescrossovercoilsandoptimizeseachdriver’sperformance,

individually and interactively with the other drivers. This greatly increases control over

driver range, frequency response, phase and impedance. Because S4X produces such a

steepcrossoverslope−andthusaatterfrequencyresponse−InductionDynamicsisableto

use the best possible drivers for each range of frequencies, allowing us to sonically match

every speaker in our lineup and to create speaker models able to perform in any combination

and in any acoustic environment.

TheS4X’optimizedfrequencyresponsemeansmusicthatmovesdramaticallyupanddown

in pitch will never fade in or out, but rather maintain its power as it seamlessly crosses

over from one driver to the next. It also means that frequencies critical to human speech

(frequencies that deliver consonants like “S” and “C”) will sound as natural coming from

your speakers as they would in real life—making dialogue from movies and television sound

crisp and clearly understood.

Above:TheS4Xcrossoverroutesaudiosignaltotheirintendeddriversatspecicfrequen-

cies(theS2.cutilizesasinglecrossoverat2500Hz).BecausetheS4Xproducessucha

steep crossover slope, Induction Dynamics is able to use the best possible drivers for each

frequency range. Subwoofer crossover points are generally selectable through your sub-

wooferamplier.InductionDynamicsrecommendsasubwoofercrossoverpointbetween

50-60Hz.

6Audio Perfection Realized™

Wide Angle™ Phase Alignment

In each crossover region, which spans approximately one octave, the sound from two

different drivers must be added together. This simple fact creates problems in most speakers,

because the phase must be matched, not just on axis, but also off axis in order to create a

large“sweetspot”forthelistener.Mostspeakers’driversareonlyoptimizedon-axis,using

measurements from a microphone placed at a single point in front of the speaker. This

producesahorizontalzoneinwhichthesoundisoptimized;howevertheremaybedrastic

differences in sound quality along the vertical axis—meaning there may be a loss of sound

qualityifyoustandup,sit,orotherwisemoveoutoftheoptimizedzone.

Induction Dynamics® eliminates phase differences with respect to height through our Wide

Angle™ phase alignment technology. Because our patented circuitry provides additional

variablesthatcanhelpcontrolphase,WideAnglendstheoneoptimizationsolutionthat

producesaatfrequencyresponsealongtheverticalaxis,whenthemicrophone(orlistener’s

ear) is moved up and down vertically. This means you experience true audio perfection

whether you’re standing, sitting, or lying down.

Conventional Speaker

System

Wide Angle™ Phase

Alignment

Most conventional speaker designs have a

small and horizontally narrow “sweet spot”

caused by inaccurate phase matching of the

drivers. The best quality sound can be heard

onlywithinaveryconnedarea.Outsideof

this area the sound quality can drastically

decrease, becoming muddy or indistinct.

Patented Wide Angle™ Phase Alignment

circuitry provides precise phase matching

of the drivers, noticeably expanding the

“sweetspot”bothhorizontallyandvertically.

Listenersareimmersedinalargesoundeld

and enjoy clear, undistorted sound regardless

of their position relative to the speakers.

Approximate

ear level

while standing

Approximate

ear level

while seated

Approximate

ear level

while reclining

Multi-Channel (Home

Theater) Installation

Speaker Placement and Mounting

Your S2.c speakers surface mount at a 45 degree angle between the ceiling and the wall

or between two walls of your listening room. If possible, prior to installation, connect the

speakers and experiment with their placement within the listening room.

1. The S2.c is shipped preassembled with two mounting bars attached to the speaker. In

ordertoinstalltheS2.cintoacorner,youwillrstneedtoinstallthetwo5/16-18x5/8”

hex head bolts (from the included parts packet) into the mounting bars on the back of the

speaker.Thescrewsshouldonlybescrewedintwoturnsfortherstpartofthisoperation.

2. Square up the corner bracket between the ceiling and wall or two walls so that the slotted

sidesofthebracketlayatagainsttheceilingandwallorbothwalls.Ifyouaremounting

between two walls, make sure that the bolt slots are pointed upward.

3. Use the six #8 x 2” square drive round washer head screws (from the included parts

packet) to screw into the angled holes on the back of the bracket. The holes are angled so

that the screws will hit the corner studs, providing more stability. Therefore, it is important

to screw straight into the holes in the direction they are pointing.

4. If you are running wire into the wall, use one of the oval slots in the side of the bracket

to run wire through.

5. Slide the S2.c, with hex head bolts sticking out from the back, into the bolt slots, making

sure both bolts are in their slot.

6. Tighten the bolts.

7. Attach the cloth grille by carefully pressing the grille mounts into the grille mounting

anges.

S2.c Speaker Connection

Connect the proper output on your home theater processor or receiver to the binding posts

on the S2.c using normal polarity (red to red and black to black).

8Audio Perfection Realized™

S2.c Specifications

Type: 2-way freestanding loudspeaker.

Crossover: Exclusive patented S4X Driver Control Technology.

2,500Hz

Crossover Frequencies:

Nominal Impedance: 4 Ohms

Frequency Response: 55-22,000Hz

Sensitivity (2.83 V @ 1M): 88 dB

SPL (1 W / 1 M): 85 dB

Power Handling: 175 W

Magnetic Shielding: Yes

Tweeter: 1.125” inverted titanium dome with

phase control

Midrange: N/A

Woofer: 6.5” Kevlar cones with rubber surrounds and cast frames

Subwoofer: N/A

Binding Posts: Gold-plated;#4AWGMax

Enclosure: Sealed

Optional Accessories: ST1.S2.c stand

Warranty

Phone: 855.663.5600

Fax: 913.663.3200

Induction Dynamics, Inc. warrants the S2.c against defects in materials and workmanship

for a period of seven years from the date of original retail purchase. Induction Dynamics,

Inc. will repair or replace any S2.c that does not meet this warranty.

This warranty may be registered by mailing a copy of the retail sales receipt to Induction

Dynamics, Inc. at the address below. Please write the serial number along with the name

and address of the retailer from whom you purchased the speaker(s) and/or amplier(s).

This may be done at the time of purchase or before requesting repair service under this

warranty.

To obtain repair service, call or write to Induction Dynamics, Inc. at the phone number or

address below. You will be given a return authorization number. Please mark this number

clearly on the outside of the package(s) for identication. Packages that are not marked

with a return authorization number on the outside may not be accepted by Induction

Dynamics, Inc. Please pack each S2.c in a substantial shipping container with plenty of

protective foam. If possible, use the original shipping container and packing material. For

repairs covered by and performed under this warranty, Induction Dynamics, Inc. will pay

for the return shipping charges. This warranty covers defects in materials and workman-

ship, and does not cover damage or failure resulting from accident, misuse, or shipment.

The warranty is void if the S2.c is serviced or altered by anyone other than Induction

Dynamics, Inc. the sole remedy for breach of this warranty shall be repair or replace-

ment.

Limits and Exclusions: There are no warranties except as mentioned above. Neither

Induction Dynamics, Inc. nor anyone else who has been involved in the creation, pro-

duction, or sale of this product shall be liable for any direct, indirect, consequential or

accidental damages arising out of the use or inability to use this product, or arising out

of breach of this warranty. Induction Dynamics, Inc. makes no other warranties, express

or implied, including without limitation warranties of merchantability or tness for a

particular purpose. There are no warranties that extend beyond the description on the

face hereof.

Induction Dynamics

Customer Service Department

8005 W. 110th St., Suite 208

Overland Park, KS 66210

USA

Table des matières

Autres manuels Induction Dynamics Intervenants

Induction Dynamics

Induction Dynamics S1.8TD Manuel utilisateur

Induction Dynamics

Induction Dynamics ID1 Manuel utilisateur

Induction Dynamics

Induction Dynamics S1.8T Manuel utilisateur

Induction Dynamics

Induction Dynamics S 1.8d Manuel utilisateur

Induction Dynamics

Induction Dynamics S1T Manuel utilisateur

Induction Dynamics

Induction Dynamics ID1 Manuel utilisateur

Induction Dynamics

Induction Dynamics S1.iw Manuel utilisateur

Induction Dynamics

Induction Dynamics S1.8Swd Manuel utilisateur

Induction Dynamics

Induction Dynamics SolidDrive SD1 Desktop Manuel utilisateur

Induction Dynamics

Induction Dynamics SolidDrive SD1 Manuel d'utilisation

Induction Dynamics

Induction Dynamics S1.8iwd Manuel utilisateur

Induction Dynamics

Induction Dynamics C1.8wd Manuel utilisateur

Induction Dynamics

Induction Dynamics C2.w Manuel utilisateur

Induction Dynamics

Induction Dynamics S1.8Twd Manuel utilisateur

Induction Dynamics

Induction Dynamics S2.l Manuel utilisateur

Induction Dynamics

Induction Dynamics S1.iw Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
