Indesit IDCA G35 Manuel utilisateur

Contents

Important information, 2-3

Installation, 4

Where to install the tumble dryer

Ventilation

Electrical connections

Preliminary information

Description of the tumble dryer, 5-

Features

Control panel

How to carry out a drying cycle, 7

Starting and selecting a programme

Programmes and options, 8-9-10

Programme chart

Special programmes

Options

Opening the door

Laundry, 11-12

Sorting laundry

Care labels

Special items

Drying times

Warnings and suggestions, 13

General safety

Information on recycling and disposal

Sa ing energy and respecting the en ironment

Care and maintenance, 14

Disconnecting the power supply

Cleaning the filter after each cycle

Checking the drum after each cycle

Emptying the water container after each cycle

Cleaning the condenser unit

Cleaning the tumble dryer

Troubleshooting, 15

Assistance, 1

Spare parts

IDCA G35

Instruction manual

TUMBLE DRYER

English,1

Français,17

 This symbol reminds you to read this instruction

manual.

 Keep this manual at hand for immediate reference

whene er necessary. Always store this manual close to the

tumble dryer and remember to pass it on to any new owners

when selling or transferring the appliance, so they may

familiarise with the warnings and suggestions herein

contained.

 Read these instructions carefully: the following pages

contain important information on installation and useful

suggestions for operating the appliance.

All manuals and user guides at all-guides.com

all-guides.com

Important information

To ensure that the condenser dryer functions

efficiently, the following routine maintenance

procedures must be carried out:

Fluff filter  CLEAN off any fluff build-up on the

filter after each drying cycle.

Step 1

Open the dryer door by pressing

it as shown in the picture.

Step 2

Pull out the filter (using two

fingers).

Step 3

Clean off any fluff build-up on the

internal surface of the filter net.

Step 4

Replace the filter  ne er operate

the dryer without the filter in

place.

Failure to clean the filter after each drying cycle

can undermine drying performance as the

machine takes longer to dry and thus consumes

more energy.

Water container  empty the water container after

each drying cycle.

Step 1

Pull the water container towards

you and remo e it completely

from the dryer.

Step 2

Empty all the water in the water

container.

Step 3

Replace the water container

making sure that it is securely

fixed.

Failure to empty the water container may cause

the following:

- The dryer stops heating (thus the load may still

be damp at the end of the drying cycle).

- The Empty water container LED lights up to

signal that the water container is full.

Filling of the Water Container

When the dryer is first used water will not

immediately enter the water container as the

pump needs to be primed. This is done

automatically and will take a few minutes, during

this period the efficiency of the drying process is

not affected.

All manuals and user guides at all-guides.com

Condenser unit - remove any fluff build-up

from the condenser on a monthly basis.

Step 1

Open the condenser co er

- grip the handle and pull

towards you.

Step 2

Remo e the condenser by

turning the 3 catches, then pull

the condenser towards you. (It is

normal for some residual water

to be left in the tubes).

Step 3

Clean the condenser with running

water o er the rear side to

remo e any fluff deposits.

Step 4

Replace the condenser unit;

make sure that the unit is

securely in place, that all 3

catches are fixed and that the

position arrows on the front end

of the condenser are pointing

upwards.

Failure to clean the condenser unit may cause

premature faults to the dryer.

All manuals and user guides at all-guides.com

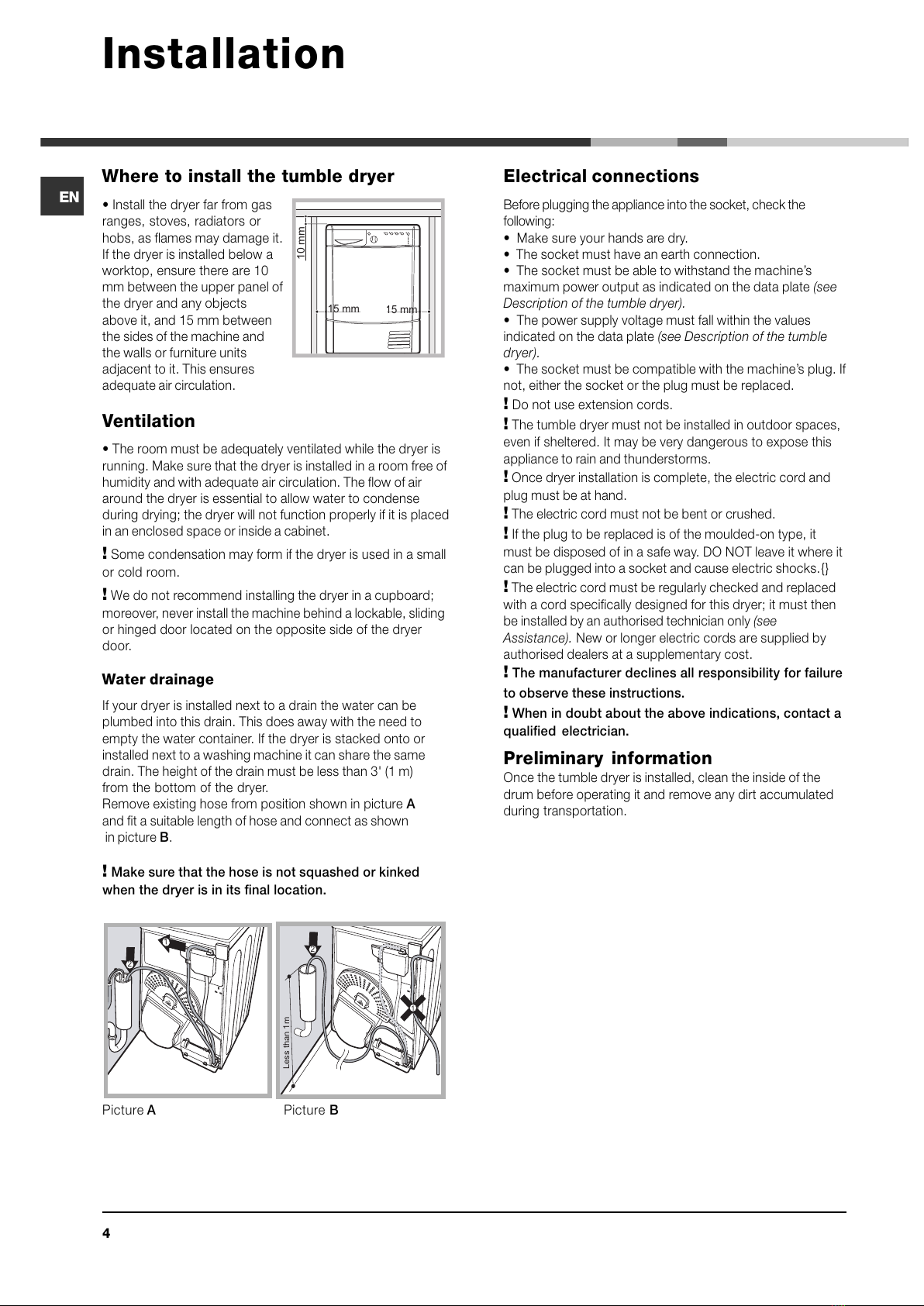

Where to install the tumble dryer

 Install the dryer far from gas

ranges, sto es, radiators or

hobs, as flames may damage it.

If the dryer is installed below a

worktop, ensure there are 10

mm between the upper panel of

the dryer and any objects

abo e it, and 15 mm between

the sides of the machine and

the walls or furniture units

adjacent to it. This ensures

adequate air circulation.

Ventilation

 The room must be adequately entilated while the dryer is

running. Make sure that the dryer is installed in a room free of

humidity and with adequate air circulation. The flow of air

around the dryer is essential to allow water to condense

during drying; the dryer will not function properly if it is placed

in an enclosed space or inside a cabinet.

 Some condensation may form if the dryer is used in a small

or cold room.

 We do not recommend installing the dryer in a cupboard;

moreo er, ne er install the machine behind a lockable, sliding

or hinged door located on the opposite side of the dryer

door.

Water drainage

If your dryer is installed next to a drain the water can be

plumbed into this drain. This does away with the need to

empty the water container. If the dryer is stacked onto or

installed next to a washing machine it can share the same

drain. The height of the drain must be less than 3' (1 m)

from the bottom of the dryer.

Remo e existing hose from position shown in picture A

and fit a suitable length of hose and connect as shown

in picture B.

 Make sure that the hose is not squashed or kinked

when the dryer is in its final location.

15 mm

Electrical connections

Before plugging the appliance into the socket, check the

following:

 Make sure your hands are dry.

 The socket must ha e an earth connection.

 The socket must be able to withstand the machines

maximum power output as indicated on the data plate (see

Description of the tumble dryer).

 The power supply oltage must fall within the alues

indicated on the data plate (see Description of the tumble

dryer).

 The socket must be compatible with the machines plug. If

not, either the socket or the plug must be replaced.

 Do not use extension cords.

 The tumble dryer must not be installed in outdoor spaces,

e en if sheltered. It may be ery dangerous to expose this

appliance to rain and thunderstorms.

 Once dryer installation is complete, the electric cord and

plug must be at hand.

 The electric cord must not be bent or crushed.

 If the plug to be replaced is of the moulded-on type, it

must be disposed of in a safe way. DO NOT lea e it where it

can be plugged into a socket and cause electric shocks.{}

 The electric cord must be regularly checked and replaced

with a cord specifically designed for this dryer; it must then

be installed by an authorised technician only (see

Assistance). New or longer electric cords are supplied by

authorised dealers at a supplementary cost.

 The manufacturer declines all responsibility for failure

to observe these instructions.

 When in doubt about the above indications, contact a

qualified electrician.

Preliminary information

Once the tumble dryer is installed, clean the inside of the

drum before operating it and remo e any dirt accumulated

during transportation.

Less than 1m

Picture A Picture B

Installation

All manuals and user guides at all-guides.com

On Off

button

Start Pause

button

and indicator light

Programme

selection knob

Press the

door

Condenser

unit (cover

open)

Water container Data plate

Condenser cover

handle (pull to

open)

Filter

Air

intake

grille

Description of

the tumble dryer

Opening the door

Control panel

Features

Options

buttons

and indicator

lights

Drying phase or

delay start

indicator lights

Maintenance

indicator lights

Model &

Serial

Numbers

All manuals and user guides at all-guides.com

ON/OFF/Reset button

Pressing the button normally will cause the machine to switch on or off. If the button is pressed for 3 seconds while the dryer is in

function, the machine will switch off and the running cycle will reset.

Programme selection knob

Allows for setting the programme: turn until the indicator points towards the desired programme (see Starting and selecting a

programme).

Options buttons

Allow for selecting the options a ailable for the selected programme. The relati e indicator lights turn on when the option has been

selected (see Programmes and options).

START/PAUSE button and indicator light

When the green light flashes slowly, press the button to start the programme. When the cycle is under way, the indicator light remains

on. To put the programme into pause mode, press the button again; the indicator light will turn orange and start flashing again.

To resume the programme from the point it was interrupted, press the button again (see Start and programme selection).

Indicator lights

Maintenance indicator lights

The indicator lights pro ide important information. They indicate the following:

The Empty water container indicator light signals that the water container must be emptied.

If the water container fills during the course of the programme, the LED lights up. The dryer automatically starts a cold air cycle and the

START/PAUSE LED flashes orange. Press the START/PAUSE button to resume the cycle from the point it was interrupted.

In order to a oid this procedure, always empty the water container after using the tumble dryer (see Care and maintenance).

Before each programme, the Clean filter indicator light signals that it is essential to clean the filter each time before using the tumble

dryer (see Care and maintenance).

The Clean condenser unit indicator light signals that it is essential to clean the condenser regularly (see Care and maintenance).

Drying phases indicator lights

The indicator light signals that the drying phase is running.

The indicator light signals that the cooling phase is running.

The END indicator light signals that the programme has ended.

Delay start indicator light

If the Delay start option has been acti ated (see Programmes and options), after the programme has started, the indicator

light corresponding to the chosen delay time will start flashing:

As time passes, the remaining delay will be displayed and the corresponding indicator light will flash:

Once the set delay time ends, the flashing LED will turn off and the set programme will start.

All manuals and user guides at all-guides.com

all-guides.com

Starting and selecting a programme

1. Plug the dryer into the power supply socket.

2. Select the programme according to the type of laundry (see Laundry).

3. Open the door, ensure that the filter is clean and securely placed and that the water container is empty and correctly slotted (see

Care and maintenance).

4. Load the machine, making sure that no piece of laundry gets between the door and the relati e seal. Close the door.

5. Press the ON/OFF button to start the machine.

6. After consulting the programme chart and the indications for each type of fabric (see Laundry), turn the Programme selection

knob towards the programme corresponding to the type of laundry to be dried (see Programmes and options).

Warning: If the position of the programme selection knob changes after pressing the START/PAUSE button, the selected

programme will NOT be modified. To modify the programme, press the START/PAUSE button to put the programme in pause

mode (the indicator light flashes orange), then select a new programme and the relati e options. Press the START/PAUSE button

to start the new programme.

7. If necessary, set the time of the delayed start and any other options (see Programmes and options).

8. Press the START/PAUSE button to start the drying cycle.

Laundry can be checked while the drying programme runs and any garments already dry can be remo ed, while drying continues

for the remaining items. After closing the door, press the START/PAUSE button to resume machine operation.

9. The final COLD DRYING phase (i.e. the fabrics are cooled) acti ates during the last few minutes of the drying programme; always

allow this phase to terminate.

10. When the END indicator light turns on, the programme has ended. Open the door, remo e the laundry then clean the filter and

replace it. Empty the water container and put it back in its slot (see Care and maintenance).

If the Post anti-crease option was selected and laundry is not remo ed immediately, the drum will rotate garments at inter als for

10 hours or until the door is opened.

11. Disconnect the dryer from the power supply.

Standby mode

This tumble dryer, in compliance with new energy sa ing regulations, is fitted with an automatic standby system which is

enabled after about 30 minutes if no acti ity is detected. Press the ON-OFF button briefly and wait for the machine to start up

again.

How to carry out

a drying cycle

All manuals and user guides at all-guides.com

Programme chart

Special/Sport/Partial Programmes

Eco Time Programme

This programme is ideal for safely drying small loads in a short time, thereby optimising energy consumption. Suitable for loads of

up to 2 kg, it lasts about 60 minutes. The programme may last longer depending on the size and density of the load and on the

spin speed used during the wash cycle

We recommend checking whether garments are labelled with the symbol and to turn them inside out before drying them.

Wool Programme

This programme is specific for items that withstand tumble drying and are labelled with the symbol. It is suitable for loads of up

to 1 kg (about 3 jerseys). We recommend turning the garments inside out before drying them. This programme lasts about 60

minutes, although it may last longer depending on the size and density of the load and on the spin speed used during the wash

cycle. Garments dried with this programme are usually ready to be worn, although the edges of hea ier garments may be slightly

damp. Lea e them to dry naturally, as an additional drying process may damage them.

 Unlike other materials, the shrinking process in wool is irre ersible, i.e. the garment does not resume its original dimension and

shape.

 This programme is not suited for acrylic items.

Programmes and options

Programme Max.

load

(kg)

Compatible options Cycle

duration

Daily

1 Ready to wear Max. Pre anti-crease – Post anti-crease – Delay start 160’

2 Cotton Cupboard dry Max. Pre anti-crease – Post anti-crease – Delay start 145’

3 Cotton Iron dry Max. Pre anti-crease – Post anti-crease – Delay start 108’

4 Synthetics Cupboard dry 3 Pre anti-crease – Post anti-crease – Delay start 65’

5 Synthetics Iron dry 3 Pre anti-crease – Post anti-crease – Delay start 55’

Special

6 Eco Time 2 Pre anti-crease – Post anti-crease – Delay start 60’

7 Wool 1 - 60’

Sport

8 Sport Intensive 4 Pre anti-crease – Post anti-crease – Delay start 80’

9 Sport Light 4 Pre anti-crease – Post anti-crease – Delay start 70’

10 Special Shoes 2 pairs - 100’

Partial

Refresh - - 20’

Timed drying

30 - 60 - 90 - 120 - 150 minutes - All option are available

All manuals and user guides at all-guides.com

Sport Intensive Programme

This programme is designed for safely drying garments such as tracksuits and shorts bearing the symbol. It is ideal for clothes

which do not need to be dried fully. Suitable for loads of up to 4 kg, it lasts about 80 minutes, although it may last longer

depending on the size and density of the load and of the spin speed used during the wash cycle. We suggest turning garments

inside out before drying them.

Sport Light Programme

This programme is designed for safely drying garments such as tracksuits and shorts bearing the symbol. It is ideal for those

garments that do not need to be dried fully or which ha e to be ironed. Suitable for loads of up to 4 kg, it lasts about 70 minutes,

although it may last longer depending on the size and density of the load and of the spin speed used during the washing cycle. We

suggest turning garments inside out before drying them.

Sport Shoes Programme

This programme is specific for drying sports shoes of sizes 37-46. The shoes must ha e been pre iously washed and spun at a

minimum spin speed of 400 revolutions.

A specific shoe rack is pro ided and must be used, otherwise the dryer will be damaged if shoes are dried in the drum. Remo e the

filter from its holder on the front part of the dryer and position the shoe rack.

Place shoelaces inside the shoes then load with the tips of the shoes facing downwards and the soles frontwards.

Drying times ary according to the shape and type of the shoe. If the shoes are not completely dry at the end of the programme,

restart the programme.

 Do not dry shoes that ha e gel or flashing lights inside them. Only dry shoes made of synthetic material or rope. Once the

programme ends, remo e the shoe rack and replace the filter into its holder.

Refresh

A short programme suitable for refreshing fibres and garments through the emission of cool air. It lasts about 20 minutes.

 As this is not a drying programme, it is not to be used for garments that are still wet.

Timed drying cycle (30 - 60 - 90 - 120 - 150)

This programme can be used instead of the automatic programmes when you desire setting a time for the drying cycle. It is ideal

for drying damp laundry with the low heat setting or for small loads.

The duration of the timed drying cycle to be selected depends on the size of the load and on the fabric to be dried (see able).

The cold drying cycle runs during the final 10 minutes of the programme.

 For large loads, select the High Heat option if a ailable.

Load

Fabric 1 kg 2 kg 3 kg 4 - 5 kg 6 –8 kg

Cotton –

high heat

30 or 60

minutes

30 or 60

minutes

60 or 90

minutes

60 or 90

minutes

120 or 150

minutes

Synthetics –

low heat

30 or 60

minutes

30 or 60

minutes

60 or 90

minutes

- -

Acrylics –

low heat

30 or 60

minutes

60 or 90

minutes

- - -

All manuals and user guides at all-guides.com

Options

The options allow for customising the selected programme according to ones own needs.

Delay start

The start of some programmes (see Programmes and options) may be delayed up to 9 hours. Press the button repeatedly to

enter the desired delay time. Before setting a delayed start, make sure that the water container is empty and that the filter is clean.

Post Anti-Crease

When this option is selected, the drum rotates garments at inter als after the cold drying cycle has ended, in order to a oid

creases forming on garments if they cannot be immediately remo ed at the end of the programme. During this phase, the indicator

light is turned on.

Pre Anti-Crease

When this option is selected in addition to the Delay start option, the drum rotates garments at inter als during the delay period

to a oid creases forming.

High Heat

When a drying time is selected, pressing this button sets high heat drying and the indicator light abo e the button lights up. The

timed programmes are pre-set to low heat.

 Not all options are a ailable on all programmes (see Programmes and options).

Opening the door

If the door is opened (or the START/PAUSE button is pressed) while a programme is running, the dryer stops and the following

may occur:

 The START/PAUSE button flashes orange.

 When a delayed start is running, the delay countdown continues. It is necessary to press the START/PAUSE button to resume

the Delay start programme. One of the Delay start indicator light flashes to signal the delay time entered.

 It is necessary to press the START/PAUSE button to resume the programme. The progress indicator lights signal the running

phase and the START/PAUSE indicator light stops flashing and turns green.

 During the post anti-crease phase, the programme ends. Pressing the START/PAUSE button reacti ates a new programme from

the beginning.

 By turning the Programme selection knob, a new programme is selected and the START/PAUSE indicator light flashes green.

This procedure can be used to select the Cold drying programme to cool garments if they are judged to be dry enough.

Press the START/PAUSE button to start the new programme.

Note: In the e ent of a power cut, turn the power switch off and remo e the plug; when the electricity supply returns, press the

START/PAUSE button to resume the programme.

All manuals and user guides at all-guides.com

Table des matières

Langues :

Autres manuels Indesit Séchoir

Indesit

Indesit IDC 8T3 B Manuel utilisateur

Indesit

Indesit EDPE 845 A1 ECO Manuel utilisateur

Indesit

Indesit EDPE G45 A1 Manuel utilisateur

Indesit

Indesit IS 41 V Guide d'installation

Indesit

Indesit IDCA 8350 B Manuel utilisateur

Indesit

Indesit EDCE 85 B TM Manuel utilisateur

Indesit

Indesit IDVA 735 Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Indesit

Indesit IDCA 8350B Manuel utilisateur

Indesit

Indesit IS60V Manuel utilisateur

Indesit

Indesit IDCE 845 B Manuel utilisateur

Indesit

Indesit IDCL 75 B H Manuel utilisateur

Indesit

Indesit EDPA 745 A ECO Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Indesit

Indesit IDC 85 S Manuel utilisateur

Indesit

Indesit IDV 65 Manuel utilisateur

Indesit

Indesit G74V Guide d'installation

Indesit

Indesit IDPE 845 A1 ECO Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Indesit

Indesit EcoTime IDVL 85 SD Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Indesit

Indesit IDCA G35 S Manuel utilisateur

Indesit

Indesit IDCE 8454 X A PS Manuel utilisateur

Indesit

Indesit IDC 75 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire
