Indesit LFT 114/HA Manuel utilisateur

Service Manual

Manual LFT 114 - 116 - 216

Edition

2007.10.15

Language

English

Service

Manual

Service Manual

Manual LFT 114 - 116 - 216

Edition

2007.10.15

Language

English

DISHWASHER

PLATFORM EOS.

BUILT IN

Model. Comm.

Covered Code

LFT 114/HA 46451

LFT 216 A/HA 46453

LFT 116 A/HA 46452

LFT 114 UK 49043

ISSUE 1 - OTT. 2007

Service Manual

Manual LFT 114 - 116 - 216

Edition

2007.10.15

Language

English

INDEX

Chapter 1 Description of Product 3

Chapter 2 General Information 3

2.1 Captions 3

2.2 Dashboard 4

2.3 General Technical Data 5

Chapter 3 Installation of Product 5

Chapter 4 Description of Product 8

4.1 Programmes 8

4.2 Technical Programme-Features 9

4.3 Washing-Option 9

4.4 Method of Use 10

4.5 Innovative features 11

Chapter 5 Components 14

Chapter 6 Eletrical Layout 18

Chapter 7 Help-mode 18

7.1 Demo-mode 18

7.2 Self-test mode 18

7.2.1 Self-Activation Test Sequence “SAT” 18

7.2.2 Machine Sequence Procedure 19

7.2.3 How to visualise faults 20

7.2.4 Fault Table 20

7.3 Dr. (PC,Palm,Smart Reader) 21

Chapter 8 Dismantling 22

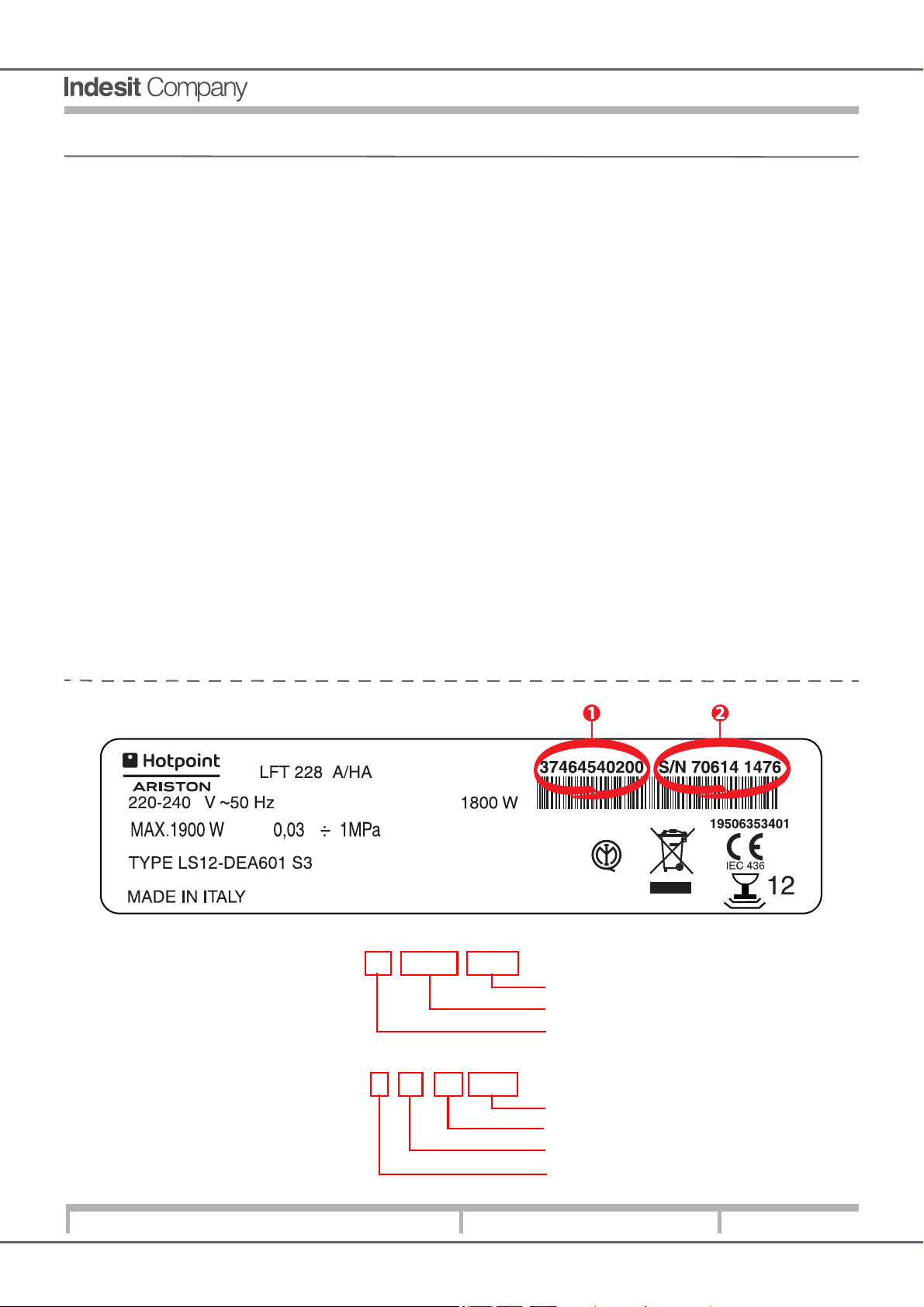

IDENTIFICATION PRODUCT-PLATE

1Industrial Bar-code: 37 46454 0200

Commercial/Technological Modifications

Commercial Bar-code number

Plant Bar-code Number

2Serial Number: 7 06 14 1476

Plant Sequence Number

Day of manufacture

Month of Manufacture

Year of Manufacture

Service Manual

Manual LFT 114 - 116 - 216

Edition

2007.10.15

Language

English

CHAPTER 1: DESCRIPTION OF PRODUCT

1 Upper Dish-Rack

2 Upper Water Syphon

3Flip-overs

4Dish-Rack Height-Adjustor

5Lower Dish-Rack

6 Lower Water-Syphon

7 Cutlery-Basket

8Washing-Filter

9Salt-Dispenser

10 Detergent-Dispenser and

Sparkling-rinse Agent Dispenser

11 Data Plate

12 Dashboard

CHAPTER 2: GENERAL INFORMATION

2.1 CAPTIONS

HOTPOINT/ARISTON:

L F T 1 2 4 H IX

D.Dishwashers F.F.60cm Integrated 1.all. Basic 1:LED N.Programs A:Water-stopI X:Innox

S.45cm 2.all.medium 2: Digit 4 intermed.range BK:black

3. all.high 6 H:Water-stop WH:white

8 Top range Alu:Alumin.

0=10 Empty:Overflow BR:Brown

1=11

SCHOLTES:

L T E 12 2 08

D:Dishwashers Integrated Built-In Nr.Dishes (12) 1 Med.Range N.programs

2TOP Range 06

INDESIT:

D I F 2 6 A

D.Dishwasher I.Integrated F: 60m 0:55DB(a) n.programs A=Water-stop

fullsize 1:53DB 4 Interm.range

2:51DB(a) 6 Empty: Overflow

3:49DB(a)

Service Manual

Manual LFT 114 - 116 - 216

Edition

2007.10.15

Language

English

2.2 DASHBOARD

Machines that have “Digit” interfacing are available with three different types of dashboards depending on the model.

Herebelow are the dashboards available on the models “Full Integrated”:

Function Selector Defintions

1. Light-indicator ON/OFF 3. Programme light-indicator

2. Programme Selector button 4. On-Off/Reset button

Function Selector Defintions

1. Light-indicator ON/OFF 4. Programme light-indicator

2. Programme Selector button 5. No Sparkling-agent indicator

3 No-salt indicator 6. On-Off/Reset button

Service Manual

Manual LFT 114 - 116 - 216

Edition

2007.10.15

Language

English

2.3: GENERAL TECHNICAL DATA

TECHNICAL DATA

EU UK

Capacity 12 Standard Covers 12 Standard Covers

Dimensions

Width 59,5 cm 59,5 cm

Height 82 cm 82 cm

Depth 57 cm 57 cm

Water Supply Connections

Maximum pressure 10 bars 10 bars

Minimum pressure 0,5 bars 0,5 bars

Electric Connections

Power strength 220/230 Volt/ 50 Hz 220/240 Volt 50 Hz

Minimum pressure 1900 Watts 1900 Watts

CHAPTER 3: INSTALLATION OF PRODUCT

Select the site where the dishwasher is to be set up; it can also be set up having the back or side-panels against other furniture or

against the wall.Thedishwasher is supplied with charging-and-disfill up-pipes, that can be adjusted to the left or to the right to ease

the setting up.

HEIGHT ADJUSTMENT

Introduce the dishwasher in the space and adjust the height by means of the central screw for the rear part and the fore-feet for

the front part of the machine. By means of a screw-driver, turn the screw clockwise or anti clockwise in order to increase or reduce

the height.

LEVELLING

Once the dishwasher has been positioned, adjust the feet by either fastening or unfastening them according to the height

required, and proceed to level them out so that th machine is well fixed to the floor. Ensure that its inclination angle does not

exceed more than 2 degrees. This will ensure a correct functioning of the product.

COLD-WATER SUPPLY CONNECTION

Connect the incoming cold-water pipe. Should the pipes be brand new or not have been used for a certain period of time, it is

recommended to allow the water to flow through till it comes out clean. Such precautionary-measures will prevent probable

water-blockage and damage to the dishwasher.

Service Manual

Manual LFT 114 - 116 - 216

Edition

2007.10.15

Language

English

DISCHARGING PIPE CONNECTION

Standhose

Ensure that the flexible discharging-pipe has not been introduced too deep inside the standhose. Should the discharging-pipe be

equipped with “support-flaps”, ensure that they too be completely introduced into the standhose.

Above illustration: Recommended height of the standhose 500m (20”)

This will prevent the hose from tipping-over during setting-up and use.

Donot place the standhose near to electric-sockets and ENSURE that it is uncoiled and is placed in the direction as shown in the

illstration above.

The standhose must be provided with a hole measuring at least 38mm (1 1/2”). It must be set up as illustrated above, be

provided with a syphon and must discharge into the discharging plumbing system. However, it MUST NOT be connected to the

discharging-hose connections of the water-basin.

FILLING UP BASIN SYSTEM

Regarding discharging plumbing-system under the basin:

Before connecting the flexible discharging-hose, it is recommended to get rid off any internal residuals in the hose which could

give rise to hose blockages.

ILLUSTRATION: Tap-height 600mm min.

Secure discharge-hose using a Jubillee-type clip.

Service Manual

Manual LFT 114 - 116 - 216

Edition

2007.10.15

Language

English

Eliminate any residuals on the discharge-syphon and ensure that the sealing-cap has been removed. The flexible hose must be

directed and placed at a minimum height of 800mm (3 ½ “)

NB: Ensure that the diameter of the water-basin discharge-hose measure at least 32mm.

1. Uncoil the extreme end of the flexible GREY hose from the back of the machine.

2. Position the flexible GREY discharge-hose on the supporting-elbow as shown above.

3. Set up a discharge system under the wash-basin, cut away the membrane, the obstruction or cap.

4. Secure the flexibledischarge-hose to the discharge system under water-basin.

INSTRUCTIONS ON INSTALLATION OF INTEGRATED DISHWASHER

Important

The dishwasher must be well-secured to the built-in top in order to avoid it tilting over while extracting full dish-racks.

Adjusting posterior legs

Fit the dishwasher in the space and adjust the height by working on the screw placed on the front part at theback and on the fore-

legs. By using a screwdriver, turn the screw in a clockwise direction in order to lift the dishwasher and in an anti-clockwise

direction to lower it.

Tape no-condensation

Some models have been provided with a transparent condensation-proof tape. It must be secured onto the lower part of the

wooden work-surface, in order to protect it against condensation- formation.

Should it not be envisaged on the model-type, it may be ordered as a spare-part from authorised dealers.

Service Manual

Manual LFT 114 - 116 - 216

Edition

2007.10.15

Language

English

CHAPTER 4: DESCRIPTION OF THE PRODUCT

4.1 PROGRAMMES

NB:

1. The Programme number and type may vary depending on the dishwasher model

2. To find out which of the optons are compatible to the programmes, consult the Option-Table.

3. Washing-Time cycle” is automatically modified according to different options selected by user and depending to

what extent the dishes are dirty.

Indications for

Programme-

selection

Programmes Detergent

(A)=Dispenser A

(B)=Dispenser B

Programmes

that envisage

drying mode

Prog.Time -

+10%

tollerance

Hrs/mins

Powder

Liquid Tablet

Very dirty dishes +pots (not

indicated for fragile ware

Intensive

30g

(A)

5g(B)

30ml

(A)

5ml (B)

1(A)

(Botto

Basin

Yes 1:54'

Ordinary dirty pots +

dishes standard-daily

programme

Normal

30g(A) 30ml

(A)

1(A) Yes 1:46'

Pre-cycle Washing-

machine on standb for next

fill up

Soak

No No No No 0:08'

Ecological +low Energy

Consumption ideal for

Dishes+ Pans

Ecological*

25g(A

)

5g(B)

25ml(A

)

5ml(B)

1 (A) Yes 2:35'

Quick Time-Energy saving

Cycle not very dirty dishes

soon after use: 2 dishes,

2glasses + nos.4 cutlery +

1 pot + 1 small pan

Quick

25mg

(A)

25ml

(A)

1 (A) No 0.35'

Quick Time + energy

saving cycle indicated for

fragile ware soon after use

(12 Wine/Champagne

glasses + fragile dishes.

Crystal Ware

30g

(A)

30ml(A

)

1(A) Yes 1-33'

Service Manual

Manual LFT 114 - 116 - 216

Edition

2007.10.15

Language

English

4.2 TECHNICAL PROGRAMME DATA

The underlying table indicates the washing-stages available on each programme, the temperature that can be achieved and in

some cases the time required for a particular washing stage.

SYNCHRO-MOTOR DISHWASHERS

LVS TYPE Cycle Pre-wash 1 Pre-wash 2 Wash Rinse 1 Rinse 2 Hot water

Rinse

Drying time

with water

Drying Time

without water

Synchro INTENSIVE 45° n/a 63° COLD COLD 72° 15' 20'

Synchro NORMAL COLD n/a 52° COLD n/a 70° 18' 8'

Synchro SOAK COLD n/a n/a n/a n/a n/a n/a n/a

Synchro ECO COLD n/a 48° COLD n/a 67° 10' 40'

Synchro QUICK n/a n/a 50° COLD n/a n/a n/a n/a

Synchro CRYSTALLS 45° n/a 45° n/a n/a 65° 10'' 30'

Service Manual

Manual LFT 114 - 116 - 216

Edition

2007.10.15

Language

English

4.3 HOW TO USE

Starting a Programme-Cycle:

Press consecutively push-button “P” and close dishwasher. After a few seconds a “Beep” will be heard signalling that the selected

programme is about to start.

How to reset a programme-cycle underway

Open the dishwasher-door paying attention to any water that may leak out. Keep the On/Off-button

pressed for a while, a long sounding “Beep” will be given signalling that the programme has been reset.

NB: On the previous model EVO3, the programme was reset by pressing button “P”, which is the button used to

select the programme, for a while. A REMINDER: BY PRESSING “P” ON MODEL EOS, THE MODE ON WATER-

HARDNESS WILL HAVE BEEN SELECTED AND NOT THAT THE PROGRAMME WILL HAVE BEEN RESET.

Modifying a programme:

Open the dishwasher door paying attention to any water that may leak out. Keep the On/off button pressed for a while,a long-

sounding “Beep” will be given.

Switch the LVS on again, select the new programme and close the dish-washer door.

Adding more dishes to wash up:

Open the dishwasher door, paying attention to any water that may leak out. Put in the dishes and close the door.

Accidental Interruptions

Interruptions will occur whenever the door is opened, or whenever the electricity has been cut off. Once the door has

been closed again and the electricity is back, the dishwasher will take up functioning again from where it had left off.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Indesit Lave-vaisselle

Indesit

Indesit DIFP 48M Manuel utilisateur

Indesit

Indesit DIF 16T1A Manuel utilisateur

Indesit

Indesit DPG 15 Manuel utilisateur

Indesit

Indesit DFP 272 Manuel utilisateur

Indesit

Indesit LFD 11M121 Manuel utilisateur

Indesit

Indesit DFP 58T94 Manuel utilisateur

Indesit

Indesit DISHWASHER IDP 127 Manuel utilisateur

Indesit

Indesit DIC3C24A Manuel d'installation et d'exploitation

Indesit

Indesit DIFP 18B1 Manuel utilisateur

Indesit

Indesit IDP 148 Manuel utilisateur

Indesit

Indesit DISR 57M19 Manuel utilisateur

Indesit

Indesit IDL 750 Manuel utilisateur

Indesit

Indesit DISR 14B1 Manuel utilisateur

Indesit

Indesit DFC 2B+19 AC Manuel d'installation et d'exploitation

Indesit

Indesit DSR 15B1 Manuel utilisateur

Indesit

Indesit DFG 261 Manuel utilisateur

Indesit

Indesit LF 70 IT Manuel utilisateur

Indesit

Indesit DPG 67B1 Manuel utilisateur

Indesit

Indesit DSR 57M94 Manuel utilisateur

Indesit

Indesit IDL 502 Guide de démarrage rapide

Indesit

Indesit DIFP 28T9 Manuel utilisateur

Indesit

Indesit DSG 5741 Manuel utilisateur

Indesit

Indesit DFP 2727 Manuel utilisateur

Indesit

Indesit DSIE2B10UK Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur
