Installation Guide

Low Voltage

LED Puck Light Kit

Model #

IN-0113-3-XX-XX

ATTACH YOUR RECEIPT HERE

Purchase Date __________________

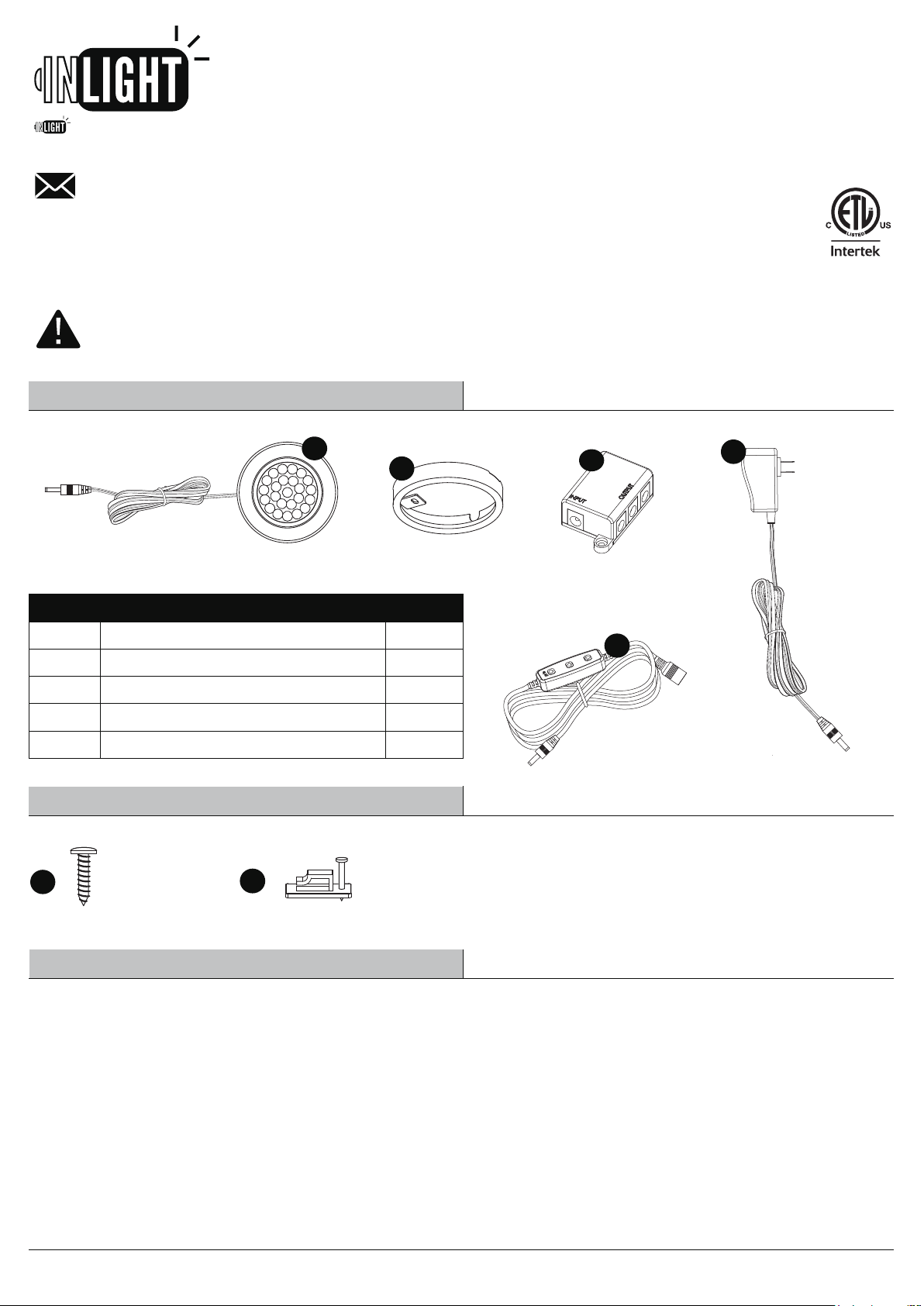

Package Contents

Hardware Contents

Warranty

A 3

B 3

C 1

D 1

Puck lights with a lead wire

Trim ring (preassembled to LED puck lights)

Connection box

Power Cord with LED Driver

E Dimmer control unit 1

Piece Description Quantity

BCD

Qty: 8 BB Qty: 9

5-YEAR LIMITED WARRANTY

Contact the Customer Service Team at [email protected] or visit www.getinlight.com

The manufacturer warrants this product to be free from defects in materials and workmanship for a period of Five (5) years from date of purchase. This

warranty applies only to the original consumer purchaser and only to products used in normal use and service. If this products is found to be defective,

the manufacturer's only obligation, and your exclusive remedy, is the repair or replacement of the product at he manufacturer's discretion, provided that

the product has not been damaged through misuse, abuse, accident, modifications, alterations, neglect, or mishandling. This warranty shall not apply to

any product that is found to have been improperly installed, set-up, or used in any way not in accordance with the instructions supplied with the product.

This warranty shall not apply to a failure of the product as a result an accident, misuse, abuse, negligence, alteration, or faulty installation, or any other

failure not relating to faulty material workmanship. The manufacturer specifically disclaims any liability and shall not be liable for any consequential or

incidental loss or damage, including labor/expense costs involved in the replacement or repair of said product.

Contact the customer service department at [email protected]

We commit to respond to emails within 24 hours - and sooner, if possible!

We are devoted to solving problems and offering the best service to our customers.

Questions, problems, missing parts?

PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING

INSTALLATION AND RETAIN FOR FUTURE REFERENCE.

Cord

Mounting

Clip

Mounting

Screws

1 2

3 4

5 6

Safety Information

HELPFUL TOOLS:

WARNING AND CAUTIONS

Drill

WARNING To reduce the risk of FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:

-For INDOOR USE ONLY.

-Do NOT touch LEDs. Do NOT remove the protective LED lens. Do NOT look directly at lighted LEDs for any length of time.

-Do NOT touch, operate, or install fixture while in contact with water. Not intended for illumination of aquariums. Do NOT mount over sinks or stoves.

-Not intended for recessed installation in ceilings or soffits. Do NOT mount the light to cabinets having a material thickness less than 1/4 in.

-The low voltage portable cabinet light may be installed inside or under a kitchen cabinet or other built-in furniture when the low voltage Class 2 power

supply is located OUTSIDE the cabinet and is not concealed and when the line voltage power supply cord is not concealed or run through openings in

the cabinet, walls, ceilings or floors. This requirement does not apply to the wiring between the cabinet light and the power unit.

-Do NOT attempt to install while plugged in.

-Use only insulated staples or plastic ties to secure cords, route and secure cords so that they will NOT be pinched or damaged when the cabinet is

pushed to the wall.

-To reduce the risk of fire, do not install in a compartment smaller than 12 inches by 12 inches by 12 inches.

CAUTIONS

-Read and understand all instructions and illustrations completely before proceeding with assembly and installation of this fixture.

-All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken.

Failure to obey this instruction could invalidate the UL listing, C.S.A. certification, and/or ETL listing of this fixture.

-This fixture is intended for installation in accordance with the National Electric Code (NEC) and all local code specifications.

-Use ONLY the supplied LED driver to power fixture.

-LEDs can be damaged by electro static discharge (ESD) shock. Before installation, discharge yourself by touching a grounded bare metal surface to

remove this hazard. To avoid damage, do not remove the clear lens over the LED module.

-DO NOT USE THIS FIXTU H A DIMMING CIRCUIT. If dimmer controls are present, remove them and replace them with regular electrical

switches. If a three-way din present, replace it with a regular three-way switch. If unfamiliar with electrical installations, it is recommended a

qualified electrician do the installation.

-The light sources are non-changeable light emitting diodes (LED). Do not disassemble this product.

-Included led driver accommodates a maximum of 6 wattage only. Beware not to exceed the wattage of the LED driver, this is displayed on the driver.

Pre-Installation

ESTIMATED ASSEMBLY TIME: 20 minutes.

***CONSULT A LOCAL LICENSED ELECTRICIAN OR ELECTRICAL CONTRACTOR IF YOU ARE NOT SURE ABOUT THE INSTALLATION.***

PLANNING INSTALLATION

Compare all parts with the parts listed in the hardware included and pack contents sections. If any part appears missing or damaged, do not install and

use this light. Contact customer service.

Philips

Screwdriver

1 2

3 4

5 6

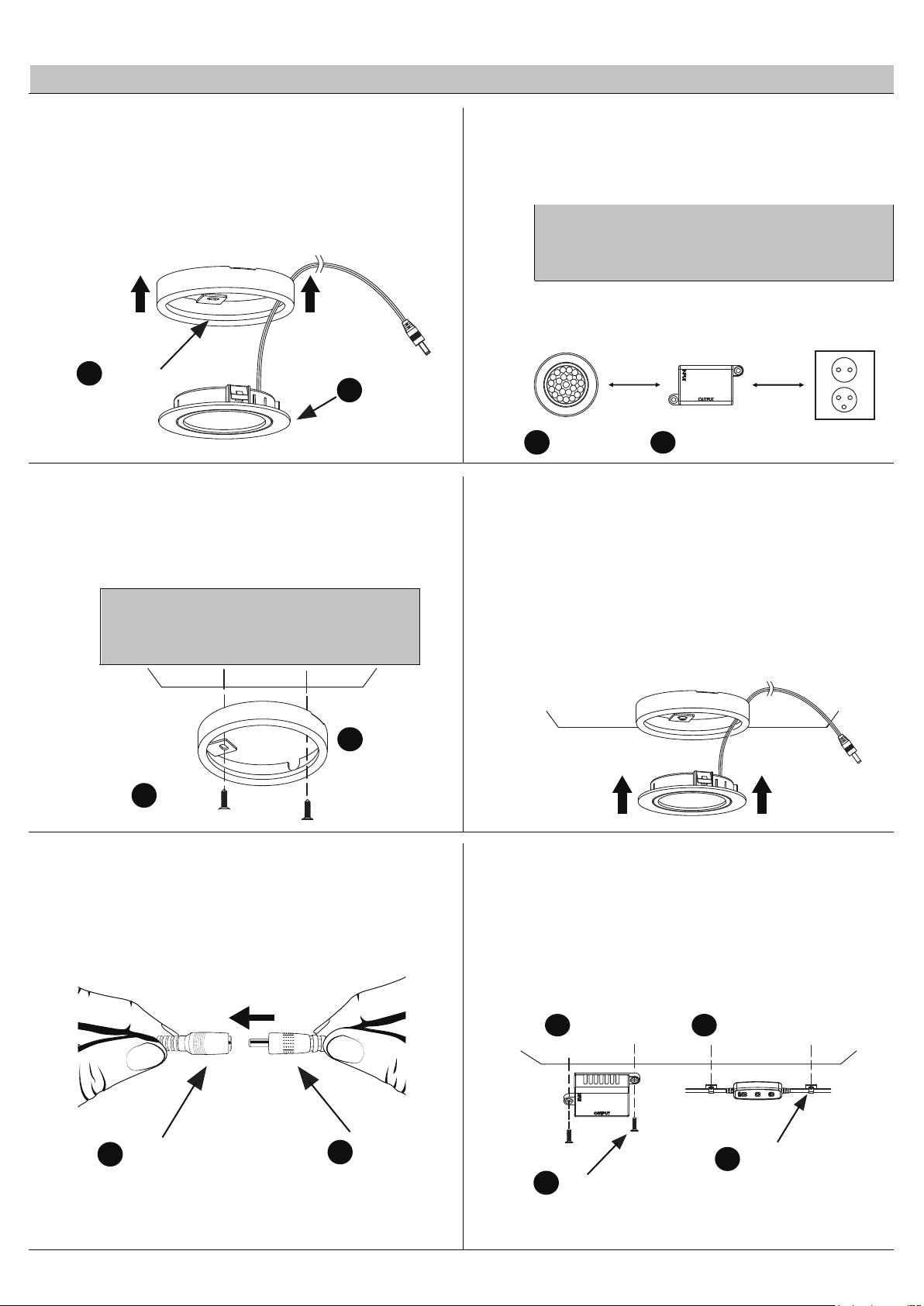

Prepare for installation Locate the desired positions for all units

- - Locate the desired positions where the LED puck lights (A) and

connection box (C) are to be mounted.

- Repeat this step for the remainging LED puck lights.

- Measure and mark the corresponding placement on the

Install the trim rings Install the LED puck lights

- Install the trim ring (B) to the bottom side of the cabinet by

inserting two mounting screws (AA) into the mounting holes

on the bottom of each trim ring (B).

- Take the cord from the LED puck housing (A) and feed the

cord through the outlet hole of the trim ring (B). Do not pull the

cord tight just yet, as you need to leave space to screw in the

trim ring (B).

- Tighten the screws (AA) and push the LED puck housing (A)

into the trim ring (B) while pulling the cord tight.

- Repeat steps 1 to 3 to install the remailing two LED

puck lights (A).

Connect the dimmer control unit and

power cord

Install the connection box and dimmer

control unit

- Insert the plug from the power cord (D) into the jack of

the dimmer control unit (E).

- Attach the connection box (C) to the bottom of the cabient

using two mounting screws (AA).

- Attach the dimmer control unit to the bottom of the cabient

using two cord mounting clips (BB).

Installation (Section A) - Surface Mounting (Wires under a shelf or cabinet)

1 2

5 6

3 4

Separate the trim ring (B) that is attached to the LED puck

light housing (A) by pushing on the back of the LED puck light.

Note:

Do not fully tighten the screws into the trim ring as the

cords from the LED puck housing will need to be pulled

through the hotches on the trim ring before securing.

Puck Light Connection Box Outlet

6ft.Max 6ft.Max

Trim Ring LED Puck

Light Housing

Trim Ring

AA Mounting

Screws

Plug of

Power Cord

Jack of Dimmer

Control Unit D

Connection Box

CDimmer Control Unit

AA Mounting

Cord

Mounting

Clip

Note:

Ensure the connection box (C) is within 6 ft. of an electrical outlet

and the puck lights (A) are located within 6 ft. of the connection

box (C).

Lighitng & Spacing

1 2

5 6

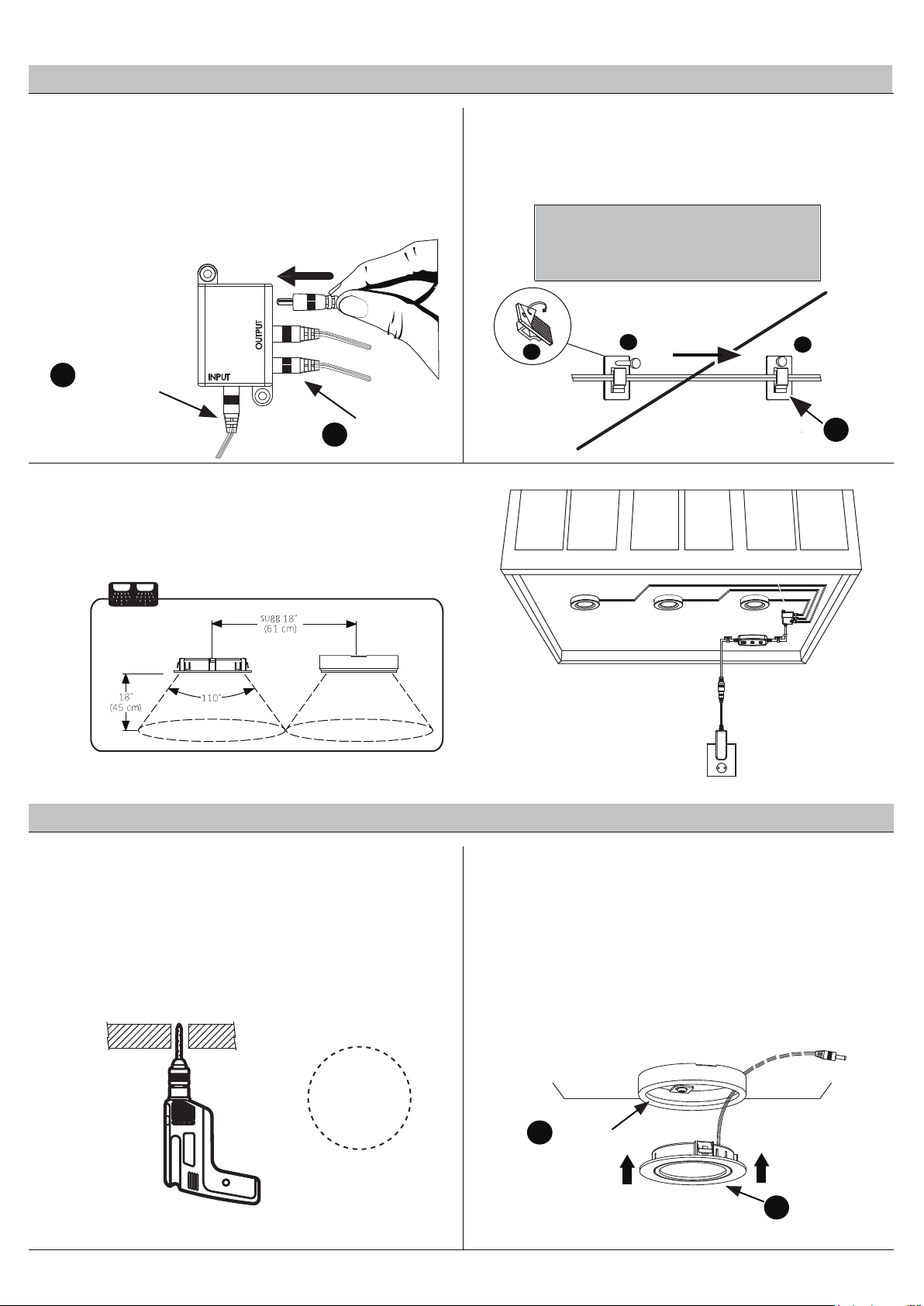

Connect the cords Secure the cords

- Connect the wires from all 3 of the LED puck lights (A) to the

hole which marked as "output" in the connection box (C).

- Excess puck light cords and power cord can be secured using

the cord mounting clips (BB)

- Connect the wire from the dimmer control unit (E) to the

hole which marked as "intput" in the connection box (C).

Connect the plug to an electrical outlet

- Insert the power plug (D) into an electrical outlet and installation

is now complete.

Prepare for installation Install the trim rings

- Locate positions where LED puck lights are to be mounted by

following step 2 in Section A - Surface Mounting (Wires

under a shelf or cabinet)

- Install the trim rings as described in step 3 of Section A -

Surface Mounting (Wires under a shelf or cabinet)

- Thread the cord from the LED puck housing through the hole,

compress the springs and push the LED puck housing (A)

into the trim ring (B).

- Use the enclosed template to drill 1/2" hole to pass the

LED puck light cord through the shelf.

- Repeat steps 1 to 2 to install the remaining LED puck lights.

Installation (Section A) - Surface Mounting (Wires under a shelf or cabinet)

7 8

Installation (Section B) - Surface Mounting (Wires on top of a shelf or cabinet)

1 2

ABB

Trim Ring

LED Puck

Light Housing

Note:

Proceed with caution when attaching the cord clips

to the cabinet, make sure the metal nail does not

pierce through the cord.

Cord

Mounting

Clip

Wires from the

LED Puck Lights

Wires from the

Dimmer Control

Unit

Hole Size

Ø1/2"

(Ø13 MM)

Lighitng & Spacing

1 2

3 4

5 6

Connect the LED puck lights and connection box

- Install the connection box and dimmer control unit as described in

step 5 to 6 of Section A - Surface Mounting (Wires under a shelf or

cabinet).

- Connect and secure the cords, then connect the plug to the

electrical outlet as described in steps 7 to 9 of Section A - Surface

Mounting (Wires under a shelf or cabinet)

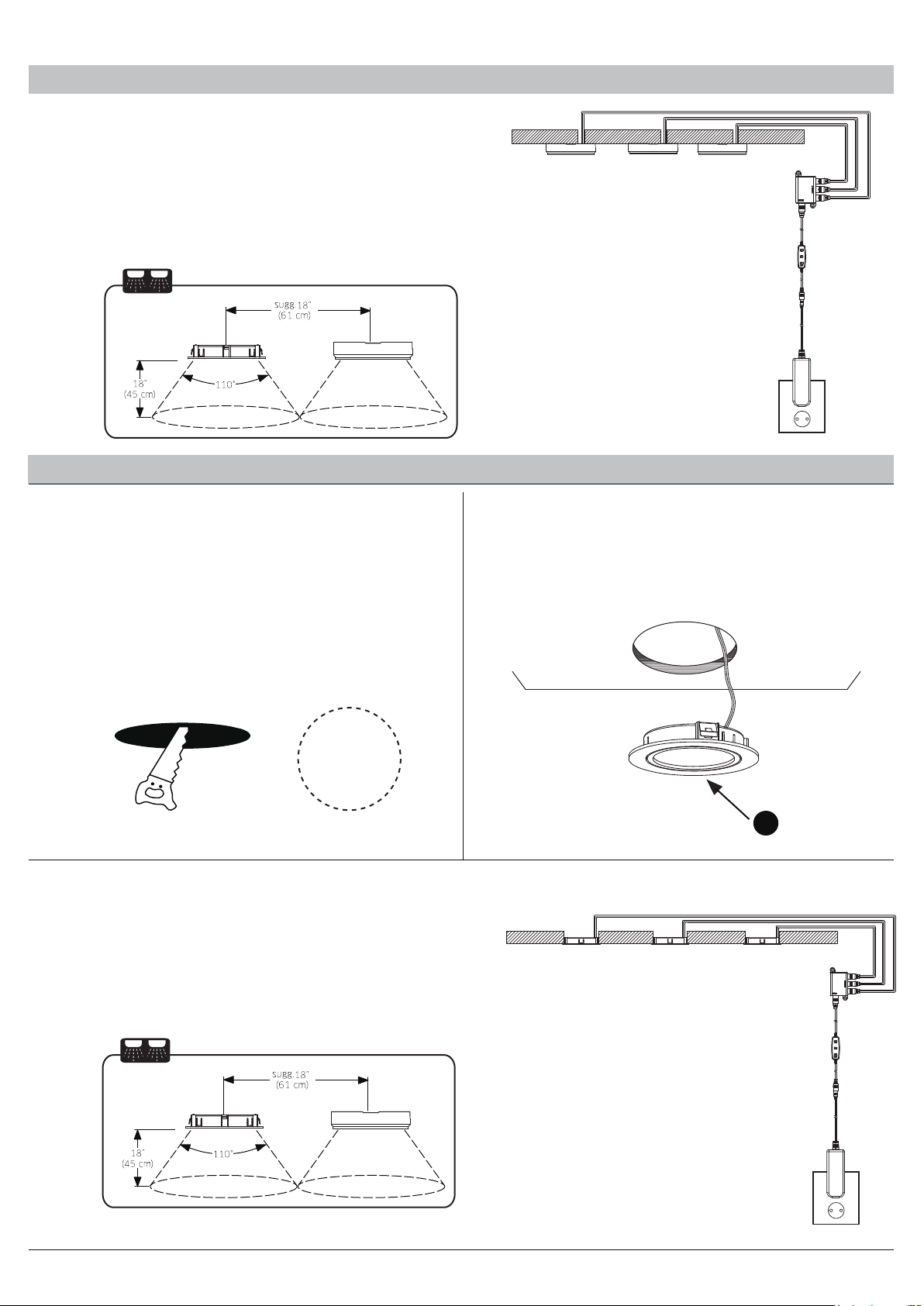

Prepare for installation Insert the LED puck lights

-Separate the trim ring (B) by pushing on the back of the LED

puck housing (A).

- Thread the wires from the LED puck housing (B) through the

hole and insert the fixture into the hole. Repeat the steps for

the remaining two LED puck lights (A).

-Locate positions where LED puck lights are to be mounted by

following step 2 in Section A - Surface Mounting (Wires

under a shelf or cabinet)

-Use the enclosed template to drill a 2-3/8" hole.

Hole Cut Size

Ø2-3/8"

(Ø60 MM)

Connect the LED puck lights and connection box

Installation (Section B) - Surface Mounting (Wires on top of a shelf or cabinet)

Installation (Section C) - Recessed Mounting

1 2

- Install the connection box and dimmer control unit as described in

step 5 to 6 of Section A - Surface Mounting (Wires under a shelf or

cabinet).

- Connect and secure the cords, then connect the plug to the

electrical outlet as described in steps 7 to 9 of Section A - Surface

Mounting (Wires under a shelf or cabinet)

LED Puck

Light Housing

1 2

3 4

Dimming Control

Press the on/off button to switch on the light and use the dim/bright button to adjust the brightness of the puck lights.

Troubleshooting

Maintenance

Bright Button

Dim Button

On & Off Button

Dimmer Control Unit

Questions, problems, missing parts? Before returning to the store,

contact Inlight Customer Service

Retain this manual for future use.

[email protected]

is a trademark of Inlight Co. Ltd.

These lights use light emitting diodes (LEDs) to provide light. LEDs do not have a filament to burn out like a traditional light bulb. LEDs gradually emit

less light over their lifetime, but will typically last 50,000 hours in a residential environment.

Periodically clean the fixture and diffuser using a mild, non-abrasive cleaner and soft cloth. When cleaning the fixture, make sure the power is turned off.
