IMR EX660

Portable Multi-Gas Detector

Operation Manual

IMR Environmental Equipment, Inc.

3634 Central Ave.

St. Petersburg, FL 33711

Phone: 727-328-2818

E-mai: info@imrusa.com

IMR EX660

SAFETY INFORMATION

Incorrect operation or unsuitable using environment may attenuate the instrument’s performance. Therefore, please first

read the below safety information carefully before using and then operate this device.

Please don't use the defective device. Before using, please check if there is crack or spare part missing. If yes,

please contact the seller immediately.

It's suggested that the user carry out the "Bump Test" by following Clause 5.3 of this manual before using the

device. If the device reading is beyond the specified range, please calibrate the device by following Clause 5.7 and

5.8 of this manual.

Periodic Bump test will test the response feature of the sensor. Please make sure that the visual, audible and

vibrative alarm signals are ok.

Only accessories which are specified for IMR EX660 or permitted by the seller are allowed to be used.

Only the charger which is specified for IMR EX660 is allowed to be used. It's forbidden to charge the device in

the dangerous environment.

Please don't expose the device to the exceeding-range gas environment for long time. Otherwise, it will badly

influence the performance and even damage the device.

If exposed to the environment consisting of leaded compound, sulfocompound, organic phosphorus compound or

silicon, the gas sensor will be poisoned. Please don't use the device in the above environment.

Please don't expose the device to the environment which consists of H2S, hydrocarbons gas or high corrosive gas

for long time. Otherwise, it will restrain the response of the gas sensor and reduce the sensitivity. If the device has

to be used in the above environment, please follow Clause 5.3 to carry out the Bump Test before using it.

Please don't expose the device to the environment which has electric shock, strong magnetic field or serious

continuous mechanic shocking.

There is a lithium battery inside the device. Please don't place the useless battery together with the rubbish. The

useless battery should be discarded by qualified withdrawers.

It's forbidden to disassembly, adjust or repair the device without permission.

Please avoid the device falling from high place or serious shocking.

Any other operation beyond this manual, please contact the seller.

IMR Environmental Equipment, Inc.

IMR EX660

1. Brief Introduction

IMR EX660 is a compact and lightweight multi gas detector that continuously measures combustibles, O2, CO, H2S and

other toxic gases in ambient air. By using 6 sensors, it can detect at most 7 gases at the same time. Its functional and

watertight design (IP 66) incorporates a Bump proof, rubberized housing to meet the toughest requirements of harsh

environments.

2. Main Features

Advanced 16 digit MCU with low consumption

Ultra-wide angle LCM screen

Adjustable 2-level alarm points

Adjustable calibration point

Self-protection design for combustible gas sensor

Battery low voltage alert function

With real-time clock

Interchangeable smart sensor module design

Self-adjustment design

Audible, visual and vibrate alarm signals

Data communications function

STEL/TWA alarm for toxic gases

Design of self-test, self-diagnose and self-repairing

Password management

Intrinsically safe design

3. Technical Specification

Detecting method: Natural diffusion

Target gas: Refer to the Annex-1 in the end of this manual

Communication: RS 232

Response time:

Semi-conduct, catalytic, thermal conduct sensor ----------T90＜30s

O2, CO, H2S sensor---------------------------------------------- T90＜30s

Other sensors -----------------------------------------------------T90＜120s

Indication error range:

Combustible gas----------------------------------------------------- ±5% F.S.

Toxic gas------------------------------------------------------------------±5ppm

Working condition:

Temperature: -20℃～50℃Humidity: ＜95%RH

Power source: Lithium battery (DC3.6V, 6600mAh)

IMR Environmental Equipment, Inc.

IMR EX660

Working time per charging: ≤30 hours continuously (no alarm)

Charging time: ≤ 6 hours

Explosion –proof grade: Exia IIC T4 Ga

Ingress protection: IP66

Dimensions and weight: 168mm×91mm×45mm about 500g

4. Structure and Functions

Appearance Display

information

5. Operation Instructions

5.1 Power on

When machine is power off, hold for more than 3s and the device will be power on. The screen shows as

below.

IMR Environmental Equipment, Inc.

IMR EX660

After power on, the detector will proceed self-test and display is as below drawing.

The device will make self-test on the buzzer, alarm lights and vibrator automatically. After self-test, the device enters

into normal detection status and the screen displays as below.

Note:

If self-test fails, related information will be displayed. For details, please refer to Clause 10 Troubleshooting of

this manual.

If self-test succeeds, the device enters into warm-up period of 3-30s, which depends on the sensor type.

5.2 Power off

In normal detection status, hold for 3 seconds and the screen will show “Shutting down…”. Meanwhile, the

buzzer will give out intermittent beep twice. Then machine is power off.

5.3 Bump test

Every day before using the device, the user is suggested carry out Bump test, so as to check if the device is working

normally.

Test method:

When the device is power on, put it into high level gas environment, which is higher than the preset high alarm point of

the device. If the entire device’s function is ok, then device can be used in the working area.

Note:

If any reading on the screen is beyond the prescribed display error range, please follow Clause 5.7 and 5.8 of this

manual to re-calibrate it.

IMR Environmental Equipment, Inc.

IMR EX660

If detector does not response or showing errors, please contact the seller for repairing.

5.4 Menu explanation

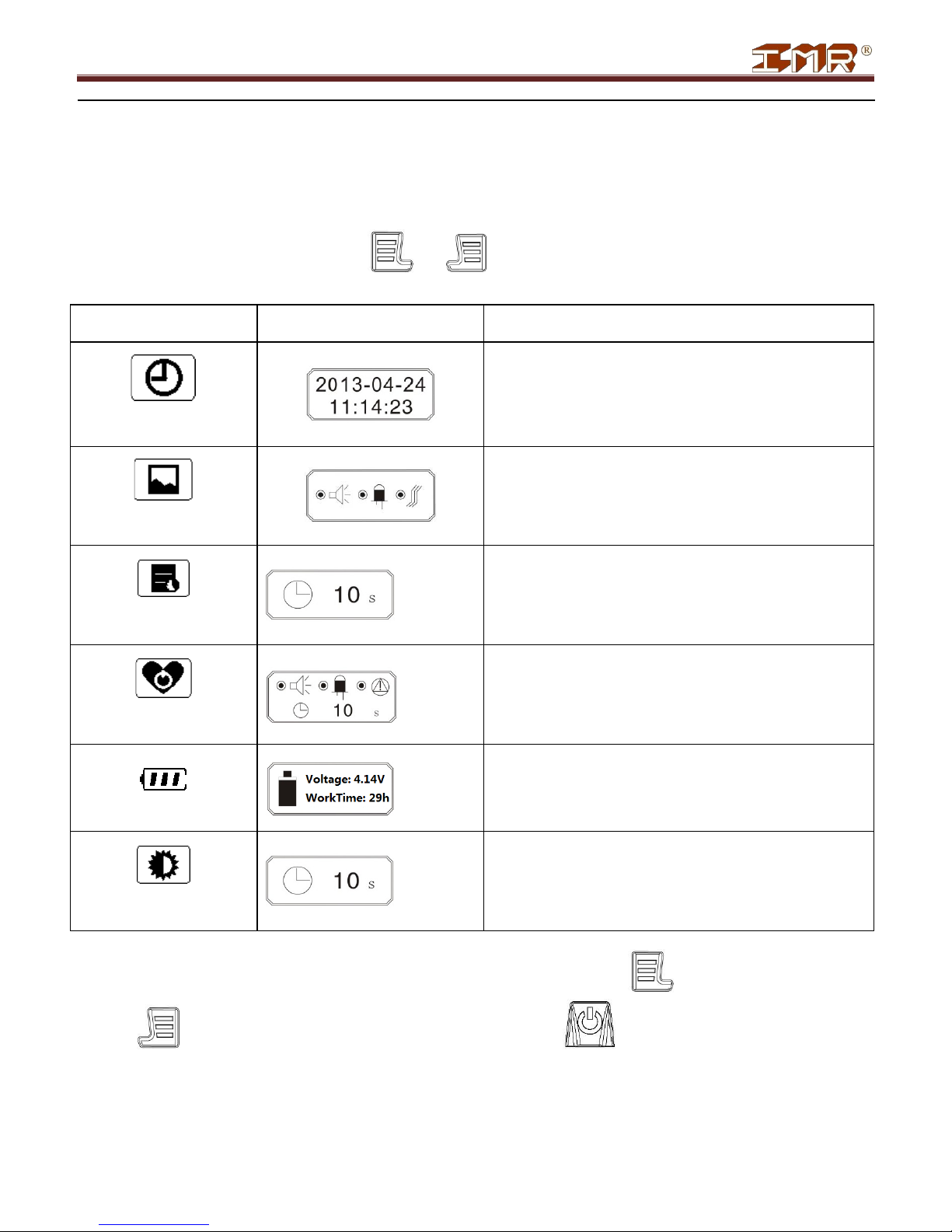

5.4.1 Common menu

In the normal detection interface, press both and simultaneously and the device enters into common

menu setting interface. Below is the button function:

Menu Submenu Remarks

DATE

TIME

When changing the date or time, the selected bit will

blink.

ALARM

MODE

When changing the mode, the selected bit will blink.

RECORD

GAP

Set time gap for record saving.

CAUTION

MESSAGE

Black box means this item is selected.

BATTERY MESSAGE

Display battery voltage and remaining work time

BACKLIGHT

TIME

Backlight time will be increased

by 5s each time.

After entering into certain submenu, the user can change the item value by pressing and save the setting by

pressing . The user can also exit without saving changes by pressing .

IMR Environmental Equipment, Inc.

IMR EX660

5.4.2 Advanced menu

In the interface of common menu interface, press both and simultaneously twice. The screen shows

password inputting interface. Input the password by pressing to increase the bit value and press to

confirm the input password. After inputting the correct password, press to enter into advanced menu interface.

Select the submenu item by pressing and enter into selected submenu by pressing .

Menu Submenu

Remarks

SAFETY

DEPLOY

To set user’s ID.

ZERO

CAL.

Zero calibration

DATA

UPLOAD

Data upload

PERIPHE CONFIG.

One mode must be selected

POWER

MANAGE

Activate the other function

LANGUAGE

SELECT

One mode must be selected.

Note: Initial password for entering advanced menu is “0000”.

5.5 Gas detection

The device monitors and displays gas concentration in real time. Once the gas concentration reaches the preset alarm

point, it will initiate alarms.

IMR Environmental Equipment, Inc.

IMR EX660

Note:

Do not block sensors in detecting process.

To prolong life span, external filters are suggested in detecting process.

Long time storage, serve physical shock and excessively high concentration may cause zero drift of the gas

sensors. If finding the reading in clean air is not zero, please make zero calibration by following Clause 6.7 and

6.8 of this manual.

5.6 Status review

In normal detection mode, press button in normal operation mode and the screen will show automatically

current temperature, time, STEL value①, TWA value①, the maximum leval of gas②, the minimum level of gas②

since power on.

Note:

①Only for toxic gas.

② Only for oxygen.

5.7 Auto zero calibration

In normal detection mode, hold both and buttons for about 1 second. The device asks for inputting

password. After inputting correct password, the device enters into advanced menu interface.

Move the cursor to icon and press button. The device will make zero calibration automatically. In the

end, a “√” icon displays for gas succeed and “×” for gas failed.

5.8 Calibration

5.8.1 Enter the setting interface

While the device is power off, hold both and buttons simultaneously for about 3 seconds. Then, the

device first performs a self test as after power on and after a short delay, the device asks for inputting the password.

After inputting correct password, the device enters into the setting interface shown as below.

WARNING!

Calibration must be carried out by qualified person. Otherwise,

the device may work wrongly.

IMR Environmental Equipment, Inc.

IMR EX660

5.8.2 Zero calibration

Select icon and press to enter auto zero calibration interface, shown below. When finished, a “√” icon

displays for gas succeed and “×” for gas failed.

In the auto zero calibration mode, press and the device enters manual zero calibration interface, shown as

below.

When the AD value of the sensor is stable, press to make zero calibration manually. After that, a “√” icon

displays for gas succeed and “×” for gas failed, shown as below.

Press

to move the cursor and the selected icon turns black. Then press

to enter the submenu.

IMR Environmental Equipment, Inc.

IMR EX660

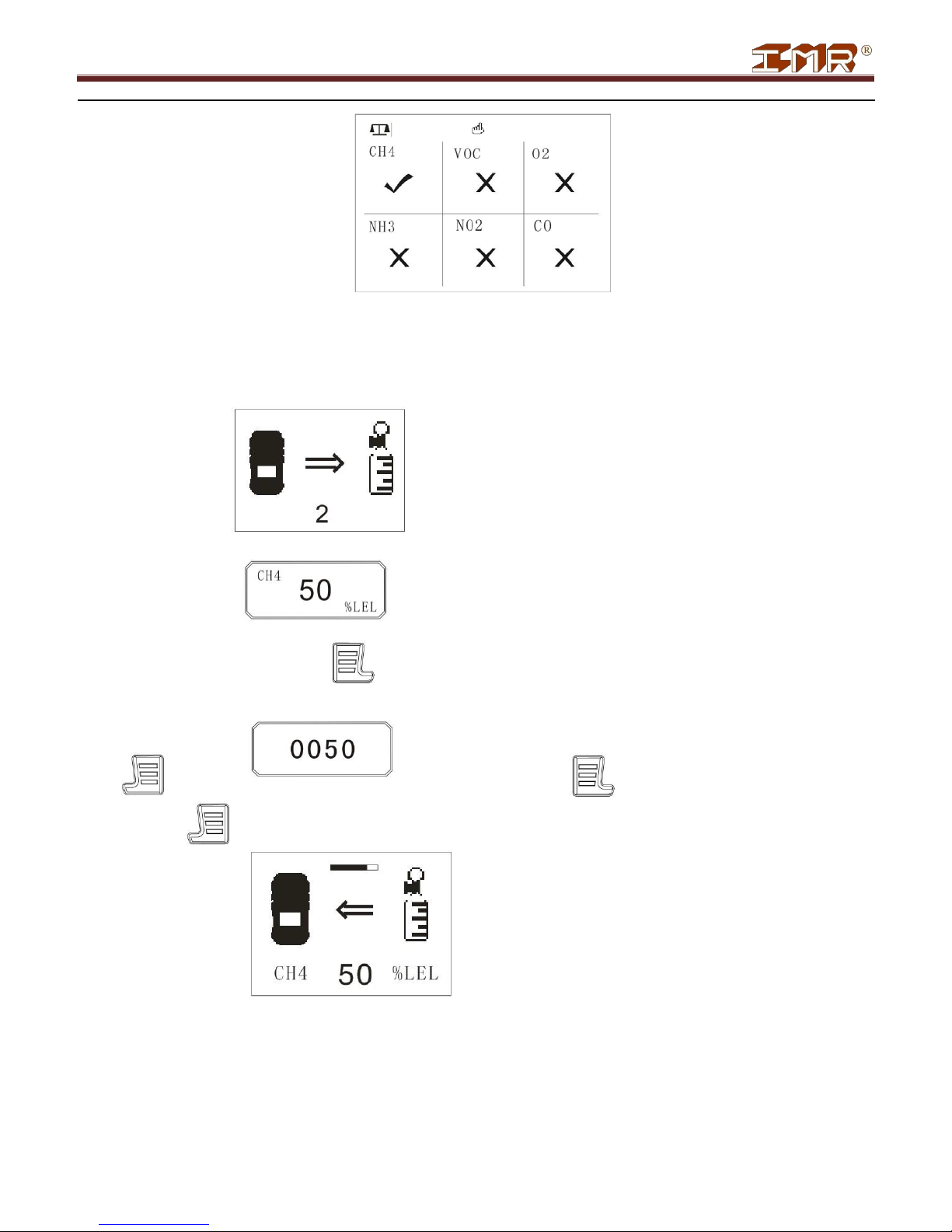

5.8.3 Span Calibration

After zero calibration, the device displays a countdown interface, shown as below.

After that, it displays the calibration gas level, shown as below:

If the level needs to be changed, press to enter the below interface:

Press to move the cursor and press to change the figure. After changing

the figure, press button to save and enter the gas inputting mode, shown as below:

When the device senses the input gas, it displays as below:

IMR Environmental Equipment, Inc.
