Impecca Flex Series Manuel utilisateur

MODEL:

ISMO-3016

Split Air Conditioner

Owner's Manual

Residential Air Conditioners

v. 1.1

Technical Data

Electrical Connections

Installing The Outdoor Unit

Maintenance

Installation Dimension Diagram

Check After Installation

Bleeding

Conformity And Range

The Instructions Before Use

Name of Parts

Outdoor Unit Working Temperature Range

GENERAL

INSTALLER INFORMATION

CONTENTS

In line with the company’s policy of continual product improvement, the aesthetic and dimensional characteristics,

technical data and accessories of this appliance may be changed without notice.

CONFORMITY AND RANGE GENERAL INFORMATION

GENERA L INFORMATION

Please read this owner's manual carefully before operating the unit and keep it carefully for consultation.

The products in this manual may be different with the real one, according to different

models, some models have displayer and some models without displayer, the position

and shape of the displayer please refer to the real one.

The air conditioner you have purchased is in conformity with the following American Directives

UL1995:

Only use the air conditioner as instructed in this booklet. These instructions are not intended to cover every

possible condition and situation. As with any electrical household appliance, common sense and caution are

therefore always recommended for installation, operation and maintenance.

WARNING

When having a burning smell

or smoke, please turn off the power

supply and contact with the service

may be damaged, and may cause

center .

If the abnormity still exists, the unit

electric shock or fire.

Power must adopts the special

circuit to prevent fire.

Otherwise, it can cause electric

shock or fire.

Otherwise, the accumulated dusts

may cause overheating or fire.

Never damage the electric wire or

use the electric wire which is not

appointed.

Otherwise, it will cause overheating or

fire.

Cut off power supply

THE INSTRUCTIONS BEFORE USE GENERA L INFORMATION

Don't attempt to repair the air

conditioner by yourself.

Please note whether the installed

stand is firm enough or not.

Don't step on the top of the outdoor

unit or place something on it.

As falling off the outdoor unit can be

dangerous.

If it is damaged, it may lead to the

fall of the unit and cause the injury.

The wrong repair will lead to an electric

shock or fire, so you should contact the

service center to repair.

Earthing: The unit must be reliably

earthed. The earthing cable shall

be connected to the special earthing

device in the construction.

Never cut off or damage power

cables and control wires. If the

power cable and signal control wire

were damaged, change them by

professional.

When cleaning, it is necessary

to stop driving and turn off the

power supply.

Otherwise, it may cause electric

shock or damage.

Disconnect the power supply if

long putting the air conditioner out

of use.

The power supply must adopt

the special circuit that with air switch

protection and assure it has enough

capacity. The unit will be turned on or

off according to your requirement

automatically, please do not turn on

or turn off the unit frequently, otherwise

disadvantage effect may be caused

to the unit.

Rated voltage of this air conditioner

208-230V,60Hz, The compressor

will vibrate sharply if the voltage is

too low, resulting in damage to

refrigerating system. Electrical

component are easy to damage if

the voltage is too high.

Note: the above figures are only intended to be a simple

diagram of the appliance and may not correspond to

the appearance of the units that have been purchased.

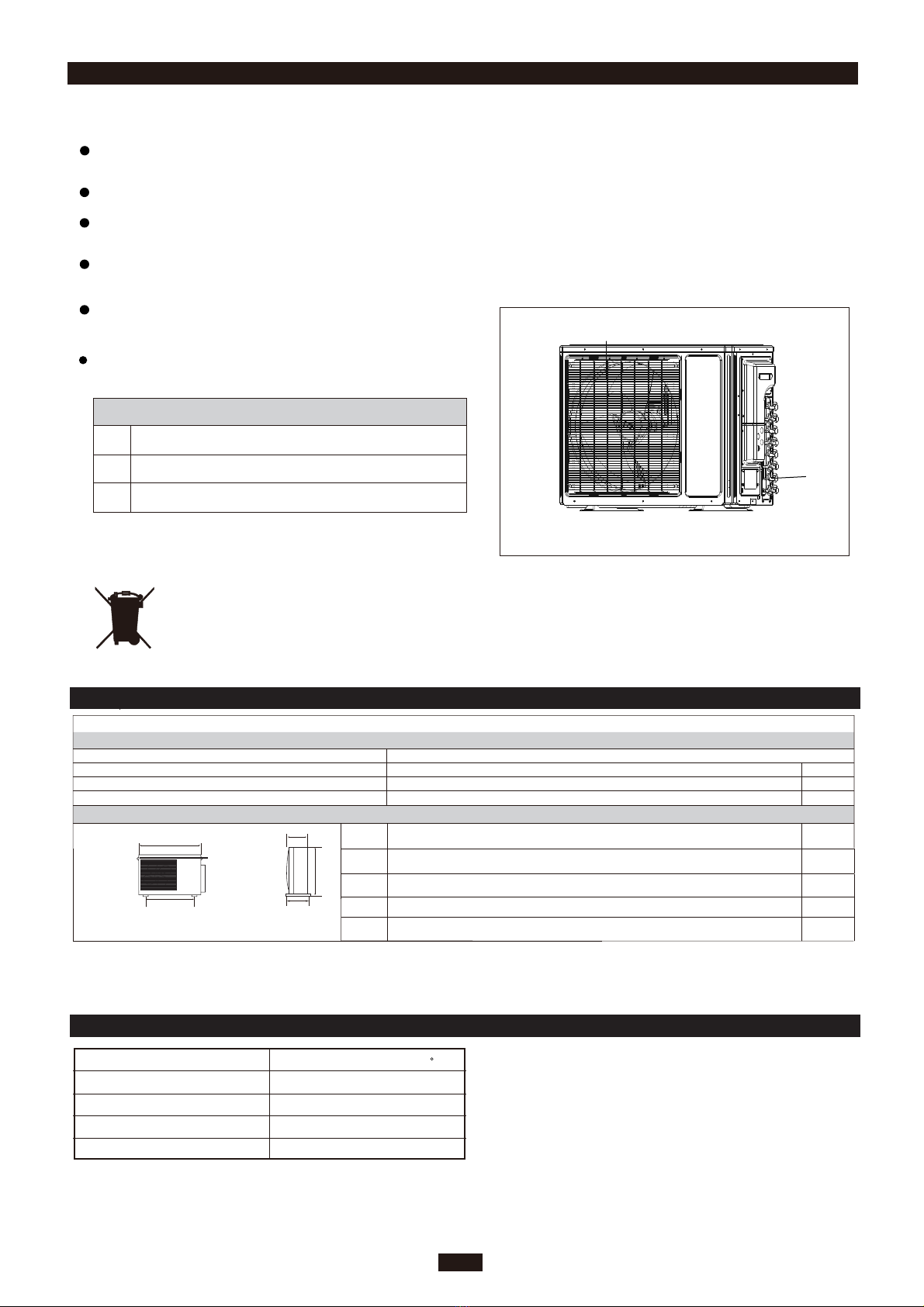

OUTDOOR UNIT

N o. Description

1 Air outlet grille

2Valve

The temperature of refrigerant circuit will be high,please keep the

interconnection cable away from the copper tube.

Be sure to cut off the power supply before cleaning the air conditioner;

otherwise electric shock might happen.

Wetting of air conditioner may cause the risk of electric shock. Make

sure not to wash your air conditioner in any case.

Volatile liquids such as thinner or gasoline will cause damage to the

appearance of air conditioner. (Only use soft dry cloth moist cloth clean

the air conditioner cabinet).

Do not dispose this product as unsorted municipal waste.

Collection of such waste separately for special treatment

is necessary.

If the supply cable is damaged, it must be replaced by the manufacturer

or its service agent or a similarly qualified person in order to avoid a hazard.

GENERAL INFORMATION

NAME OF PARTS

Warning

Maximum cooling

Minimum cooling

Maximum heating

Minimum heating

Outdoor side DB/WB( c)

48/-

-5/-

27/-

-15/-

OUTDOOR UNIT WORKING TEMPERATURE RANGE GENERALINFORMATION

TECHNICALDATA

Minimum power cable section

4.0

Fuse or air switch

2200

890

362

700

560

368

208/230V/1~60Hz

mm2

Refrigerant gas(R410A)

Electrical data

Size and clearance

Electricity Supply

Remove the handle at the right side plate of the

outdoor unit (ten screw).

Fix power connection wire by wire clamp.

Ensure wire has been fixed well.

Install the handle.

INSTALLER

Wrong wire connection may cause malfunction of some

electric components.After fixing cable, ensure that

An all-pole disconnection switch having a contact

separation of at least 3mm in all pole should be

connected in fixed wiring.

leads between connection to fixed point have some space.

The connect ion pipes and the connectiong wirings of

the unit A ,unit B,unit C and unit D must be corresponding

to each other respective.

The appliance shall be installed in accordance with

national wiring regulations.

Do not install the outdoor unit where it is exposed

to the sunlight.

HANDLING USER

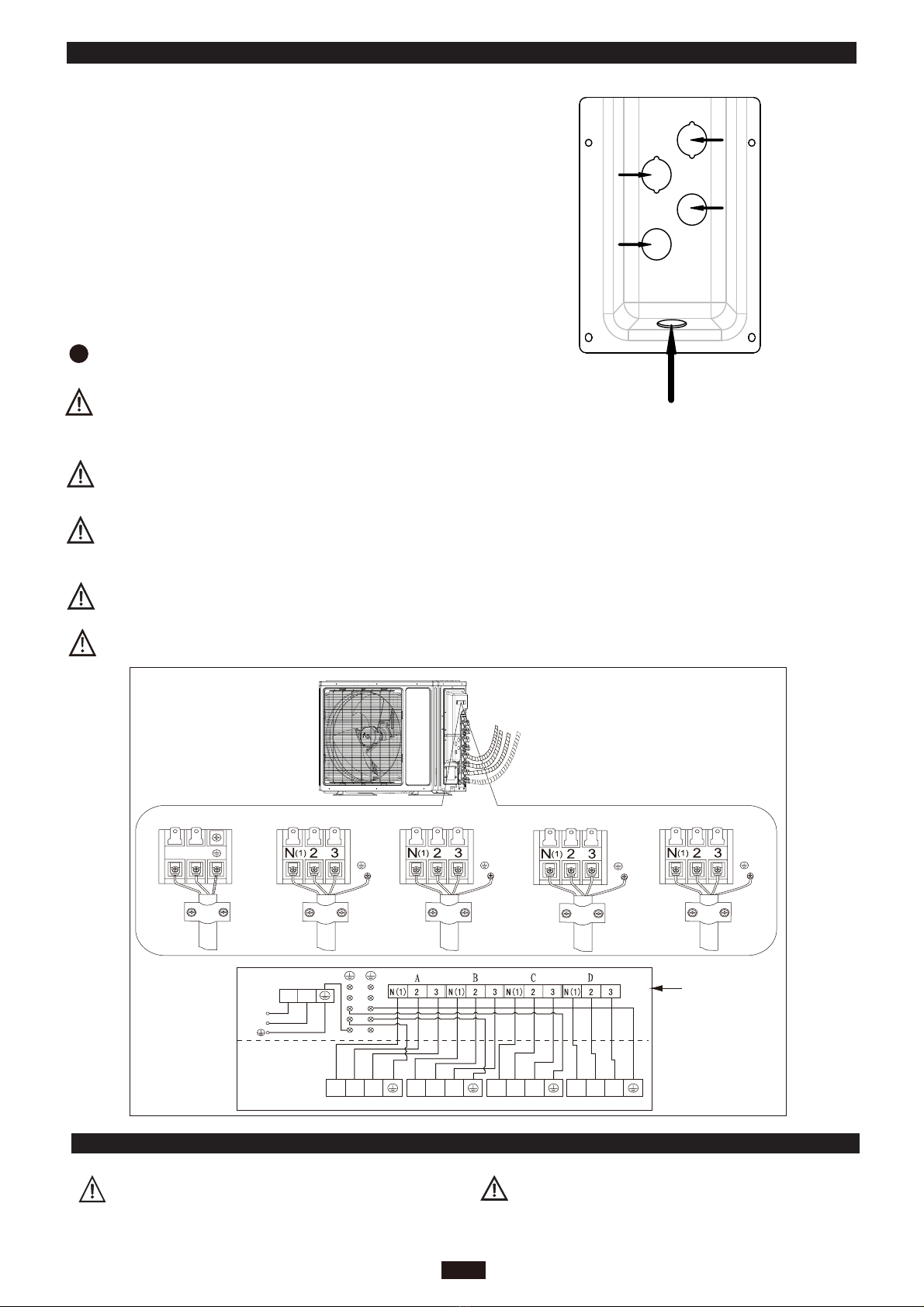

ELECTRICAL CONNECTIONS

Power

cable

connection cable

1) The power cable should be put in from the hole under

connection cable cover.

2) If connecting with two indoor units, the connection cable

should be put in from hole A and hole B

3) If connecting with three indoor units, the connection cable

should be put in from hole A , B and C

4) If connecting with four indoor units, the connection cable

should be put in from hole A, B , C and D.

All power cables and connection cables must be protected with conduits.

To the power supply

To unit B

To unit A

connection

cable

connection

cable

To unit C

connection

cable

To unit D

connection

cable

Outdoor unit

Indoor unit

L1 L2

N(1) 2 3 N(1) 2 3 N(1) 2 3 N(1) 2 3

AB C D

power

cable

After having removed the packaging, check that the

contents are intact and complete.

The outdoor unit must always be kept upright.

Handling must be done by suitably equipped qualified

technical personnel using equipment that is for suitable

the weight of the appliance .

Remove the cable clamp, connect the connection cable

and power cable with the terminal at the row of connection

and fix the connection. The fitting line distributing must be

consistent with the indoor unit terminal of line bank.

Wiring should meet that of indoor unit.

Vacuum pump

INSTALLER

Humid air left inside the refrigerant circuit can cause com-

pressor malfunction. After having connected the indoor

and outdoor units, bleed the air and humidity from the

refrigerant circuit using a vacuum pump.

(1) Unscrew and remove the caps from the 2-way and 3-

way valves.

(2) Unscrew and remove the cap from the service valve.

(3) Connect the vacuum pump hose to the service valve.

(4) Operate the vacuum pump for 10-15 minutes until an

absolute vacuum of 10 mm Hg has been reached.

(5) With the vacuum pump still in operation, close the

low-pressure knob on the vacuum pump coupling. Stop

the vacuum pump.

(6) Open the 2-way valve by 1/4 turn and then close it

after 10 seconds. Check all the joints for leaks using

liquid soap or an electronic leak device.

(7) Turn the body of the 2-way and 3-way valves. Discon-

nect the vacuum pump hose.

(8) Replace and tighten all the caps on the valves.

BLEEDING INSTALLER

INDOOR

UNIT

Vacuum pump Vacuum pump

Connect to the

indoor unit

Location

Twisting moment (N.m)

35-40

60-65

45-50

70-75

Φ12

Φ19

Diameter (mm)

Φ9.52

Φ16

15-20

Φ6

(9) If the specification of outdoor unit gas valve is 3/8＂,

but curstomer needs to install 1/2＂indoor unit so that

it is need to use a “pipe joint subassembly” (Code 06643008)

to make a conversion joint with outdoor unit gas valve and

connection pipe, as show in following.

conversion joint

Refrigerant fluid direction of flow

3-way valve

2-way valve

Service

inlet

(2) Turn

(8) Secure

(7) Turn to open fully

(2) Turn

(8) Secure

Valve cap

(6) Open by 1/4 turn

(7) Turn to open fully

(2) Turn

(8) Secure

Valve cap

Drain-water hole

Bottom frame

Drain plug

Hose (available commercially,

inner dia. 16mm)

Drain connecter

Use bolts to secure the unit to a flat, solid floor.

When mounting the unit on a wall or the roof, make

sure the support is firmly secured so that it cannot

move in the event of intense vibrations or a strong

wind.

Do not install the outdoor unit in pits or air vents

Installing the pipes

Install the drain fitting and the drain hose(for

model with heat pump only)

Condensation is produced and flows from the outdoor unit

when the appliance is operating in the heating mode. In order

not to disturb neighbours and to respect the environment,

install a drain fitting and a drain hose to channel the conden-

sate water. Install the drain fitting and rubber washer on the

outdoor unit chassis and connect a drain hose to it as shown

in the figure.

Use suitable connecting pipes and equipment for the

refrigerant R410A.

in opposite directions.

Caution: Installation Must be Performed in Accordance

with the NEC/CEC by Authorized Personnel Only

Max. connection pipe length 70

Max. connection pipe length(Simple one indoor

unit) 20

The refrigerant pipes must not exceed the maximum

heights 10m.

Wrap all the refrigerant pipes and joints.

Tighten the connections using two wrenches working

INSTALLING THE OUTDOOR UNIT

MAINTENANCE INSTALLER

INSTALLATION DIMENSION DIAGRAM

The installation must be done by trained and qualified service personnel with reliability according to this manual.

This is just the schematic plan, please refer to the actual product.

30cm

(Air inlet side)

or above

50cm

or above

Space to the wall

200cm

(Air outlet side)

or above

30cm

Space to the cover

or above

or more

Space to the cover

50cm

INSTALLER

Use suitable instruments for the refrigerant R410A.

Do not use any other refrigerant than R410A.

Do not use mineral oils to clean the unit.

Contact service center before installation to avoid the malfunction due to unprofessional installation.

When picking up and moving the units, you must be guided by trained and qualified person.

Ensure that the recommended space is left around the appliance .

INSTALLER

CHECK AFTER INSTALLATION

Check Items Problems Owing to Improper Installation

Is the installation reliable? The unit may drop, vibrate or make noises

Has the gas leakage been checked? May cause unsatisfactory cooling (heating)

effect

Is the thermal insulation of the unit

sufficient?

May cause condensation and water dropping

Is the drainage smooth? May cause condensation and water dropping

Does the power supply voltage accord

with the rated voltage specified on the

nameplate?

The unit may bread down or the components

may be burned out

Are the lines and pipelines correctly

installed?

The unit may bread down or the components

may be burned out

Has the unit been safely grounded? Risk of electrical leakage

Are the models of lines in conformity

with requirements?

The unit may bread down or the components

may be burned out

Are there any obstacles near the air

inlet and outlet of the indoor and outdoor

units?

The unit may bread down or the components

may be burned out

Have the length of refrigerating pipe

and refrigerant charge amount been

recorded?

It is not easy to decide the charge amount

of refrigerant.

CUSTOMER SUPPORT

Before contacting customer support, please see the troubleshooting guide above.

Visit our website to contact us, find answers to Frequently Asked Questions, and for other

resources which may include an updated version of this user's guide.

 WWW.IMPECCA.COM

If you wish to contact us by phone, please be sure to have your model number and serial

number ready and call us between 9:00am and 6:00pm ET, at +1 866-954-4440.

Keep tabs on Impecca's newest innovations & enter contests via our social network feeds:

www.facebook.com/Impecca/

 www.instagram.com/impecca/

@impeccausa

Split Air Conditioner

Models:

ISMI-W182

ISMI-W242

Thank you for choosing our product.

For proper operation, please read and keep this manual carefully.

If you have lost the Owner’s Manual, please contact the local agent or visit

www.impecca.com for electronic version.

v. 1.1

This appliance is not intended for use by persons (including children) with reduced physical,

sensory

or mental capabilities or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure they are away from the appliance.

Content

Operation Notices

Precautions............................................................................................................1

Parts Name............................................................................................................6

Screen Operation Guide

Buttons on remote controller .................................................................................7

Introduction for icons on display screen................................................................7

Introduction for buttons on remote controller........................................................ 8

Function introduction for combination buttons.....................................................12

Operation guide...................................................................................................

.13

Replacement of batteries in remote controller.....................................................13

Emergency operation ...........................................................................................14

Maintenance

Clean and Maintenance.......................................................................................14

Malfunction

Malfunction analysis ............................................................................................17

Installation Notice

Installation dimension diagram............................................................................21

Tools for installation.............................................................................................22

Selection of installation location ..........................................................................22

Requirements for electric connection ..................................................................23

Installation

Installation of indoor unit......................................................................................24

Check after installation ........................................................................................

Test and operation

Test operation

Configuration of connection pipe

......................................................................................................29

Attachment

.........................................................................30

Pipe expanding method.......................................................................................32

Wired Controller....................................................................................................33

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Impecca Climatiseur

Impecca

Impecca ITAH-08KSP Manuel utilisateur

Impecca

Impecca ISMO-3016 Manuel utilisateur

Impecca

Impecca IPAC08KS Manuel utilisateur

Impecca

Impecca IPAC14-LS Manuel utilisateur

Impecca

Impecca IPAC10-LR Manuel utilisateur

Impecca

Impecca IWA10-QS30 Manuel utilisateur

Impecca

Impecca IWA-05KM15 Manuel utilisateur

Impecca

Impecca IPAC16-BRB Manuel utilisateur

Impecca

Impecca ISMI-C15 Manuel utilisateur

Impecca

Impecca IWA06-QR15 Manuel utilisateur

Impecca

Impecca IWA05KSP Manuel utilisateur

Impecca

Impecca IWA10-QR15 Manuel utilisateur

Impecca

Impecca IPAH-12K Manuel utilisateur

Impecca

Impecca IPAC12-KR2 Manuel utilisateur

Impecca

Impecca ITAC-08KS21 Manuel utilisateur

Impecca

Impecca IWA25-QS30 Manuel utilisateur

Impecca

Impecca ISAH-2418B1 Manuel utilisateur

Impecca

Impecca IWA12-KM15 Manuel utilisateur

Impecca

Impecca ISMO-1821 Manuel utilisateur

Impecca

Impecca ITAC-10KSB Manuel utilisateur

Impecca

Impecca IPAC-12K Manuel utilisateur

Impecca

Impecca IPAC-08K Manuel utilisateur

Impecca

Impecca IWA05KM Manuel utilisateur

Impecca

Impecca ITAC08-LSA23 Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
