IMOU DB60-KIT Manuel utilisateur
V1.0.0
Quick Start Guide
Doorbell Chime
T2.00250635
https://en.imoulife.com
Welcome
Thank you for choosing IMOU.
We are devoted to providing you easy smart home products. If you
have problems using the product, please contact our service team at
Overview
Front View
LED Indicator
Package Contents
Doorbell Chime ×1 Power Pin ×1
1
Quick Start Guide ×1
Speaker
LED Status Device Status
Operating correctly
Setup successful
Ready to set up the device
Booting/Restarting
Resetting to factory default
Network disconnected
Solid green
Solid red
Flashing green
O
Flashing green
and red
Flashing red
Updating rmware
Power disconnected
Installation
Step 1 Place the power pin onto the rear side of the chime, and then press it
down to t the two parts together.
Step 2 Slide the power pin upwards to secure it. A click sound will indicate that
it is locked in.
2
Antenna
QR Code
Reset Button
Power Pin
Release Buckle
Back View Side View
Press and hold the reset button for 10 s until the LED turns solid red.
How to reset the chime
i
Scan the QR code with Imou Life App to add the device to your account.
Please keep it well for future use.
Function of the QR code
i
Step 3 (optional) Install the video doorbell. For details, please refer to the doorbell guide.
Step 4 Plug your chime into the power outlet where you can hear the ringtone easily, such as the hallway. It is
recommended that the chime is located between the Wi-Fi router and the doorbell. Place them as close
to each other as possible for optimal performance.
How to detach the power pin from the chime
Press the release button and meanwhile slide down the power pin to remove it.
i
3
+50 °C/122 °F
-10 °C/14 °F
90 V-250 V
50/60 Hz
AC
4
Set Up the Device
Scan the QR code below, search for "Imou Life" in the app store, or navigate to Support > Download Center in
our ocial website to download and install the app.
To ensure the best possible wireless performance, please make sure there are no obstacles and electromagnetic
interference between the device and the router.
If you already use the app, make sure that you are using the latest version.
i
1
Imou Life
5
Please link the chime to your doorbell on the device setting page of the doorbell; otherwise, your chime will
not respond to the doorbell.
i

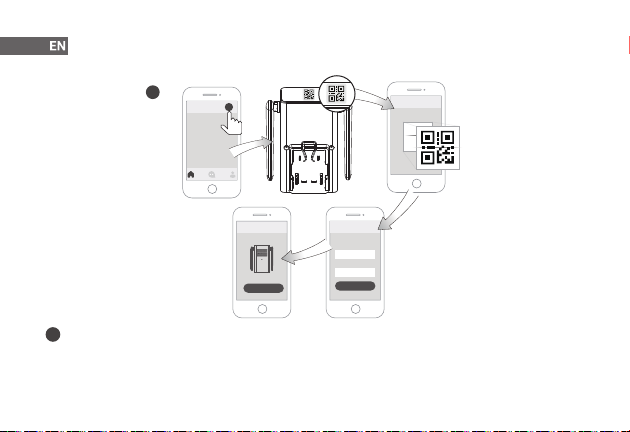

The app will guide you through the setup process.
2
SSID
XXXXXX
Password
Next
Wi-Fi SetupSetup
Done
Add Device
+
Troubleshooting
Q: Failed to set up the device.
Ensure your smart phone and the device are within range of your Wi-Fi router (recommended to be no
more than 5 m/16 ft). If the location where the chime is installed has a weak signal, consider adding a Wi-Fi
extender between your router and the chime.
Ensure the LED on the device is flashing green before setup.
Reset the device, and then set it up again.
Q: The chime does not ring after I press the doorbell.
Ensure the chime has been linked to the doorbell. On the device setting page of the doorbell, tap Link
Chime, select the correct chime type, and then follow on-screen instructions.
Ensure the chime is online and Audio Alert toggles on. On the device setting page of the chime, tap
Chime Sound to nd Audio Alert.
If Snooze Alert (in
Chime Sound
) toggles on, the chime ringing within the snooze schedule will be
silenced.
6
Q: How to update the rmware?
You can update the rmware through the "Imou Life" app in Devices Settings > Firmware. It shows a red
dot when an update is available. The chime will restart automatically when it nishes update.
Q: The device is oine.
If the LED is ashing red, check whether the router can connect to the Internet. If the network is connected,
restart the device. If the device is still oine, reset it.
Q: My chime has been linked to the doorbell, but live streaming of the doorbell lags or stutters.
Install the chime between the doorbell and the router, such as the hallway.
Check if your network is stable and at least 2 Mbps of the bandwidth is required.
Q: How to pair the doorbell to the chime?
After setting up the chime, on its setting page, tap Quick Setup,and then follow on-screen instructions.
Switch the WLAN of the doorbell to the one from the chime.
For more questions, please scan the QR code or visit:
https://en.imoulife.com/support/help
7
https://en.imoulife.com
