iMore iMH1875 Manuel utilisateur
Shenzhen iMore Technology Co., Ltd
Web: www.szimore.com
Flexible Mesh LED
Products name
Goods shelf signage
Products model
iMH1875
Compiled
July 2019
Version
REV1.0
Attention：Before using the product, please read this manual carefully!
Statement:
No part of this manual may be reproduced, transmitted or transcribed without the express writte
n permission of Shenzhen iMore Technology Co., LTD.
The manual may not be used in any form or by any means (electronic, mechanical, photocopy
ing, recording or otherwise possible) for commercial purposes or for profit-seeking purposes.
The product specifications and information mentioned in this manual are for informational
purposes only and are subject to change without notice. Unless otherwise agreed, this manual is
For guidance only, and all statements, information, etc. In this manual shall not constitute any
form of warranty.
Goods Shelf Signage User Manual
2|20
1. Introduction

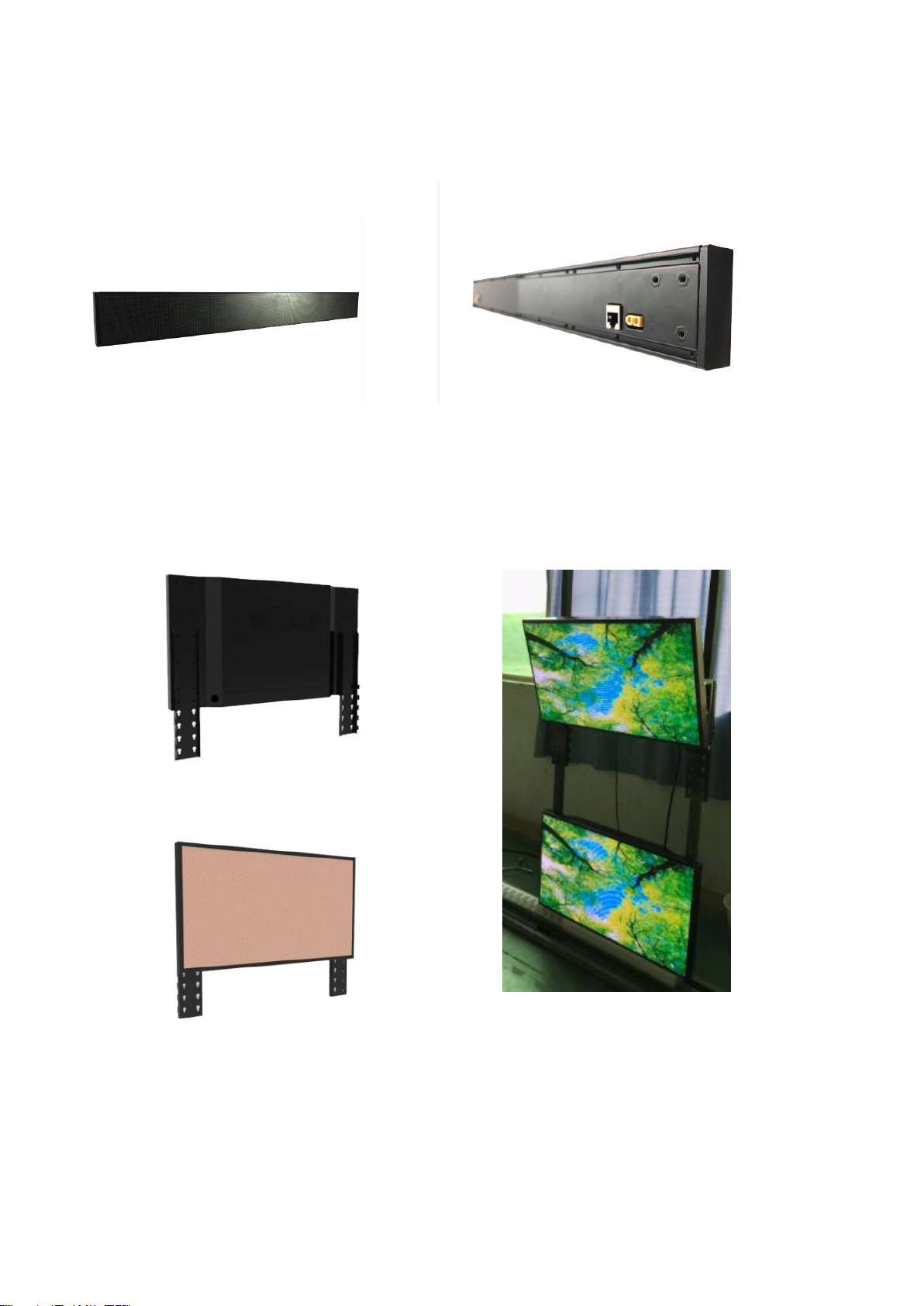

1.1. Products appearance
Shelf Led Display
Header display
2. Products features
3|20
◆ High resolution COB -LED display technology
◆ Use to stable ,exclusive patent for COB prevent touch encapsulation technology
◆ Anti-water COB technology, no problem for water drop on surface.
◆ Anti-dust, friendly to clean up directly on front surface
◆ 16 Bit High gray scale display, more colorful
◆ Full aluminum alloy cabinet, lightweight and durable
◆ Various of installation bracket, installation diversification
◆ DB15 standardizing connector, easily change for the accessory
◆ Separate type of main controller , support WIFI control and update content
◆ USB multi-function ports , easy to set up or update content
◆ U disk play or update content, easily play management
4|20
3. Operation guide

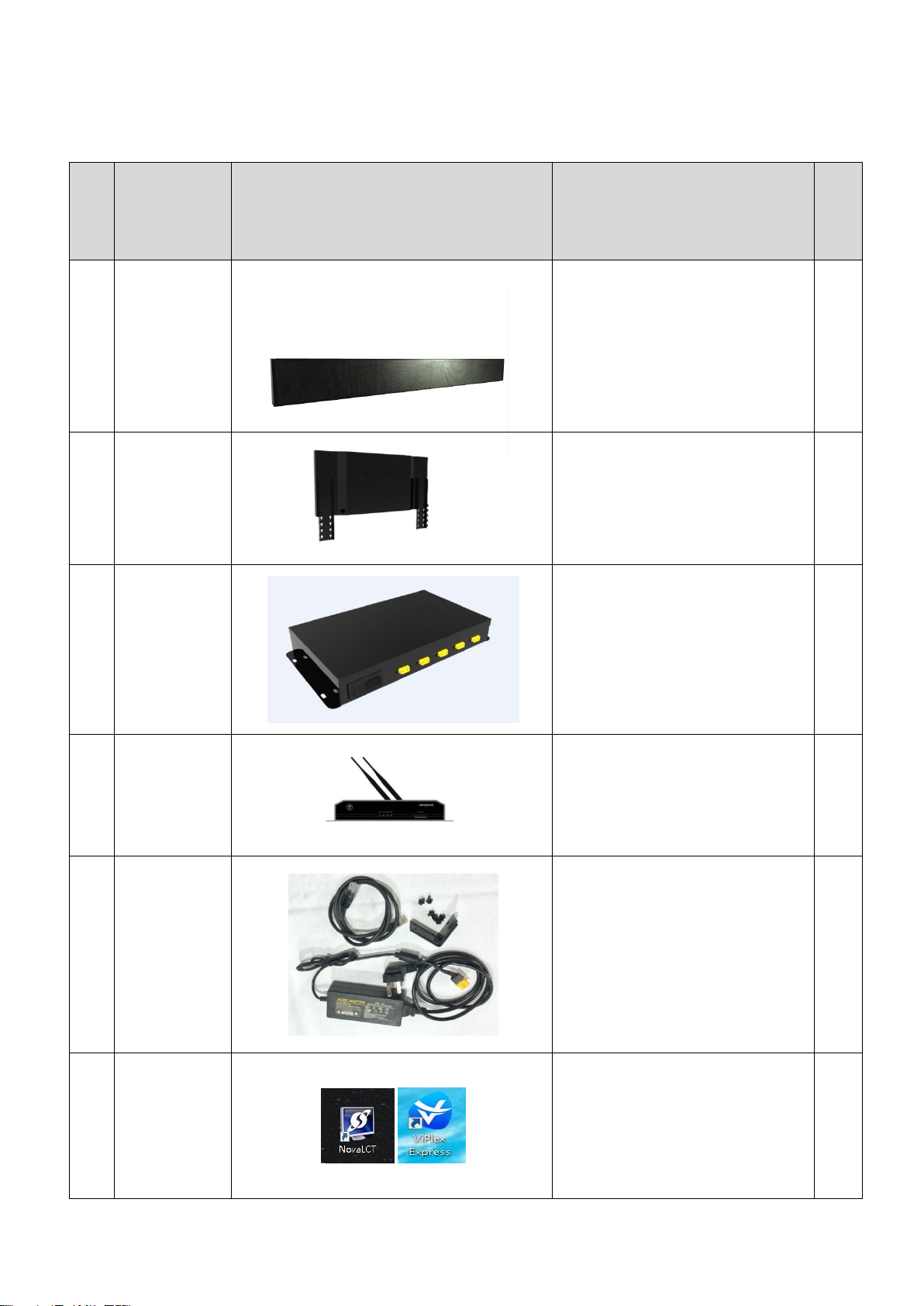

3.1. Accessories packing list
No
Name
Photos
Specification model
QT
Y
1
Shelf Led
Display
600*60mm/900*60mm/1200
*60mm
shelf display
4
2
Header
display
900*480mm/1200*360mm
header display
1
3
Power box
300L*160W*420Hmm
Weight 2KG
1
4
Sending
box
Nova TB3
1
5
Spare parts
1. LAN cable； 2. Power
cable；3. Adapters (if
needed)
1
6
Control
system
software
NovaLCT， Viplex
1
5|20
3.2. Safety instructions
★ The input voltage range of this product is 100-240VAC, 50 / 60Hz, please connect to the
correct power
★ This product uses 24VDC 2A input, please use with the power control box
★ Before connect or disconnect any cable, make sure that the power switch is turned off
★Before adding more output terminals, make sure that the power switch is turned off
★ Please use for indoor environment, do not put this product into high temperature, humid
and other environments
★ This product is electronic products, please stay away from fire, water and flammable and
explosive dangerous goods
★ This product has high-voltage components inside the control box, please do not open the
chassis or modify and repair it
★ If you find any smoke, smell and other unusual circumstances, please immediately turn off
the power switch, and contact the dealer
6|20
3.3 Specification
NO.
Item
Unit
Parameter/specification
Note
1
Shelf Led Display
mm
L600*H60*T26 mm/set
L900*H60*T26 mm/set
L1200*H60*T26 mm/set
2
Header display
mm
L900*H480*T65mm
L1200*H360*T65mm
3
Weight
Kg
0.65 Kg
main controller not
included
4
Pixel pitch
mm
1.875 mm
5
LED Configuration
-
1R 1G 1B
6
Shelf Signage Power
consumption Max
W/Pc
32/48/64 W/set
white balance
testing
7
Operating Voltage
V
DC 24 V
8
Maximum current
A
1.0 A
9
Brightness
Nit
≥600 Nit
10
Refresh rate
Hz
≥1920Hz
11
Frame frequency
Hz
120Hz
12
Gray scale
Bit
16Bit
13
Operating temperature
℃
-10-45℃
17
Working humidity
-
10-90%
18
IP defense
-
IP 30
19
Storage condition
-
-20--65℃ 10-90%
7|20

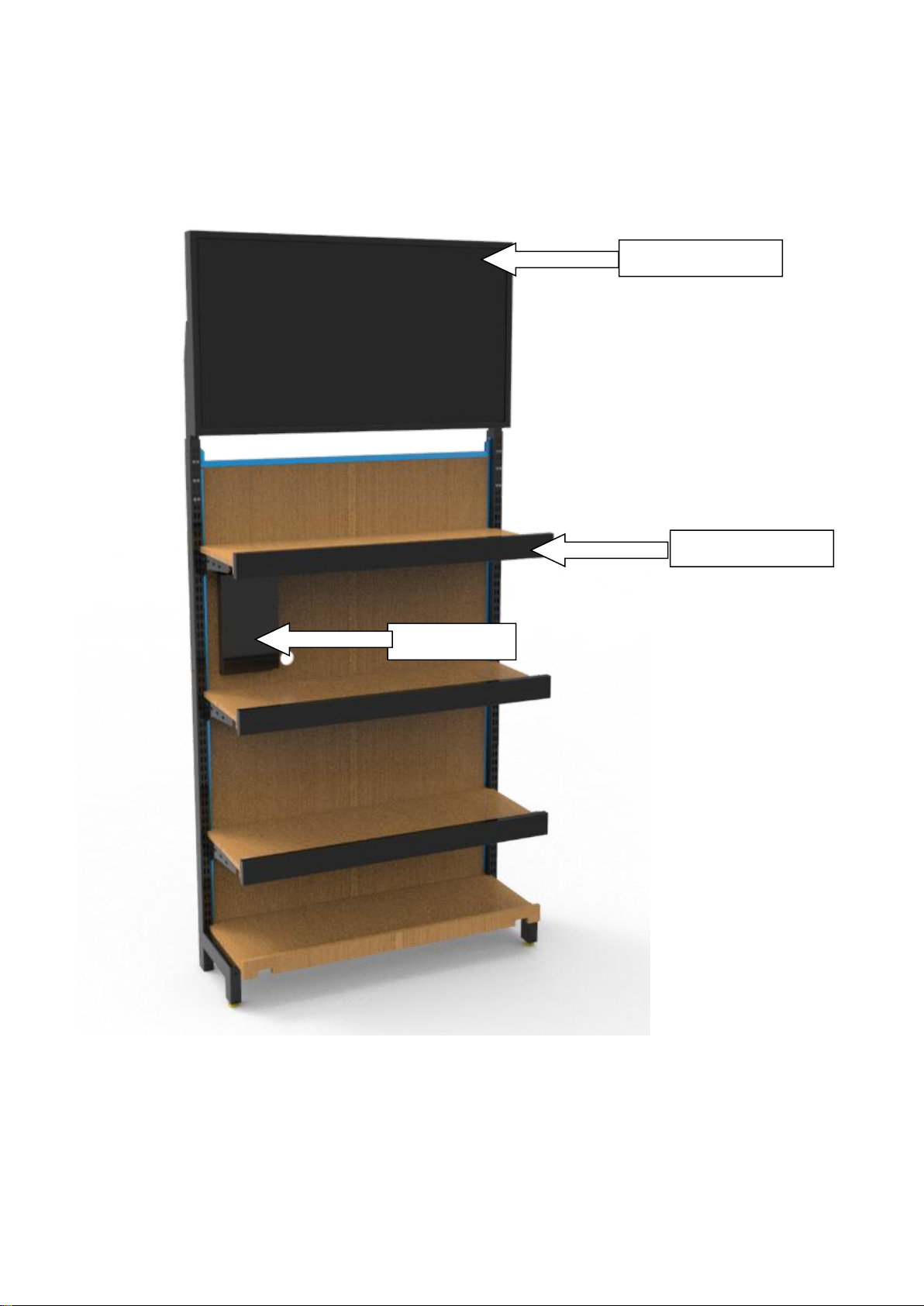

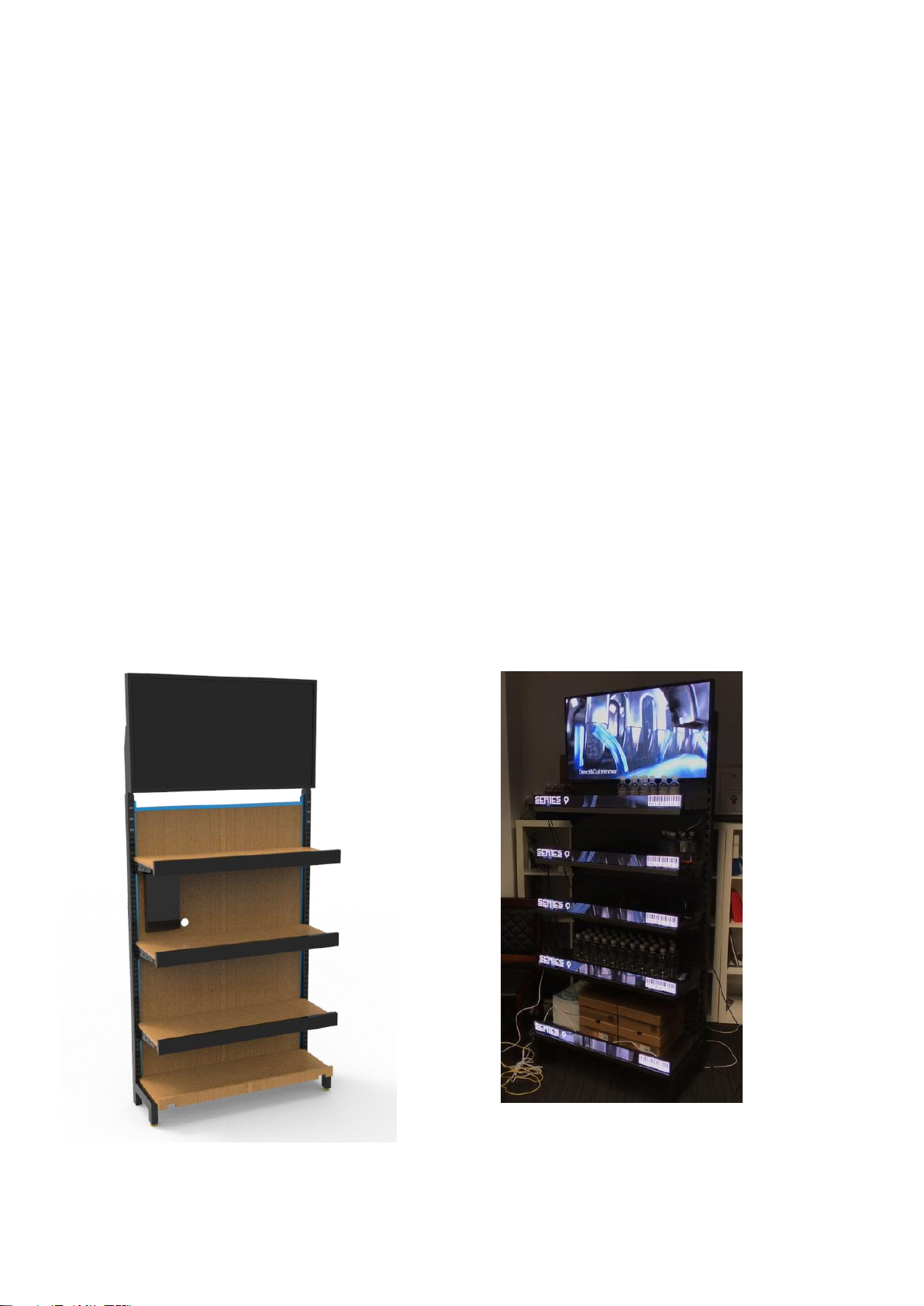

4. Hardware installation
4.1 Hardware installation appearance.
Header display
Power box
Shelf LED display
8|20
4.2 Shelf installation method.
4.2.1 Fix the mounting bracket on Shelf LED by screws offered.
4.2.2 Fix the shelf signage onto the shelf by screws.
4.2.3 Fix the power box.
9|20
4.3 Cables connection.
4.3.1. Power cable connection.
Option 1:
Option 2:
220V power box
220V power box
10 |20

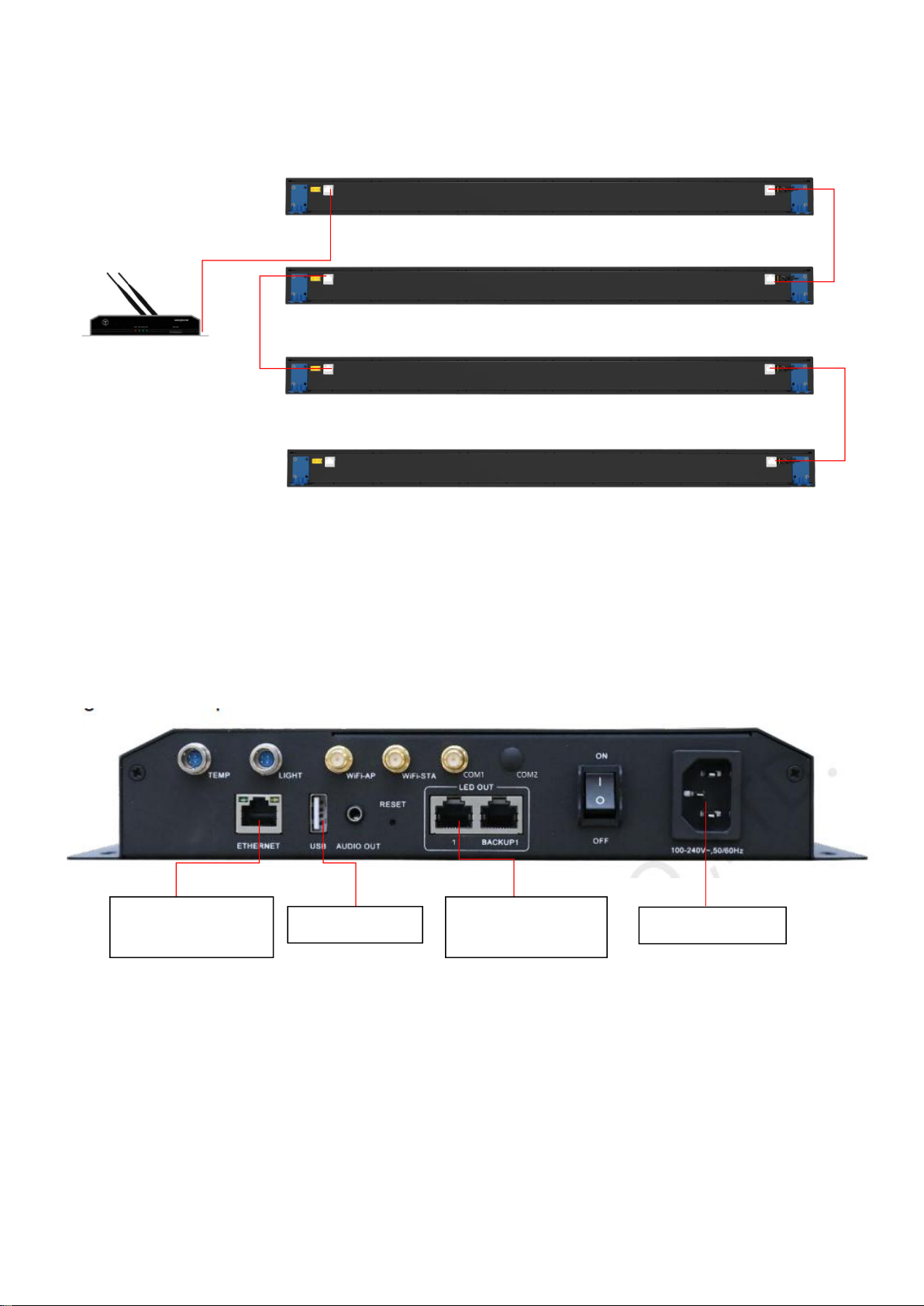

4.3.2 Signal cable connection.
TB3 sending box
TB3 sending box connection cables
Lan cable connect to
internet
USB stick upload
Lan cable connect to
shelf signage
Power connector
