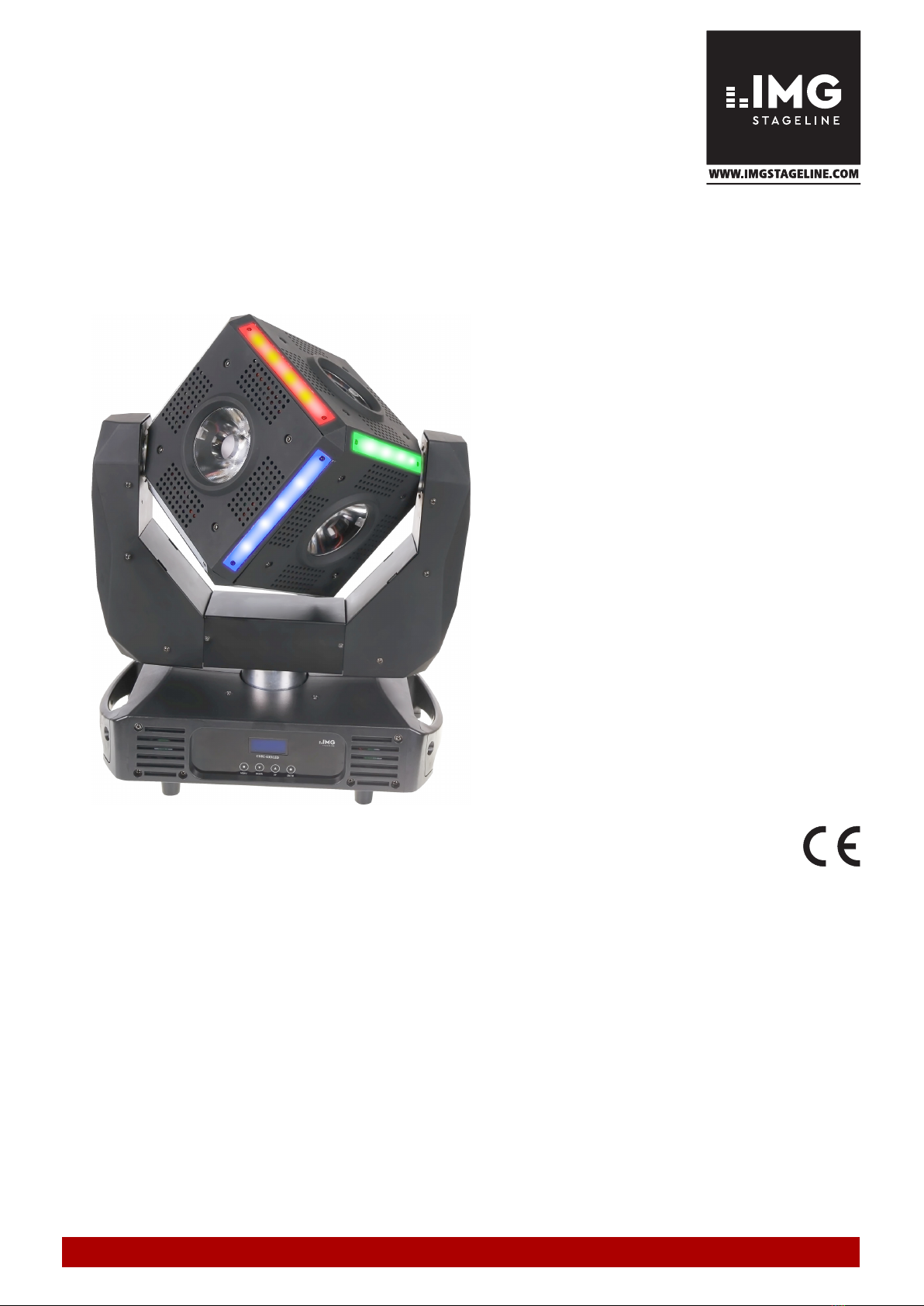

IMG STAGE LINE CUBE-630/LED Manuel utilisateur

CUBE-630/LED Order No. 38.7710

LED Beam Moving Head

INSTRUCTION MANUAL

ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS

-1-

Contents

Introduction & Symbol Instruction ----------------------------------------------------------P2

Safety instructions -------------------------------------------------------------------------------P3

Installation instruction---------------------------------------------------------------------------P4

Ringing & Product specification--------------------------------------------------------------P5

LCD display & MENU operation & Function setting -------------------------------P6-11

Channel Instruction-------------------------------------------------------------------------P12-15

DMX-connection and setting ------------------------------------------------------------P14-16

CUBE-630/LED

-2-

Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your

own safety, please read this user manual carefully before installing the device.

In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and

operation should be done by the verified technician and follow the instruction strictly.

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow carefully the instructions of this manual

Introduction

Thank you for having chosen this professional moving head. You will see you have acquired a powerful and versatile

device.

Unpack the device. Inside the box you should find:

1. One DMX connection cable

2. One quick lock handle

3. One use manual

4. One power cable:

Please check carefully that there is no damage caused by transportation. Should there be any, consult your local

dealer

Symbol Instruction On The Device

…………………………………………………………… CE Certificate

………

……………………………………………………………

……………………………………………………

………………………………

Suitable directly installed on the common combustible materials devices

Only indoor using

Environmental protection

The minimum distance from lighted objects(meter)

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION

Be careful with your operations. With a dangerous voltage you can suffer a

dangerous electric shock when touching wires!

CUBE-630/LED

Safety Instructions

This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation,

it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

►If the device has been exposed to temperature changes due to environmental changes, do not switch it on

immediately. The arising condensation could damage the device. Leave the device switched off until it has reached

room temperature.

►Please make sure that the device be earthed.

►Please replace housing if it is broken. This fixture can be using after finished installed.

►The electric connection must carry out by qualified person.

►Make sure that the available voltage is not higher than stated at the end of this manual.

►Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of

the cable must be done by an authorized dealer.

►If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the

manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

►Please cut off the power if don't use the fixture or want to clean, maintenance.

Please be aware that damages caused by manual modifications to the device are not subject to warranty.

Keep away from non-professionals.

General Guidelines

►This device is a lighting effect for professional use on stages, in discotheques, theaters, etc., the device was

designed for indoor use only.

►This fixture is only allowed to be operated with the max alternating current which stated in the technical

specifications in the last page of this manual.

►The device can do continuous work for eight hours. Lighting effects are not designed for permanent operation.

Consistent operation breaks may ensure that the device will serve you for a long time without defects.

Warning!

Damages caused by the disregard of this user manual are not subject to warranty. The

dealer will not accept liability for any resulting defects or problems.

CUBE-630/LED

-3 -

-4-

►Handle with care, do not make the device by strong shocks.

While choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or

dust. Please don't project the beam onto combustible substances.The minimum distance between light-output from

the projector and the illuminated surface must be more than 1 meter.

►Please do not in damp, overheat or dusty environment install and use the device. Do not use light on fuel. The

distance between the device and the projectile to keep at least 1 meter.

►If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners turned in the

quick lock holes correctly.

►Operate the device only after having familiarized with its functions. Do not permit operation by persons not

qualified for operating the device. Most damages are the result of unprofessional operation.

►Please use the original packaging if the device is to be transported.

►For safety reasons, please be aware that all modifications on the device are forbidden.

►If this device will be operated in any way different to the one described in this manual, the product may suffer

damages and the guarantee becomes void. Furthermore, any other operation may lead to short-circuit, burns,

electric shock, lamp explosion, crash, etc.

Installation Instruction

►The applicable temperature for the lighting is between -25°C to 45°C. Do not use the lighting under or above the

temperature.

►The installation of the effect has to be built and constructed in a way that it can hold 10 times the weight for 1 hour

without any harming deformation.

►The installation must always be secured with a secondary safety attachment, e.g. an appropriate safety

rope.Never stand directly below the device when mounting, removing or servicing the fixture.

►The operator has to make sure the safety relating and machine technical installations are approved

by an expert before taking the device into operation for the first time.

►These installations have to be approved by a skilled person once a year.

►Overhead mounting requires extensive experience, including amougst others calculating working load limits,

installation material being used, and periodic safety inspection of all installation material and the device. If you lack

these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.

CAUTION!

Please consider the EN60598-2-17 and the other respective national norms during the

installation. The installation must only be carried out by a qualified person.

CUBE-630/LED

-5-

Ringing

Insert the quick-lock fasteners of the first holder into the respective holes on the bottom of the device.Tighten the

quick-lock fasteners fully clockwise.

Make the finished installed mounting bracket tighten on the fixed bracket.

Pull the safety rope through the holes on the bottom of the base and over the trussing system or other safe fixation

spot.

Note:This step is quite important to ensure that fixture will not drop out by the damage of clamp.

Product specification

●6* 30W RGBW 4in1 LED；

●LED average lifetime over 50000 hours, low power consumption

●DMX channel：15/37CH

●Control mode ：master/slave, auto, DMX, sound

●standard beam angle：8º ，standard spot angle：4º, 900lum @5M

●Pan: 630º/540°, TILT: 200º

●360º infinite tilt

● Electrical strobe 1~25Hz；

●Electrical dimming：0%~100%；

●10 built-in programs for auto display or controlled by DMX controller

●can edit program via DMX controller and front display, and save the programs in CPU of the fixture.

● 3Pin DMX connector, LCD display:

● Input voltage：AC100 ~240V 50/60Hz

● Product dimension：247.0*236.0*370.0 mm

CUBE-630/LED

Handing bracket

Safety-rope

Rapid

locking hook

-6-

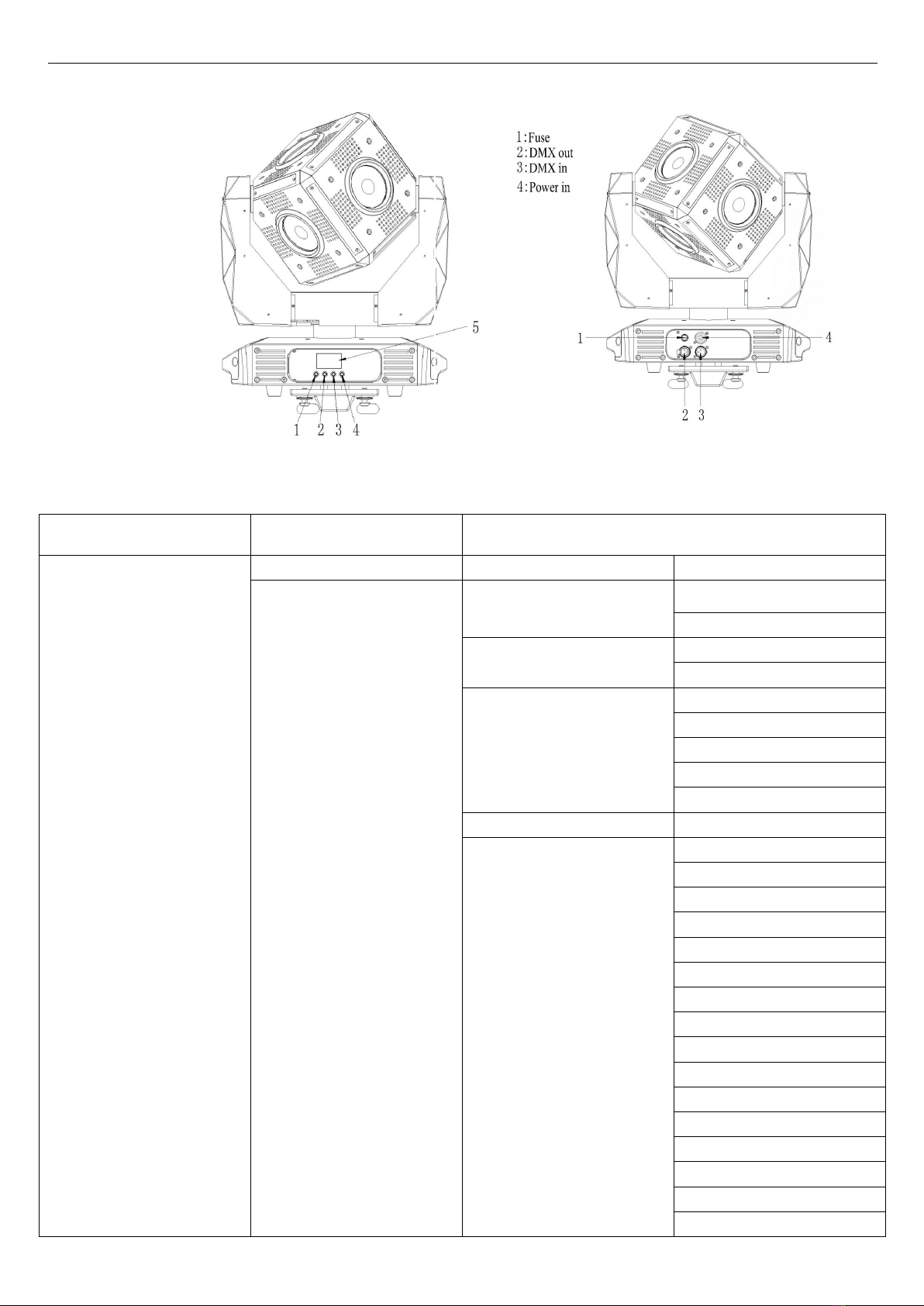

LCD display

LCD operation

Main menu Sub-menu Function

DMX address Set address code Address 001~512

Operate Mode

Channel 15Channel

37 Channel

Mast Mode Alone-Mode

Host-Mode

Auto Mode

Auto0

Auto1

Auto2

Auto3

Auto4

Sound Control 000~099%

Manual test

PAN

TIL

Red1

Gren1

Blue1

White1

Red2

Gren2

Blue2

White2

Red3

Gren3

Blue3

White3

Red4

Gren4

1：（MENU）

2：（DOWN）

3：（UP）

4：（ENTER）

5：Display

CUBE-630/LED

Blue4

White4

Red5

Gren5

Blue5

White5

Red6

Gren6

Blue6

White6

System Setting

Pan Reverse YES

Pan fine Adjust 000~255

Tilt fine Adjust 000~255

Pan Angle Choose Pan Angle 630

Pan Angle 540

Display back Light YES

DMX Lost

Hold

Blac

Soud

Auto

Encoder YES

Reset

Default

Status Info

Software Version V1.2

Operate Time xxx(H)

Working Temperature xxx°

MENU operation

This fixture has 4 keys on front panel for operation, press these to set address, reset, edit and run programs and so on.

[MENU]: press MENU key to enter edit status, in edit status, if press MENU again, it will return the upper interface. If

no operation 30 seconds after enter edit status, the fixture will exit the edit status automatically.

[Up]: press UP key, the indicator will flash, the address increases one by one, if hold the key continuously, the

address will increase rapidly. If no press within 30 seconds, the indicator stops flashing and exit it.

In edit status, press UP key, it will display the options circularly from down to up.

[Down]：press DOWN key, the indicator will flash, the address decreases one by one, if hold the key continuously, the

address will decrease rapidly. If no press within 30 seconds, the indicator stops flashing and exit it.

-7 -

CUBE-630/LED

-8-

In edit status, press DOWN key, it will display the options circularly from up to down.

[ENTER]：in normal status, no function to press ENTER. In edit mode, press ENTER to enter lower interface.

Function setting

1）DMX address setting

1．Press MENU to enter EDIT interface

2. Press UP/DOWN to choose, then pres ENTER to enter Address setting

3．Press Up/Down to choose address 001~XXX

4．press ENTER to confirm, or press "MENU" to exit

2）Operate Mode Setting

a）Channel mode setting

1. Press MENU to enter EDIT interface

2. Press UP/DOWN to choose, then pres ENTER to enter 【Operate mode】

3. Press UP/DOWN to choose, then pres ENTER to enter 【channel value】

4. Press UP/DOWN to choose each channel.‘15CH’/‘37CH’

5. Press ENTER to confirm, or press "MENU" to exit

b）Master-slave setting

1. Press MENU to enter EDIT interface

2. Press UP/DOWN to choose, then pres ENTER to enter 【Operate mode】

2. Press UP/DOWN to choose, then pres ENTER to enter 【Mast Mode】

4. Press UP/DOWN to choose Master/Slave.

5. Press <Enter> to confirm, save and exit.

c）Run built-in program by auto control (before this setting, please Press MENU into to <System setting> then to

<DMX Lost> to select <Auto> and save, user should be in Auto Mode first, the different Auto Effect Shows can be

selected)

1. Press MENU to enter EDIT interface

2. Press UP/DOWN to choose, then pres ENTER to enter 【Operate mode】

2. Press UP/DOWN to choose, then pres ENTER to enter 【Auto Mode】

4. Press <Up/Down>, <Enter> to choose the build-in program

5. Press <Enter> to confirm, save and exit.

d）Set sound sensitivity (before this setting, please Press MENU into <System setting> then to <DMX Lost> to select

<Sound> and save, user should be in Sound Mode first, the different Sound sensitivity can be selected)

1. Press MENU to enter EDIT interface

2. Press UP/DOWN to choose, then pres ENTER to enter 【Operate mode】

2. Press UP/DOWN to choose, then pres ENTER to enter 【Sound Mode】

4. Press <Up/Down>, <Enter> to adjust the sound sensitivity from 0%-99%.

5. Press <Enter> to confirm, save and exit.

e）Manual test (it is to test if the function is ok, not to set each function)

1. Press MENU to enter EDIT interface

2. Press UP/DOWN to choose, then pres ENTER to enter 【Operate mode】

2. Press UP/DOWN to choose, then pres ENTER to enter 【Manual control】

3. Press <Up/Down>, to choose【PAN】,【TILT】,【Red1】,【Gren1】,【Blue1】,【Whte1】【Red2】,【Gren2】,

【Blue2】,【White2】【Red3】,【Gren3】,【Blue3】,【White3】【Red4】,【Gren4】,【Blue4】,【White4】【Red5】,

【Gren5】,【Blue5】,【White5】【Red6】,【Gren6】,【Blue6】,【White6】

【PAN】：(1)Press <Enter> into【PAN】

CUBE-630/LED

Ce manuel convient aux modèles suivants

Autres manuels IMG STAGE LINE Projecteur

IMG STAGE LINE

IMG STAGE LINE LED-500DX Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE TWIST-50LED Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE LED-600DX/RGB Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE CRAB-12RG Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE TWIST-52LED Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE TWIST-1LED Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE SCAN-12 Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE WASH-400LED Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE PARL-74RGBW Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE LE-102 Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE PARL-36/CR Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE PARC-56/WS Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE SCAN-10 Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE RGBL-430DMX Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE PARL-12RGBW Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE LE-500DMX Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE CUBE-630/RGBW Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE PARL-36DMX/CR Manuel utilisateur

IMG STAGE LINE

IMG STAGE LINE MPX-410DMP Manuel utilisateur

Manuels Projecteur populaires d'autres marques

VIZULO

VIZULO Micro Martin Guide de l'utilisateur

EuroLite

EuroLite LED IP FL-100 SMD Manuel utilisateur

Cooper Wheelock

Cooper Wheelock XB12 Manuel utilisateur

Allen + Roth

Allen + Roth 17624-000 Manuel utilisateur

ADJ

ADJ 4 STAGE PAK Manuel utilisateur

Cooper Lighting

Cooper Lighting EGL91SW233 Manuel utilisateur

Max

Max 37496 Manuel utilisateur

BEGA

BEGA 85 143 Manuel utilisateur

Beamz

Beamz 151.226 Manuel utilisateur

EuroLite

EuroLite LED IP FL-8 Manuel utilisateur

Ledj

Ledj PERFORMER 36 RGB Manuel utilisateur

Perel

Perel ELS3 Manuel utilisateur

Perel

Perel ELS3WD Manuel utilisateur

LumX

LumX LM 36130 Manuel utilisateur

Xtricity

Xtricity 4-80053 Manuel utilisateur

Stahl

Stahl 6521/4 Series Manuel utilisateur

Ecosense

Ecosense EcoSpec Manuel utilisateur

Ayrton

Ayrton minipanel FX Manuel utilisateur
