User’s Guide

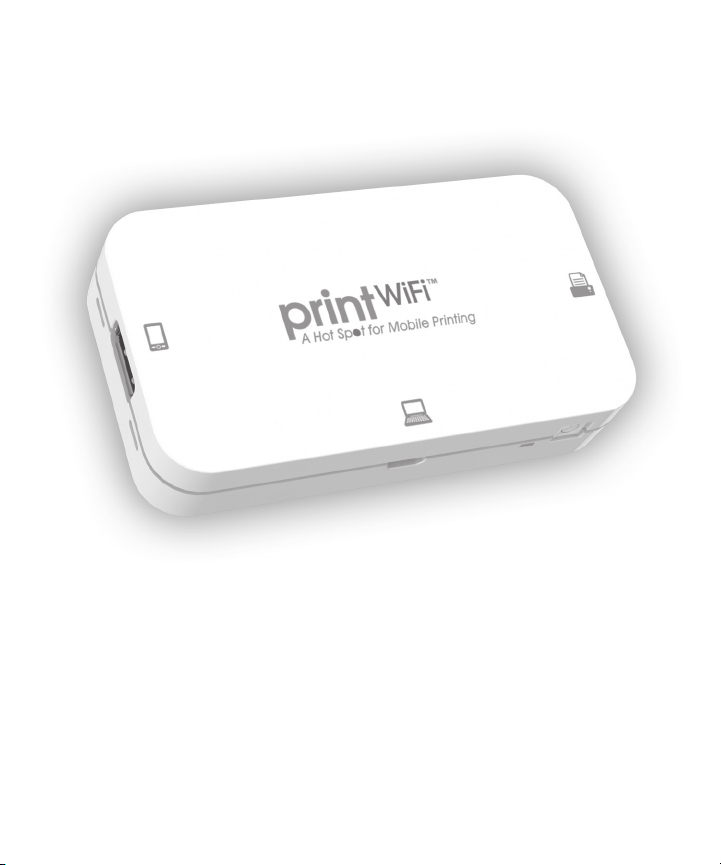

printWiFi™
Portable Mobile Printing Controller
Index
Section Page
Features 3
What’s Included 3
Safety Information 4
Getting to Know printWiFi 5
Downloading printView App 6
Getting to Know printView App 7
Operational Instructions 10
Step 1: Select Document 11
Step 2: Connect Printer & Mobile Device 14
Step 3: Printing 17
Document Import Options 22
Settings 24
WiFi (SSID, Security, Password) 26
Admin Password 27
Software/Firmware Update 28
Reset to Factory Default Settings 30
Power Switch, Charging & LED Indicator 32
Alert Message User Actions 34
Specifications 35
Troubleshooting 36
Compliance with FCC Regulations 37
Warranty Information 42
2
3
What’s Included
printWiFi Quick Start Guide
printView™ Free Download iTunes App Store & Play Store
printWiFi Charging Cable
Thank you for purchasing printWiFi Mobile Printing Controller
Features:
•PrinttolocalUSBprinters
•Noprinterdriverstoinstall
•Userselectsprinterfrommultipleconnectedprinters.
•Fullprinterfeaturefunctionality
•RechargeableLi-ionbatterywithover2hoursofprinting
•LEDBatteryIndicator
•EasyUSBCharging
printWiFi
Controller
printWiFi Printer Cable
USB B
Connector
USB A Connector
USB Micro
Connector
USB A Connector
Important Safety Instructions
1.Water and Moisture-printWiFishouldnotbeusednearwater.For
example:nearabathtub,washbowl,kitchensink,laundrytub,swimming
poolorinawetbasement.
2.Objects and Liquid Entry-Careshouldbetakensothatexternal
objectsdonotfallintoandliquidsarenotspilledontoanyopenings
locatedontheproduct.
3.Heat-printWiFishouldbesituatedawayfromheatsourcessuch
asradiators,heatregisters,stovesorotherappliances(including
ampliers)thatproduceheat.
4.Damage Requiring Service-printWiFishouldbeservicedby
qualiedservicepersonnelwhen:
A.objectshavefallenintoorliquidhasbeenspilledontotheenclosure.
B.printWiFihasbeenexposedtorain.
C.printWiFihasbeendroppedortheenclosureisdamaged.
D.printWiFiexhibitsamarkedchangeinperformanceordoesnot
operatenormally.
5.Servicing -TheusershouldnotattempttoserviceprintWiFibeyond
thosemethodsdescribedintheuser’smanual.Openingorremoving
coverswillexposeyoutodangerousvoltageandotherhazards.
Servicemethodsnotcoveredintheuser’smanualshouldbereferredto
qualiedservicepersonnel.
6.Safety Check -UponcompletionofanyserviceorrepairtoprintWiFi,
asktheservicetechniciantoperformsafetycheckstodeterminethat
theproductisinproperworkingcondition.
7.Battery-ThisdevicecontainsarechargeableLithiumPolymer
battery.Pleasedonotattempttoreplacethebatteryyourself.The
batterymayonlybereplacedbyourauthorizedservicecenters.
4
5
Getting to Know printWiFi
Printer Controller™ Printer Connects
via USB Printer
Port using the
supplied printWiFi
Printer Cable.
Mobile Devices Connect
via USB or WiFi
USB connection
Charges Mobile
Device when
printWiFi is
connected to
Mobile Device
AC Adapter
Charge printWiFi Battery
via printWiFi Micro USB using
Mobile Device AC Adapter
Micro USB connection to Desktop
or Laptop charges printWiFi
Battery and shares printer
Note: Charge printWiFi
at least 4 hours before initial use
Power Switch & LED
Tri-Color LED displays
battery charge level
• Green Full
• Amber < 50%
• Red < 10%
Press & Hold Power
Switch 10 Seconds
for Reset
Getting to Know The printView App
printView App (IOS and Android devices)
The printWiFi is designed to work hand-in-hand with the feature rich
printView app.
Download & Install
For iOS devices you will download the app from the App Store onto
your device and for Android devices you will download the app from
the Play Store onto your device. Your device must be connected to the
Internet to download the free printView app.
For iOS Devices (iPhone, iPad, iPod Touch, etc) use the
Apple App Store.
• Turn on your iPhone/iPad/iPod Touch and navigate to
the App Store.
• Tap the “Search” icon at the bottom of your screen and
search for “printView”.
• Open the printView app page and tap the “Free” button
in the upper right side of the screen.
• Tap “Install” and enter your App Store password to
begin download and installation.
For Android Device use the Play Store.
• Turn on your Android device and navigate to the Play Store.
• Tap the “Search” icon at the top of your screen and search
for “printView”.
• Open the printView app page and tap the “Free” button
in the upper right side of the screen.
• Tap “Install” and enter your Play Store password if prompted
to and begin download and installation.
6
7
Launch the App
Once the printView app is installed, navigate to the app on your device.
iPhone
iPad
Android
printView familiar
App process
8
Press Delete to remove Documents
printWiFi
Status Bar
Settings Accessed via Admin Button
Android
Press Edit to remove Documents
printWiFi Status Bar:
Displays Battery Level,
Charging & Status
Settings Accessed via Admin Button
Highlighting
a Document
from list on left
Opens it for Print
Previewing
Print & Open
In Buttons
iPad
Launch the App continued (Tablets)
Battery Display
Android is similar to an iPad with slight variations as shown below.
9
Press Edit to remove Documents
printWiFi Status Bar:
Displays Battery Level,
Charging & Status
Highlighting a Document
Opens it for Print Previewing
iPhone
(Android Phone Similar)
Launch the App continued (Phones)
Opening a document in the printView App on a Android phone is similar
to an iPhone. Smaller screen sizes on phones require the document list
and the documents to be on seperate screens.
Operational Instructions
Printing with printWiFi - Simple Three Step Process:
1. Select: Document or Image - Open In the printView App
2. Connect: Mobile Device - printWiFi - Printer
3. Print: Print with full printer functionality
Step 1: Select - Document & Open in printView
Select and Open Document (example shows document being received
via Email)
iPad
10
Open Document
Once Document
is open. Use iOS
Open In function
Select printView to
import document to
printView App
Note: Additional Document Import Options defined on pages 21-23
