iQ-Trigger

iQ-Trigger-T

User Manual

August 29, 2022

Image Engineering

Seite 2von 27

CONTENT

1INTRODUCTION......................................................................................................... 4

1.1 Conformity ............................................................................................................ 4

1.2 Intended use......................................................................................................... 4

1.3 Product variants.................................................................................................... 4

1.4 Foreseeable misuse.............................................................................................. 5

1.4.1 Do not use iQ-Trigger-T with STEVE-2D...........................................................5

1.4.2 Do not use iQ-Trigger-T with lightSTUDIO-M....................................................5

1.4.3 Do not touch adhesive nano-coating of iQ-Trigger-T..........................................5

1.4.4 Do not put any fragile items under iQ-Trigger’s finger........................................5

1.5 General safety information..................................................................................... 5

2GETTING STARTED................................................................................................... 5

2.1 Scope of delivery................................................................................................... 5

2.2 Commissioning...................................................................................................... 7

3OPERATING INSTRUCTIONS HARDWARE –IQ-TRIGGER-T .................................... 8

3.1 Setup.................................................................................................................... 8

3.2 Using iQ-Trigger-T with other IE measurement devices........................................... 9

3.2.1 LED-Panel V4 (timing measurement)................................................................9

3.2.2 LED-Panel V3 (timing measurement)..............................................................10

3.2.3 STEVE-6D (OIS/IS performance)...................................................................11

3.2.4 iQ-Trigger USB box .......................................................................................12

3.3 Care instructions ..................................................................................................12

4OPERATING INSTRUCTIONS HARDWARE –IQ-TRIGGER ......................................13

4.1 Setup...................................................................................................................13

4.1.1 Exchange finger for a touch pen tip ................................................................13

4.1.2 Measuring the iQ-Trigger delay ......................................................................14

4.2 Using iQ-Trigger with other IE measurement devices.............................................15

4.2.1 LED-Panel V4 (timing measurement)..............................................................15

Image Engineering

Seite 3von 27

4.2.2 LED-Panel V3 (timing measurement)..............................................................16

4.2.3 STEVE-6D (OIS/IS performance)...................................................................17

4.2.4 STEVE-2D (OIS/IS performance)...................................................................17

4.2.5 iQ-Trigger USB box .......................................................................................18

4.2.6 lightSTUDIO-M..............................................................................................20

5OPERATING INSTRUCTIONS SOFTWARE IQ-TRIGGER-T / IQ-TRIGGER...............20

5.1 Requirements.......................................................................................................20

5.2 Software installation .............................................................................................21

5.3 Connection of hardware........................................................................................21

5.4Usage of software ................................................................................................21

5.5 Software description.............................................................................................21

5.5.1 iQ-Trigger devices .........................................................................................22

5.5.2 Grouping devices...........................................................................................22

5.5.3 iQ-Trigger control / sequences .......................................................................23

5.5.4 Trigger output................................................................................................24

5.5.5 Counter.........................................................................................................25

5.5.6 State display..................................................................................................25

5.5.7 Save parameters...........................................................................................25

6API ............................................................................................................................26

6.1 Sample project.....................................................................................................26

7ADDITIONAL INFORMATION....................................................................................27

7.1 Storage and transport...........................................................................................27

7.2 Disposal instructions.............................................................................................27

8TECHNICAL DATA SHEET........................................................................................27

93RD PARTY COMPONENTS........................................................................................27

Image Engineering

Seite 4von 27

1 INTRODUCTION

Important information: Read the manual carefully before using the device.

Inappropriate utilization may cause damage to the device, to the DUT (device under test), and/or other

components of your setup.

Keep these instructions in a safe place and pass them on to any future user.

1.1 Conformity

We, Image Engineering GmbH & Co. KG, hereby declare that the iQ-Trigger corresponds to the

essential requirements of the following EC directive:

•Electromagnetic Compatibility - 2014/30/EU

1.2 Intended use

iQ-Trigger/iQ-Trigger-T is used to press the shutter release button of a camera with high temporal

accuracy.

A typical use of iQ-Trigger/iQ-Trigger-T is to measure camera shutter delay in conjunction with the

LED-Panel.

•Only suitable for indoor use.

•Usable for cameras with a hardware release button and touch screens.

•In combination with LED-Panel measurement according to ISO15781:2014

1.3 Product variants

•iQ-Trigger: electromechanical finger (including hydraulic arm and mounting), suitable for

pushing hardware buttons and touch screens

•iQ-Trigger-T: suitable for capacitive touch screens

Image Engineering

Seite 5von 27

1.4 Foreseeable misuse

1.4.1 Do not use iQ-Trigger-T with STEVE-2D

iQ-Trigger-T cannot be combined with STEVE-2D. Usage will cause irreversible damage to iQ-Trigger-

1.4.2 Do not use iQ-Trigger-T with lightSTUDIO-M

iQ-Trigger-T cannot be used with lightSTUDIO-M, and usage will cause irreversible damage to iQ

Trigger-T. To combine iQ-Trigger-T with lightSTUDIO-M, set it up as a separate device (e.g., manual

usage or using the iQ-Trigger USB box).

1.4.3 Do not touch adhesive nano-coating of iQ-Trigger-T

Extensive touch might substantially damage the adhesive nano-coating of iQ-Trigger-T and lose its

characteristic.

1.4.4 Do not put any fragile items under iQ-Trigger’s finger

Take care and do not place any fragile items or part of the body under iQ-Trigger’s finger. If iQ-Trigger

is released inadvertently, it may cause injuries. iQ-Trigger presses the electromechanical finger down

with 11 N.

1.5 General safety information

Do not open the device without instructions from the Image Engineering support team or when

connected to the power supply.

2 GETTING STARTED

2.1 Scope of delivery

iQ-Trigger is available in different product bundles.

iQ-Trigger-T

•iQ-Trigger-T

•2 x TPE-band 90 mm

•2 x TPE-band 130 mm

•Microfiber cloth

•iQ-Trigger-T storage box

Image Engineering

Seite 6von 27

•iQ-Trigger USB box

•Wired remote release

•Power supply

•USB cable (connection of iQ-Trigger USB box to PC)

•7.5m extension cable for iQ-Trigger-T (6.3 mm TRS connector)

•iQ-Trigger API

iQ-Trigger

•iQ-Trigger (electromechanical finger including hydraulic arm and mounting)

•Manfrotto L bracket and mounting plate (type 405)

•iQ-Trigger USB box

•Wired remote release

•Power supply

•USB cable (connection of iQ-Trigger USB box to PC)

•Connection cable (iQ-Trigger USB box to LED-Panel)

•iQ-Trigger API

iQ-Trigger + iQ-Trigger-T

•iQ-Trigger-T

•2 x TPE-band 90 mm

•2 x TPE-band 130 mm

•Microfiber cloth

•iQ-Trigger-T storage box

•iQ-Trigger (electromechanical finger including hydraulic arm and mounting)

•L-shaped holder on a mounting plate (Manfrotto Type 405)

•iQ-Trigger USB box

•Wired remote release

•Power supply

•USB cable (connection of iQ-Trigger USB box to PC)

•7.5 m extension cable for iQ-Trigger-T (6.3 mm TRS connector)

•iQ-Trigger API

iQ-Trigger add-on

•iQ-Trigger (electromechanical finger including hydraulic arm and mounting)

•L-shaped holder on a mounting plate (Manfrotto Type 405)

Image Engineering

Seite 7von 27

iQ-Trigger-T add-on

•iQ-Trigger-T

•2 x TPE-band 90 mm

•2 x TPE-band 130 mm

•Microfiber cloth

•iQ-Trigger-T storage box

2.2 Commissioning

iQ-Trigger-T: Remove the protection film from the adhesive side of the device before first use. The

device comes ready to use. Please refer to chapter 3 for setting up iQ-Trigger-T hardware.

iQ-Trigger: The device comes ready to use.

Image Engineering

Seite 8von 27

3 OPERATING INSTRUCTIONS HARDWARE –IQ-TRIGGER-T

3.1 Setup

The surface of the iQ-Trigger-T has an adhesive nano-coating, which helps you attach the iQ-Trigger-

T to the surface of the touch screen. The surface of the device has to be clean and degreased to

provide maximal adhesion.

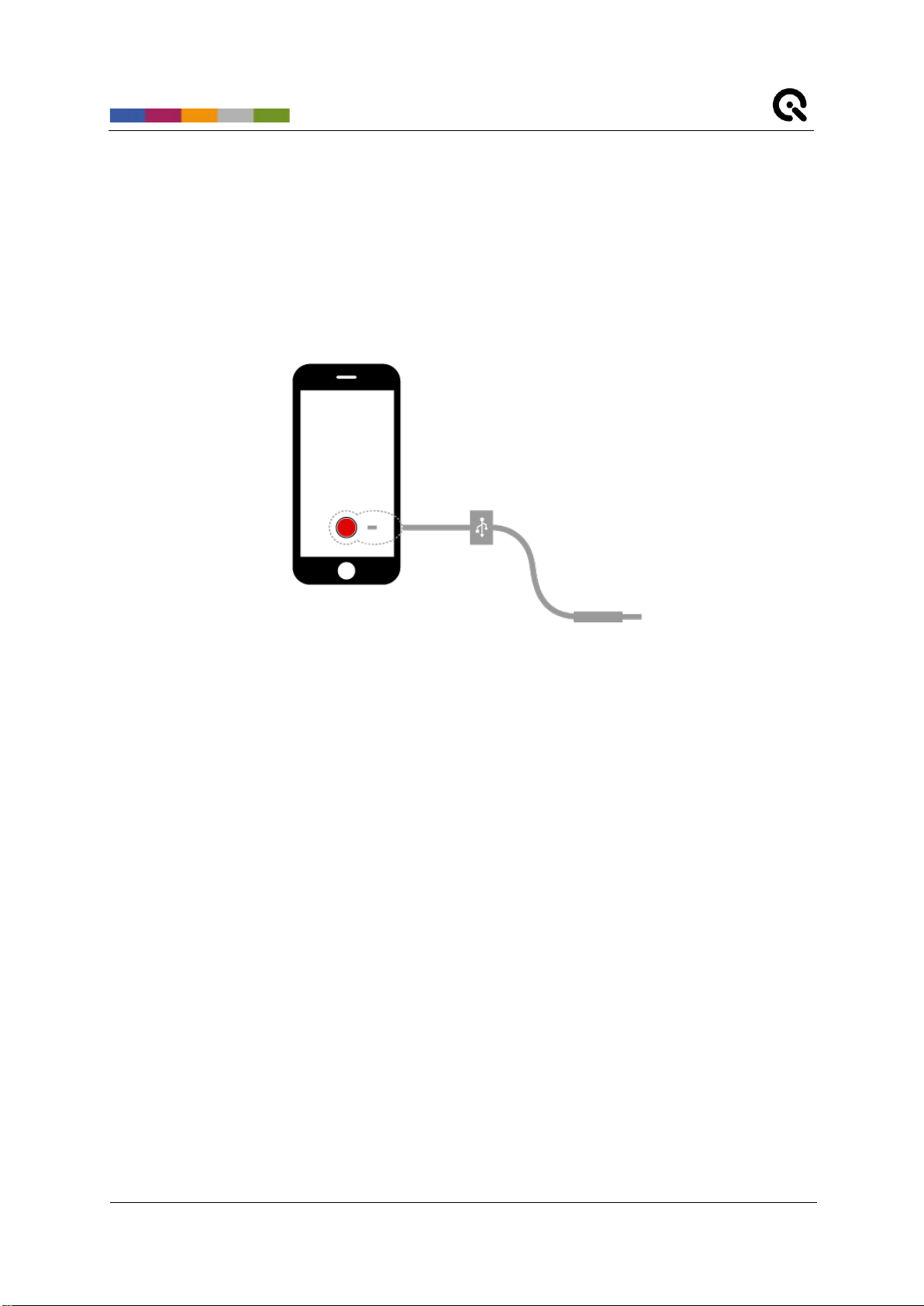

Figure 1 iQ-Trigger-T placement on mobile devices

Place the round anterior part on the release button of the touch screen.

Secure the iQ-Trigger-T with one of the included TPE bands. Stretch the band around the tested

device and place it under the small hook on the backside of iQ-Trigger-T. We supply two different

sizes of TPE bands for tablets and smartphones.

Image Engineering

Seite 9von 27

3.2 Using iQ-Trigger-T with other IE measurement devices

3.2.1 LED-Panel (timing measurement)

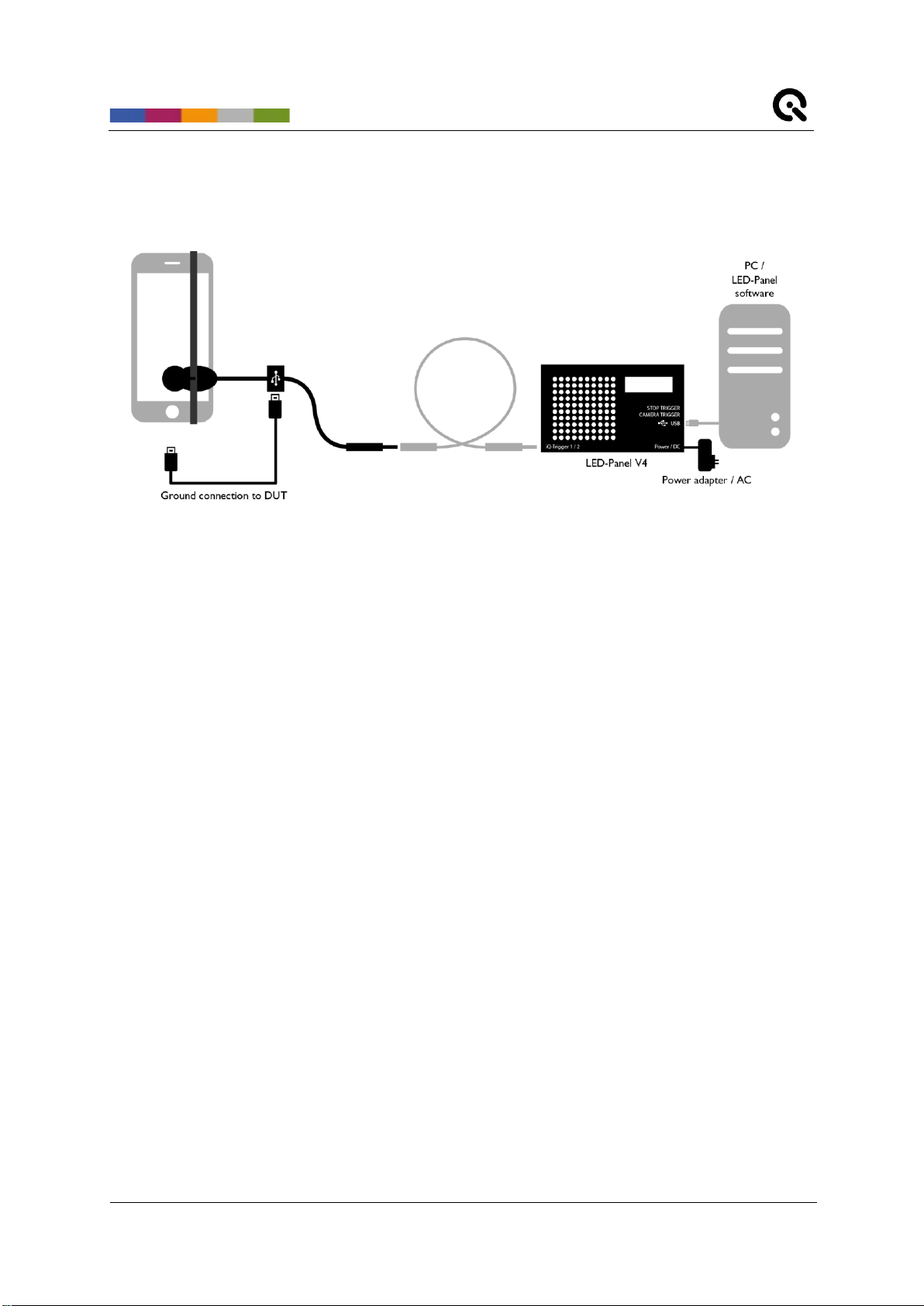

Figure 2 Connection scheme iQ-Trigger-T and LED-Panel V4

Mount iQ-Trigger-T on the device under test and connect the TRS connector (6.5 mm “jack plug”) to

the LED-Panel V4 (over an optional extension cable). Use either “Stop Trigger” or “Camera Trigger,”

depending on the measurement type. Connect the device under test and iQ-Trigger-T (via USB) to

provide a ground connection. Connect the PC (via USB) to LED-Panel to trigger the LED-Panel and

release the camera device simultaneously by using the software.

For using the remote release, use the set-up described for LED-Panel V3.

Please refer to the LED-Panel manual for details on how to measure different timings (shutter lag,

autofocus time, etc.) and how to interpret the captured images.

Image Engineering

Seite 10 von 27

3.2.2 LED-Panel V3 (timing measurement)

Figure 3 Connection scheme iQ-Trigger-T and LED-Panel V3

Mount iQ-Trigger-T on the device under test and connect the TRS connector (6.5 mm “jack plug”) to

the iQ-Trigger USB box (over an optional extension cable). Use either “Stop Trigger” or “Camera

Trigger,” depending on the measurement type. Connect the device under test and iQ-Trigger-T (via

USB) to provide a ground connection. Connect the iQ-Trigger USB box to the LED-Panel (via 3.5 mm

TRS connector). Connect the remote release (2.5 mm TRS connector) to the Trigger input of the iQ-

Trigger USB box for manual control of iQ-Trigger-T/LED-Panel, or connect the PC (via USB) to LED-

Panel V3 for software control. Both will trigger the LED-Panel and release the camera device

simultaneously.

Please refer to the LED-Panel manual for details on measuring different timings (shutter lag, autofocus

time, etc.) and how to interpret the pictures captured.
