Before operating this oven, please read these instructions completely.
To avoid exposure to dangerous high voltage, DO NOT REMOVE THE
SPLATTER SHIELD inside the oven cavity.
OPERATING
INSTRUCTIONS
MICROWAVE OVEN
IVFSM634X
IVFSM643X
1
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door
open since open-door operation can result in harmful
exposure to microwave energy. It is important not to defeat
or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and
the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) WARNING : If the door or door seals are damaged, the
oven must not be operated until it has been repaired by a
competent person : (1) door (bent), (2) hinges and
latches(broken or loosened), (3) door seals and sealing
surfaces.
(d) WARNING : It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which gives
protection against exposure to microwave energy.
(e) WARNING : Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
(f) WARNING : This appliance can be used by children aged
from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children unless
they are aged from 8 years and above and supervised.
2
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
...........................................................................................................................................................1
IMPORTANT SAFETY INSTRUCTIONS ......................................................................................3
EARTHING INSTRUCTIONS .........................................................................................................5
INSTALLATION ...............................................................................................................................5
SPECIFICATIONS ..........................................................................................................................6
IMPORTANT ....................................................................................................................................6
FEATURES DIAGRAM ...............................................................................................................7, 8
OPERATION PROCEDURE ..........................................................................................................9
CONTROLS ...................................................................................................................................10
SETTING THE CLOCK .............................................................................................................10
TIME DEFROSTING ..................................................................................................................10
WEIGHT DEFROSTING ............................................................................................................11
COOKING IN ONE STAGE .......................................................................................................12
COOKING IN TWO STAGE ......................................................................................................12
KITCHEN TIMER MODE ...........................................................................................................13
SPEEDY COOKING ..................................................................................................................14
ONE TOUCH COOKING ...........................................................................................................14
LESS, MORE .............................................................................................................................16
CHILD SAFETY LOCK ..............................................................................................................16
TO STOP THE OVEN WHILE THE OVEN IS OPERATING ..................................................16
CARE OF YOUR MICROWAVE OVEN ......................................................................................17
BEFORE YOU CALL FOR SERVICE .........................................................................................18
CARE AND CLEANING.................................................................................................................18
QUESTIONS AND ANSWERS ....................................................................................................19
UTENSIL TEST .............................................................................................................................20
COOKING UTENSILS ...................................................................................................................20
USE YOUR MICROWAE OVEN SAFELY ..................................................................................21
MICROWAVING PRINCIPLES ....................................................................................................22
HOW MICROWAVES COOK FOOD ...........................................................................................22
CONVERSION CHARTS .............................................................................................................22
COOKING TECHNIQUES ............................................................................................................23
DEFROSTING GUIDE ..................................................................................................................24
DEFROSTING CHART .................................................................................................................24
COOKING & REHEATING CHART .............................................................................................25
VEGETABLE CHART ...................................................................................................................26
RECIPE ..........................................................................................................................................27
TABLE OF CONTENTS
3
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
WARNING : To prevent fire, burns, electric shock and other
warnings:
Listed below are, as with all appliances, certain rules to
follow and safeguards to assure high performance from
this oven:
1. Do not use the oven for any reason
other than food preparation, such as for
drying clothes, paper, or any other
nonfood items or for sterilizing
purposes.
2. Do not use the oven when empty, this
could damage the oven.
3. Do not use the oven cavity for any type
of storage, such as papers, cookbook,
cookware, etc.
4. Do not operate the oven without the tray
in place. Be sure it is properly sitting on
the rotating base.
5. Make sure you remove caps or lids prior
to cooking when you cook food sealed
in bottles.
6. Do not put foreign material between the
oven surface and door. It could result in
excessive leakage of microwave
energy.
7. Do not use recycled paper products for
cooking. They may contain impurities
which could cause sparks and/or fires
when used during cooking.
8. Do not pop popcorn unless popped in a
microwave approved popcorn popper or
unless it's commercially packaged and
recommended especially for microwave
ovens. Microwave popped corn
produces a lower yield than
conventional popping; there will be a
number of unpopped kernels. Do not
use oil unless specified by the
manufacturer.
9. Do not cook any food surrounded by a
membrane, such as egg yolks,
potatoes, chicken livers, etc., without
first piercing them several times with a
fork.
10. Do not pop popcorn longer than the
manufacturer's directions. (popping time
is generally below 3 minutes). Longer
cooking does not yield more popped
corn, it can cause scorchings and fire.
Also, the cooking tray can become too
hot to handle or may break.
11. If smoke is emitted, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
12. When heating food in plastic or paper
containers, keep an eye on the oven
due to the possibility of ignition.
4
SAVE THESE INSTRUCTIONS
13. The contents of feeding bottles and
baby food jars shall be stirred or shaken
and the temperature checked before
consumption, in order to avoid burns.
14. Always test the temperature of food or
drink which has been heated in a
microwave oven before you give it to
somebody, especially to children or
elderly people. This is important
because things which have been heated
in a microwave oven carry on getting
hotter even though the microwave oven
cooking has stopped.
15. Eggs in their shell and whole hard-boiled
eggs should not be heated in
microwave ovens since they may
explode, even after microwave heating
has ended;
16. Keep the waveguide cover clean at all
times. Wipe the oven interior with a soft
damp cloth after each use. If you leave
grease or fat anywhere in the cavity it
may overheat, smoke or even catch fire
when next using the oven.
17.
Never heat oil or fat for deep frying as you
cannot control the temperature and doing
so may lead to overheating and fire.
18. Liquids, such as water, coffee, or tea are
able to be overheated beyond the
boiling point without appearing to be
boiling due to surface tension of the
liquid. Visible bubbling or boiling when
the container is removed from the
microwave oven is not always present.
THIS COULD RESULT IN VERY HOT
LIQUIDS SUDDENLY BOILING OVER
WHEN A SPOON OR OTHER UTENSIL
IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to
persons:
a) Do not overheat the liquid.
b) Stir the liquid both before and halfway
through heating it
c) Do not use straight-sided containers
with narrow necks.
d) After heating, allow the container to
stand in the microwave oven for a
short time before removing the
container.
e) Use extreme care when inserting a
spoon or other utensil into the
container.
19. This appliance is not intended for use by
persons(including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given
supervision or instruction concerning
use of the appliance by a person
responsible for their safety.
20. Children should be supervised to ensure
that they do not play with the appliance.
21. Only use utensils that are suitable for
use in microwave ovens.
22. Microwave heating of beverages can
result in delayed eruptive boiling,
therefore care must be taken when
handling the container.
5
WARNING:
Improper use of th earthing plug can result in a risk of electric shock. Consult a qualified electrician
or serviceman if the earthing instructions are not completely understood, or if doubt exists as to
whether the appliance is properly earthed. If it is necesary to use an extension cord, use only a 3-
wire extension cord that has a 3-blade earthing plug, and a 3-slot receptacle that will accept the plug
on the appliance. The marked rating of the extension cord should be equal to or greater than the
electrical rating of the appliance.
EARTHING INSTRUCTIONS
This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of
electric shock by providing an escape wire for the electric current. This appliance is equipped with a
cord having a earthing wire with a earthing plug. The plug must be plugged into an outlet that is
properly installed and earthed.
INSTALLATION
1. Ventilation
Do not block air vents. If they are blocked during
operation, the oven may overheat and eventually
cause a failure. For proper ventilation, allow above
3 inches of space between oven sides, rear and
the minimum height of free space necesary above
the top surface of the oven is 100mm.
2. Steady, flat location
This oven should be set on a steady, flat surface.
For correct operation, the oven must have
sufficient airflow. Do not block air vents as this
may cause overheating. In a freestanding
situation allow adequate ventilation around the
microwave from any overhead, rear and side wall
constructions. If combining the microwave with a
trim kit for a 'built-in' situation, (where more than
one side of the appliance is closed in) the
specification and installation requirements are as
per the trim kit instruction manual.
Note: Cabinet materials must be suitable to
withstand temperatures up to 90˚C.
3. Leave space behind and side
All air vents should be kept a clearance. If all
vents are covered during operation, the oven may
overheat and, eventually, oven failure.
4. Away from radio and TV sets
Poor television reception and radio interference
may result if the oven is located close to a TV,
Radio antenna, feeder and so on. Position the
oven as far from them as possible.
5. Away from heating appliance and water taps
Keep the oven away from hot air, steam or Splash
when choosing a place to position it, or the
insulation might be adversely affected and
breakdowns occur.
6. Power supply
• Check your locla power source. This oven
requires a current of approximately
10 amperes, 240V 50Hz.
• Power supply cord is about 0.8 meters long.
• The voltage used must be the same as specified
on this oven. Using a higher voltage may result
in a fire or other accident causing oven damage.
Using low voltage will cause slow cooking. We
are not responsible for damage resulting from
use of this oven with a voltage of ampere fuse
other than those specified.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or a similarly qualified persons in order to avoid a
hazard.
7. Examine the oven after unpacking for any
damage such as:
A misaligned door, Broken door, A dent in cavity.
If any of the above are visible,
DO NOT INSTALL, and notify dealer immediately.
8. Do not operate the oven if it is colder than
room temperature.
(This may occur during delivery in cold weather.)
Allow the oven to become room temperature
before operating.
6
WARNING: This appliance must be earthed.
SPECIFICATIONS
IMPORTANT
The wires in this mains lead fitted to this appliance are coloured in accordance with the following code.
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows: the wire which is coloured green-
and-yellow must be connected to the terminal in the plug which is marked with the letter 'E', the earth
symbol or coloured green-and-yellow. The wire which is coloured blue must be connected to the
terminal which is marked with the letter ‘N’ or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter 'L'
or coloured red.
* Specifications are subject to change without notice.
POWER SUPPLY 240V~ / 50Hz, SINGLE PHASE WITH EARTHING
POWER CONSUMPTION 1500 W
MICROWAVE OUTPUT POWER 1000 W
FREQUENCY 2450 MHz
OUTSIDE DIMENSIONS (W X H X D) 560 X 344 X 435 mm
CAVITY DIMENSIONS (W X H X D) 369 X 240 X 390 mm
NET WEIGHT APPROX. 18 KG
TIMER 99 min. 90sec.
POWER LEVELS 10 LEVELS
7
1Safety interlock system-Prevents the oven
from operating while the door is opened.
The oven will only operate with the door fully
closed. When the door is open, the oven turns
off and will only start again after the door is
closed.
2Door screen-Allows viewing of food. The
screen is transparent to light, but prevents
microwaves escaping.
3Door latch-When the door is closed it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron will
automatically shut off.
4Oven cavity
5Door seal-The door seal surfaces prevent
microwaves escaping from the oven cavity.
6Glass cooking tray-Made of special heat
resistant glass. The tray can be easily
removed for cleaning. Make sure it is correctly
positioned (indentation) before operating.
Place food in a suitable container (dish) on the
tray.
7Roller guide-Supports the glass cooking tray.
8Coupler-This fits over the shaft in the center of
the oven’s cavity floor.
This is to remain in the oven for all cooking.

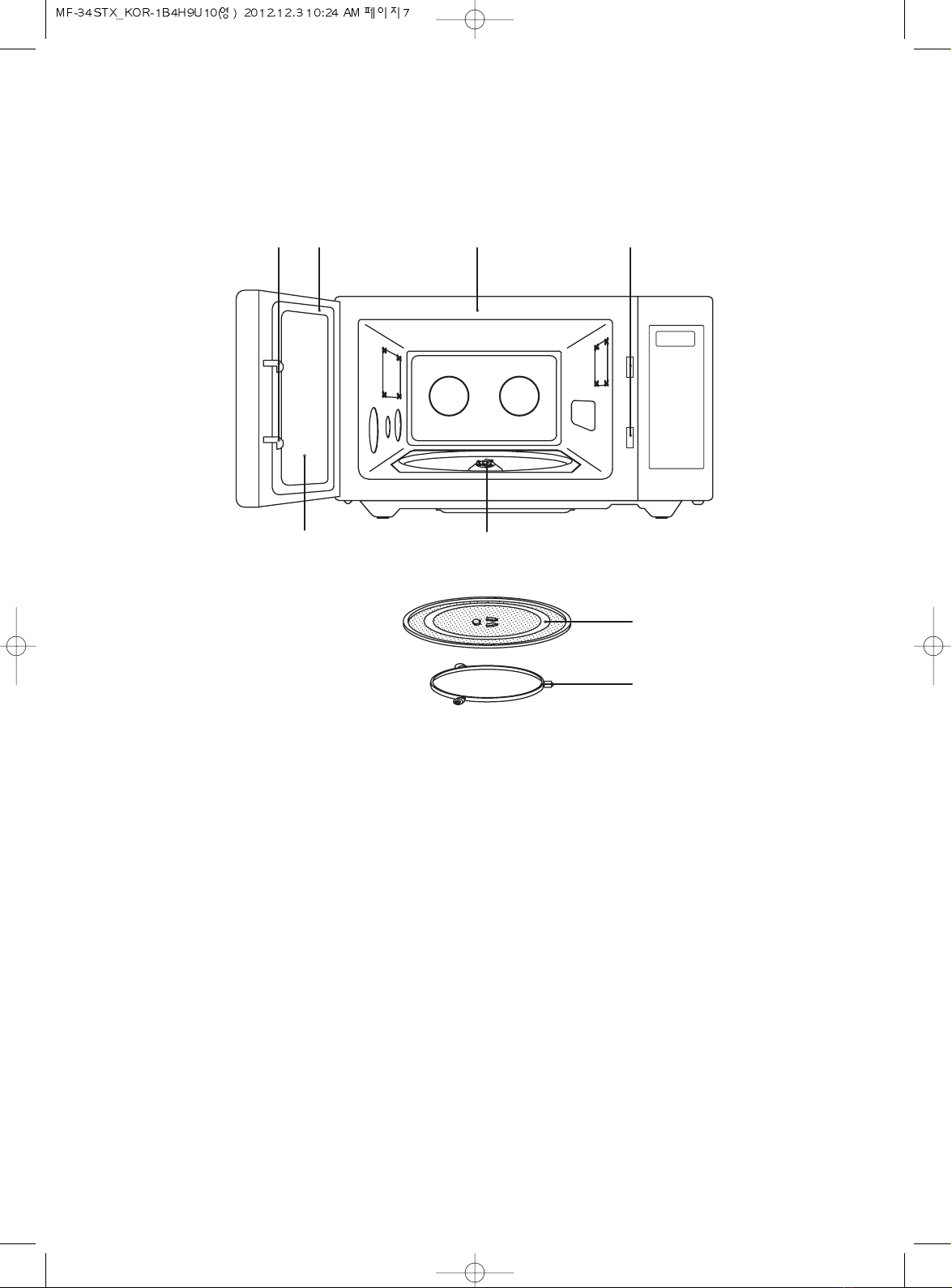

FEATURES DIAGRAM
35 4 1
28
6
7
8
11Display - Cooking time, power level, indicators
and present time are displayed.
22One Touch - Used to cook or reheat specific
quantities of food.
33MORE - Used to add time to cooking.
44LESS - Used to remove time from cooking.
55Auto Defrost - Used to defrost foods. (for
weight)
66Time Set pad - Used to set the cooking time
and the present time.
77Power - Used to set power level.
88Defrost - Used to defrost foods. (for time)
99Kitchen Timer - Used as a minute timer, to
delay the start of cooking, or to set a holding
time after cooking.
00Clock - Used to set clock.
qqStop/Clear - Used to stop the oven operation
or to delete the cooking data.
wwStart/Speedy Cook - Used to start the oven
and also used to set a reheat time.
FEATURES DIAGRAM ( continued )
1
2
8
5
6
7
09
wq
4
3
2
9
This section includes useful information about oven operation.
1. Plug power supply cord into a 240V 50Hz power outlet.
2. After placing the food in a suitable container, open the oven door and put it on the glass tray.
The glass tray and roller guide must always be in place during cooking.
3. Shut the door. Make sure that it is firmly closed.
OPERATION PROCEDURE
Make sure the oven is properly installed
and plugged into the electrical outlet.
WATTAGE OUTPUT CHART
• The power-level is set by pressing the Power button. The chart shows the display, the power level and
the percentage of power.
The oven light is on only when the microwave
oven is operating.
The oven will automatically shut off at any time
by opening the oven door.
Each time a button is pressed, a BEEP will
sound to acknowledge the touch.
The oven automatically cooks on full power
unless set to a lower power level.
The display will show “ : 0” when the oven is
plugged in.
Time clock returns to the present time when the
cooking time ends.
When the Stop/Clear button is pressed during
the oven operation, the oven stops cooking and
all information retained. To erase all information
(except the present time), press the Stop/Clear
button once more. If the oven door is opened
during the oven operation, all information is
retained.
If the Start button is pressed and the oven does
not operate, check the area between the door
and door seal for obstructions and make sure
the door is closed securely. The oven will not
start cooking until the door is completely closed
or the program has been reset.
1
2
3
4
5
6
6
7
once P-HI 100%
twice P-90 90%
3 times P-80 80%
4 times P-70 70%
5 times P-60 60%
6 times P-50 50%
7 times P-40 40%
8 times P-30 30%
9 times P-20 20%
10 times P-10 10%
11 times P-00 0%
Press Power button Power level (Display) Approximate Percentage of Power
Table des matières
Autres manuels ILVE Four à micro-ondes
ILVE
ILVE IV605BV Manuel d'instructions d'installation
ILVE
ILVE IV603BIM Manuel d'instructions d'installation
ILVE
ILVE IV605WV Manuel utilisateur
ILVE
ILVE WD900ESL28-5Slll Manuel utilisateur
ILVE
ILVE IV603BIM Manuel
ILVE
ILVE ILCM45X Fiche technique
ILVE
ILVE 645LTKCW Manuel utilisateur
ILVE
ILVE IV600FBI Manuel d'instructions d'installation
ILVE
ILVE D 900 ESL Manuel utilisateur
ILVE
ILVE IVFSCM34X Guide de configuration
