ILVE 645SLZT4/SS Guide de l'utilisateur
PIZZA OVEN
USER – Use and Maintenance
INSTALLER – Installation and maintenance
cod. EI33960190000EN
31/2022
ZONA PER TARGHETTA
EN
INDEX
4 IMPORTANT SAFETY WARNINGS
9 INSTRUCTIONS FOR USE
9 TFT touch display
13 TFT touch T4 static model
14 Accessories
15 CLEANING AND MAINTENANCE
15 Oven cleaning and care
15 Oven door disassembly
16 Glass disassembly and cleaning
17 Grills cleaning
17 Lamp replacement
18 Behavior in case of failures
19 COOKING CHART
19 Fan oven cooking chart
20 Natural convection oven cooking chart
21 INSTALLATION
21 Instructions for installation
22 Electrical connection
22 Installation rules
23 Wiring diagrams
25 Safety thermostat
26 NOTES
4
IMPORTANT
SAFETY WARNINGS
Appliances’ data
CAUTION
1
2
3
As well as being shown on the cover, the data plate is ap-
plied to the oven door frame and is visible with the door
open.
These warnings refer to different types of appliance. Pay
attention in properly identifying the type you own (see the
data plate).
These warnings are valid for the countries
mentioned in the plate.
Before using the cooker, read the instructions booklet ca-
refully.
This contains very important information concerning sa-
fety during installation, use and maintenance.
The instructions booklet must be kept with care for later
consultation.
The electrical safety of this cooker is guaranteed only if it
is correctly grounded as required by the regulations.
It is fundamental to ensure that these regulations have
been respected; if you are in doubt, contact a skilled te-
chnician to have the electric system accurately checked.
The manufacturer is not responsible for damage
caused by a bad grounding system.
Before powering the appliance, check that the tech-
nical features shown on the data plate match those of
the electrical system perfectly.
Installation/regulation must be carried out by qualied
personnel.
5
USER
IMPORTANT
SAFETY WARNINGS
Check that the electrical system and the sockets have
the capacity to withstand the maximum power of the
appliance which is shown on the plate.
If in doubt, contact a qualied person.
The device must be connected directly to the power sup-
ply with the correct polarity.
The connection must have a device ensuring discon-
nection from the network, with an opening distance of the
contacts that allows complete disconnection in the con-
ditions of overvoltage category III, in accordance with in-
stallation instructions.
If the socket is not suitable for the plug, replace it with a
suitable one and in this case contact a qualied person
who will also check if the cable section of the socket can
withstand the power consumed by the appliance. The
power cable does not have a tted plug. For connection
see “Electrical connection” section. The use of adapters,
multiple sockets or extension leads, is not recommended.
When the appliance is not used for a long time, remove
the electrical connection and disconnect the mains swi-
tch.
Do not block ventilation or heat dissipation slots.
If the appliance’s electrical power cable is damaged, it
must only be replaced by a manufacturer approved ser-
vice centre.
4
5
6
7
8
9
6
The appliance must only be used for the purposes it is in-
tended for (cooking). Any other use (e.g. heating a room)
is improper and dangerous.
The manufacturer declines any responsibility for dama-
ges caused by such improper uses.
The use of any electrical appliance requires that a num-
ber of fundamental rules be respected:
A. Never touch the appliance with wet or damp
hands or feet;
B. Never use the appliance with bare feet;
C. Avoid using extension cords and possibly take all
possible precautions;
D. Do not pull the electric wire to disconnect it from
the socket;
E. Do not expose the appliance to atmospheric
agents (rain, sun, etc.)
F. Keep children under the age of 8 away from the
appliance if they are not continuously supervised.
This appliance can be used by children from 8 years
and by persons with reduced physical, sensory or
mental capacities or with lack of experience and
knowledge if they are under adequate supervision
or if they have been instructed about the use of
the appliance safely and if they realize the related
dangers. Children must not play with the appliance.
Cleaning and maintenance operations must not be
carried out by children without supervision.
The appliance and its accessible parts become very hot
during use. Care should be taken not to touch the heating
elements. Children must be kept at a distance. Children
under 8 years of age must be kept away unless constantly
supervised.
10
11
12
IMPORTANT
SAFETY WARNINGS
7
USER
Before cleaning the appliance or performing mainte-
nance, disconnect the appliance by disconnecting the
power cord or by cutting off the electricity using the spe-
cial switch.
In case of breakdown or malfunction switch off the ap-
pliance and do not attempt any repairs that must only
be performed by an authorized service centre. Always
insist on original spare parts.
Failure to comply with these instructions may compro-
mise the appliance’s safety.
It is strongly recommended not to make accessible the
parts that can be dangerous, especially if there are
children who could use the appliance for play.
Do not use ammable liquids (alcohol, petrol, ...) near
the appliance in operation.
The materials used for the construction of our applian-
ce are compatible with the environment and therefore
recyclable. The packaging residues must not be left wi-
thin the reach of children, but must be disposed of using
the appropriate separate collection channels. For the
scrapping of your equipment the disposal options must
be used at your retailer and/or at your municipal admini-
stration; remember to scrap your appliance before ma-
king it useless.
Do not use steam cleaners to clean the inside of the oven.
Do not use abrasive detergents or sharp metal tools to
clean the glass door of the oven, as they could damage
the surface and cause it to break.
13
14
15
16
17
18
19
IMPORTANT
SAFETY WARNINGS
8
20
21
Warning: Make sure the product is off before replacing
the lamp to avoid the possibility of electric shock.
All accessories in direct contact with food must be tho-
roughly cleaned using suitable products before their
rst use.
Cooking food in direct contact with grills and oven trays
is not allowed
IMPORTANT
SAFETY WARNINGS
9
USER
OFF
INSTRUCTIONS FOR USE

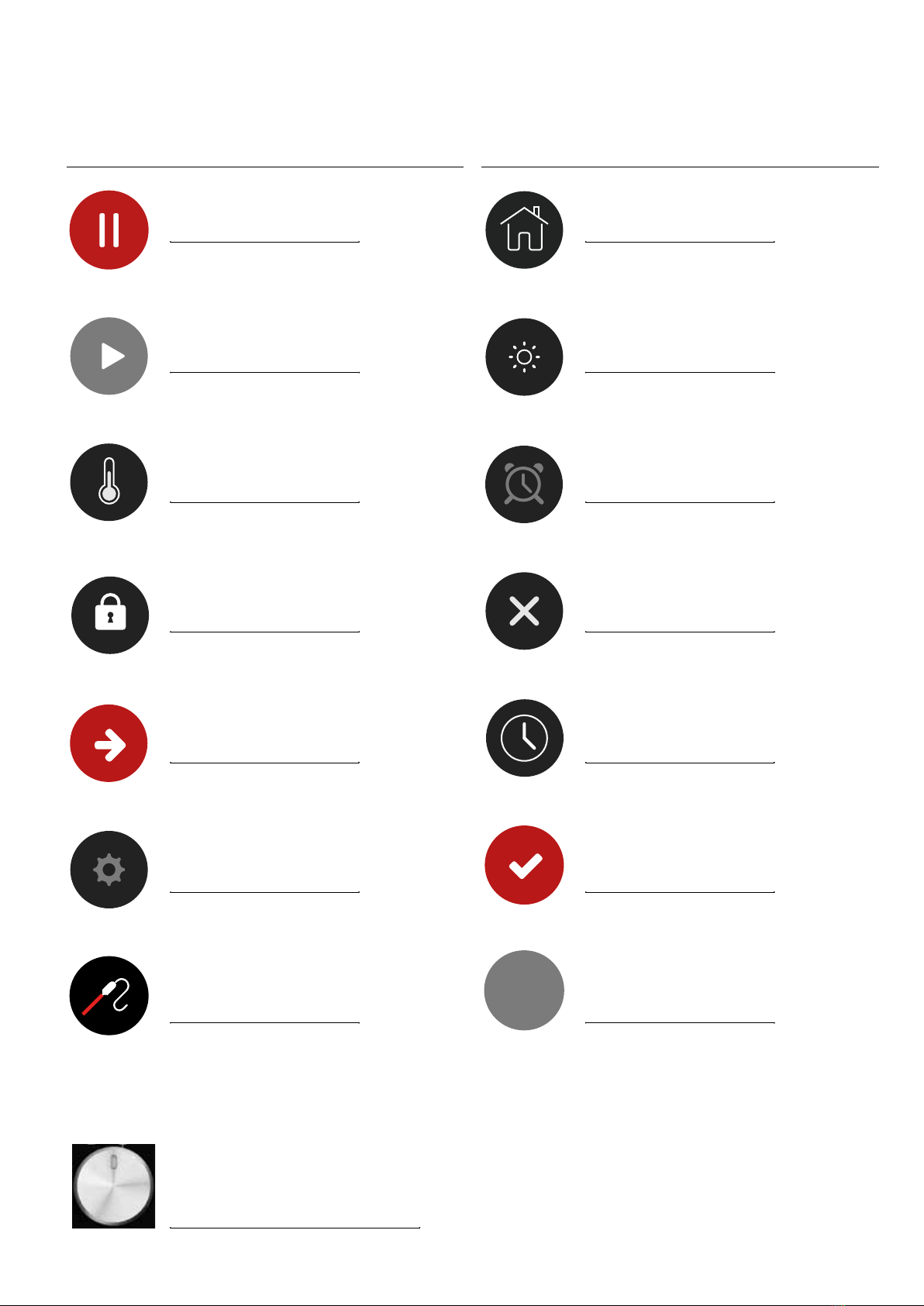

TFT touch display - Icons legend
Pause Home
Start Light
°C - °F Timer
Screen lock Exit - Term
Conrmation Time
Settings Settings Conrmation
Meat probe Off
Knob present in some models
(allows to set and conrm the TFT
functions besides the Touch)
10
INSTRUCTIONS FOR USE
TFT touch display - Settings
Home: display start page.
3 options
Allows you to proceed to the cavity setting screen
Allows you to set the timer
Allows direct access to the settings
Settings
Choice of degree scale (° C or ° F).
Setting the time.
Exit - Term
Screen lock
To unlock, tap on the display for 10 seconds
Set a timer
Increase or decrease time.
Conrm once the desired time has been set.
An acoustic signal will indicate the term.
Conrm and return to the home page.
PM
11:48AM
10m
It allows you to set the volume of the
acoustic signal and optionally a sound
at the touch of the display
Numeric keypad
ATTENTION: if the display does not respond to the commands (touch locked), simply open and close
the oven door
