20" HIGH VELOCITY FAN

Model: ILG8F20

OWNER'S MANUAL

PLEASE READ AND SAVE

THESE INSTRUCTIONS

Read Instruction manual carefully before assembling or installing your

fan. It is important that you observe all safety information to help

prevent personal injury and/or property damage.

20” HIGH VELOCITY FAN

MODEL NO. ：ILG8F20

Voltage Rating: 120VAC 60Hz

Power：165W

CAUTION: Read and follow all instructions before operating fan. Do

not use fan if any part is damaged or missing.

WARNING: To reduce the risk of fire or electrical shock, DO NOT use

this fan with any solid state speed control device. This appliance has a

3-prong grounded plug that must be inserted into a matching outlet.

To reduce the risk of electrical shock, this grounding plug must not be

removed from the plug. Where a two-prong wall outlet is encountered,

it must be replaced: contact a qualified electrician. DO NOT attempt to

remove this safety feature. Use your fan only with adequate wiring

that is up to Code. Connect to properly grounded outlets only.

INSTRUCTIONS FOR SAFE OPERATIONS

This product employs overload protection (fuse). A blown fuse

indicates an overload or short-circuit situation. If the fuse blows,

unplug the product from the outlet. Replace the fuse as per the user

servicing instructions (follow product marking for proper fuse rating)

and check the product. If the replacement fuse blows, a short-circuit

may be present and the product should be discarded or returned to an

authorized service facility for examination and/or repair.

●Always unplug unit for cleaning.

●Always unplug unit when not in use.

●Always unplug when moving unit from one location to another.

●Do not place foreign objects through guard when fan is in

operation.

●Do not operate without fan guards properly locked.

●Do not use this fan with an extension cord.

●Do not use this fan near windows. Rain and moisture may create

an electrical hazard.

●Do not place fan or fan parts near an open flame, cooking or other

heating appliance.

●Do not operate this unit with a damaged cord or plug, especially

when this unit has previously malfunctioned, or been dropped or

damaged.

●Make sure fan is on a stable, flat surface when in operation.

●Close supervision is necessary when this unit is used by or near

children.

UNPACK YOUR FAN AND CHECK THE CONTENTS

●Fan Head With Two Screws &Two Adjustment Knobs

●Supporting Stand

●Wall Bracket

●Instruction Manual

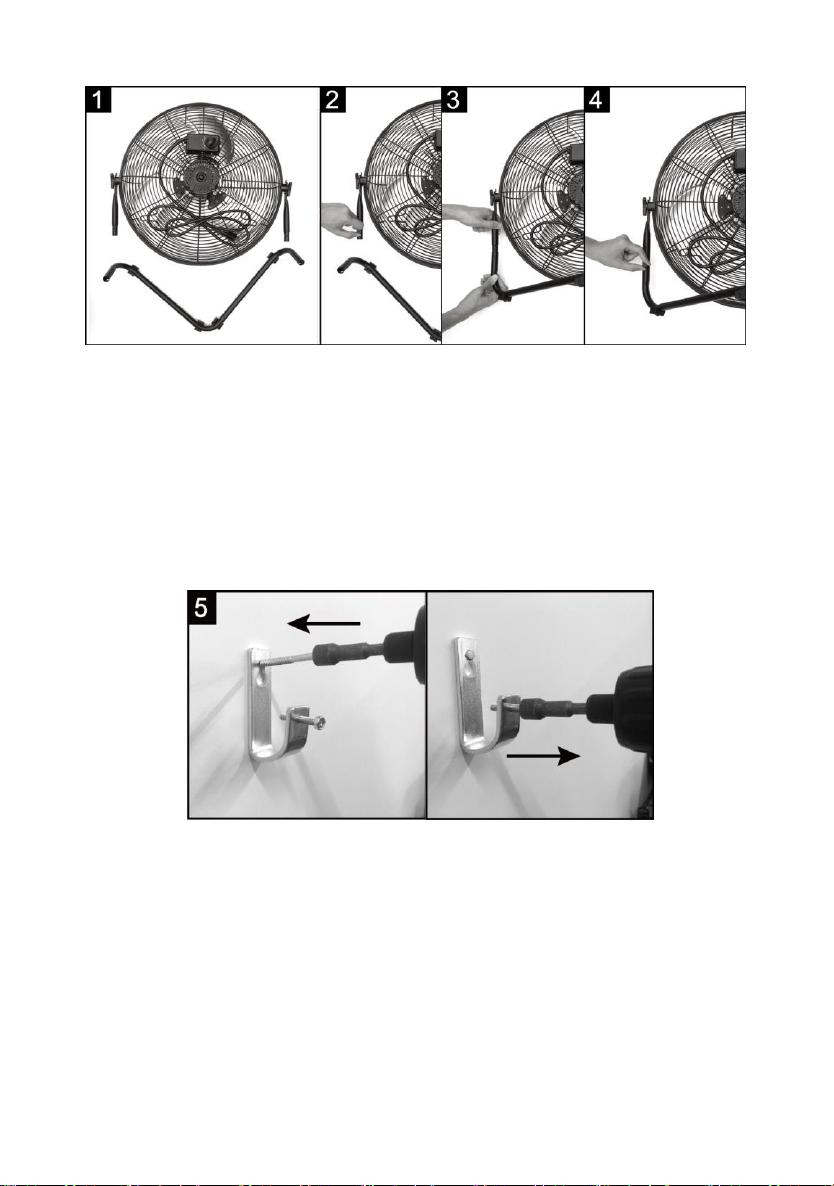

ASSEMBLY INSTRUCTIONS

1. Please put the fan on a flat and stable surface as shown in the

picture.

2. Remove the two knobs from the steel tube attached to the

fan head, save them for step 4.

3. Align the hole in the stand with the hole in the steel tube

attached to the fan head.

4. Carefully insert the knobs from step 2 into the holes and tight

them. Please be sure to re-tighten the adjustment knobs to

avoid swaying of the fan head.

(If you need the fan for wall function, follow up Step 5 to 7.)

5. Mount the wall bracket with a 1/4”diameter by 2-1/2”long

lag bolt provided. Loosen set screw on the wall bracket, save it

For step 7.

6. Hold fan in an upright position, place stand in wall bracket

hook so that rubber feet on the stand rest against the wall.

Tighten back the set screw from step 6 to lock the stand in

position.

7. Tilt fan head to desired angle.

OPERATING INSTRUCTIONS:

1. Set fan on a dry, stable and flat surface.

2. Connect the plug to any standard 120-volt AC outlet. Caution:

Make sure the Speed Control is in the OFF position.

3. Change the setting on the speed control to the desired

operating speed --- OFF"0", LOW"1", MEDIUM"2" or HIGH"3".

4. To change the tilt -angle of the Fan Head, loosen the Tilt

Adjustment Knob on the side of the Grille, tilt the Fan Head to

the desired angle and tighten the knob. The knobs on both

sides are tools for tilt adjustment.

Note: It is normal for the motor to feel warm to the touch during

operation. The motor is thermally protected and will

automatically shut off when it overheats for any reason. If this

happens, immediately disconnect the fan from the power outlet.

The motor bearings are permanently lubricated at the factory

and do not require any additional lubrication.

REPLACING PLUG FUSE

When the fuse in the power cord blows, please replace the fuse

by following these steps:

1. Disconnect the plug from the wall outlet. Do not unplug by

pulling on cord. Then slide open the fuse access cover on top

of attachment plug towards blades, as shown in Figure 1.

2. Remove the fuse carefully using a flat head screwdriver, as

shown in Figure 2.

3. Replace the fuse only with 5 Amp, 125 Volt fuse, as shown in

Figure 3. (You may purchase a replacement fuse from a local

hardware store).

4. Slide the fuse access cover on top of attachment plug, as

shown in Figure 4.

Figure 1 Figure 2

Figure 3 Figure 4

CLEANING

WARNING: Unplug the fan from the wall outlet before cleaning. After

cleaning, any safety device (including grills and blades) must be

reinstalled or remounted as previously installed.

Use soft damp cloth then wipe with dry cloth. Do not use harmful

cleaners. Do not bend the blades.

Wash guards and blades with water and a soft brush. Avoid harsh

chemical cleaners. DO NOT IMMERSE MOTOR IN WATER. Allow fan to

dry completely before use.

WARNING

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible

for their safety.

WARRANTY

This fan comes with a ONE-YEAR LIMITED COMPONENT WARRANTY.

If your fan does not appear to be working properly, please contact our

service center by calling 1-800-317-1688. Prior to your call, we

encourage you to visit our website www.ilivingusa.com for

troubleshooting tips and service instructions if needed.

Warranty Information

Or visit iLivingUSA.com/register-product

Feedback

Love it? Help us make the product more for you.

Let us know with a customer review.

Please visit: https://www.amazon.com/review/review-your-purchases#

At iLiving USA, we are committed to bringing top quality products to our

customers.

iLIVING USA

9293 Beatty Dr,

Sacramento, CA 95826

Tel: 1-800-317-1688

Email: ser[email protected]

Like us on Facebook: https://www.facebook.com/ilivingusa/

Check out our website: www.ilivingusa.com
