iLiving ILG-900 Manuel utilisateur
USER MANUAL
X-Bike
Model Number: ILG-900
OUTLINE
●PARTS LIST
●ASSEMBLY INSTRUCTION
●METER FUNCTION
●PRECAUTION
PARTS LIST Page : 1
ASSEMBLY INSTRUCTION Page: 2

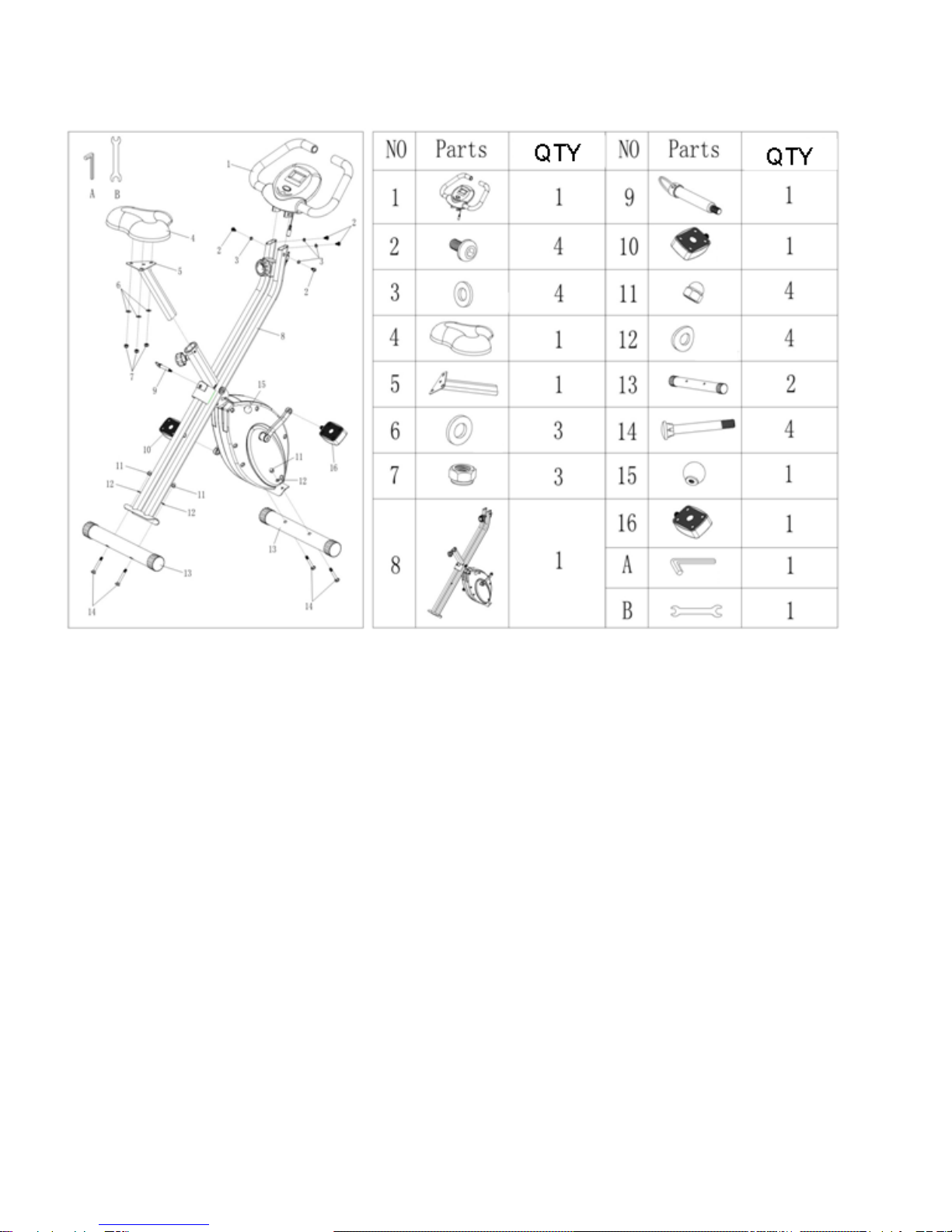

Parts List
Secure the rear tube with
screw (#14), washer (#12),
and nut (#11) by the allen
wrench
Loose ball (#15) and take out
pin (#9) ,then open the main
frame.
Insert the pin (#9) and
secure the ball (#15).
Secure the seat (#4) on the
seat tube (#5).
Loose the adjust knob, and
insert the seat tube (#5). Then,
tighten the adjust knob.
Insert the handle bar
w/meter (#1) into main
frame. Secure with the screw
(#2) and washer (#3).
Connect the meter wire.
Secure the pedal (#10, #16)
with allen wrench.
Assembly done.
METER FUNCTION Page: 3
FUNCTIONS:
MODE: Select the particular function you want.
TIME: The total working time will be shown when starting exercise.
SPEED: Display current speed during working time.
DISTANCE: The distance of each workout will be displayed when starting exercise.
CALORIE: The calorie burned will be displayed when starting exercise.
ODOMETER (ODO): Automatically accumulates workout distance when starting exercise.
SCAN: Display changes according to the next diagram around every 4 seconds.
RESET: Press the MODE key around 4 seconds for reset.
NOTE:
1. Without any signal coming in 4-5 minutes, the LCD display will be shut off automatically.
2. When there is signal input, the monitor automatically turns on.
3. If there is a possibility to see an improper display on the monitor, please replace the batteries to have
a good result.
PRECAUTION Page: 4
Consult a physician before using this equipment
1. Do not allow children to use or play on this equipment. Keep children and pets away from this
equipment when it is in use.
2. Set up and using this equipment on a solid level surface. Do not use it on loose rugs or uneven
surfaces.
3. Consult your physician before using this equipment, especially if you are pregnant, or suffering from
any illness. Stop and consult your physician, if you feel faint, dizzy, or uncomfortable, during the
exercise.
4. Before using the machine to exercise, always do stretching exercises to properly warm up.
5. Never operate the machine if the machine is not functioning properly.
6. Ensure that all nuts and bolts are tightened properly before each use.
7. The X-Bike is designed for consumer use only. It is not intended for commercial use.
8. Individuals weighting over 220LBS are not recommended to use this equipment.
9. If you have any questions or concerns, please call us Toll Free (800) 317-1688
iLIVING USA
239 Harbor Way
South San Francisco, CA 94080
Toll: 800-317-1688 or 650-952-2257
