Thermospeed™Controller
OWNER’S MANUAL
MODEL: ILG8SFST
IMPORTANT INSTRUCTIONS
READ & SAVE
IMPORTANT INSTRUCTIONS
1. Disconnect power supply before connections are made to prevent possible electric shock
and/or damage to equipment.
2. Read and follow instructions carefully. Failure to comply with instructions could result in
fire, electric shock, injury to persons, and/or damage to equipment.
3. To reduce the risk of overheating and possible damage to other equipment, this
THERMOSPEED™ CONTROLLER is only intended for use with the iLiving Variable
Speed Shutter Exhaust Fans (ILG8SF7V, ILG8SF10V, ILG8SF12V, ILG8SF16V,
ILG8SF18V, ILG8SF20V, and ILG8SF24V). Do not install this THERMOSPEED™
CONTROLLER on any other fan or appliance.
4. All wiring should conform to the United States National Electrical Code and all applicable
local/state regulations.
5. Do not install THERMOSPEED™ CONTROLLER in any area which will likely expose the
THERMOSPEED™ CONTROLLER to moisture.
6. Make certain the entire installation is grounded as a precaution against possible electrical
shock.
7. Do not exceed maximum amperage rating of the THERMOSPEED™ CONTROLLER as
overloading can result in damage to the shutter exhaust fan and THERMOSPEED™
CONTROLLER.
8. When wiring an electrical appliance or device follow all electrical and safety codes, as
well as the most recent United States National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSHA).
9. Install THERMOSPEED™ CONTROLLER in a well-ventilated area.
CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE
THIS THERMOSPEED™ CONTROLLER IN AN INSULALTED WALL.

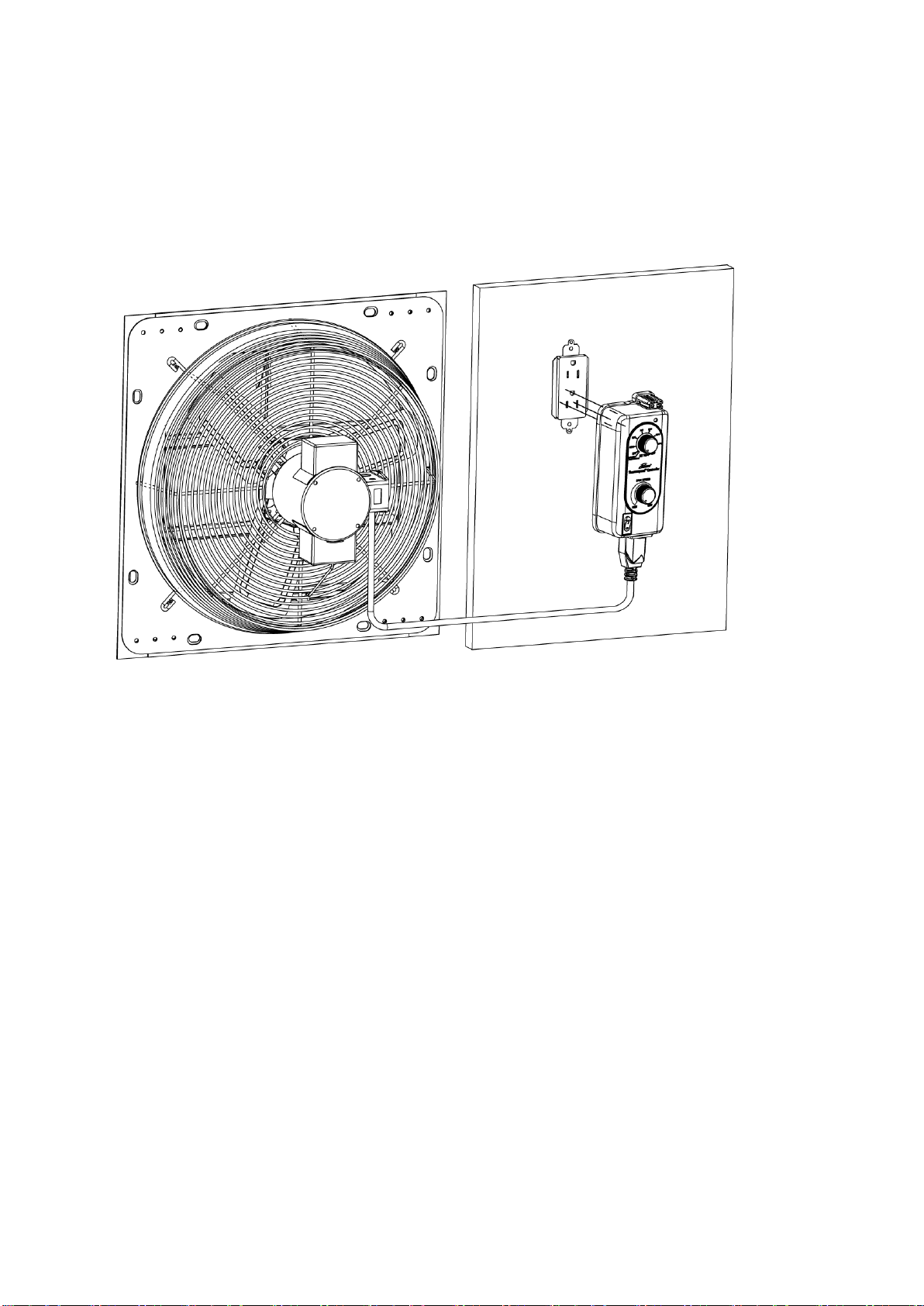

Installation
1. Turn power off at circuit breaker panel or fuse box.
2. Install the controller to a 120V / 60Hz wall socket.
3. Hardwire a power cord to the fan. Plug the power cord of fan into the socket of
Thermospeed control to get power.
Product Specification
Model No.:ILG8SFST
Voltage: 120VAC 60Hz
Rated Current: 3.0A
Control Descriptions
Name and Function
A. Set Temp Knob
B. Fan Speed Knob C. Power Switch
D. Power LED Display
Operation Instruction
Power control:
Power Switch
To start the controller, switch the power button to Iposition.
To turn off the controller, switch the power button to position.
Operating mode
Fan speed control:
1. Adjust the fan speed according to the FAN SPEED knob , from large to small.
2. Upon start up, fan will run at full speed for 4 seconds as start up sequence, and then run
at the set speed.
A
B
D
C
F
Temperature control:
1. Adjust the setting temperature range from 32 degrees F to 130 degrees F using SET
TEMP knob .
2. When the room temperature drops to ≤ the set temperature -2~3 degree F, the fan stops
running. When the room temperature rises to ≥ the set temperature+ 2~3 degree F, the
fan will turn on.
3. Turn the SET TEMP knob to the red line area “BYPASS THERMOSTAT”, to by pass
temperature control; fan will run continuously regardless of temperature.
Warranty Information
This product comes with a ONE-YEAR LIMITED COMPONENT WARRANTY. If your unit
does not appear to be working properly, please contact our service center by calling
1-800-317-1688. Prior to your call, we encourage you to visit our service related website
www.ilivingusa.com for troubleshooting tips and service instructions if needed.
Register your product at our website:
Or visit iLivingUSA.com/register-product
Feedback
Love it? Help us make the product more for you.
Let us know with a customer review.
Please visit: https://www.amazon.com/review/review-your-purchases#
At iLiving USA, we are committed to bringing top quality products to our customers.
iLIVING USA
860 Mahler Rd,
Burlingame, CA 94010
Tel: 1-800-317-1688
Email: [email protected]
