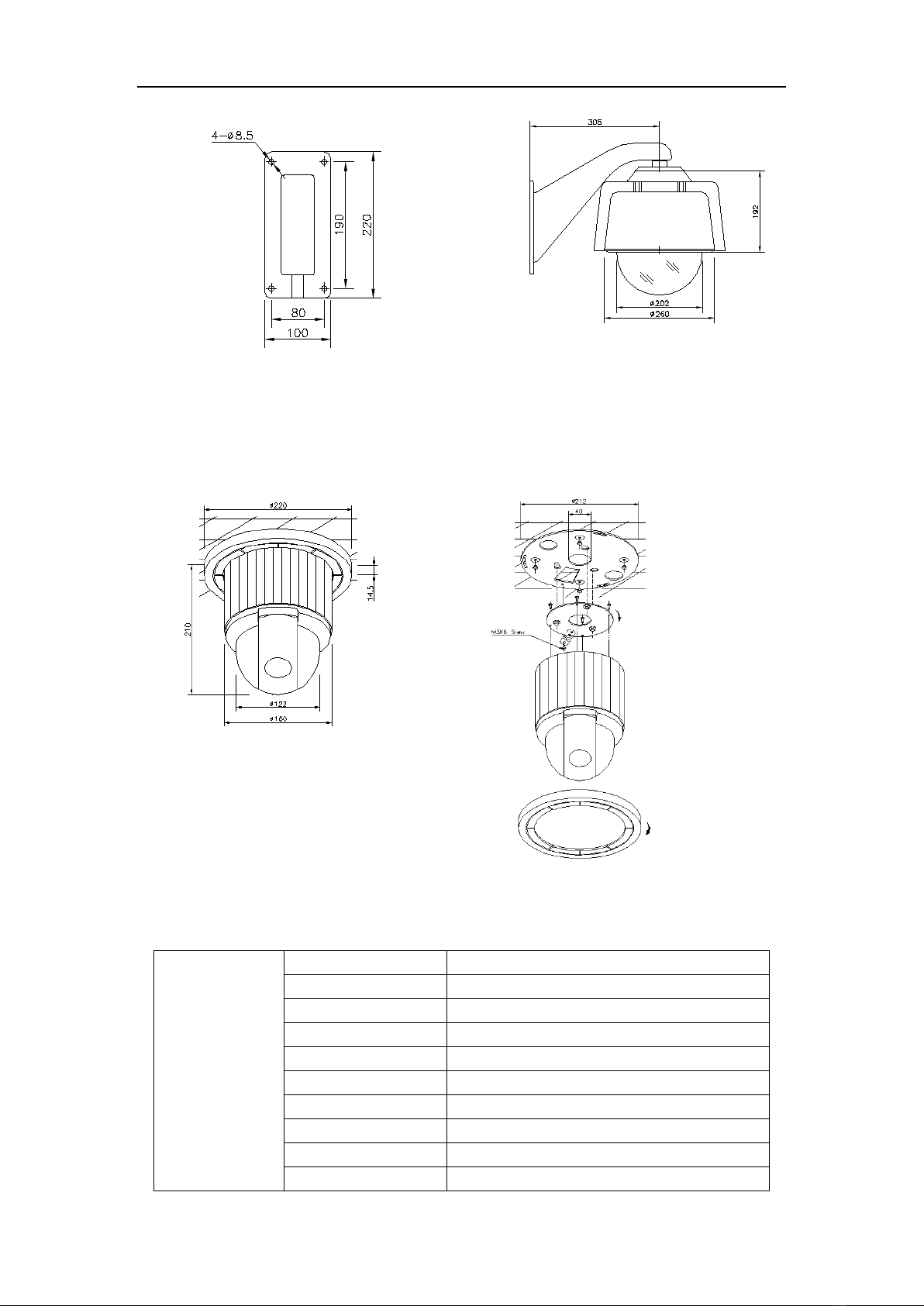

Intelligence Speed Ddome SC&SE Series User Manual
2. Function
2.1 The multi-protocol interface transfer inside.
a. The multi-protocol cable can integrate 16 kinds of protocol, the baud rate can be adjusted,
by setting the 1~10 bits of the DIP Switch. The dome is compatible with the most of systems.
b. RS485 COM control; dome address 1~511
2.2 Speed pan/tilt
a. Tilt rotation range 0º~90º with auto flip gives full 180º correctly orientated continuous
vision.
b. 360º pan rotation without dead spots.
c. Extremely smooth low speed pan operation is achieved without picture vibration
2.3. High level of intelligence
a. 64 preset positions, dome stores current horizontal angle and the tilt angle of pan/tilt/zoom
and position parameters into the memorizer even if lose power.
b. Set left and right of the desired view area beforehand and make the dome scan between the
two positions.
c. The preset positions can be programmed to be recalled in a set of sequence. This sequence
can be set to automatically cycle from one position to the next at a setting time .The dome can
remember 6 tracks even if lose power these tracks will not be lost.
2.4 New function
a. Updatable English Character function, display dome address and the presets.
b. Shiftable speed rotation (pan 0º~240º/s tilt 0º~60º/s). In manual control applications,
the high lead it is very difficult to view images when the lens is zoomed to longer focal lengths. To
improve the ergonomics of control the dome has a zoom-pan speed interaction function this will
automatically make control the operating speed of the pan function dependant on the focal length
of the zoom lens. This feature automatically product very good image control under manual pan
operation.
2.5 The range of optical power zoom lens
Optical Power Zoom Lens Focus range Lux
22x F4~f88mm 0.2 Lux（F1.6 1/3s）
23x F3.6~f82.8mm 1Lux(normal)/0.01Lux（D/N）
30x
1Lux(normal)/0.01Lux（D/N）
35x
1Lux(normal)/0.01Lux（D/N）
2.6 Camera function
□ If you use SONY camera and the on screen display is opened.
(1) Focus: user can adjust focus near or far, when the focus is near state the screen display the
symbol , when the focus is the nearest state the screen display , when the focus is far
state the screen display .
(2) Backlight: In a weak light background, user can turn on the backlight function the screen
will display the symbol .
(3) White Balance: camera can adjust white balance according to the alteration of background
lightness to give a true image. There are 6 modes of white balance can be chosen:
①indoor
②outdoor
③one-push
④ATW ATW
⑤manual WB-MAN
⑥auto
(4) Zoom: User can adjust zoom wide or tele by controller and get desired image .The screen
display
(5) Camera Power: ON
