Keyboard User Manual

For

IKB-2888

Thank you for using IKB-2888 keyboard. This manual will guide you how to connect and operate the IKB-2888 keyboard.

Notice:

The LCD screen and joystick are easy to damage, please take care of it when using or moving the keyboard. Don’t put the keyboard on exposure of sunshine for

long time. If it needs to be repaired, please wrap it and ship it by using original or safety package.

2/ 13

Contents

1. Key Features and Specifications……................................... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... .......3

1.1 Manage NetDVR........... ........... ........... ........... ........... ........... ........... .................. ........... ........... ........... ........... ........... ........... ........... ........... ........... ............ ........... ........... ........... ........... ...........3

1.2 Control Speed Dome through NetDVR or directly………………………........... .............. ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ...........3

1.3 Multiple PTZ Protocols…………………………………….. ........... ........... ........... ........... …............. ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ...3

1.4 Cascade Connection........... ........... ........... ........... ........... ........... ........... ............. ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ...........3

1.5 Specifications………………………………………………………………………………………………………………………………………………………………………………………………3

2. Wire Ports........... ........... ........... . ........ ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... …......... ........... ........... ........4

2.1 Back panel interface…………….. ........... ........... ........... ........... ........... ........... .................. ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ............. ........... .....4

2.2 Typical Wiring Diagram........ ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ....................... ..........6

2.3 Front panel description........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... .................... ...........8

2.3.1 LCD screen……........ ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... ........... …............. ..... ......8

2.3.2 Definitions of keys…………………………………………………………………………………………………………………………………………………………………………………………………………….9

2.3.3 Joystick movements…………………………………………………………………………………………………………………………………………………………………………………………………………..10

3. Keyboard configuration……………………………………………………………………………………………………………………………………………………………………………………….. ...........11

3.1 Keyboard menu structure tree………………………………………………………………………………………………………………………………………………………………………………………………….11

3.2 Configuration illustration………………………………………………………………………………………………………………………………………………………………………………………………………12

4. Control Speed Dome through NetDVR……………………………………………………………………………………………………………………………………………………………………….13

5. Control Speed Dome directly………………………………………………………………………………………………………………………………………………………………………………………14

3/ 13

1. Key Features and Specifications

1.1 Manage NetDVR

IKB-2888 keyboard works with all models of IL6000HC/HCS/HD/HDS/HN series of NetDVR. It can manage up to 31 NetDVR. It has the full functions of

NetDVR remote controller and front panel.

1.2 Control Speed Dome through NetDVR or directly

IKB-2888 keyboard can control up to 496(31*16) Speed Domes through NetDVR (Speed Dome RS485 port connects to NetDVR RS485 port).

If the Speed Dome RS485 port connects to keyboard RS485 port directly, it can control up to 255 Speed Domes (address are among 0~254).

1.3 Multiple PTZ Protocols

Up to 9 PTZ protocols are built in the keyboard. For special project that existed protocols cannot fulfill the requirement ILDVR offers software upgrade service

without changing any hardware.

1.4 Cascade Connection

IKB-2888 keyboard supports one master keyboard and 15 slave keyboard cascade connections. Keyboard IDs range from 0 to 15.

4/ 13

1.5 Specifications

Keyboard model IKB-2888

Support NetDVR number 31

Support PTZ number 255

Control model RS-485 half-duplex mode

Baud rate: 1200 ~ 19200bps

Communication interface RS485 port

LCD screen 128mm×64mm

Joystick 3D

Max. cable length 1200m

Power supply DC12V

Working temperature -10℃-- +55℃

Working humidity 10%--90%

Size 360mm*200mm*108mm

Weight 3.2KG

2. Wire Ports

2.1 Back panel interface

5/ 13

Item

Name

Descriptions

①PTZ-CON Master keyboard RS485 port. Ta=RS485+, Tb=RS485-. When there is only one keyboard in use, it must be used as

master keyboard.

②PTZ-AUX Slave keyboard connection port. Ra (pin8) connects to salve keyboard Ta (pin10). Rb (pin7) connects to slave keyboard

Tb (pin9).

③Ground Ground terminal

④DVR-AUX Slave keyboard NetDVR connection port. Ra (pin4) connects to Ta (pin2) of salve keyboard. Rb (pin3) connects to Tb

(pin1) of slave keyboard.

⑤DVR-CON Master keyboard NetDVR connection port. Ta (pin2) connects to D+ of NetDVR KB port. Tb (pin1) connects to D- of

NetDVR KB port. When there is only one keyboard in use, it must be used as master keyboard.

⑥PTZ PTZ work status indicator (Green=on).

⑦DVR DVR work status indicator (Green=on).

⑧PW Power indicator (Red=on).

⑨DC-12V DC 12V power input

6/ 13

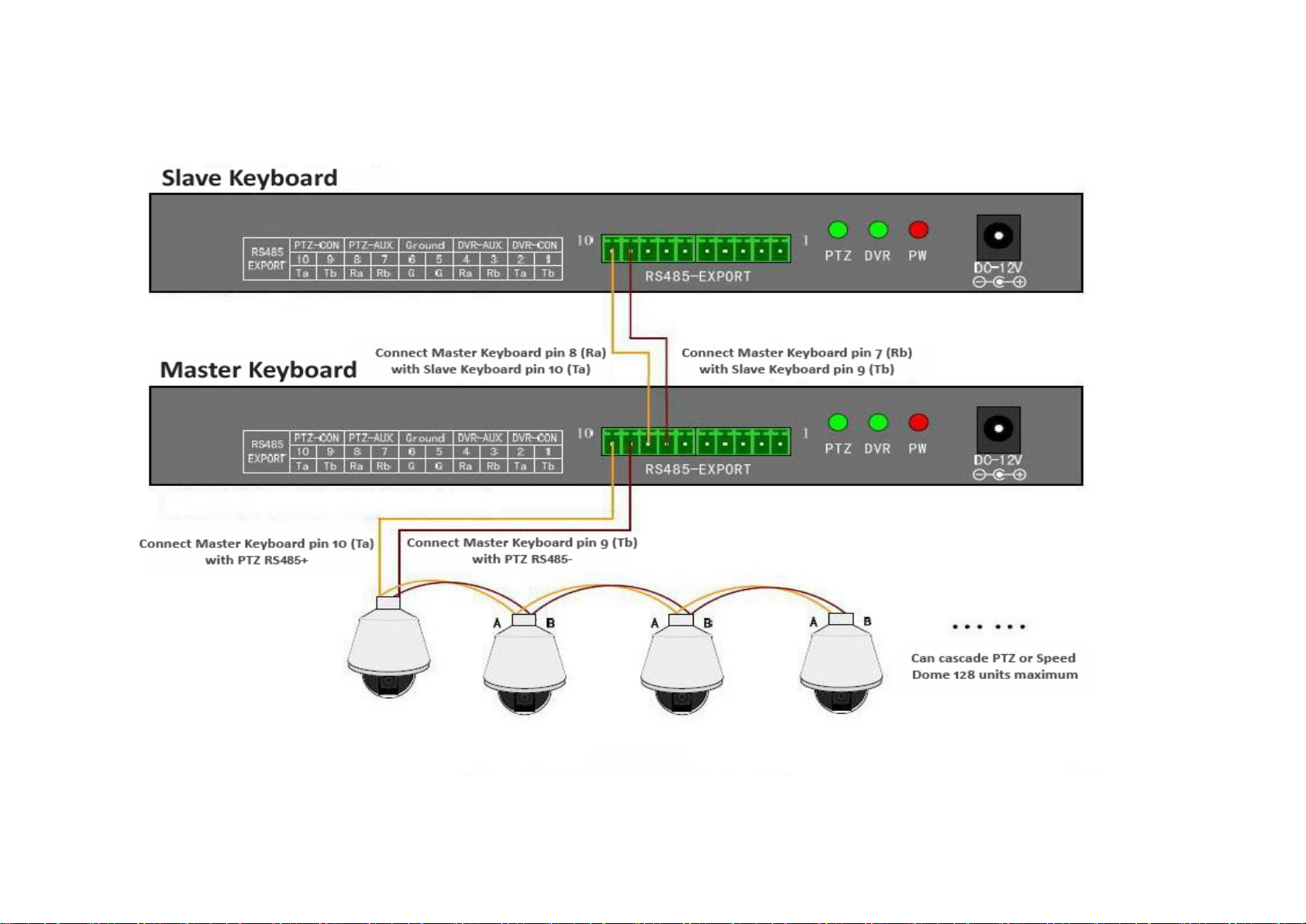

2.2 Typical Wiring Diagram

7/ 13

8/ 13

2.3 Front panel description

2.3.1 LCD screen

All operation steps will be displayed on the LCD screen. The screen will automatically turn to screen save mode in 30 seconds without any input.

2.3.2 Definitions of keys

Name of key Description of operation function

9/ 13

ESC Back to up-level menu

Setup Hold on 3 seconds to enter keyboard configuration status (default password: 8888)

To view the keyboard system info such as device serial number, model name and PTZ protocol

Shift

Switch the CONTROL mode between NetDVR and speed dome

MENU Show the main menu

PREV Switch the split viewing mode of 1x, 4x, 9x, and 16x

F1, F2, F3, F4 Speed dome function key. Refer to LCD screen indication depending on the PTZ protocol to operate

REC

Shift to NetDVR manually record mode.

MON

Special control key the four auxiliary outputs of NetDVR (hold on 2 seconds )

EDIT Edit/change the inputs.

PLAY Enter NetDVR playback status.

MAIN/AUX

Switch the main/aux output port (hold on 2 seconds)

Switch input method

PTZ Enter NetDVR PTZ control status.

AUX Reserved in NetDVR control mode

Shut Down Power off NetDVR

Addr

Change the NetDVR device ID or PTZ address to operate

Clear Clean the current input

ENTER Confirm the current input

0-9

Numeric key of 0, 1, 2, 3, 4, 5, 6, 7, 8, 9

A-Z

Letter key of A-Z (26 letters)

PRESET Setup the speed dome preset

DEL Delete the speed dome preset

SHOT Call the speed dome preset

Auto

Run the speed dome tour

（

depending on the connected speed dome, please refer to the speed dome operation guide

）

FOCUS+

Set the lens focus near

FOCUS- Set the lens focus far

ZOOM+ Zoom in the lens

10 / 13

ZOOM- Zoom out the lens

IRIS+ Open the lens iris

IRIS-

Close the lens iris

WIPER

PTZ wiper on/off

Light PTZ light on/off

2.3.3 Joystick movements

Figure

Operation

Descriptions

up In PTZ control mode: control the movement of pan/tilt

In DVR control mode: play fast when playback the record file

down In PTZ control mode: control the pan/tilt to move upon

In DVR control mode: play slowly when playback the record file

left In PTZ control mode: control pan/tilt to move left

In DVR control mode: move backward when playback the record file

right In PTZ control mode: control pan/tilt to move right

In DVR control mode: move forward when playback the record file

rotate left Zoom in the lens

rotate right Zoom out the lens

3. Keyboard Configuration
