Ikegami LCM-205N Manuel utilisateur
20-INCH
TFT-LCD PUBLIC VIEW MONITOR
Model : LCM-205N
CARD READER MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.
CONTENTS
REMOTE FUNCTIONS ……………………………………………………………………….. 2
CONTROLS AND FUNCTIONS…………………………………………………………. 3 - 11
SPECIFICATIONS………………………………………………………………………….… 12
.
Manufactured by ISO 9001
Certified Factory
This Monitor was
INSTRUCTION MANUAL-------------------------------------------------------------------------------------------1
REMOTE FUNCTIONS
- REMOTE CONTROLLER
CONTROLS AND FUNCTIONS
3-3) Press LEFT or RIGHT button to navigate witch memory card you want to explore and
then press ENTER button to explore the selected card.

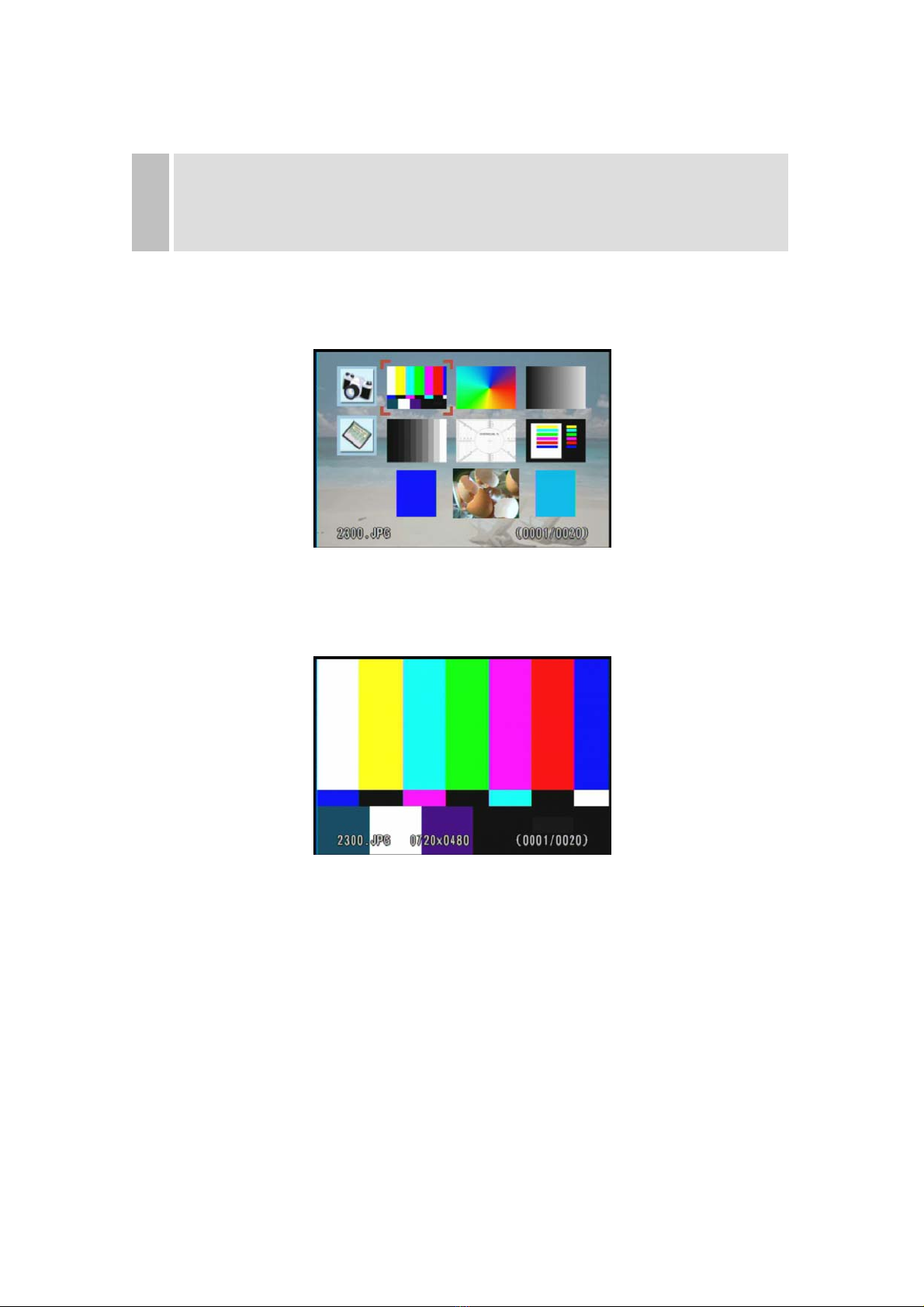

3-4) If the inserted card has photos, you will see the following screen to show the thumbnail
photo.
4. Main Setup Screen

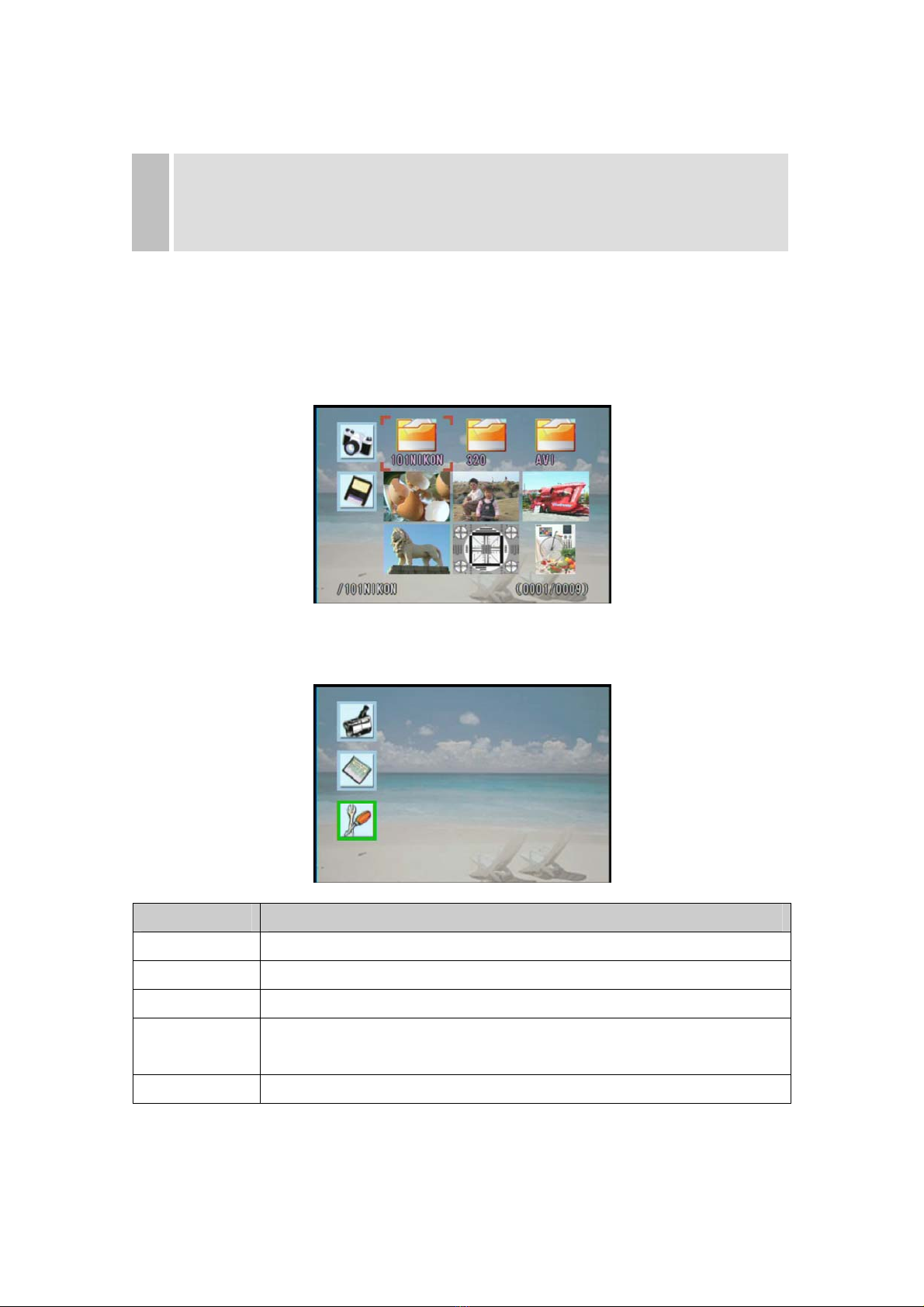

4-1) You can use UP or DOWN button to navigate the tool icon shown below.
Menu Item Description
Language Change the OSD language
Slide Duration Adjust the interval time between each picture during slide display
File Description Display or hide the file information such as file name and image resolution
Folder Mode YES : Display the photo within one selected photo
NO : Display all the file no matter what folder the files are located
TV Type Default setting is NTSC
INSTRUCTION MANUAL-------------------------------------------------------------------------------------------5
CONTROLS AND FUNCTIONS
4-2) Press ENTER button. Setup screen is shown on screen.
Standard firmware only supported three languages.
i.e., English, Traditional Chinese, Simple Chinese
4-3) Press UP/DOWN/LEFT/RIGHT button to choose witch parameter you want to change.
After changing the parameters, press ESC button to exit the setup screen.

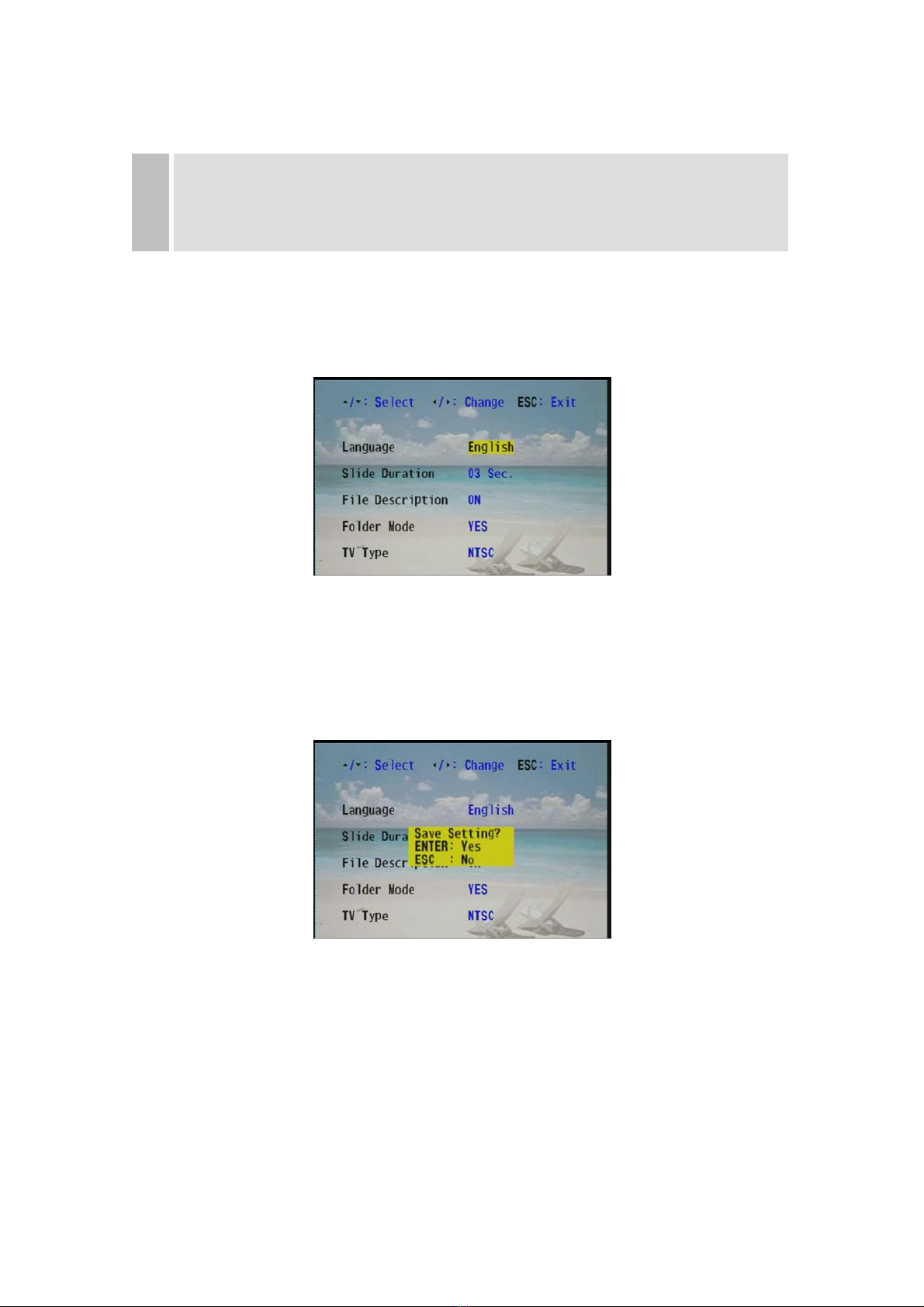

If any parameter is changed, you will see the following screen.
And then, you can press either ENTER button to store the modified parameter
orESC button to abort the change.
6 ------------------------------------------------------------------------------------------- INSTRUCTION MANUAL
CONTROLS AND FUNCTIONS
5. Photo Display
5-1) Press UP/DOWN/LEFT/RIGHT button to navigate the picture that you want to view.
Folder Mode : NO
5-2) If the selected icon is folder, you can press ENTER button to go to the sub-folder.
If the selected icon is photo, you can press ENTER button to view the photo in
full screen mode.
5-3) Press LEFT/RIGHT button to navigate the previous/next photo.

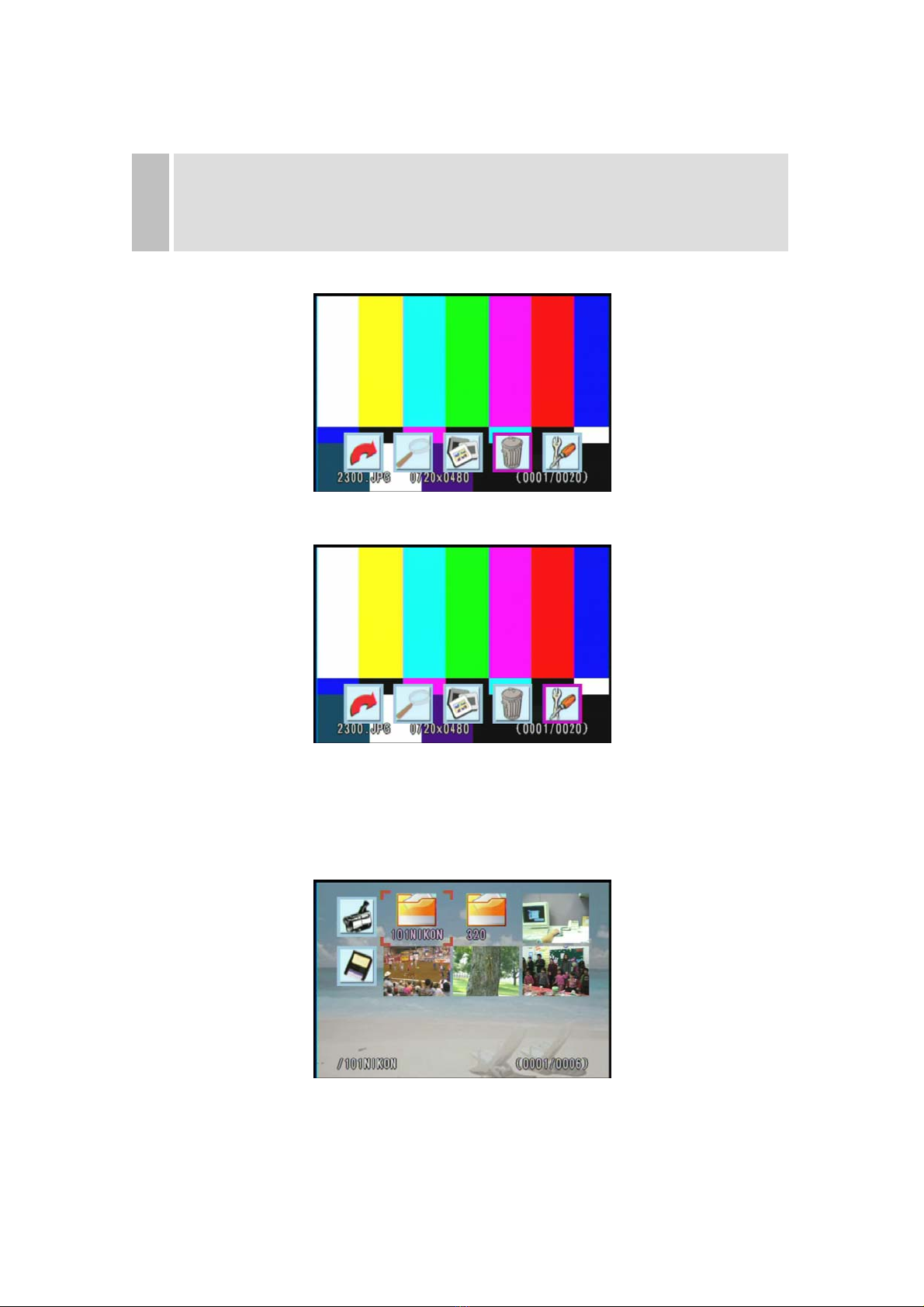

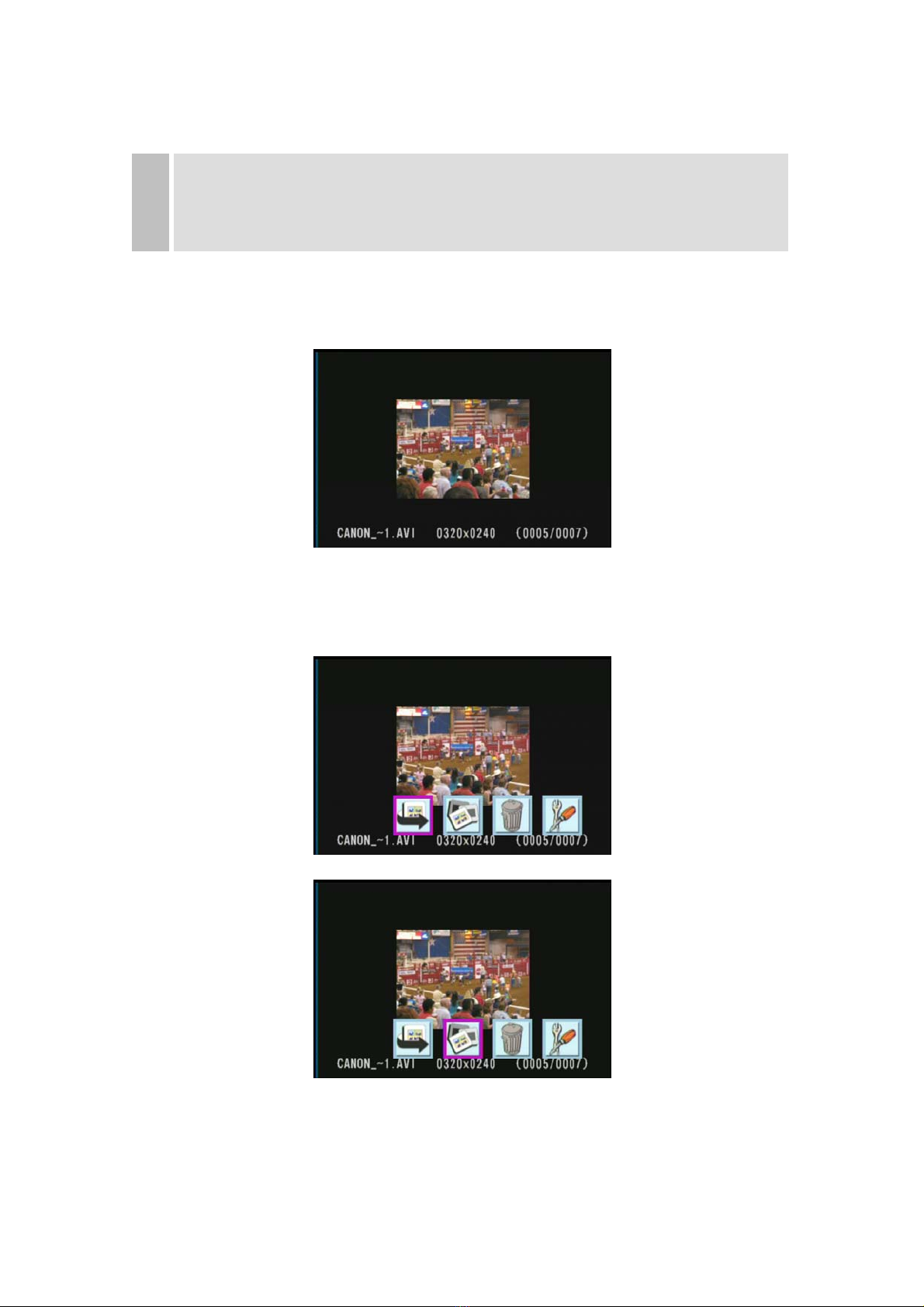

5-4) Press ENTER button, you will see following setup screen.
And then press LEFT or RIGHT button to navigate the function shown below.
INSTRUCTION MANUAL-------------------------------------------------------------------------------------------7
CONTROLS AND FUNCTIONS

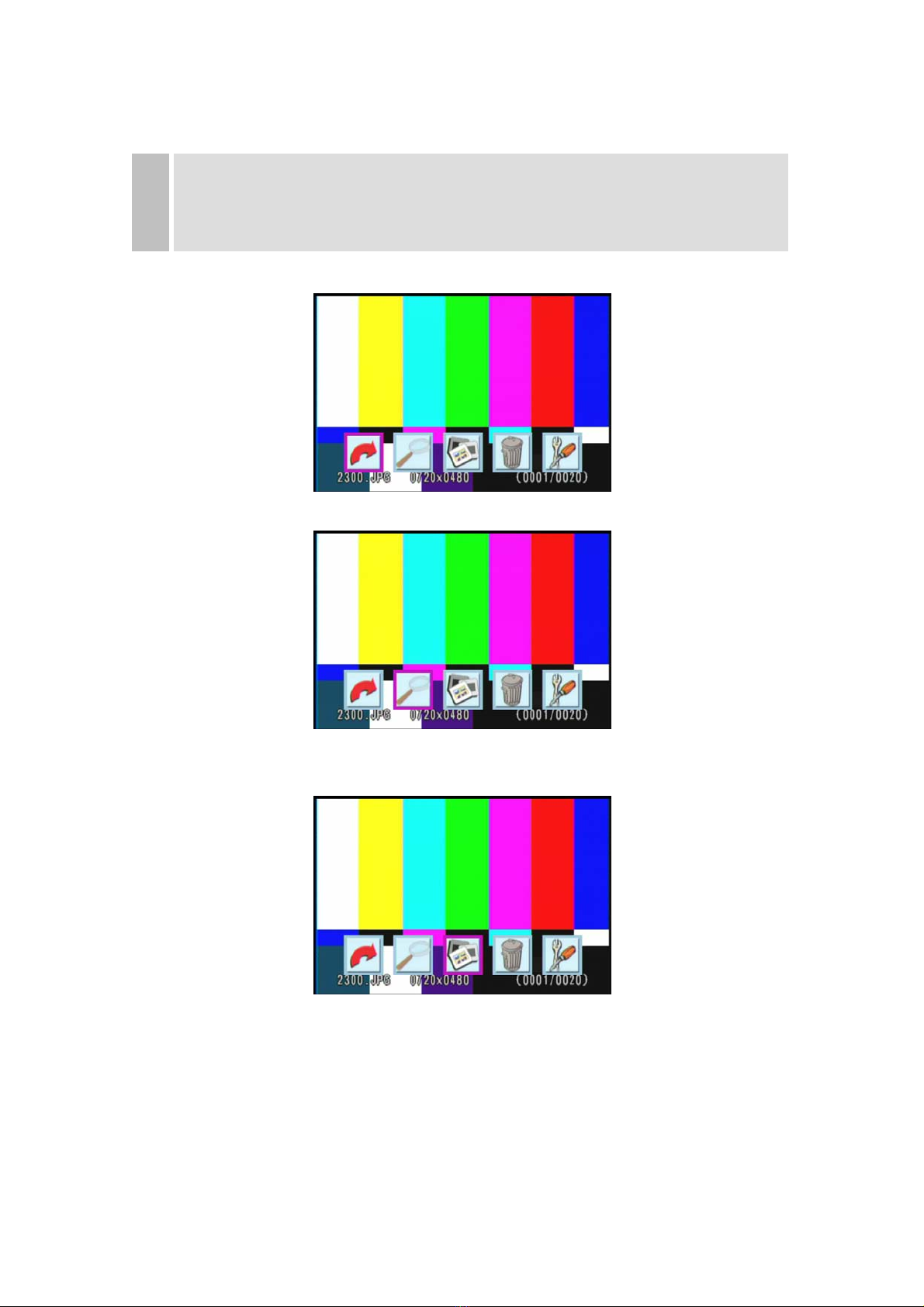

Rotate : Press ENTER button to rotate the photo in 90 degrees clockwise.
ZOOM : Press ENTER button to zoom the photo.
SLIDE SHOW : Press ENTER button to start to slide the photo automatically.
8 ------------------------------------------------------------------------------------------- INSTRUCTION MANUAL
CONTROLS AND FUNCTIONS
DELETE : Press ENTER button to delete displayed photo in memory card.
SETUP : Press ENTER button to go to main setup screen.
6. AVI Playback
6-1) Press UP/DOWN/LEFT/RIGHT button to navigate the picture that you want to view.
INSTRUCTION MANUAL-------------------------------------------------------------------------------------------9
CONTROLS AND FUNCTIONS
5-2) If the selected icon is folder, you can press ENTER button to go to the sub-folder.
If the selected icon is photo, you can press ENTER button to playback the selected AVI.
5-3) Press LEFT/RIGHT button to navigate the previous/next AVI.
5-4) Press ENTER button, you will see following setup screen.

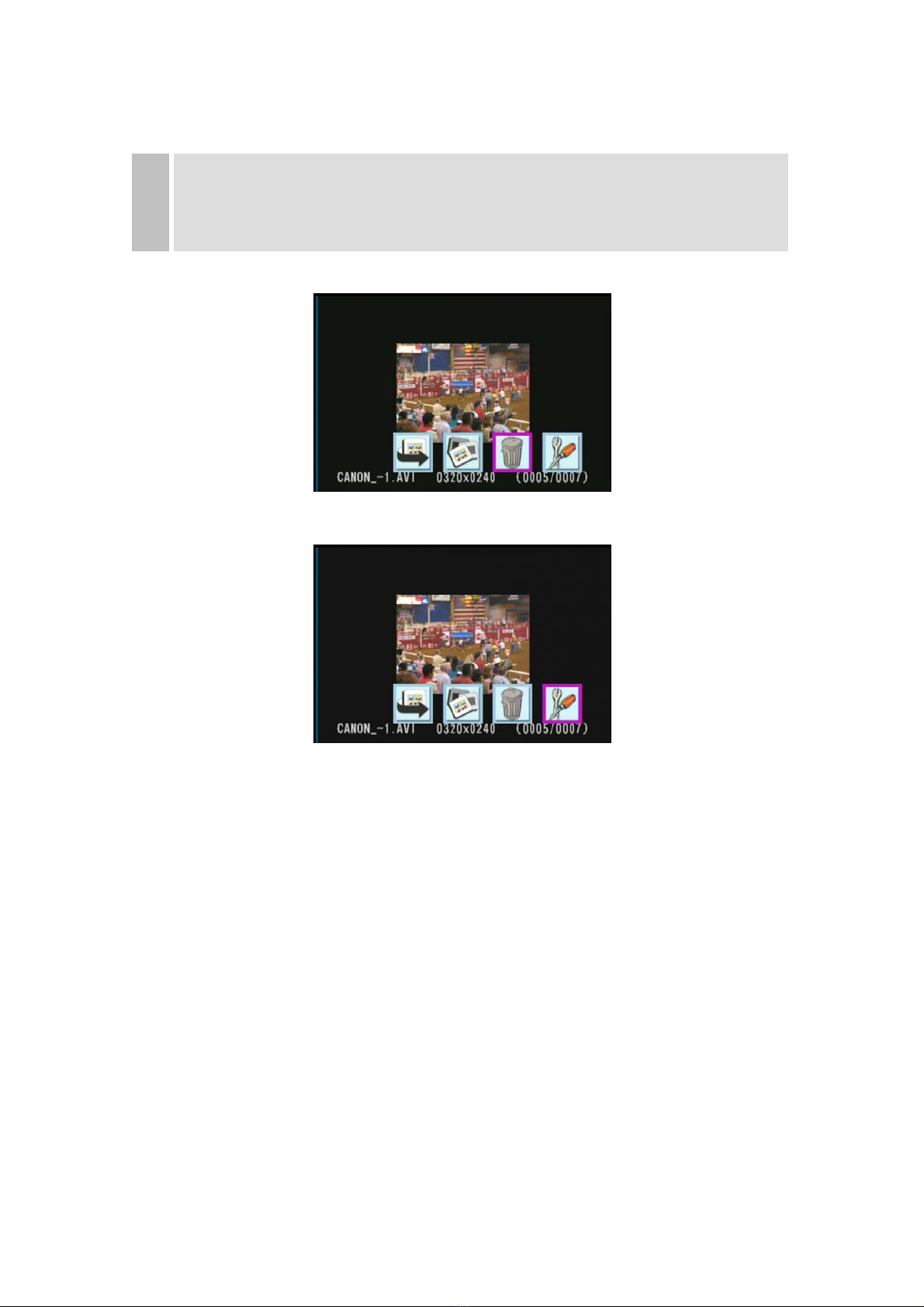

And then press LEFT or RIGHT button to navigate the function shown below.
REPEAT : Press ENTER button to playback current AVI one more time.
SLIDE SHOW : Press ENTER button to start to slide the photo automatically.
10 ------------------------------------------------------------------------------------------- INSTRUCTION MANUAL
CONTROLS AND FUNCTIONS
DELETE : Press ENTER button to delete displayed AVI file in memory card.
SETUP : Press ENTER button to go to main setup screen.
INSTRUCTION MANUAL-------------------------------------------------------------------------------------------11
