CABINET PARTS

For Model: IX5HHEXWS01

(Stainless Steel)

10−09 Litho In U.S.A. (rrm) (eeb) Part No. W10297587 Rev. A

REFRIGERATOR

CABINET PARTS

2W10283342

For Model: IX5HHEXWS01

(Stainless Steel)

W10297587

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10270272

Use & Care Guide

W10270376

Energy Guide

W10238844

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Cover, Left Hinge

B5759655 Black

4 B5759649 Gasket

5 Roller Assy.

W10275849

Right

W10275850

Left

6 10354002 Foot, Brake

12566607ED

Hinge, Left Top

9 67006521 Screw

10 Cover, Right Hinge

12684202B

Black

11 12990101 Screw

12 12698403 Block, Pivot

14 12992403 Screw (3)

15 Hinge, Center (LT)

13000007ED

Black

12566606ED

Hinge, Right Top

17 Cover, Corner

12587703B

Black

20 12991302 Screw (4)

W10211854

Cover, Unit

22 Grille, Toe

W10244561

Black

W10210988

Tube, Drain

25 12990511 Screw

26 12820505 Fiber, Acoustic

31 12579702 Shim, Top Hinge

32 12990303 Screw, Block

33 Hinge, Center (RT)

13000008ED

Black

W10208592

Guard−Water Valve

W10216614

Sweep−Water Valve

FREEZER LINER PARTS

For Model: IX5HHEXWS01

(Stainless Steel)

W10297587

FREEZER LINER PARTS

For Model: IX5HHEXWS01

(Stainless Steel)

W10297587

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam (2)

4 12804901 Cover, Light

12570701V

Socket, Light

8 12990521 Screw (8)

W10194422V

Bulb, Light

12476401V

Housing, Frz. Light

11 12226112 Cover, Evaporator

12 12990101 Screw (7)

13 Bracket, Door

W10122147

Left

W10122148

Right

14 12805001 Housing, Lighting

15 13058002 Clip, Evap. Motor

16 12466105 Switch, Light

18 Cradle, Basket

W10280608

Left

W10280613

Right

W10120018

Slide, Drawer (2)

20 A3189397 Gasket, Bottom

21 Adapter, Slide

W10261203

Left

W10261204

Right

22 13024803 Cover, Fan Shroud

23 13057901 Shroud, Evap.Fan

24 2169142 Fan, Evaporator

W10121318

Grommet (2)

W10128551

Motor, Evaporator

27 D7753903 Funnel, Drain

(Incl. # 28 & 29)

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 12815301 Cover, Thermistor

32 12990501 Screw (6)

12991603V

Screw

W10157765

Diverter, Air

35 Rack−Side

W10284694

Left Side

W10284695

Right Side

Following Parts Not Illustrated

13014801 Harness, Lights

(Freezer)

FREEZER DOOR PARTS

For Model: IX5HHEXWS01

(Stainless Steel)

W10297587

Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

13092259SQ

Stainless Steel

2 Handle, Door

W10202821

Stainless Steel

3 Gasket, Door

W10164041

Black

4 12991703 Screw, Handle

5 13001201 Mount, Handle

REFRIGERATOR LINER PARTS

For Model: IX5HHEXWS01

(Stainless Steel)

W10297587

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806302 Bracket, Control

and Lights

W10180453

Overlay

4 12806407 Housing,

Electronic Control

5 12868513 Board, Control

C3680310V

Switch, Light

7 12806501 Cover, Light

12806601V

Housing, Light

W10194422V

Bulb, Light (2)

12570701V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw (2)

13 12806701 Cover, Damper

14 13012402 Insulation

W10196393

Control, Damper

16 12002355 Thermistor

17 12861601 Switch−Enrgy.Saver

Following Parts Not Illustrated

12868601 Harness, Controls

(Refrigerator)

(Includes # 16)

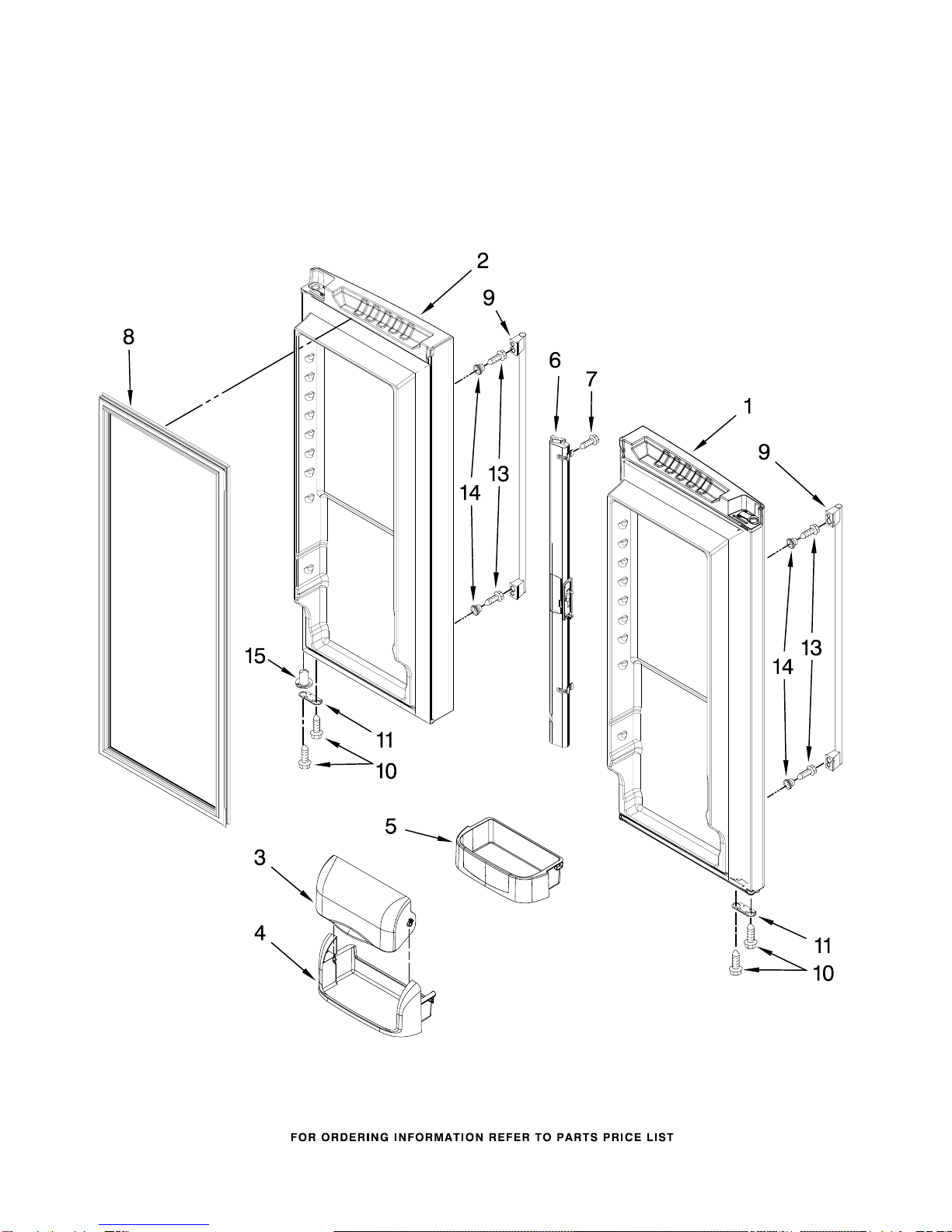

REFRIGERATOR DOOR PARTS

For Model: IX5HHEXWS01

(Stainless Steel)

W10297587

REFRIGERATOR DOOR PARTS

For Model: IX5HHEXWS01

(Stainless Steel)

W10297587

Illus. Part

No. No. DESCRIPTION

1 Door, Left

13024083SQ

Stainless Steel

2 Door, Right

13024082SQ

Stainless Steel

12804701SP

Door, Dairy

12369502SP

Tray, Dairy

5 Bucket, Door

12849124 Medium (3)

12699208 Gallon (2)

6 Mullion, Door

12722803BKV

Black

7 12990204 Screw

8 Gasket, Door

W10163895

Black

9 Handle, Door

W10202821

Stainless Steel

10 12990504 Screw

11 Stop, Door

12968202B

Black

13 12991703 Screw, Handle

14 13001201 Mount, Handle

15 Closure, Door

12028505B

Black

UNIT PARTS

For Model: IX5HHEXWS01

(Stainless Steel)

W10297587

UNIT PARTS

For Model: IX5HHEXWS01

(Stainless Steel)

W10297587

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 12992301 Screw

2 12825803 Blade, Fan

W10210985

Basepan

4 12990511 Screw

W10233569

Tube, Discharge

W10280423

Harness, Evap

Heater

W10215085

Pan, Drain

W10216919

Screw, Shoulder

10 12729129 Evaporator Heater

W10174384

Strap, Bale

12 Start Protect,

Combo

W10194431

Production

W10136414

Service

12639324SP

Thermostat,

Defrost

W10206338

Extension, Basepan

10835903SP

Grommet (4)

W10135026

Condenser

W10206339

Fastener, Basepan

Extension

12225403WD

Tray, Drip

21 12990701 Screw

22 12726403 Evaporator

23 Dam

12225702 Right Side

12225602 Left Side

24 12825101 Motor, Fan

25 10428101 Clip, Heater

W10234024

Harness, Unit

W10143759

Drier

W10164016

Compressor Kit

(Contains Items

12, 17, 27, & 29)

29 2264017 Capacitor

30 12477202 Axle, Roller

W10189184

Shroud

34 10547003 Clip, Drier

35 12477102 Roller (2)

36 10623002 Clip, Evap (2)

W10137529

Grommet (4)

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
